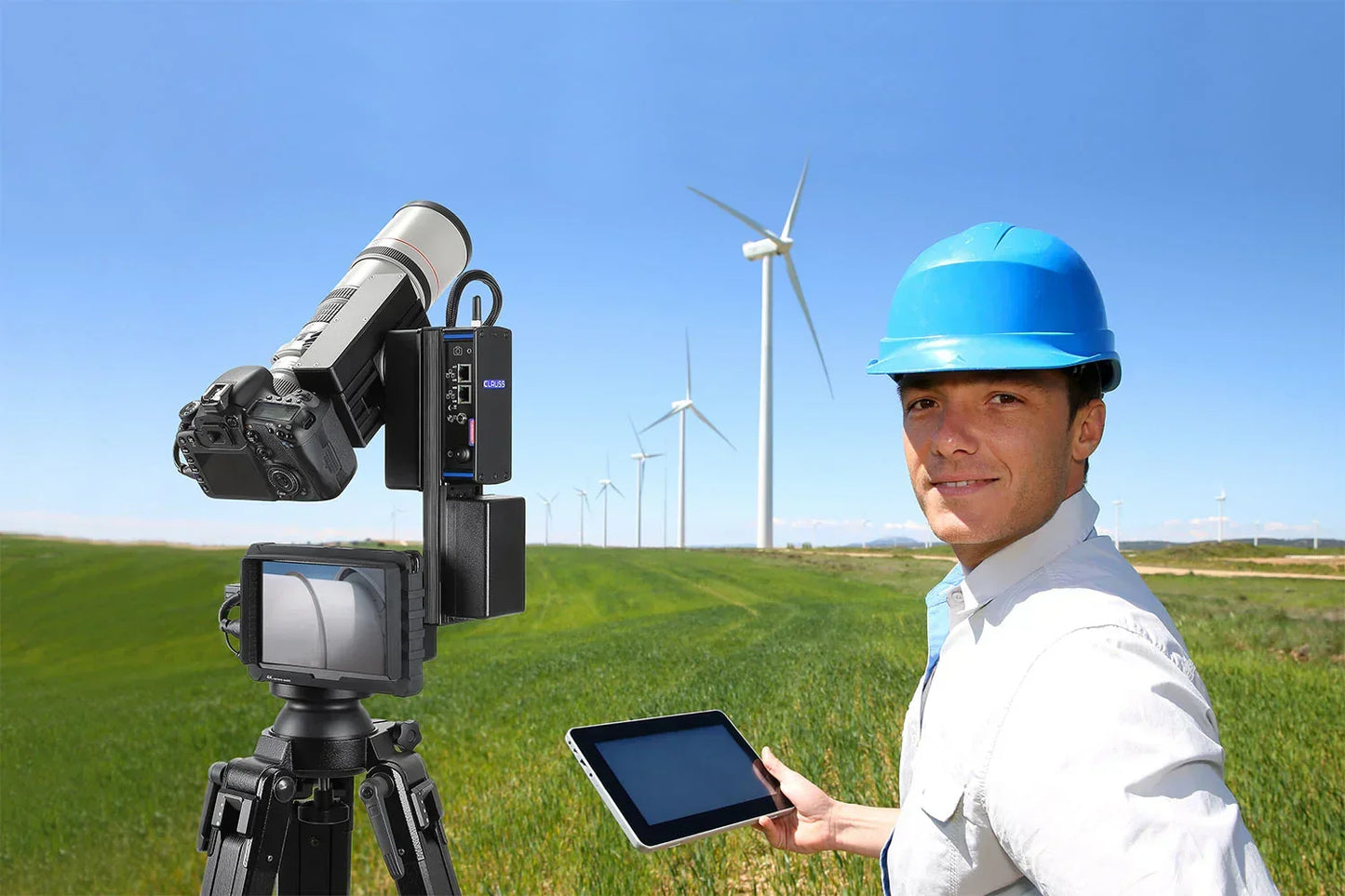

Clauss WTLRIAS The inspection system for wind turbines and large structures
Clauss WTLRIAS The inspection system for wind turbines and large structures
Couldn't load pickup availability
CLAUSS WTLRIAS System for Wind Turbine Inspection: ultra-sophisticated, ultra-long-range imaging technology designed to detect erosion, cracks, surface wear, and color variations indicative of internal defects on turbine rotorblades. The system, the result of over five years of development with leading international maintenance operators, enables reliable, precise, and ultra-high-resolution inspection without the risk, cost, and complexity of manual or drone inspections. Featuring a motorized, articulated module with a high-definition camera and advanced optical focus, WTLRIAS photographs entire rotorblade segments, generating digital defect maps for complete and transparent documentation, accessible even to non-specialists. An essential solution for maintenance technicians, industrial operators, and decision makers, it streamlines inspections, reporting, and operational decisions with clear visual evidence in any environmental condition.
Main Features
- Motorized pan-tilt head with precise optical focus for DSLR and medium-format cameras.
- Ultra high photographic resolution to capture minimal erosions and cracks.
- Nearly autonomous segment scanning for complete rotor blade surface coverage.
- Wireless (WLAN) and wired data interfaces for flexible integration.
- Robust system designed for reliable daily use under harsh conditions.
- Modular and customizable setup tailored to specific customer needs.
- Complete German manufacturing and option for turnkey or OEM deployment.
- Battery-operated with long runtime and fast rechargeable Li-Ion technology.
| Technical specification | Detail |
|---|---|
| Device type | Motorized recording system |
| Control device | Any device with a browser |
| Data interfaces | WLAN (802.11 b/g/n), LAN, SD/SDHC card |
| Saving settings | SD card, control device |
| Compatible cameras | DSLR and medium format cameras |
| Dimensions | 300 mm x 325 mm x 66 mm |
| Weight | 3.7 kg |
| Operating temperature | -5 °C to +40 °C |
| Horizontal field of view | 0° – 360° |
| Vertical field of view | -90° – +90° |
| Horizontal angular resolution | 0.015° |
| Vertical angular resolution | 0.005° |
| Rotation limitation | Unlimited |
| Horizontal gear steps | 24,000 per rotation, with magnetic brake |
| Vertical gear steps | 72,000 per rotation with reference point |
| Couple | Horizontal: 4,000 mNm Vertical: 11,000 mNm |
| Diet | Rechargeable Li-Ion battery |
| Rated voltage | 11.1 V |
| Battery capacity | 5.2 Ah |
| Autonomy | About 7 hours |
| Battery weight | 5 kg |
| Battery size | 66 mm x 107 mm x 50 mm |
| Battery working temperature | -10 °C to +45 °C |
| Power supply | 100 – 240 V / 50 – 60 Hz |
| Charging time | About 4 hours |
| Charger operating temperature | 0°C to +40°C |
