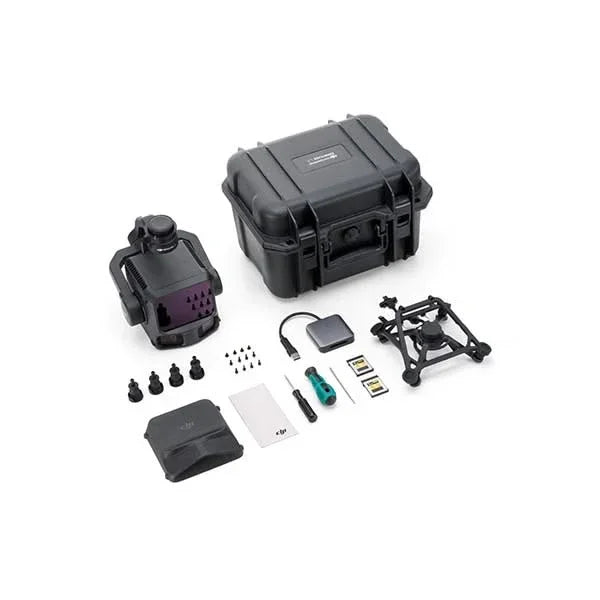

DJI Zenmuse L3 SP Plus

1535nm long-range LiDAR system with dual 100MP RGB cameras. High accuracy, deep penetration, and coverage of up to 100 km² per day.

Complete solution with 1-year DJI Care Enterprise Plus included.

⚠️ Compatible with DJI Matrice 400 (Not compatible with M300/M350 RTK)

The Zenmuse L3 is DJI’s first long-range, high-precision airborne LiDAR system, designed for GIS operators, large-scale surveys, critical infrastructure, and professional geospatial missions.

Key Features

• The system integrates a 1535 nm wavelength LiDAR module that allows a range of up to 950 m even on surfaces with 10% reflectivity.

• Pair of 100MP RGB cameras each (4/3″ sensor) with mechanical shutter, ideal for high-resolution mapping and true color.

• High accuracy: For example, at 120m flight altitude, the vertical RMSE accuracy is about 3cm, and the horizontal RMSE is about 4cm.

• Daily coverage of up to 100 km², allowing for efficient, large-scale surveys.

• Multi-return support up to 16 returns, improving vegetation penetration and ground point density.

• High-precision POS (Positioning and Orientation System) and integrated 3-axis stabilization (gimbal) for compact installation and operation.

• Compatibility: Designed for quick mounting via SkyPort mount on the DJI Matrice 400 drone (note: not compatible with M300/M350 RTK).

Operational benefits

• Maximum efficiency : thanks to its extended range and high data acquisition speed, it allows you to cover large areas in less time than conventional systems.

• High Resolution and Color Quality : 100MP cameras provide detailed RGB images, perfect for improving point cloud classification and interpretation.

• Topographic accuracy : The LiDAR + POS combination ensures data that meets high requirements in topographic, infrastructure and environmental surveys.

• Penetration and versatility : The 1535 nm LiDAR module improves penetration under vegetation and in difficult conditions, making it also suitable for power line inspections and engineering surveys.

• Integrated Workflow : It is part of the DJI Enterprise ecosystem (mission planning, acquisition, processing), making it easy to integrate into professional workflows.

User instructions

• Exclusive mounting on DJI Matrice 400: ensure compatibility and vehicle configuration.

• For maximum accuracy and performance, plan for appropriate altitudes (e.g. 120-300 m) and optimal light and reflectivity conditions.

• Use compatible software (e.g. DJI Terra) for point cloud processing and GIS/archaeological workflow.

• Consider environmental conditions: The hardware is designed to operate in a wide thermal and environmental range.
