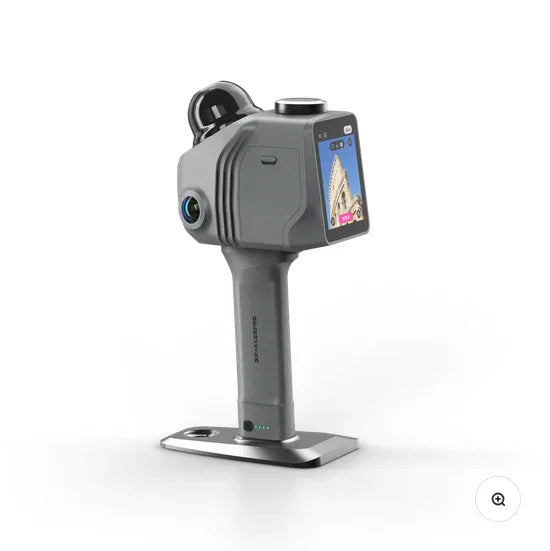

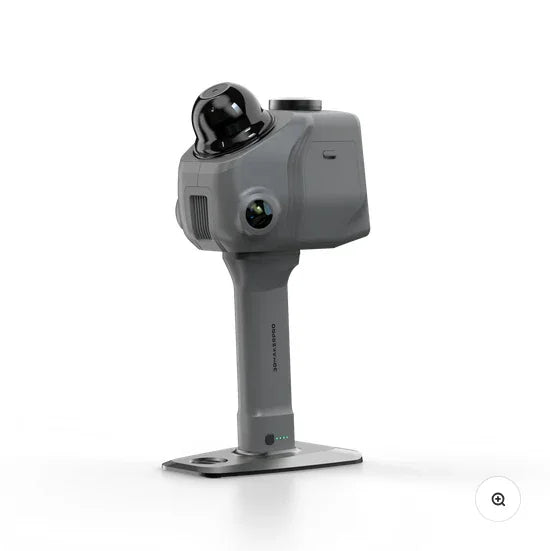

The 3DMakerPro Raven is your personal spatial LiDAR scanner: a professional, compact, and standalone tool designed for high-precision 3D surveys in open spaces, industrial environments, caves, construction sites, and much more. Weighing only 1.1 kg and featuring an integrated 12,000 mAh battery (2-hour autonomy), the Raven transforms any professional into an advanced survey operator without the need for expensive equipment or dedicated technical teams.
LiDAR Technology with Millimetric Precision
The Raven captures 3D point clouds at 150,000 points per second, with a declared accuracy of 2cm at 10 meters, 3cm at 20 meters and 5cm at 40 meters, for a maximum operating range of 80-100 meters. The 905nm laser is certified Eye Safe Class 1 (IEC60825-1:2014), safe for use in all environments. The angular scan covers 360° horizontally and 40° vertically, ensuring complete spatial coverage in a single session.
12MP Texture and Real-time Gaussian Splatting
Thanks to the 12MP color texture system (1 or 2 camera configuration), each point cloud is enhanced with realistic photographic details. The integrated Fusion Splatting Engine generates models in 3D Gaussian Splatting PLY format, as well as standard exports in Color Point Cloud PLY and Colored Polygonal Model OBJ, ready for use in design software, BIM, or published online in interactive 360° mode.
AMOLED Screen, 8-core Processor, and Instant Publishing
The integrated 3.9" AMOLED display allows you to view and control scans directly on the device, supported by an 8 Core 2.4GHz processor with 32GB of memory (expandable via TF card). The Instant Web Publisher function allows you to share interactive 3D virtual tours directly from the device via Wi-Fi 5, without post-processing on a PC.
RTK Ready and Insta360 Compatible

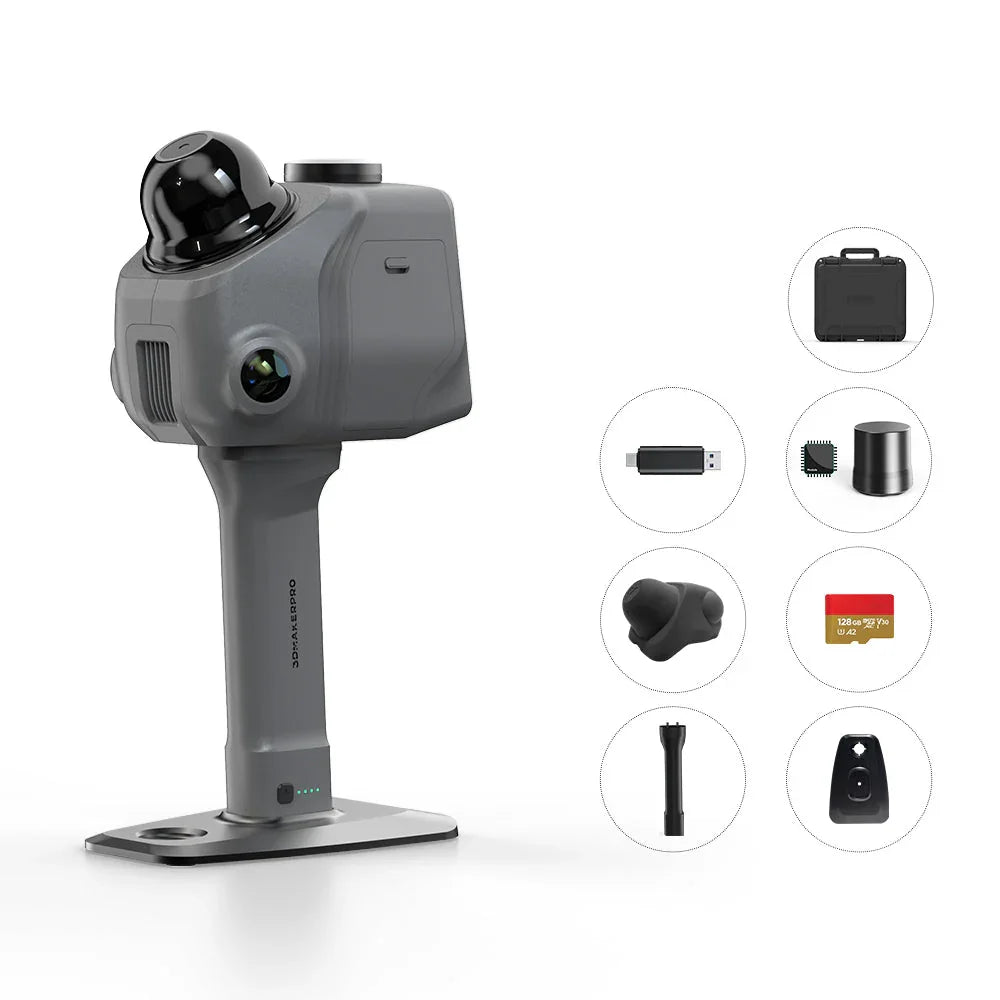

The Raven supports the RTK expansion kit for high-precision geospatial positioning, ideal for topographic surveys and outdoor mapping. It is also compatible with Insta360 X4/X5 expansion kits to enrich scans with 360° spherical video footage.

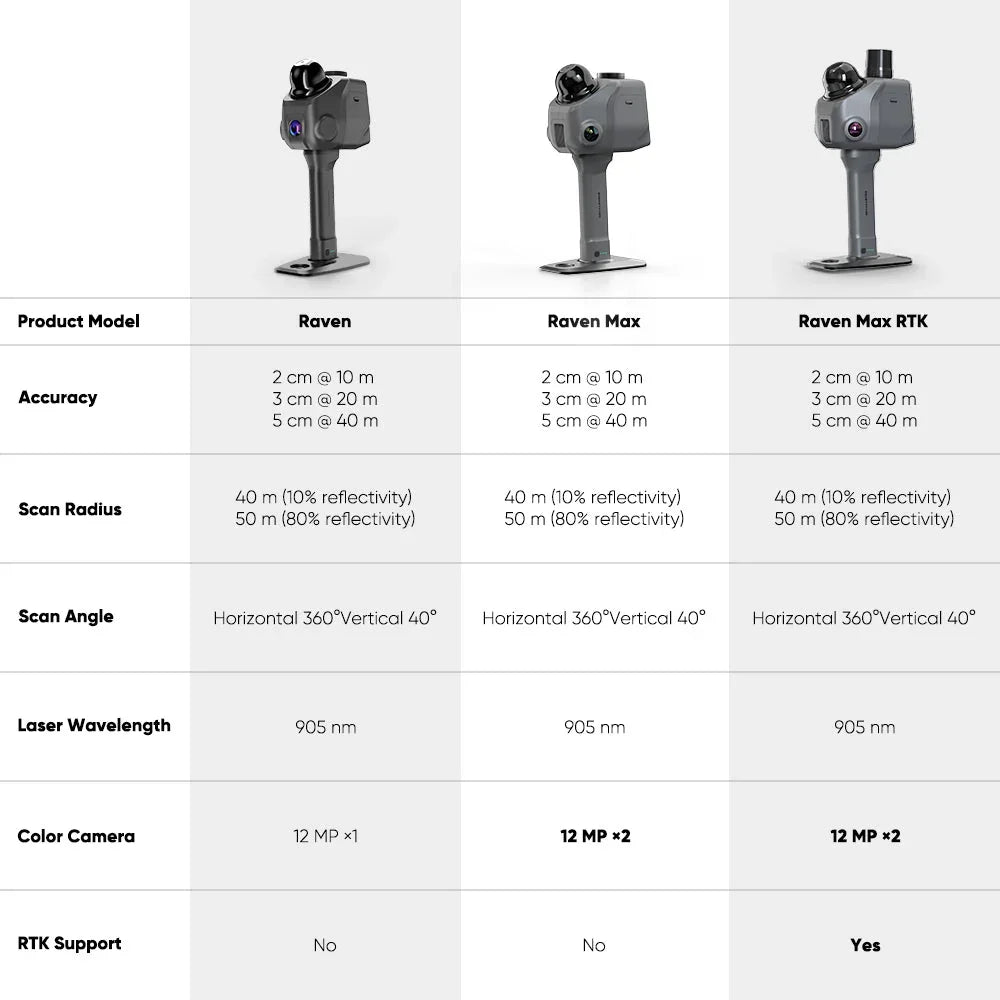

LiDAR Performance
| Parameter | Specification |
|---|---|
| Accuracy | 2cm @10m · 3cm @20m · 5cm @40m |
| Scan range | 40m @ 10% reflectivity / 50m @ 80% reflectivity |
| Max range | 80–100 meters |
| Horizontal angle | 360° |
| Vertical angle | 40° |
| Point cloud frequency | 150,000 points/second |
| Laser source | 905 nm |
| Laser safety | Class 1 Eye Safe (IEC60825-1:2014) |
Optical System and Color
| Parameter | Specification |
|---|---|
| Color texture | 12MP |
| Camera configuration | 1 camera or 2 cameras |
| HDR mode | Not available |
Hardware and Connectivity
| Parameter | Specification |
|---|---|
| Processor | 8 Core @ 2.4GHz |
| Memory | 32GB (expandable via TF card) |
| Screen | 3.9" AMOLED |
| Connectivity | Wi-Fi 5 |
| Data interface | USB-C × 1 |
| Power supply | USB-C × 1 (supports charging during use) |
Battery and Autonomy
| Parameter | Specification |
|---|---|
| Battery capacity | 12,000 mAh |
| Operating autonomy | ~2 hours |
| External power supply | Supported during use |
Format and Dimensions
| Parameter | Specification |
|---|---|
| Dimensions | 148 × 288 × 98 mm |
| Weight | 1.1 kg |
Output and File Formats
| Parameter | Specification |
|---|---|
| 3D Point Cloud | Color Point Cloud — .PLY
|
| Gaussian Splatting | 3D Gaussian Splatting — .PLY
|
| Polygonal Model | Colored Polygonal Model — .OBJ
|
