3DMakerpro Hawk LiDAR de précision
3DMakerpro Hawk LiDAR de précision
Impossible de charger la disponibilité du service de retrait
Superior precision LiDAR
High point acquisition frequency: 480,000 points per second
Full 360° horizontal, 63.5° vertical field of view
RTK module for centimetric precision

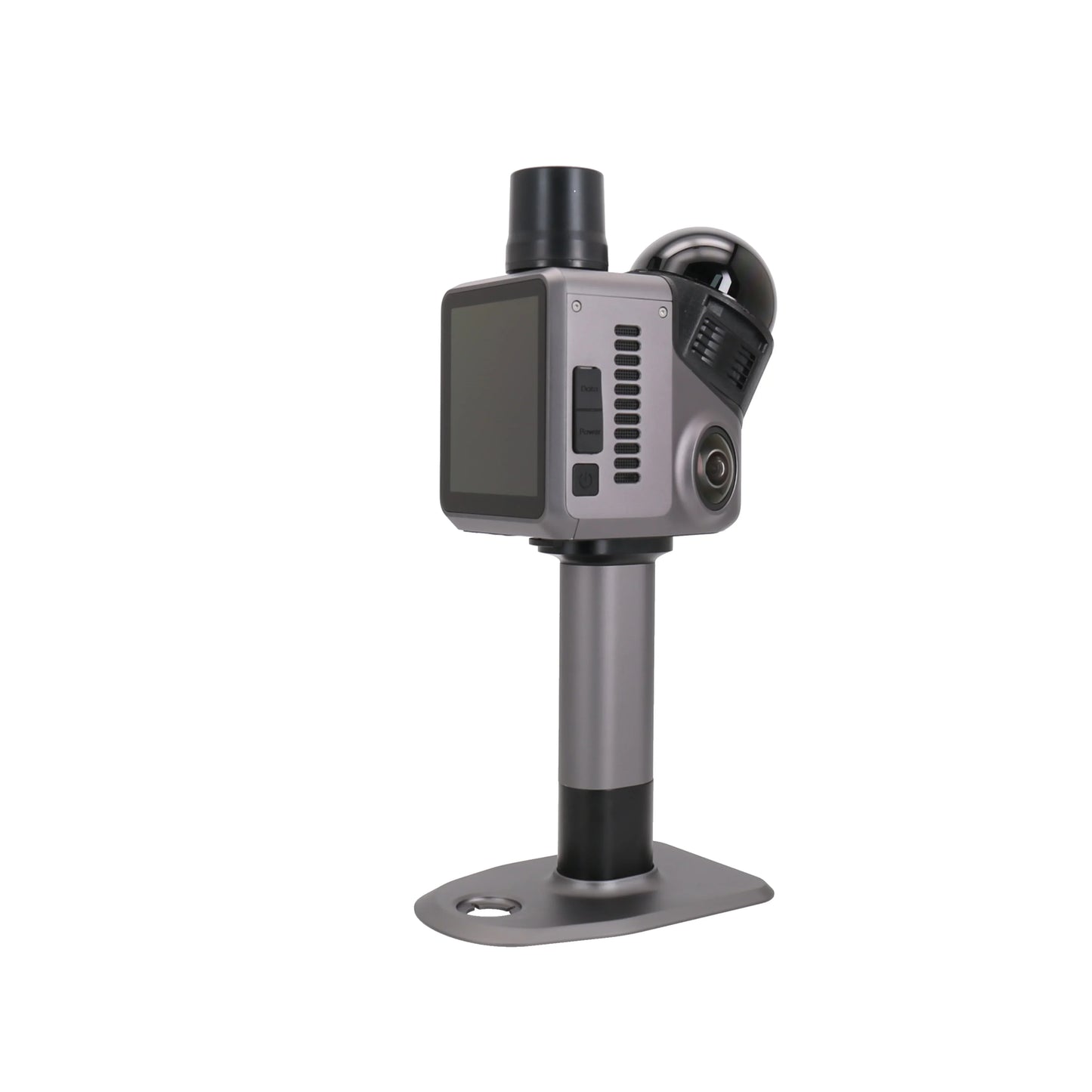

The Hawk 3D scanner is the protagonist of the new generation of portable 3D scanners, designed to capture every detail of environments and objects with extreme accuracy. Ideal for professional applications requiring precision and speed, the Hawk combines advanced LiDAR technology and a wide scanning range to quickly transform real spaces into detailed virtual models. Whether for architectural surveys, environmental monitoring, or creating immersive content, the Hawk is ready to operate with ease even in complex conditions.
Superior precision LiDAR: accuracy up to 1.5 cm
Thanks to its new-generation LiDAR system, the Hawk offers remarkable precision: 1.5 cm at 10 meters, 3 cm at 20 meters, and 5 cm up to 40 meters. The scanning range extends up to 140 meters, ensuring precise data even on large surfaces or distant details. The integrated RTK module allows for even higher levels of precision for dynamic surveys and complex environments.
Wide field of view for uncompromising scanning
With a full 360° horizontal and 63.5° vertical scanning angle, the Hawk captures every angle without the need for continuous repositioning, reducing working times and improving scan coverage.
Extremely dense points for real details
With an acquisition frequency of up to 480,000 points per second, the Hawk produces extremely dense and detailed point clouds, perfect for 3D modeling, spatial analysis, and immersive applications.
Flexibility and speed in every project
The Hawk is designed for high performance even on the move or on different platforms, ensuring stability and data quality in all conditions thanks to its powerful processor and robust IP65-rated design.
Everything you need, ready to use
The Hawk's complete configuration includes all necessary hardware, including a long-lasting battery for one hour of continuous use and fast charging capability. The integrated 3.9" AMOLED display allows for real-time control and visualization of the ongoing scan.
3DMakerpro Hawk Technical Specifications
| Parameter | Value |
|---|---|
| Accuracy | 1.5 cm at 10 meters, 3 cm at 20 meters, 5 cm at 40 meters |
| Scanning range | 40-70 meters (>10% reflectivity or >80% reflectivity) |
| Scanning field | 80-140 meters |
| Scanning angle | Horizontal 360°, Vertical 63.5° |
| Point cloud frequency | 480,000 points/second |
| Laser source | 905 nm |
| Eye safety level | Class 1 (IEC60825-1:2014) Eye Safety |
| Imaging system | 2x 13 MP cameras with 1-inch sensor |
| Visual tracking | NIR (Near-Infrared) system with single camera |
| Data interfaces | USB Type-C x2 |
| Network support | Wi-Fi 5 |
| Display | AMOLED 3.9 inches |
| Output formats | 3D Color Point Cloud (PLY), 3D Color Polygonal Model (OBJ), 3D Gaussian Splatting (PLY) |
| Battery | 12,000 mAh integrated, supports 1 hour of work, supports external power while charging |
| Configuration | 8 cores 2.4 GHz, 32 GB (supports TF card expansion) |
| Dimensions | 120 × 145 × 85 mm |
| Weight | 900 g |
| Resistance standard | IP65 (water and dust resistance) |
| Casing | All-metal for better heat dissipation |
| Charging | 65W fast charging (0-80% in 30 minutes) |
| Battery life | 1 hour of continuous use |
The Hawk's specifications show significant improvements over other 3DMakerpro scanners, in particular:
- Higher acquisition frequency: 480,000 points/second (vs 200,000 for the Eagle)
- Expanded vertical angle: 63.5° (vs 59° for the Eagle)
- Robust industrial design: IP65 standard and metal casing
- Advanced imaging system: Dual 13 MP cameras with 1-inch sensor
- Superior AMOLED display: 3.9 inches high resolution
These technical data position the Hawk as a high-end professional LiDAR scanner, ideal for applications requiring precision, robustness, and high performance.
NRTK Correction Service Included (Optional)
With the TruePoint CM (1 YEAR) option, you get maximum centimetric precision guaranteed across all constellations (Full GNSS). An unlimited NRTK correction service for 12 months, ideal for immediate, uninterrupted work with maximum reliability.
