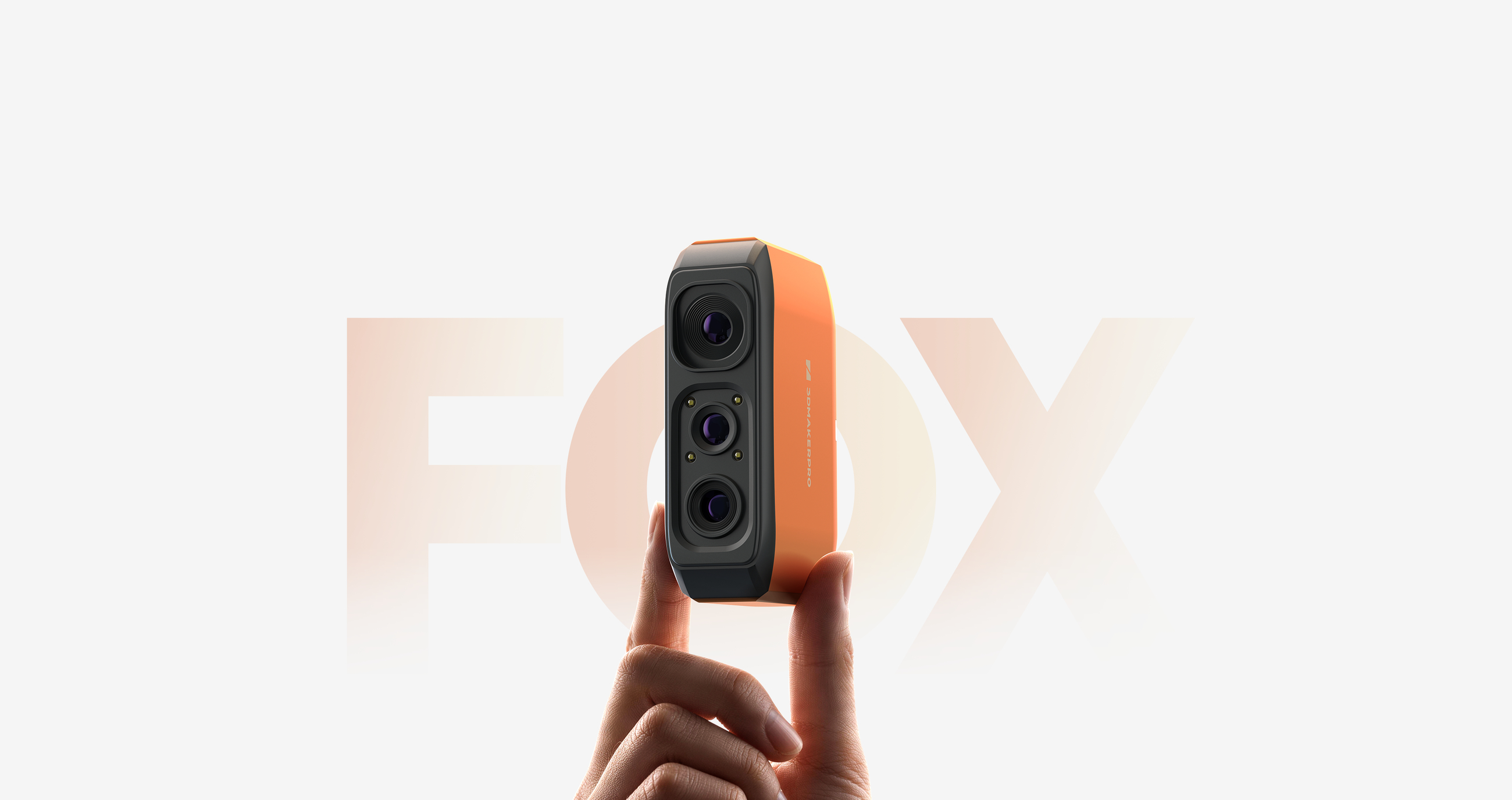

3DMakerpro Fox

3DMakerpro Fox

€254,09 EUR
€254,09 EUR
Promotion Épuisé
Taxes incluses. Frais d'expédition calculés à l'étape de paiement.

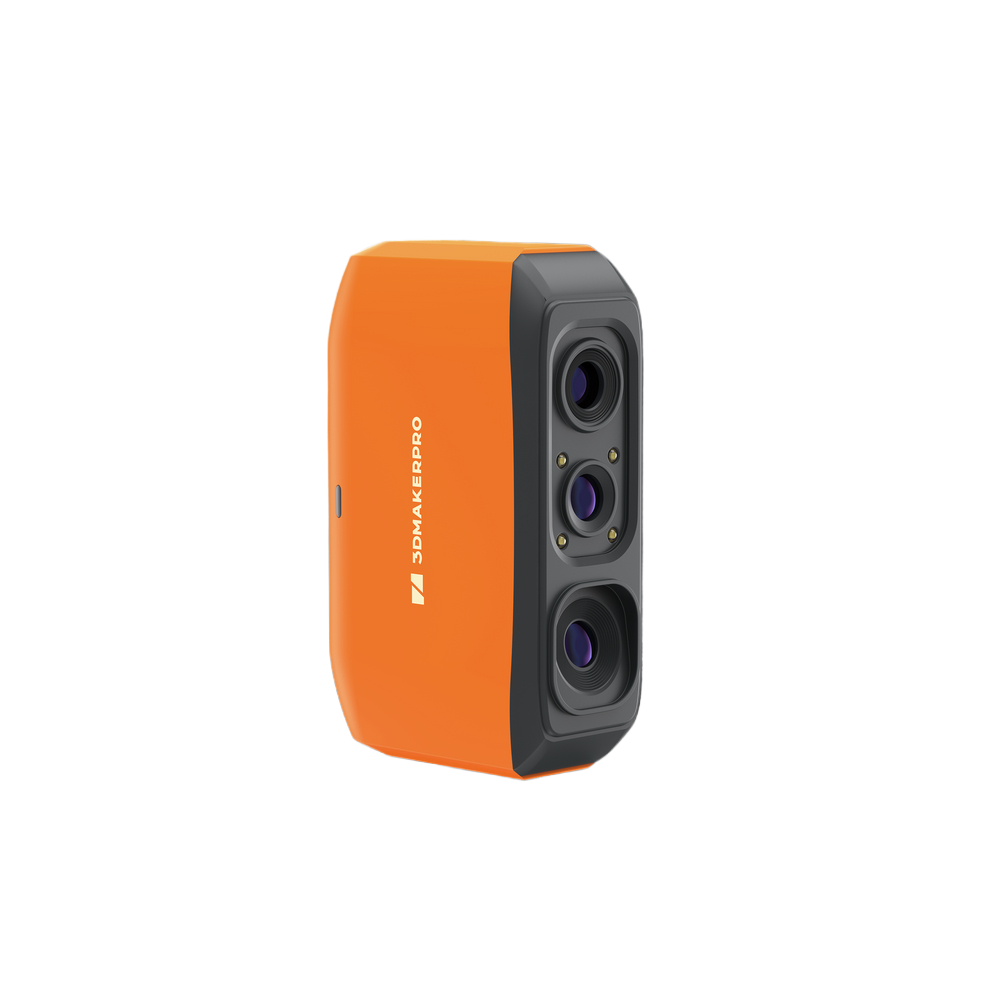

The 3DMakerpro Fox is a desktop 3D scanner designed to create accurate digital copies of small to medium-sized objects. With a precision of 0.02 mm, it is ideal for technical applications where precise measurements are essential, such as producing spare parts or quality control.


Highlights:

  • High Precision: 0.02 mm measurement accuracy for a perfect fit.
  • Precise Details: 0.05 mm point distance ensures sharp models.
  • Stable Scanning: Tripod mounting minimises vibrations and scanning errors.
  • Intuitive Software: JMStudio included for quick post-processing.
  • Standard Formats: Saves in STL and OBJ for 3D printing and CAD.

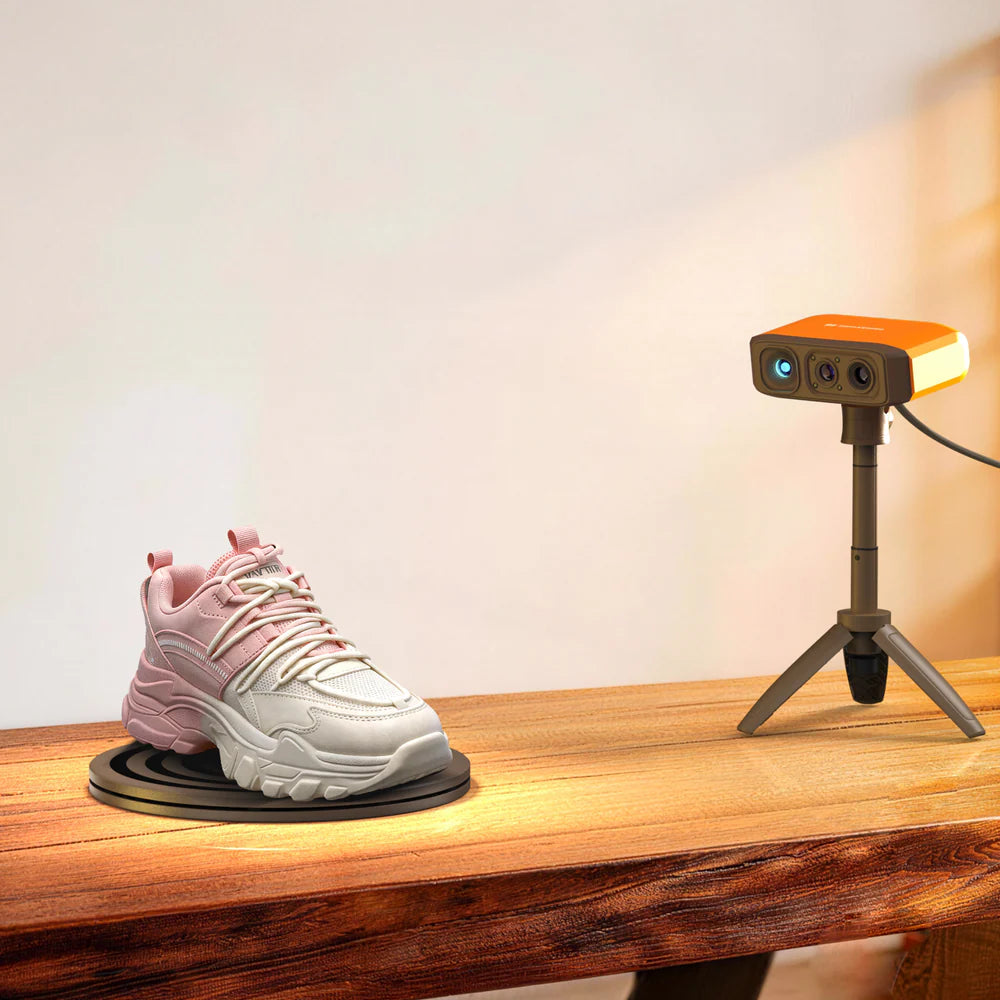

  • Turntable Included: Comes with a manual turntable for easy scanning from different angles.

Why choose 3DMakerPro Fox?

The main advantage of the Fox lies in its ability to perform extremely accurate scans when digitising physical objects. If you have a broken mechanical component with no technical drawings, you can quickly scan it and create an exact digital copy. This replaces lengthy and complex manual measurements and reduces the risk of errors in manufacturing a spare part or making modifications with CAD software.

To simplify setup, the scanner comes with a manual turntable, power supply, and necessary cables included in the box. This allows you to start scanning and setting up your workspace immediately.

Industry & Spare Parts:

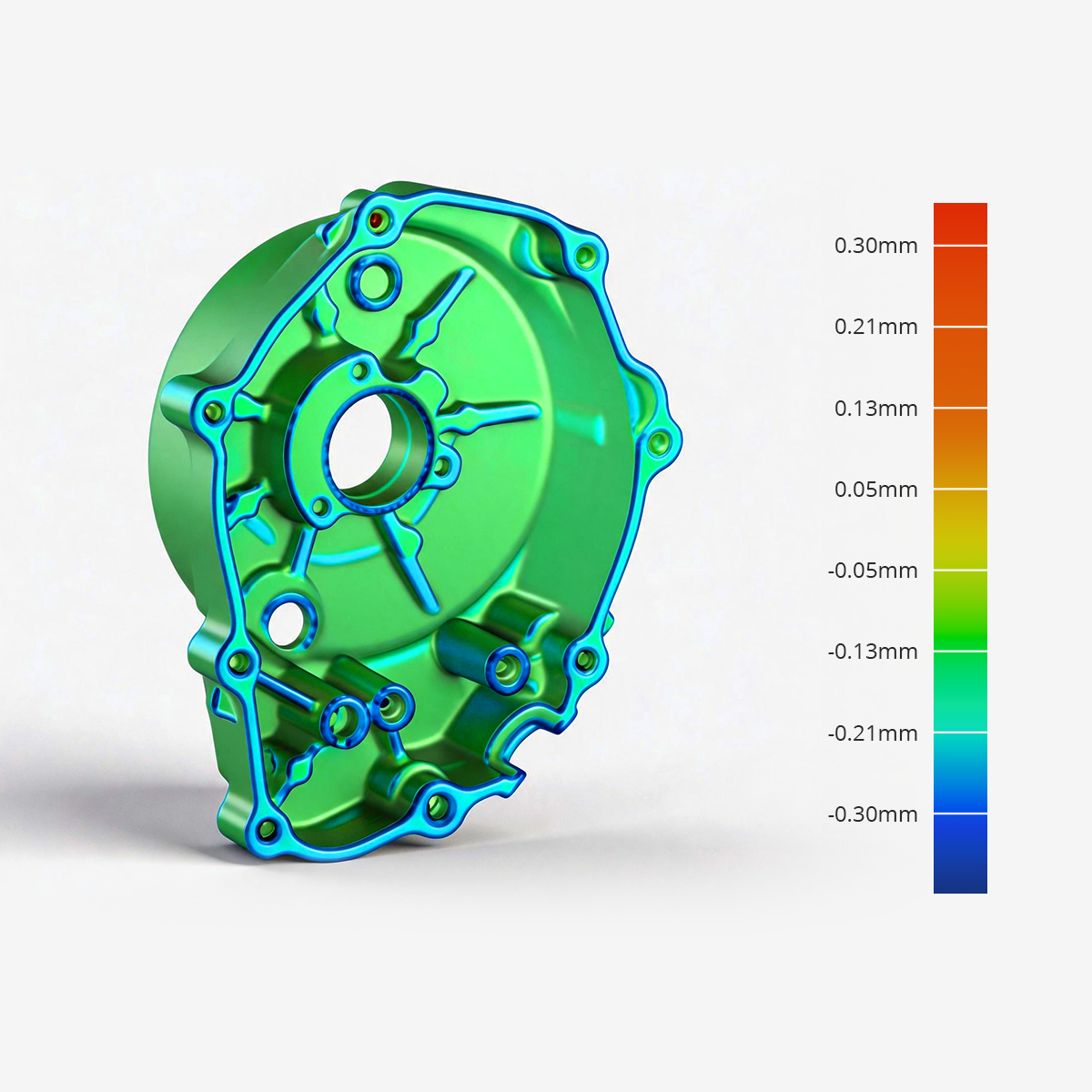

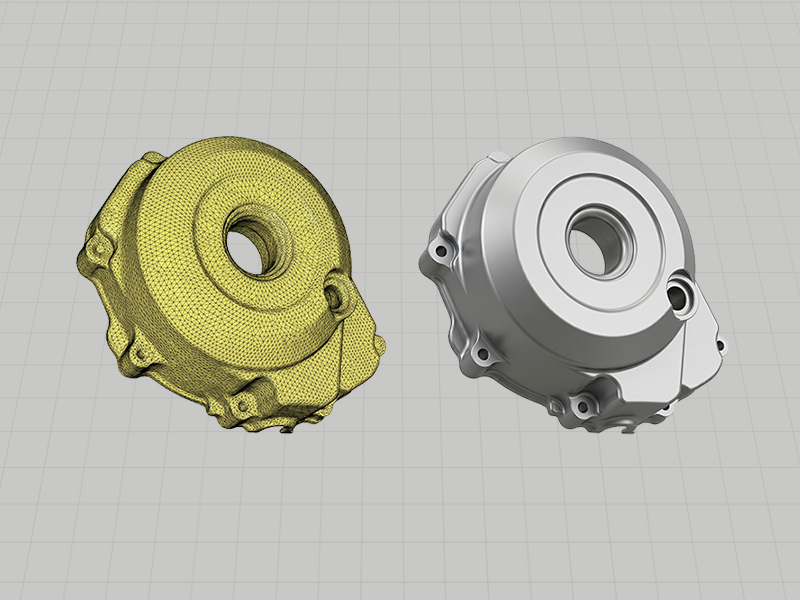

Scan mechanical components for precise assembly and reverse engineering.

Wearables & Body:

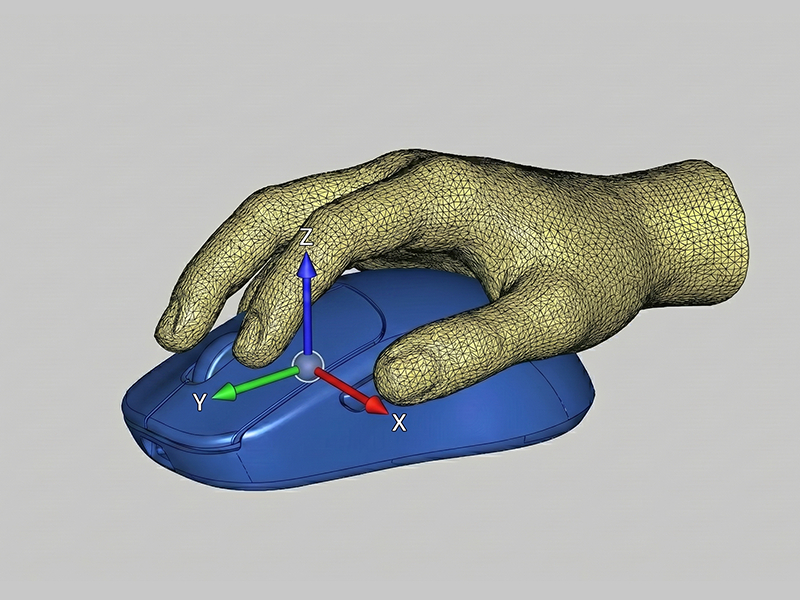

Scan your hand, face, or body for custom grips and unique prints.

Art & Design:

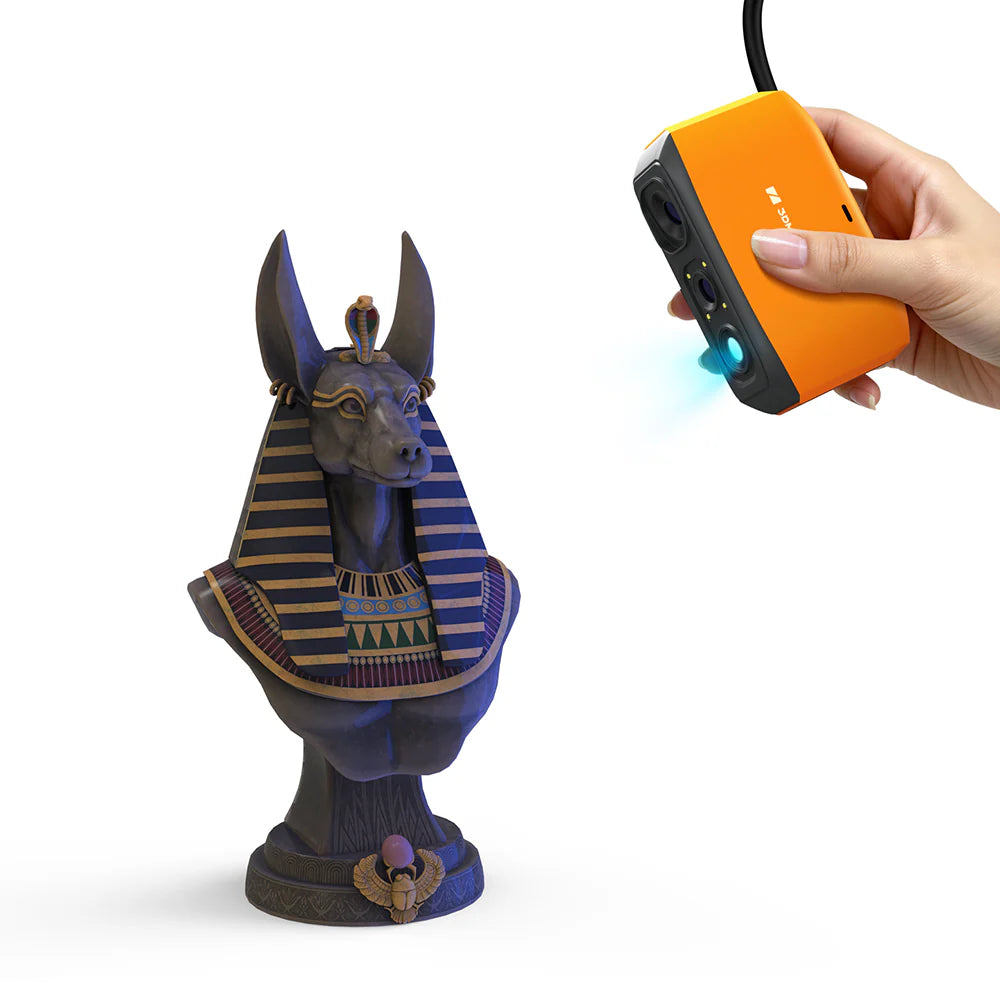

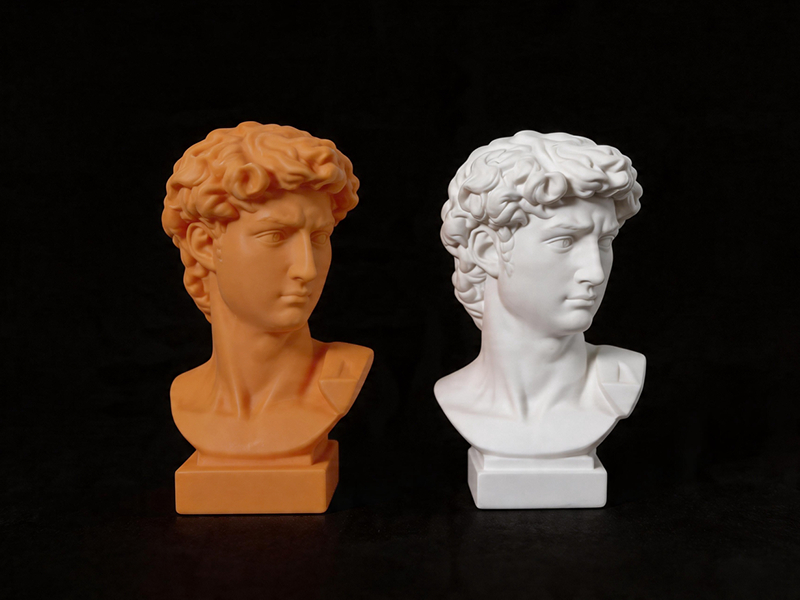

Digitise sculptures and artworks with microscopic details.

Fashion & Footwear:
Ideal for designing shoes and fashion items with accurate digital copies.

Quick Results on the Desktop

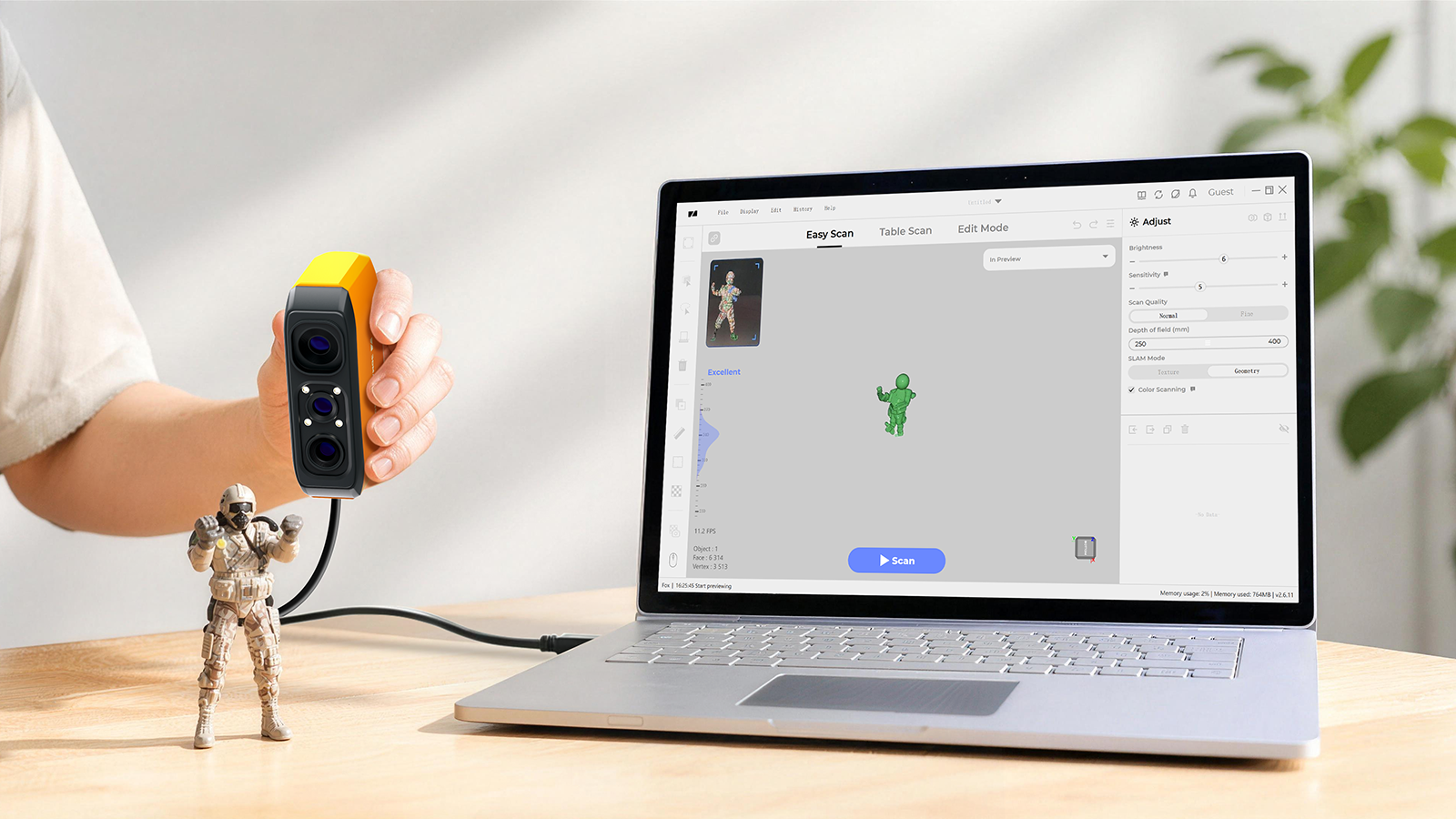

The scanner is an excellent tool for anyone looking to transform a physical prototype into a finished digital file in minutes. You can see the model being created in real time on the screen, giving you full control to ensure every angle is captured correctly. Thanks to its compact size, it easily fits on any desk, making it simple to have a professional scanning station always at hand.


Technical Specifications

Item Specification
Product 3DMakerpro Fox
Type Handheld 3D scanner
Dimensions 115 x 70 x 35 mm
Weight 210 g
Accuracy 0.07 mm
Resolution 0.10 mm
Single Capture Area 200 x 100 mm
Object Size approx. 40–1200 mm
Frame Rate 10 fps
Light Source NIR
Colour Texture Mono textures / monochrome
Working Distance 150–400 mm
Interface USB 2.0
Output Formats OBJ, STL, PLY, ASC
Supported Operating Systems Windows 10/11 64-bit, macOS 12/13
Minimum PC Requirements i5 8th gen, 16 GB RAM, MX250 2 GB
Recommended PC Requirements i7 8th gen, 16 GB RAM, RTX 3060 4 GB



FAQ

Question Answer
Which objects work best with Fox? Objects from approx. 40 to 1200 mm; it is suitable for common objects, sculptures, mechanical parts, artefacts, and surfaces that are not too large.
Is it accurate enough for 3D printing? Yes, the stated accuracy is 0.07 mm, which is suitable for most common printing and reverse engineering tasks.
Can I scan dark or black objects? Yes, the NIR system is reported to be effective on dark and non-reflective surfaces.
Can I scan transparent or highly reflective objects? With a light layer of matte spray or surface treatment, scanning is more reliable.
Can I use it for small objects? Yes, but it is not ideal for very small items under approximately 40 mm.
Can I use it for very large objects? No, for objects over approximately 1200 mm, it is not the ideal choice.
Does it need calibration? The PDF indicates a guided and simple setup; it is not presented as a complex operation for the end-user.
Does it need markers? AI-based feature recognition and real-time alignment reduce the need for markers, but they can be useful in complex cases.
Can it scan without rotating the object? Yes, the software allows for manual scanning and real-time guidance; the manual turntable helps in simpler cases.
Can I resume an interrupted scan? Yes, the PDF indicates an immediate recovery after losing tracking without starting over.
Is the software included?Yes, the 3DMakerpro scanning software is included and described as free.
Are there subscriptions? No, the PDF indicates that there are no subscription costs for scanning or processing.
What systems does it run on? Windows 10/11, macOS 12/13, Android 10, and iOS 15.
Can I use my phone to scan? The phone is referred to as a camera for acquisition, while processing and export occur in the software.
Does it need an Internet connection to scan? No, scanning and processing also work offline; Internet is only needed for specific accounts, updates, or transfers.
Is the data stored locally? Yes, the PDF states that scan data is stored locally on the device for privacy protection.
What files does it export? Once exported, the scan can be imported directly into standard slicing software, without additional conversions.
