xTool F2 – Portable Dual Laser Engraver (5W IR + 15W Diode)

The xTool F2 represents the evolution of the portable xTool series, combining the versatility of two laser sources in a compact and powerful device. Designed for professionals, craftsmen and creatives who need on-site customization or a flexible solution for small productions, the F2 manages over 300 different materials thanks to the dual-laser system that integrates a 15W diode module for organic materials and a 5W infrared laser for marking on metals.

Main Features

The heart of the xTool F2 is the dual-laser system which allows you to switch seamlessly from engraving on wood, leather and acrylic to deep marking on steel, aluminum, gold and silver. The diode laser from 15W ensures clean and deep cuts on organic materials, while the laser 5W IR (1064nm) excels in metal marking with ultra-fine details thanks to a laser spot of just 0.03 × 0.03 mm .

There built-in 50 megapixel camera provides a real-time preview of the entire work area, ensuring perfect alignment with accuracy up to 0.1 mm . This feature eliminates positioning errors and material waste, making every job accurate the first time. The system autofocus and manual adjustment via side knob further simplify the workflow.

With a With a maximum speed of 6,000 mm/s , the F2 is approximately 50% faster than its predecessor, the F1, allowing you to complete complex tasks up to three times faster. Despite the high speed, resolution and reproduction accuracy remain excellent, ensuring sharp details and clean lines.

The Three Available Variants

F2 Standalone

The configuration F2 Standalone It includes only the laser engraver with all its basic components: power supply, USB cable, manual, and software. It's the ideal choice for those looking to start with a compact solution for single customizations, material testing, or occasional jobs. The standard work area of 115 × 115 mm It is sufficient for most small items such as key rings, name tags, jewelry and smartphone cases.

F2 + Slide Extension

This variant adds the Slide Extension , a pre-assembled accessory that expands the work area by almost 4 times , bringing it to 400 × 115 mm . The slide extension features built-in precision rulers, material clamps, and automated movement for one-pass batch processing. It's perfect for engraving multiple objects at once, working on long pieces like batch coasters, custom rulers, or belts.

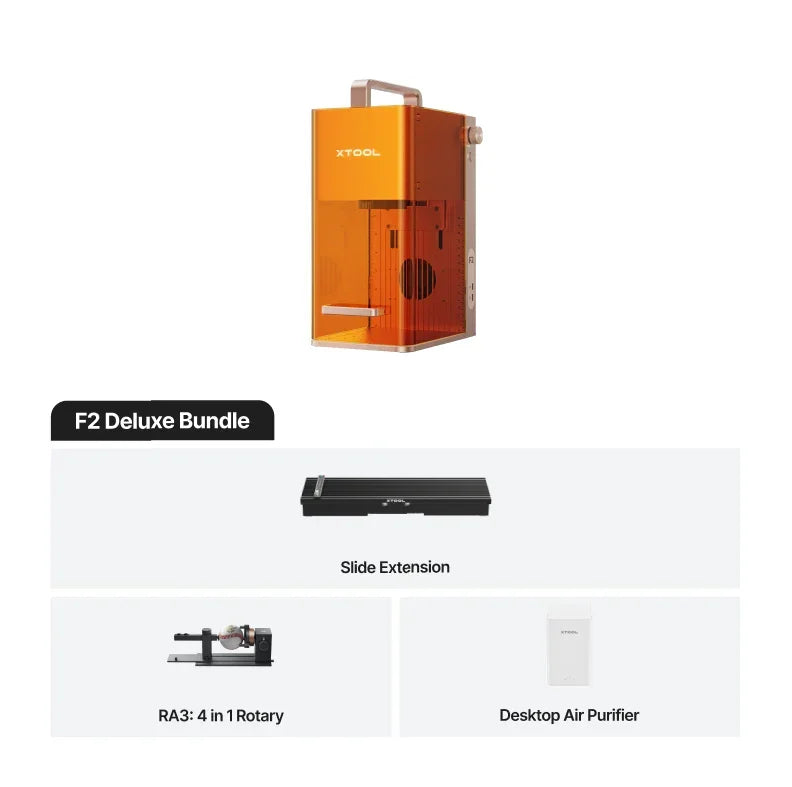

F2 Deluxe Bundle

The Deluxe Bundle This represents the complete configuration for professional use. It includes:

• xTool F2 – dual-laser engraver
• Slide Extension – for expanded work area
• RA3 Smart Rotary – intelligent rotary module with MagSwap™ system for engraving on cylindrical, spherical objects and rings (diameter from 3 to 198 mm)
• Desktop Air Purifier – desktop air purifier that filters 99.97% of fumes and particulates

This setup is designed for those who handle personalized orders on three-dimensional objects such as glasses, bottles, bracelets, and rings, while maintaining a safe and professional work environment.

Comparison of Variants

Technical Specifications

---

Compatible Materials

Engraving with 15W Diode Laser (455nm)

Engraving with 5W IR Laser (1064nm)

Cutting with 15W Diode Laser

Recommended Applications

The xTool F2 is particularly suitable for:

• Fairs and markets – instant customization of gadgets and souvenirs
• Phone and accessories stores – smartphone cover engraving
• Jewelry and costume jewelry – marking rings, bracelets, pendants (with RA3)
• Events sector – personalized favors for weddings, baptisms, graduations
• Craftsmanship – creation of unique objects in wood, leather, acrylic
• Industrial sector – serial marking, product traceability, identification plates
• Hotel and tourism – personalized welcome gifts

Software and Connectivity

The F2 works exclusively with xTool Studio (formerly known as xTool Creative Space), a free software compatible with Windows and macOS. The software includes advanced features such as batch processing, curved surface engraving, 3D embossing, and intelligent autofill. It can be connected via USB cable, Wi-Fi or IP address for maximum flexibility in the work environment.
