XTOOL Auto-Darkening Laser Welding Helmet
XTOOL Auto-Darkening Laser Welding Helmet
Couldn't load pickup availability

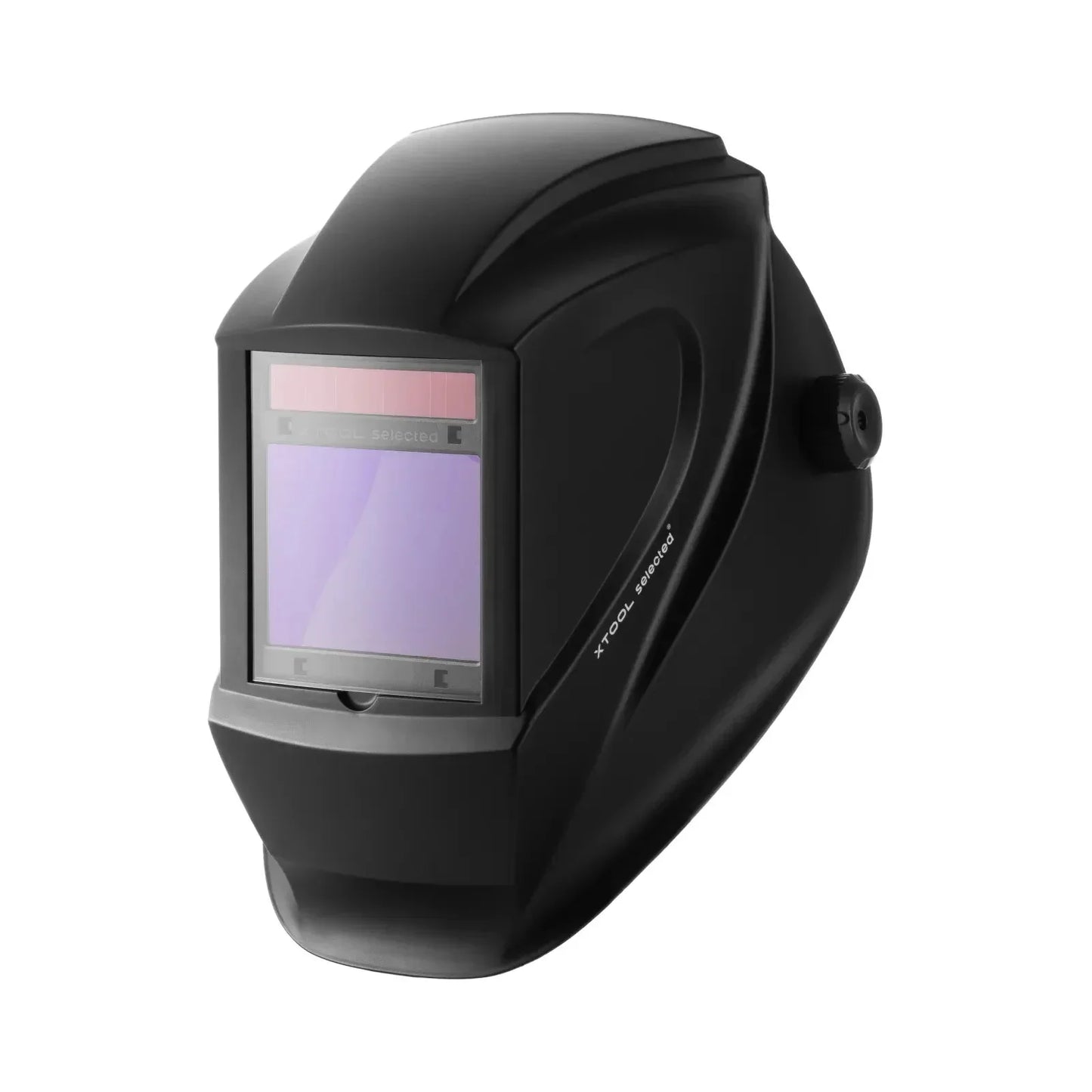

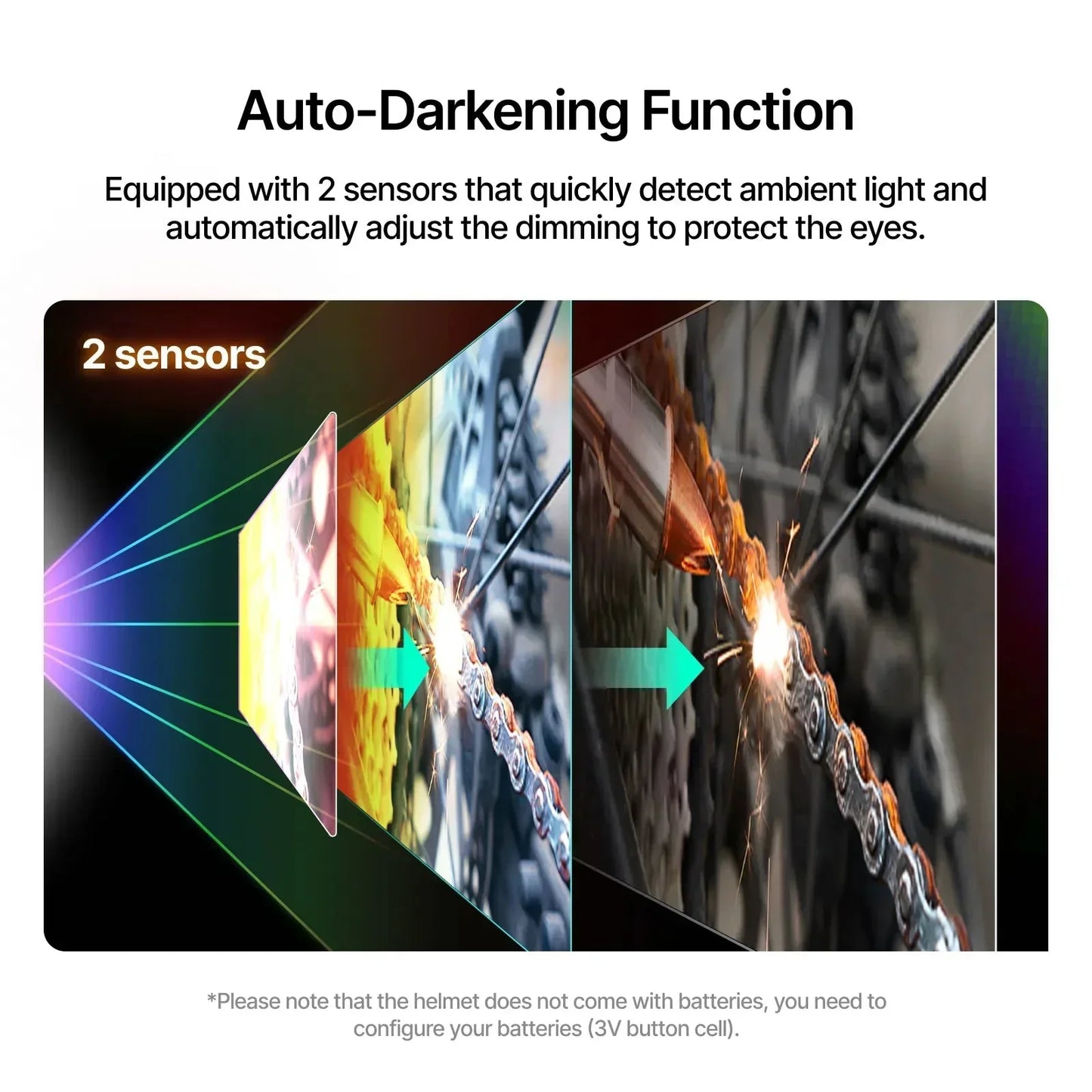

The xTool auto-darkening helmet It is designed to offer complete eye and face protection during laser welding, particularly when combined with xTool MetalFab systems. The exclusive lens protects from the 1060–1090nm wavelength range, achieving an OD 8+ shielding to block up to 99.999999% of laser radiation. Thanks to its two integrated light sensors, the helmet automatically adjusts the shade level in less than 0.1ms, switching from clear (DIN4) to darkened (up to DIN13), always protecting the eyes from glare and dangerous glare.
The extra-large field of view (8x10cm, 1/1/1/1 optical clarity) guarantees maximum sharpness and “true color” for precision work. With its 560g weight With foam padding in contact areas, the helmet is lightweight and comfortable even for prolonged use, preventing fatigue and slippage. Three dials allow for perfect adjustment to any head shape, while the visor can be rotated 180° to easily inspect the details of your work without having to remove the helmet.
The frame, made of PP and polycarbonate, is resistant to impact, heat, and wear. Suitable for both industrial environments and workshops and artisan workshops, the helmet comes complete with a screwdriver and accessories for immediate use.
xTool Auto-Darkening Welding Helmet Main Technical Specifications
| Characteristic | Value |
|---|---|
| Laser protection | OD8+, 1060–1090nm |
| Field of view | 8 × 10cm (3.15" × 3.94") |
| Blackout class | DIN4 (light) – DIN13 (dark) |
| Response time | 0.1ms (light→dark) |
| Sensors | 2 |
| Weight | 560g |
| Material | PP & PC |
| Adjustments | 3 knobs per size |
| Comfort | Padding on forehead and ears, 180° flip structure |
| Compatibility | xTool MetalFab, CNC and 1080nm laser welders |
| Optical clarity | 1/1/1/1 “true color” |
| Diet | Solar |
Main advantages
- Maximum laser safety certified OD8+
- Wide field of view, true colors and lightning-fast response
- Extreme lightness and comfort even for long hours of work
- Adaptable to any head and easily inspected during use
- Long-lasting thanks to premium materials
The irreplaceable partner for those who want to work in maximum safety and with maximum control in all professional laser processes on metal and more.
