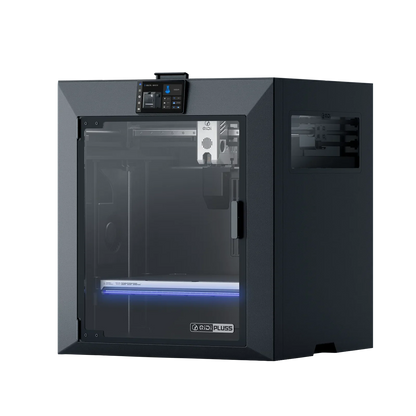

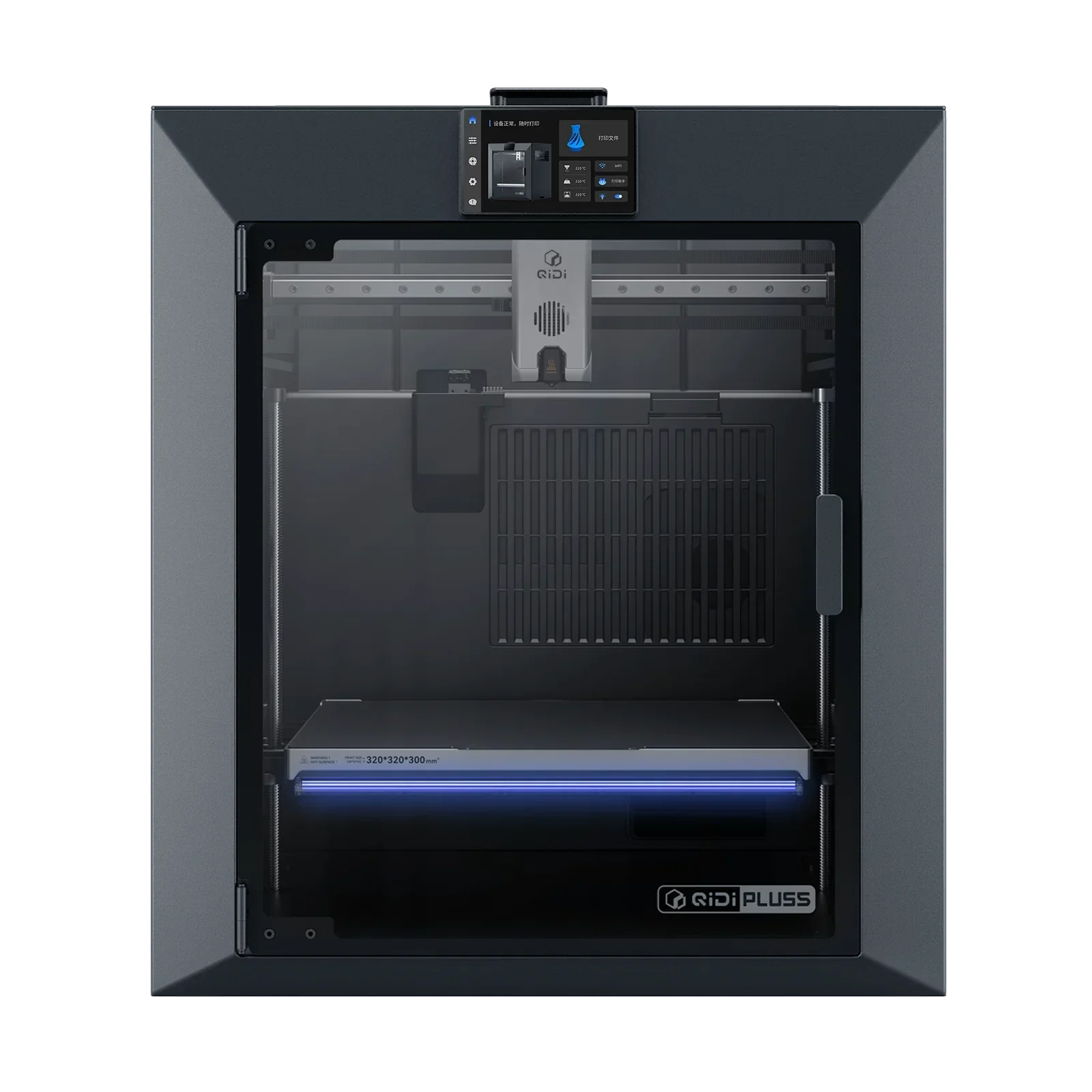

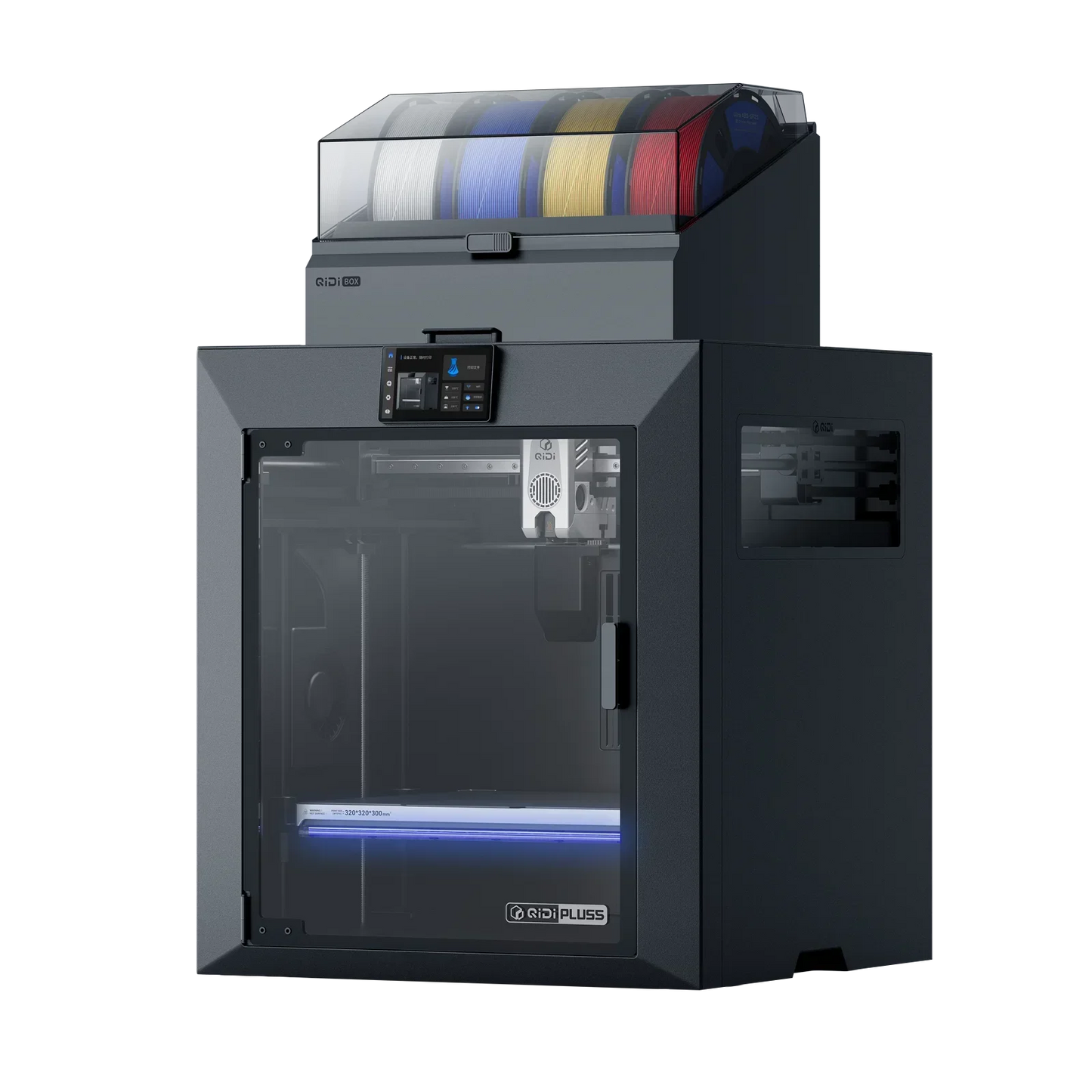

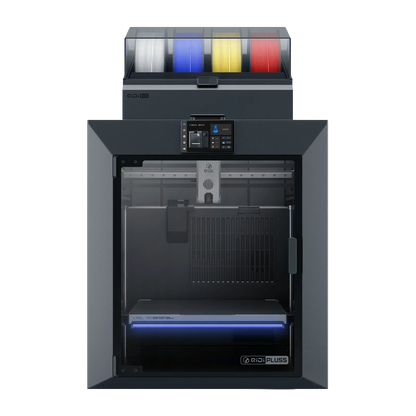

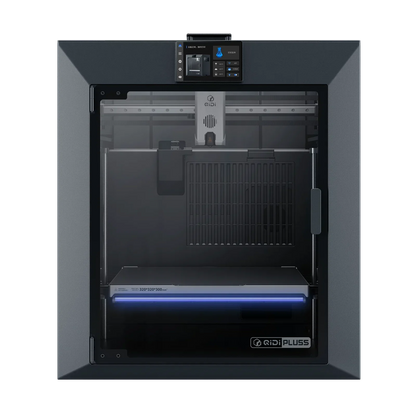

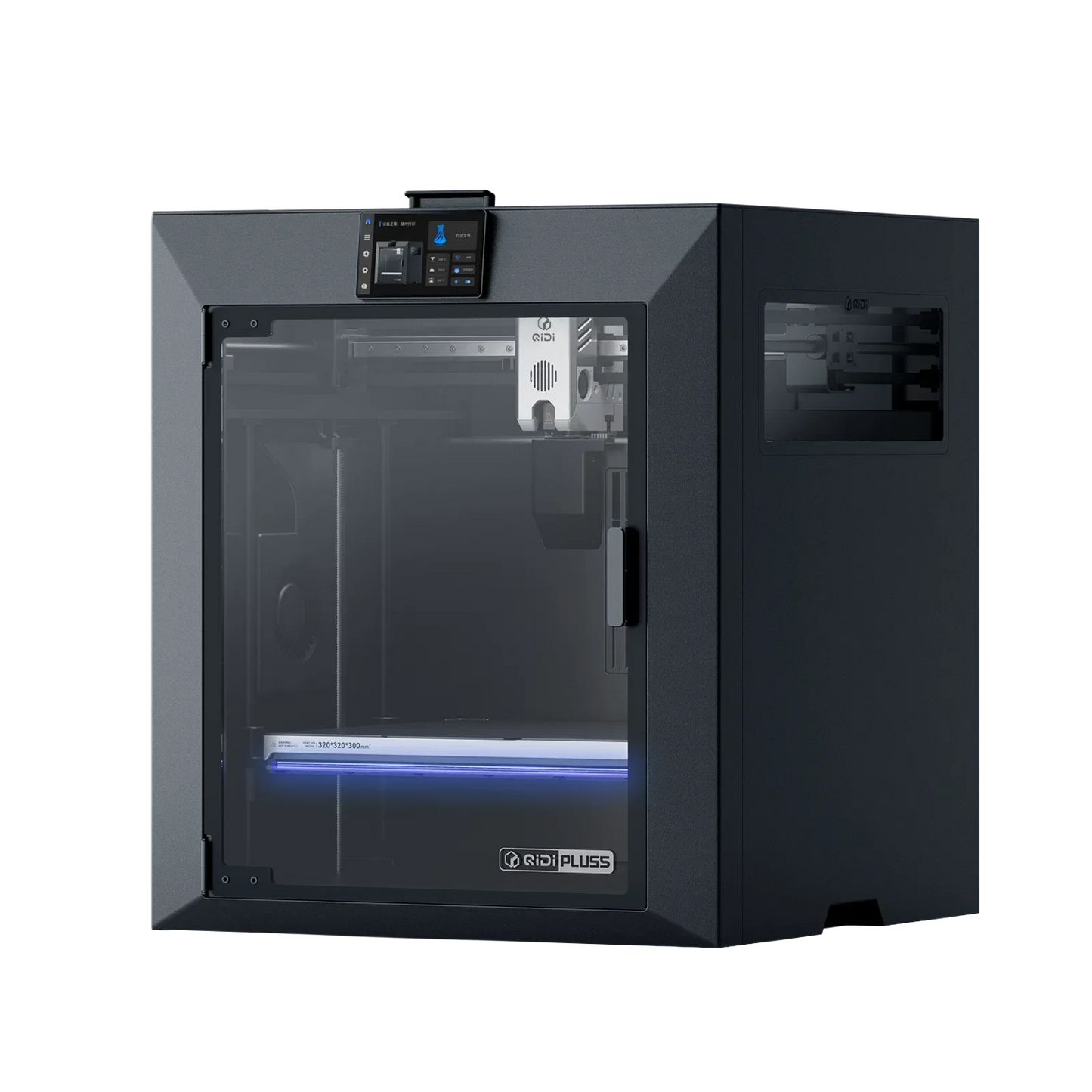

QIDI Plus5 3D Printer
QIDI Plus5 3D Printer
Couldn't load pickup availability

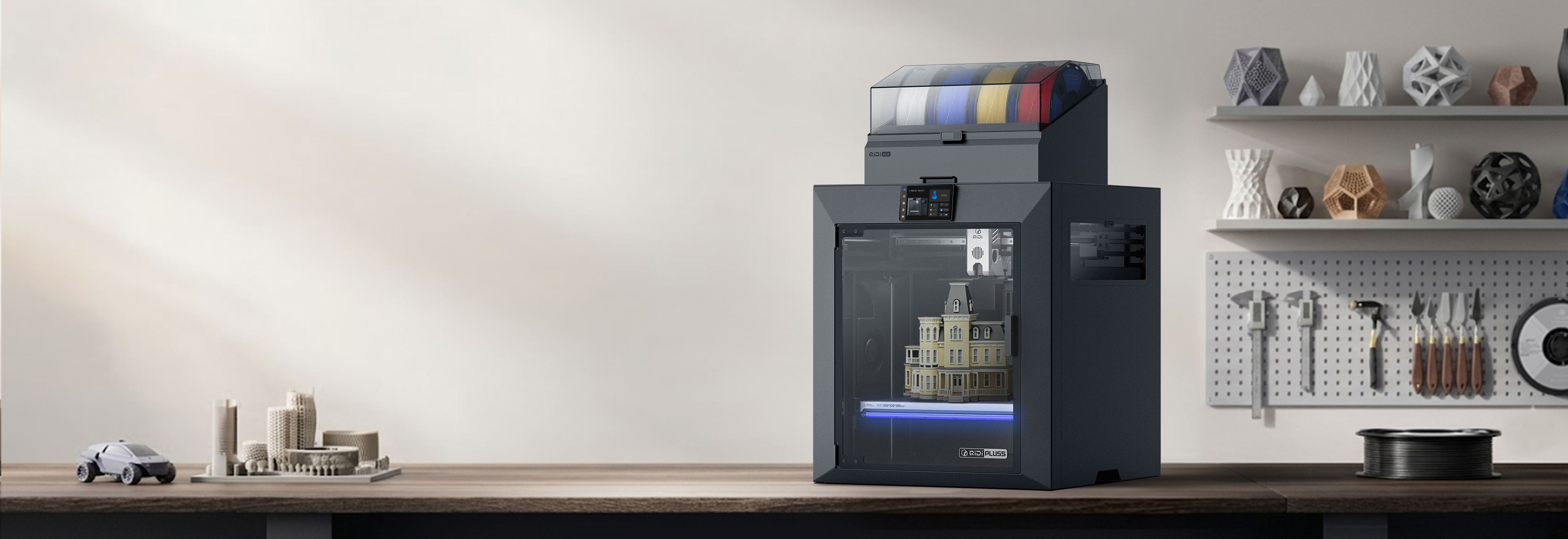

The new large 3D printer just got bigger, smarter, and more affordable.
- 18% larger print volume: 320×320×300mm
- 370℃ nozzle and 65°C active chamber heating

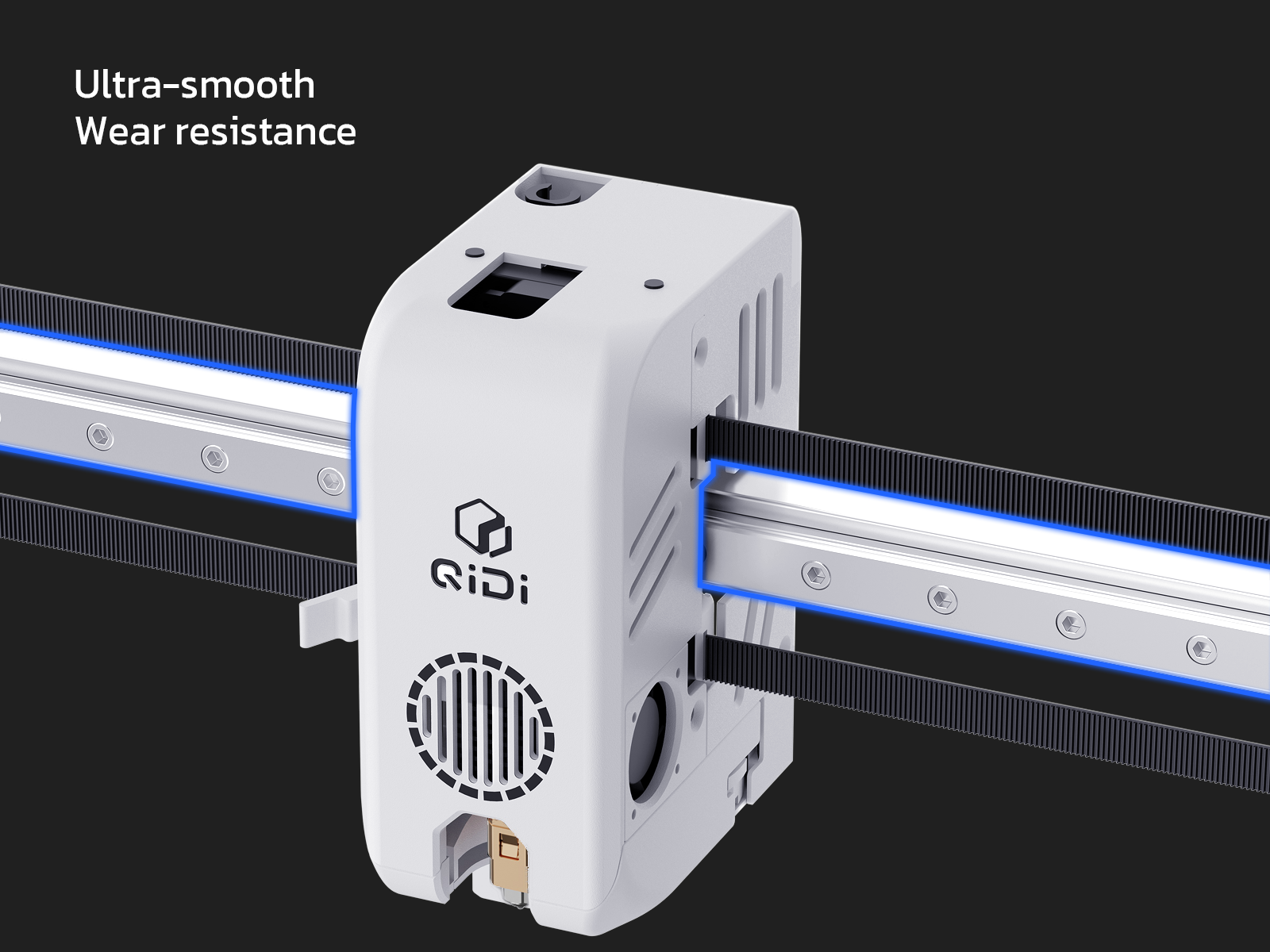

- Precision rails and 9mm 1.5GT CoreXY belts
- True auto-leveling and full intelligent detection
- 120°C uniform temperature heated bed and RGB status indicator
- Enclosed structure and 3-stage air filter
- Optional Polar Cooler thermal container and QIDI box
- Instant one-touch printing
Plus5 Upgrade Highlights
QIDI Creator Ecosystem:
Seamless integration of software and hardware for a smarter workflow.
Bigger than plus
More print room, more creation opportunities.

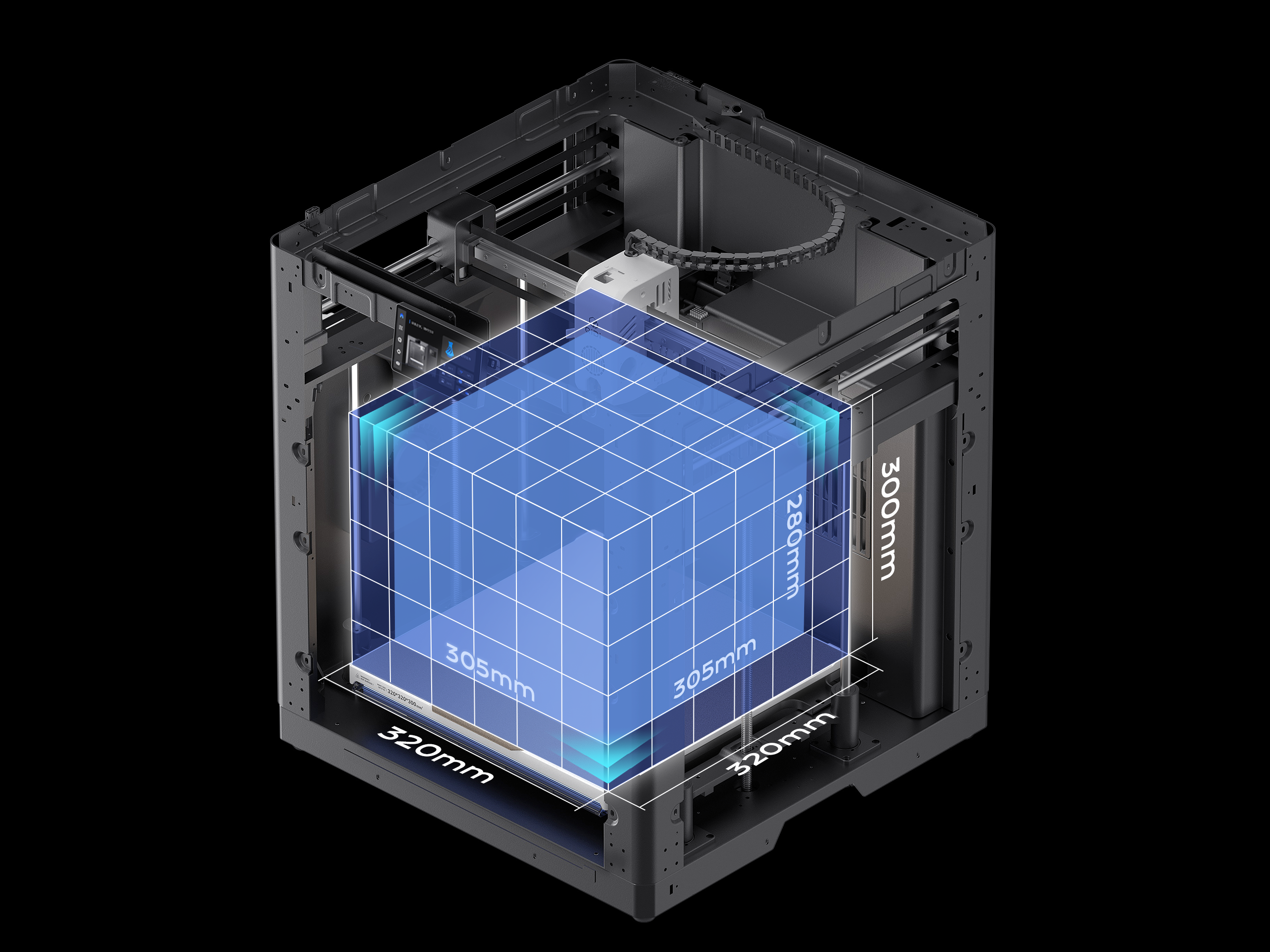

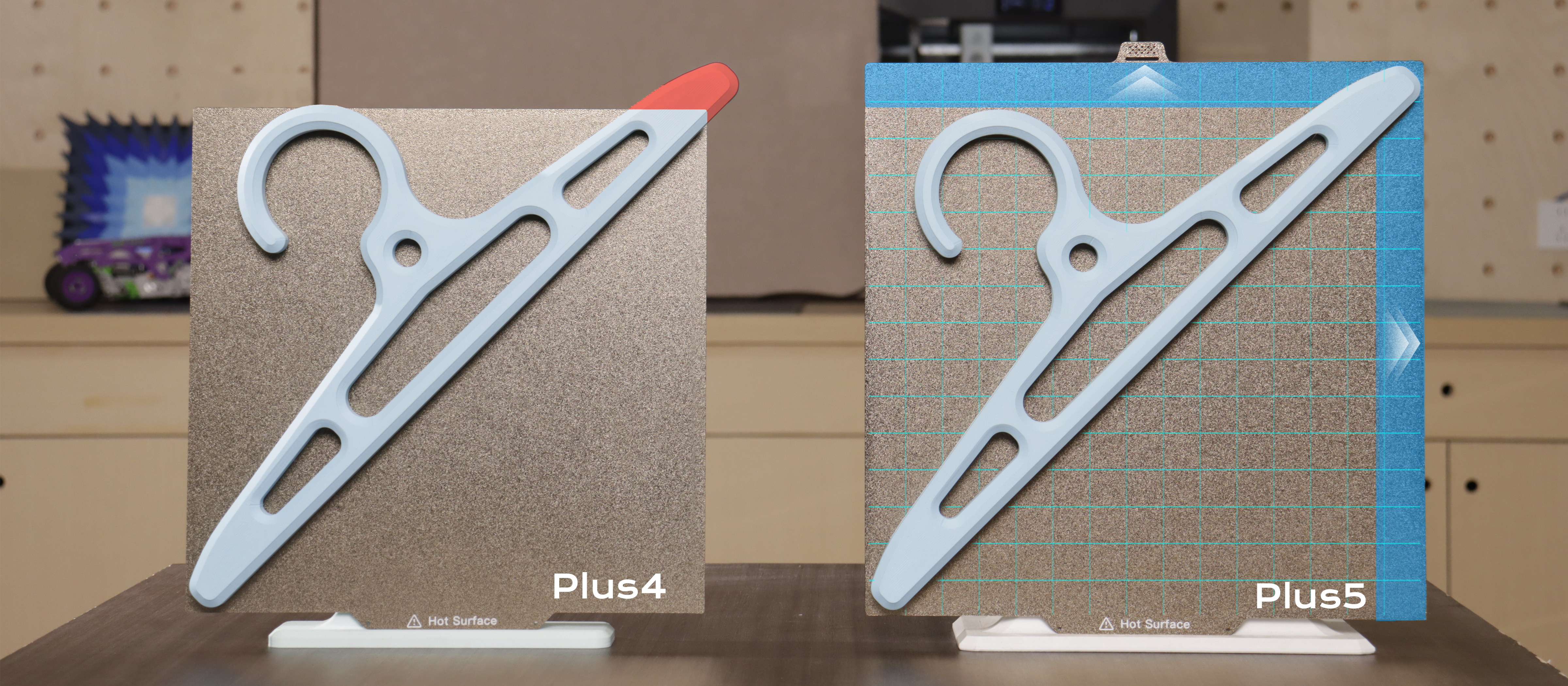

Larger print area: from 305×305mm to 320×320mm
Better space utilization
320×320×300mm
18% larger build volume in the same footprint.

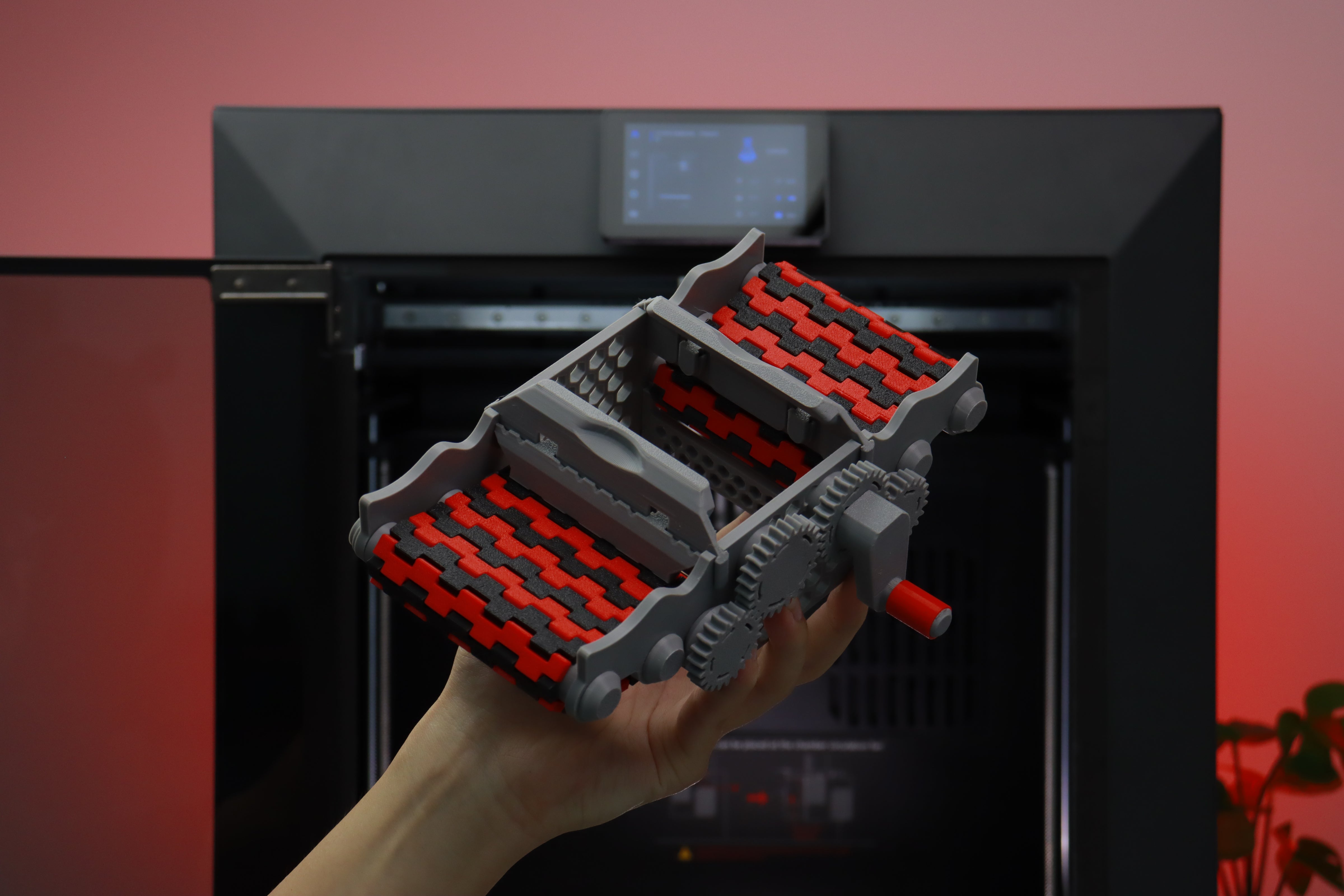

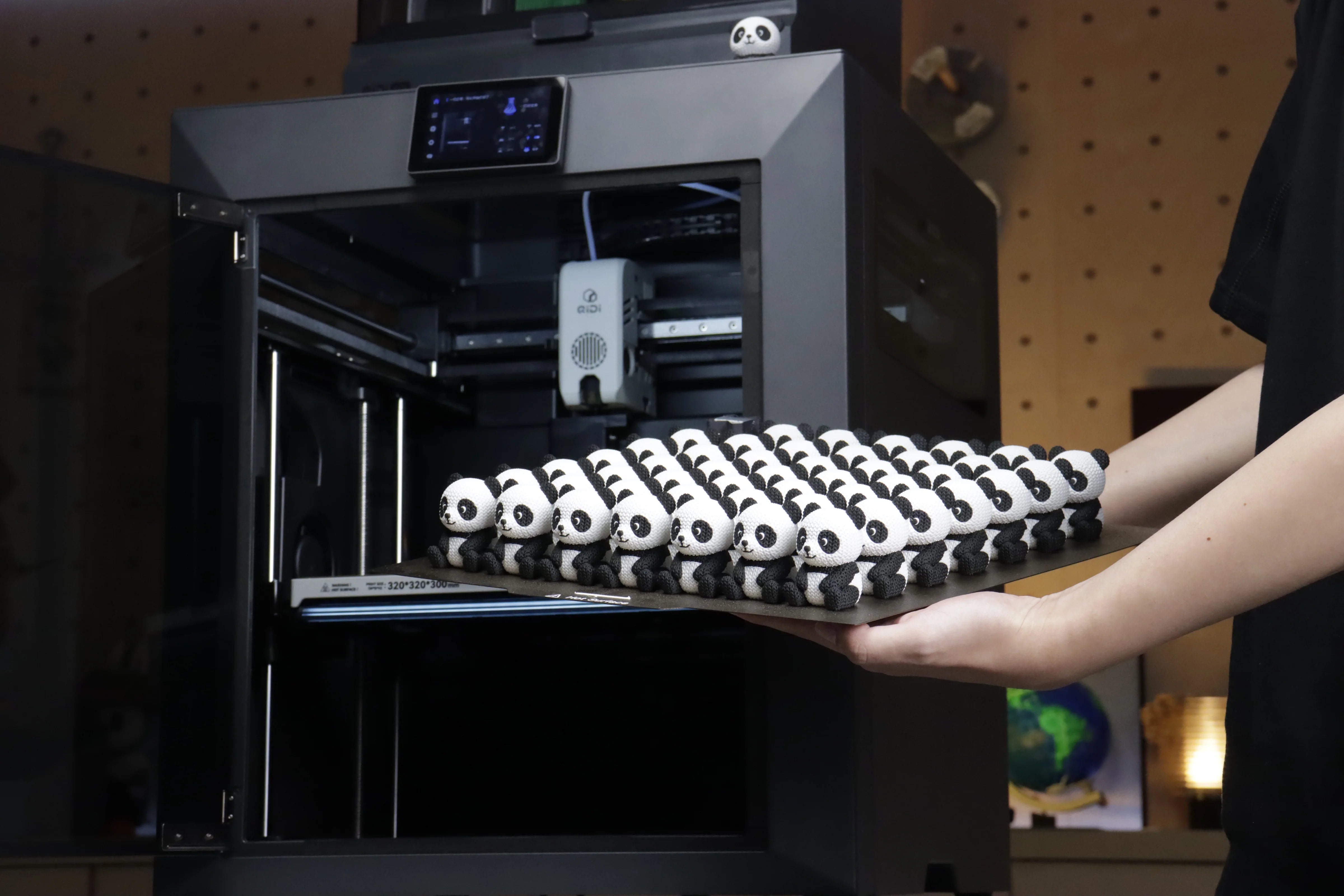

Tackle large projects, whether single pieces or massive production batches, with absolute freedom.
Integrated mobile device & printer ecosystem.
One-Touch Print | QIDI Maker: Shape Your Reality
The simultaneous launch of the QIDI Maker website and app will redefine your workflow.
Browse thousands of exclusive designs on your phone, select a pre-configured profile, and send it instantly to the printer.
From a simple tap on the screen to a solid masterpiece in your hands.
Bring your boldest ideas to life.
Professional Projects. Shape your reality.
The global community of innovative engineers and designers publishes their most advanced models on QIDI Maker, optimized for excellent performance and absolute precision.
QIDI Maker & QIDI Studio
Intelligent Synergy. Proven Profiles.
Expert-tested parameters optimize every detail, ensuring perfect overhangs, clean joints, high dimensional accuracy, and reliable extrusion of demanding technical filaments like carbon fiber.
Attention to detail is key.
Instead of relying on generic settings, our comprehensive built-in library offers precision slicing profiles calibrated specifically for your hardware, advanced materials, and high-speed workflows.

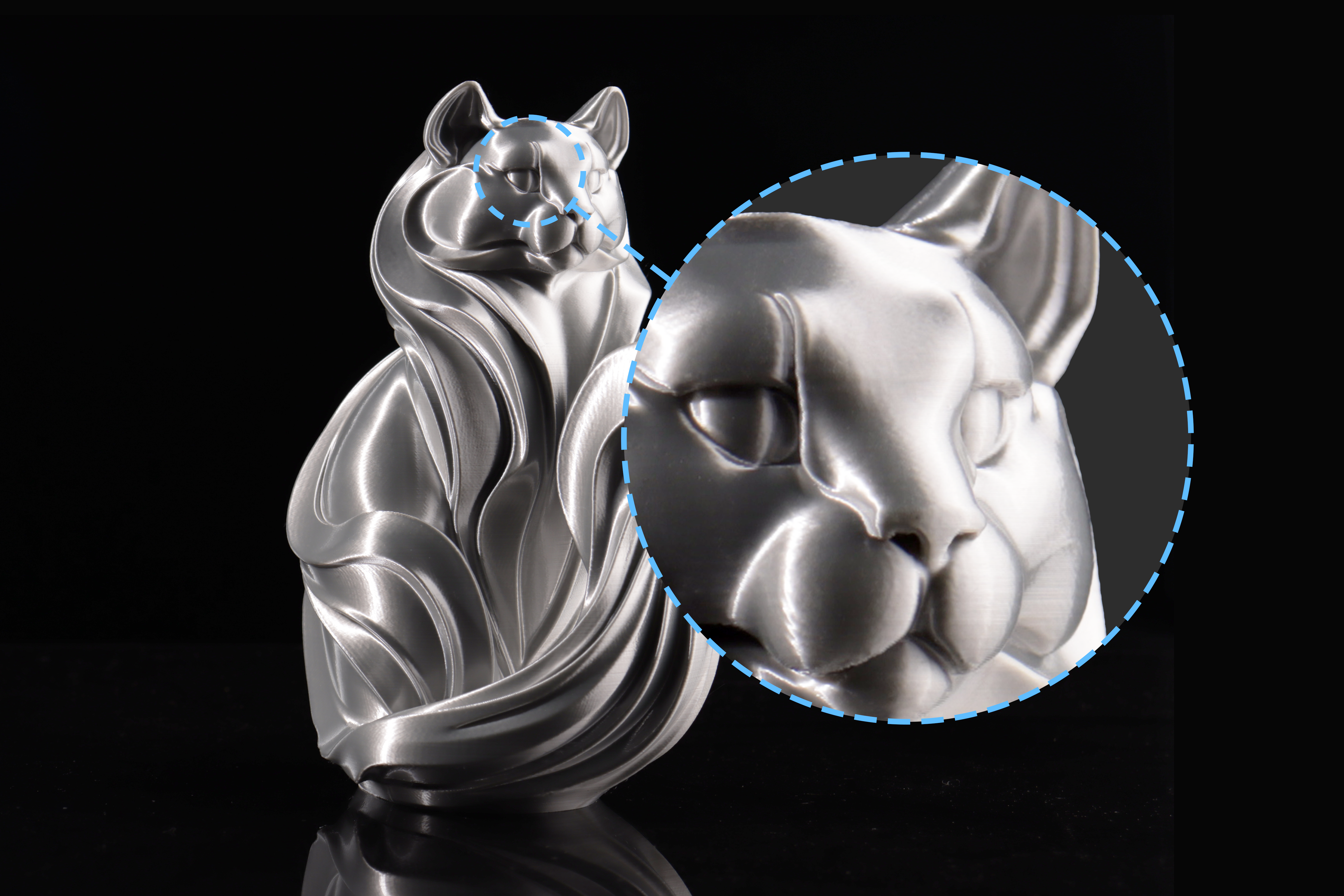

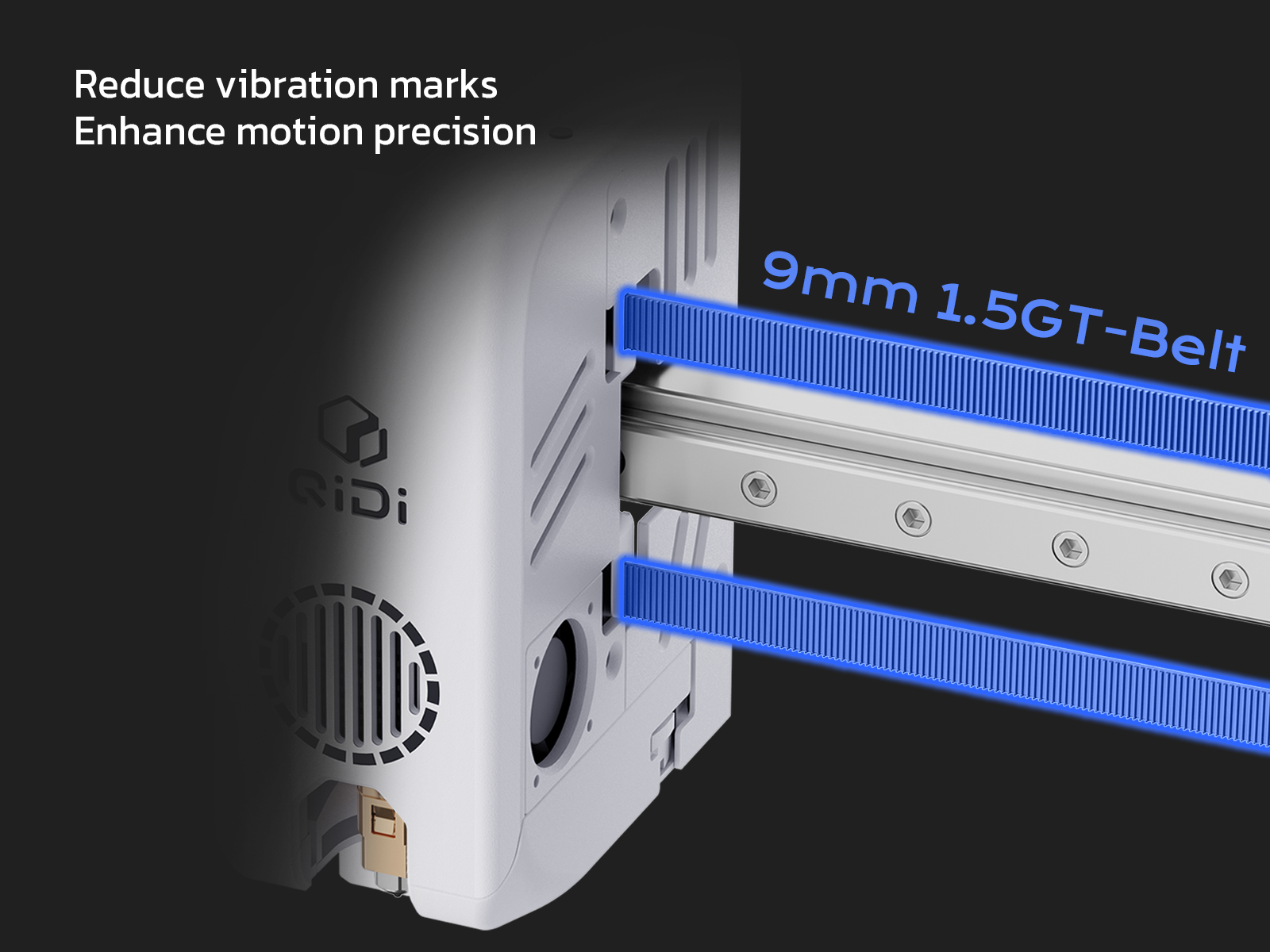

Superior surface quality
Multimaterial printing master
Advanced thermal control of the combustion chamber and toolhead.

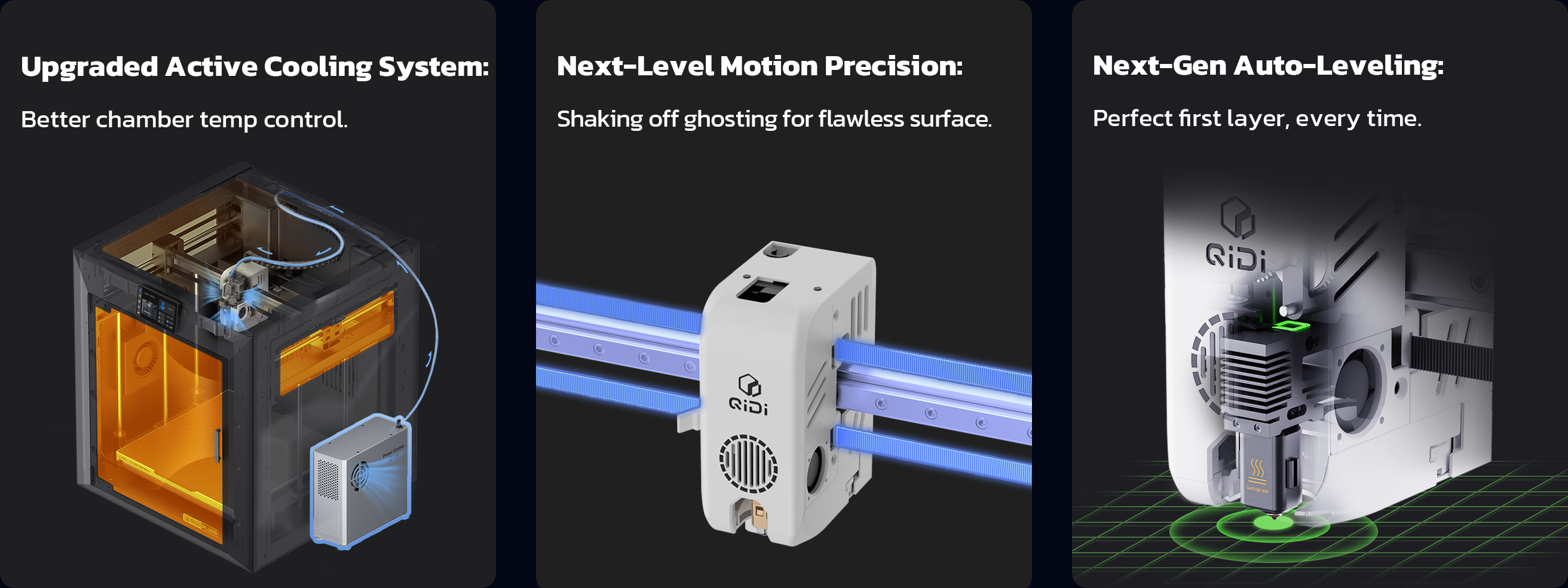

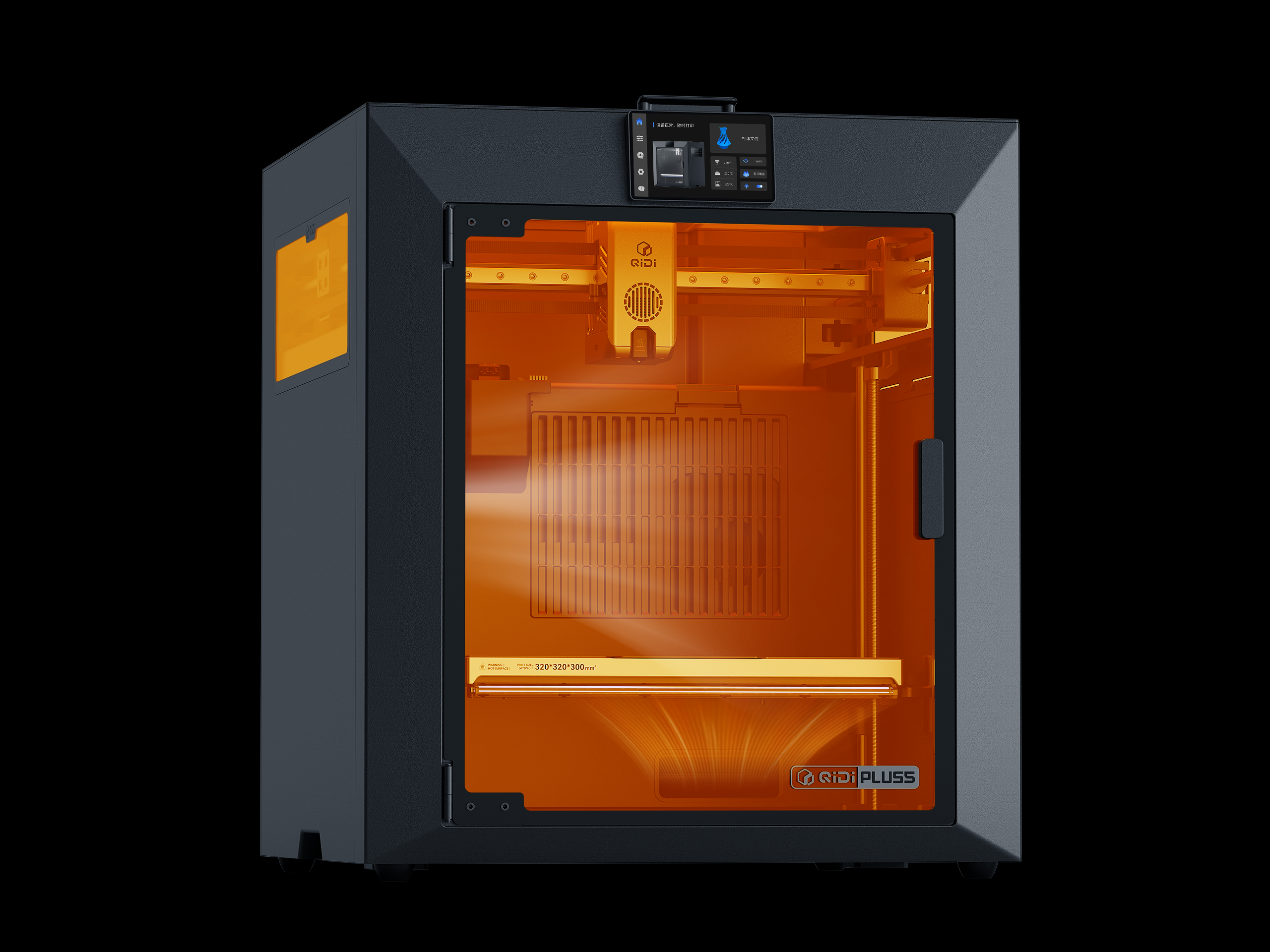

3rd generation active chamber heating at 65 °C
Handles high-temperature technical filaments with absolute ease.
Specifications: Ultra-high 500W power with 38% increased heating efficiency.

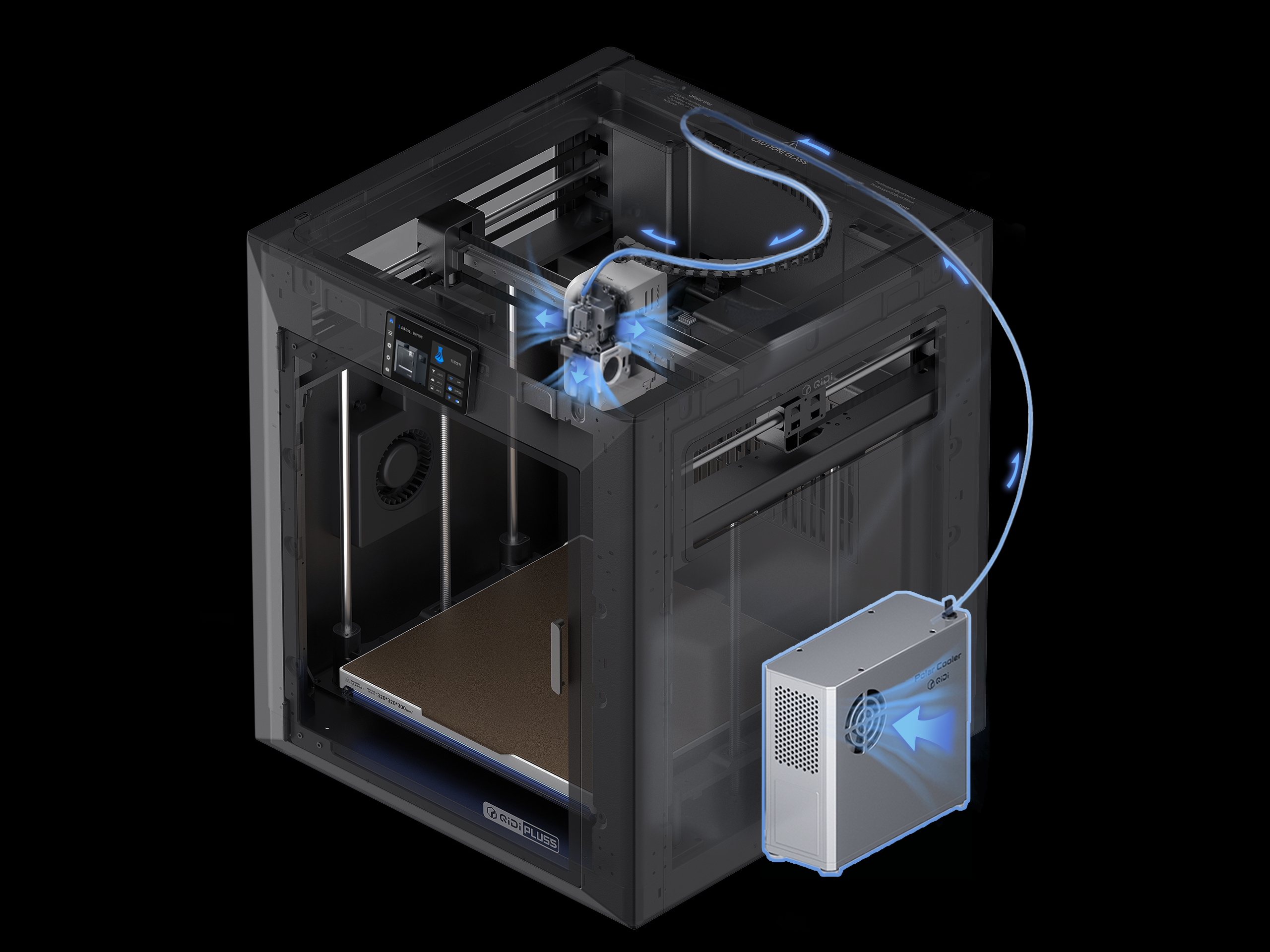

Active Tool Head Cooling System
Introducing the “air conditioner” for your extruder. It provides a powerful airflow to reduce overheating and clogging, even during the longest prints.
Every Inch Heated — For the first time

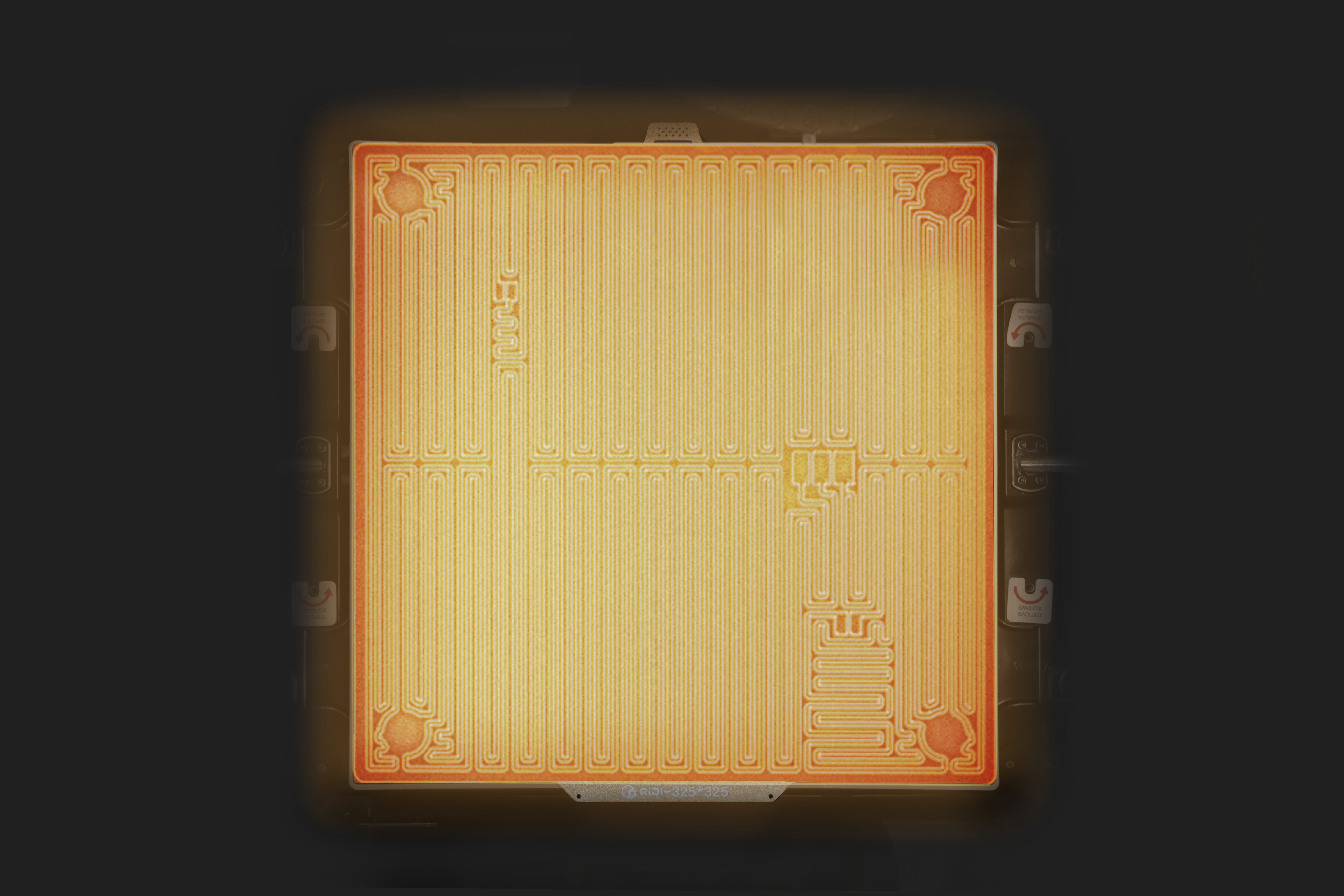

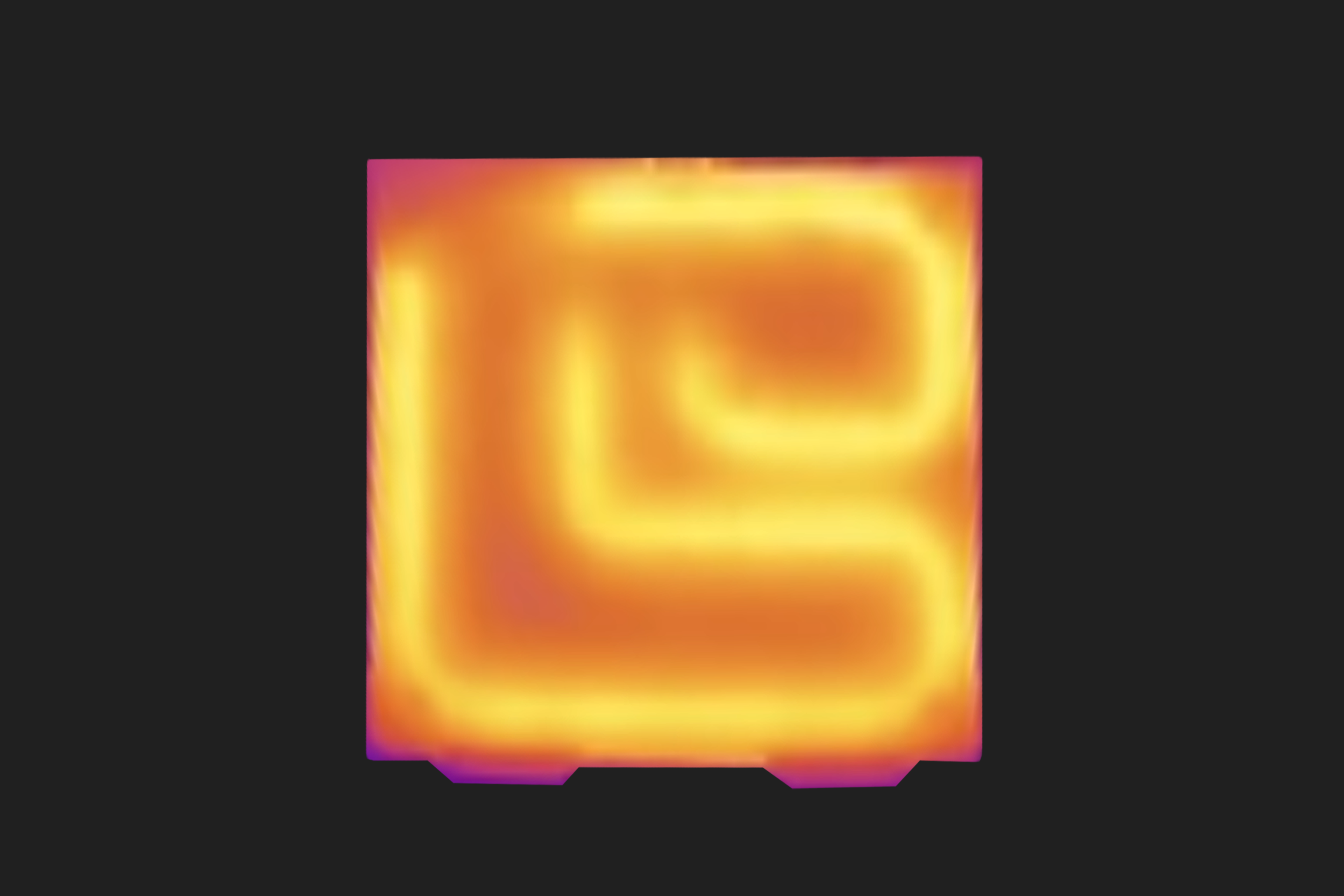

Industrial Grade Heated Bed Control
The 320×320mm heated bed features a full-surface silicone layer with dense heating wires and insulating cotton, ensuring even heat, strong first-layer adhesion, and stable temperatures—perfect for large prints without warping.

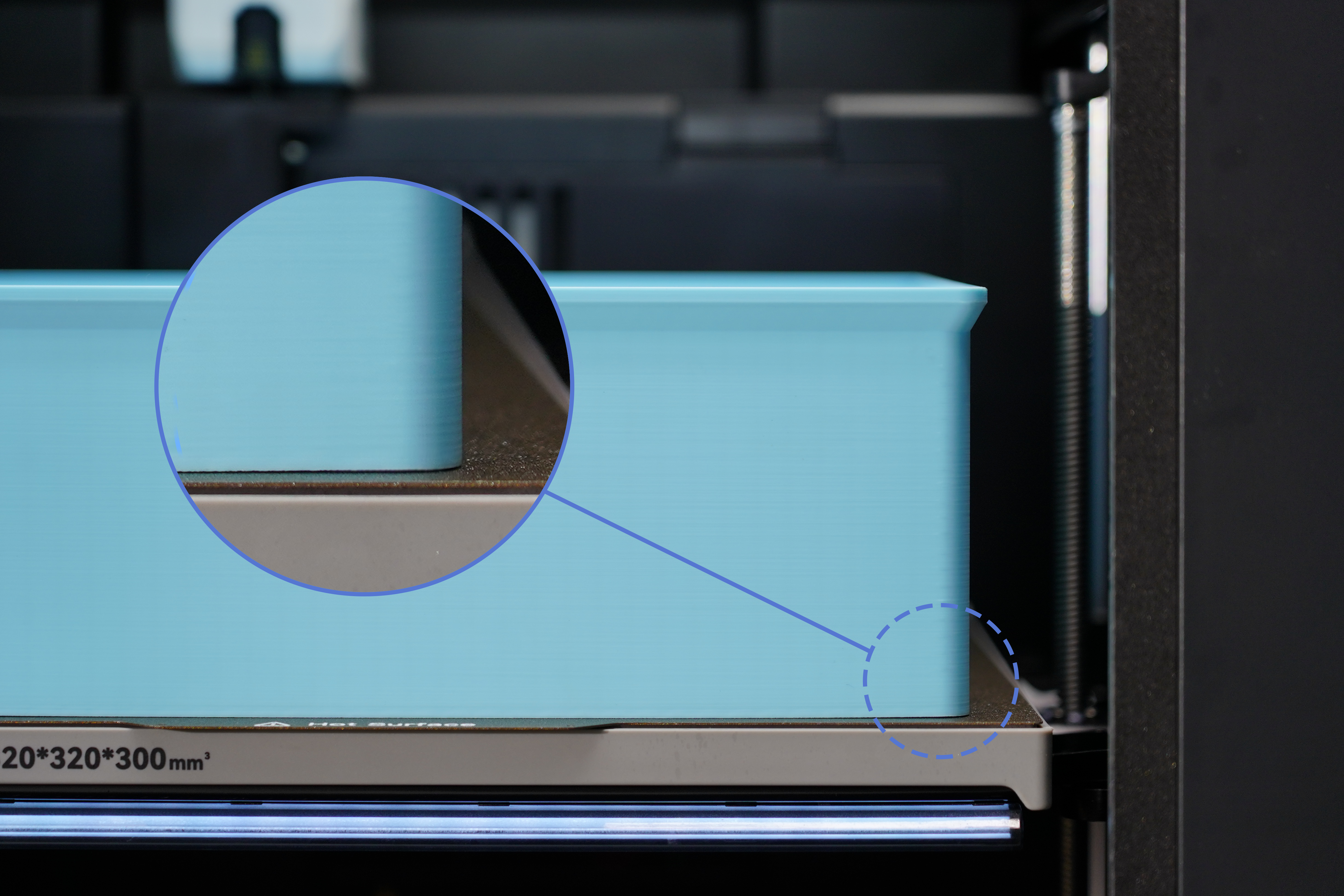

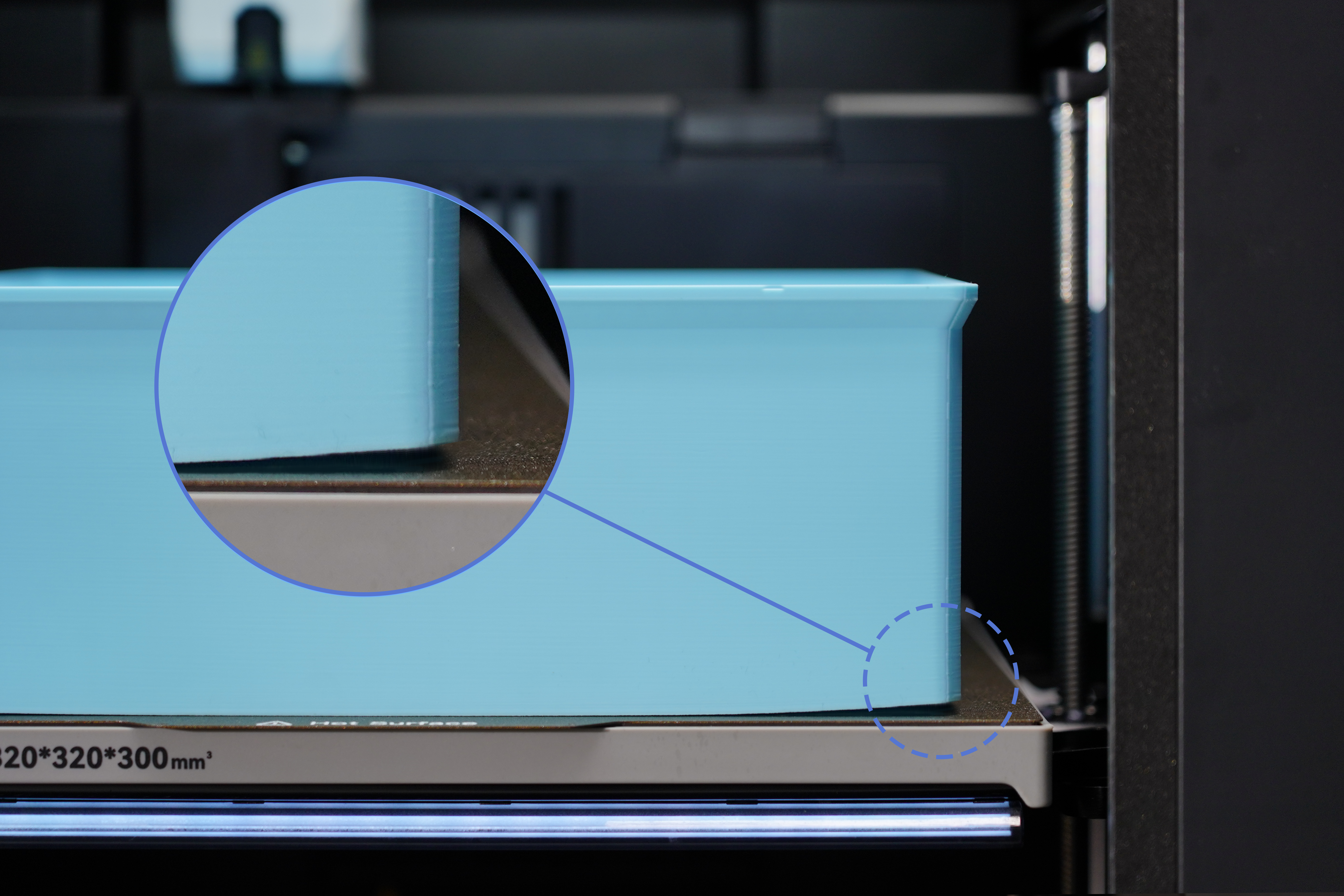

ACTIVE Chamber Heating & Polar Cooler
ensuring large PLA prints don't warp at the edges
Upgraded Core Performance
Maximal Capability. Unstoppable Performance.

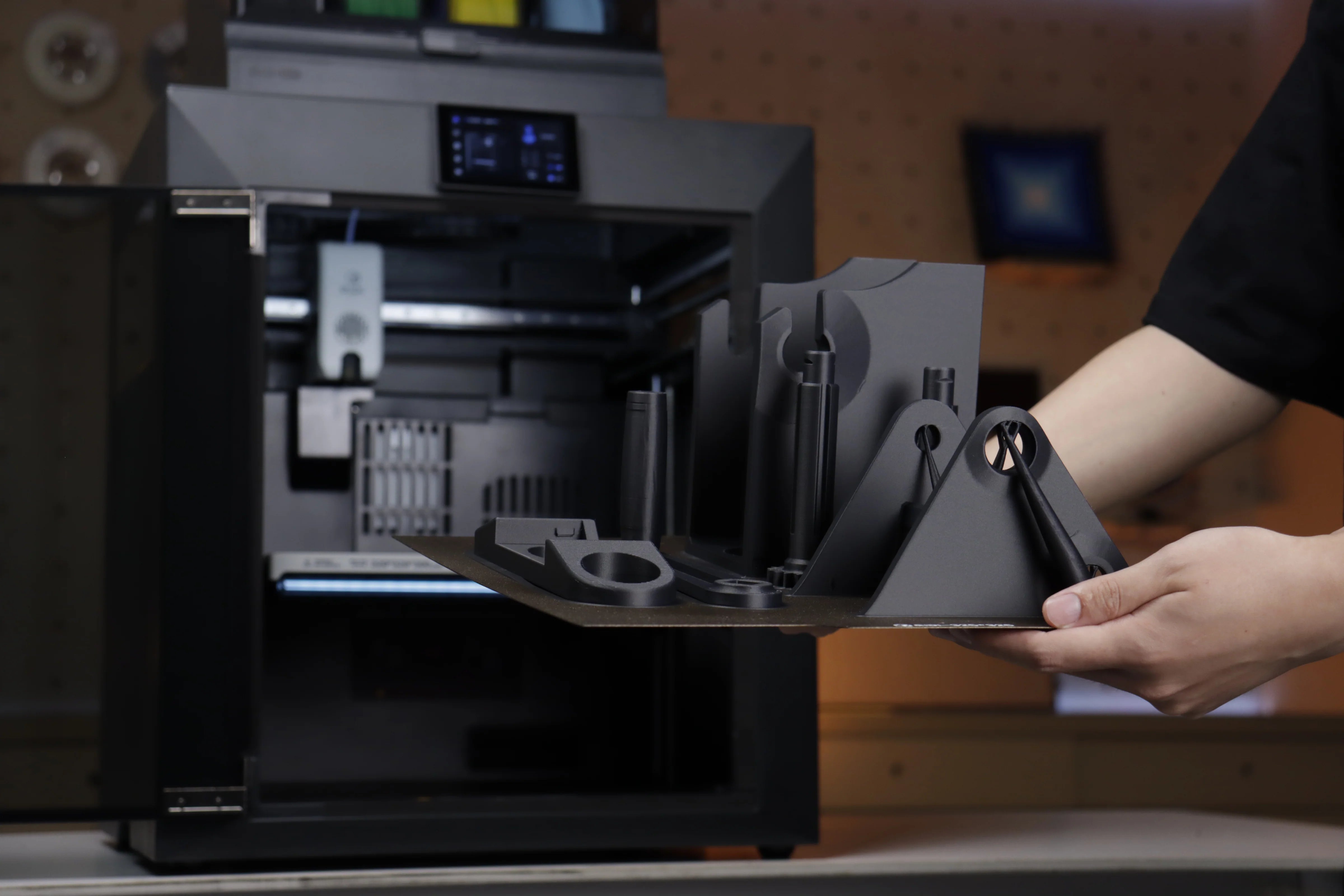

Engineered for high production efficiency and optimized for continuous industrial throughput.
Flow rate: 40 mm³/s

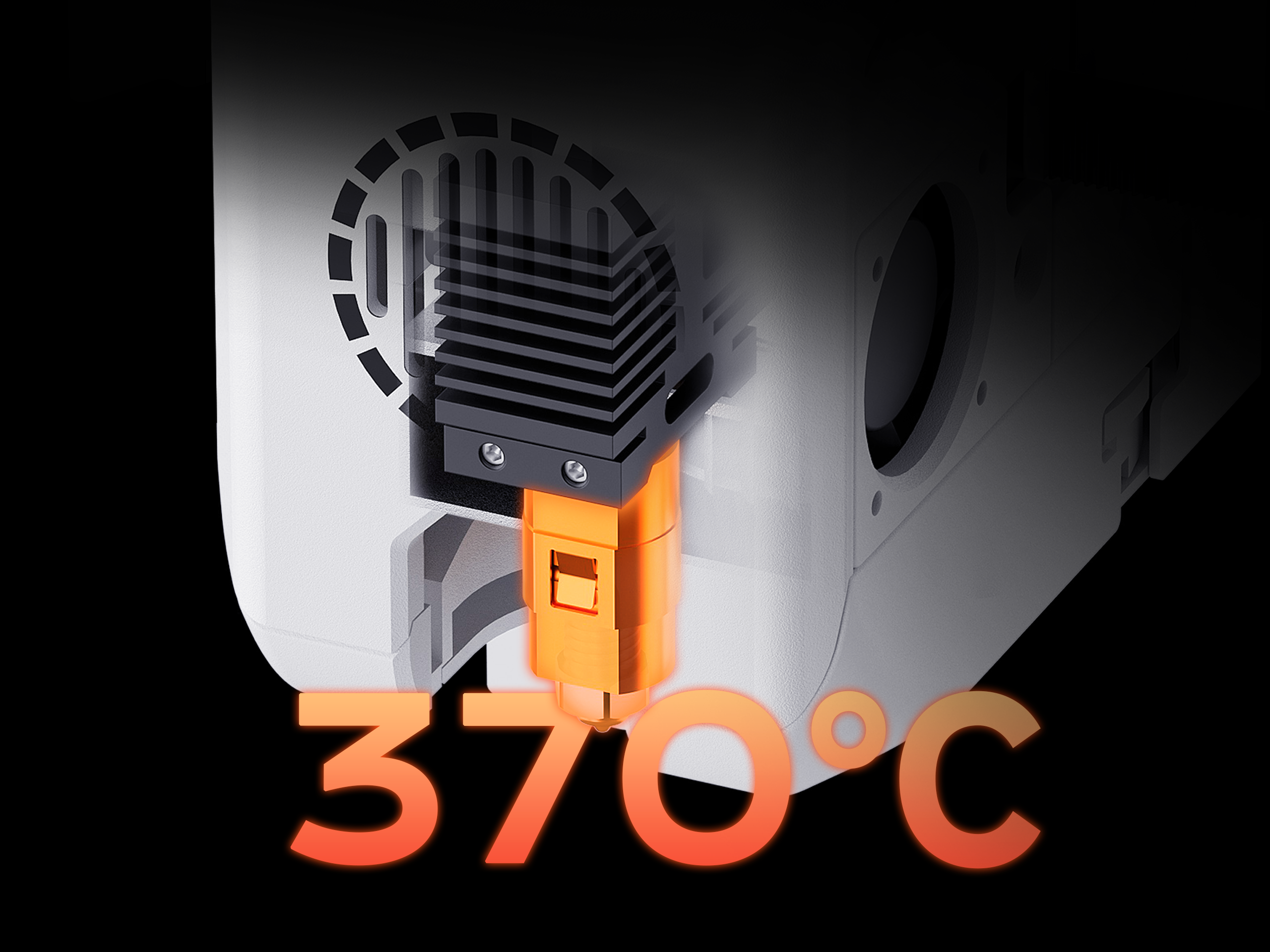

Next-Gen High-Flow Hotend:
Delivers a powerful 40mm³/s volumetric flow rate and maintains temperatures up to 370°C for flawless high-speed printing.
Wear-resistant & Industrial-ready.
Specifically designed to handle abrasive engineering-grade materials, from carbon fiber composites to high-temperature resistant nylon.
Next-Gen AI Ecosystem & Smart Hardware
Smart Automation & Enhanced Experience

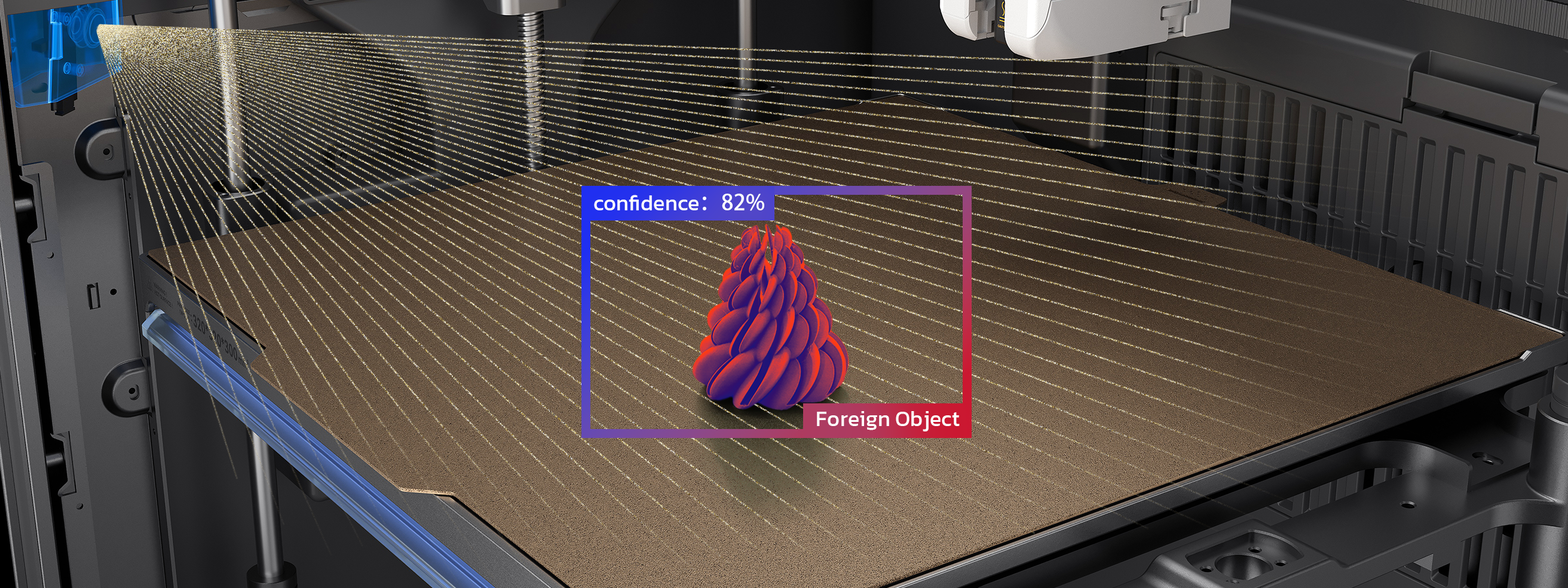

From microscopic auto-leveling and real-time AI anomaly detection to intuitive hardware signals,
every feature is crafted to provide a smooth, trouble-free printing workflow.
Smart Object Skip
If one part fails to print correctly during a multi-object print, simply skip it via the UI and continue printing the rest without hassle.
Smart Color Display

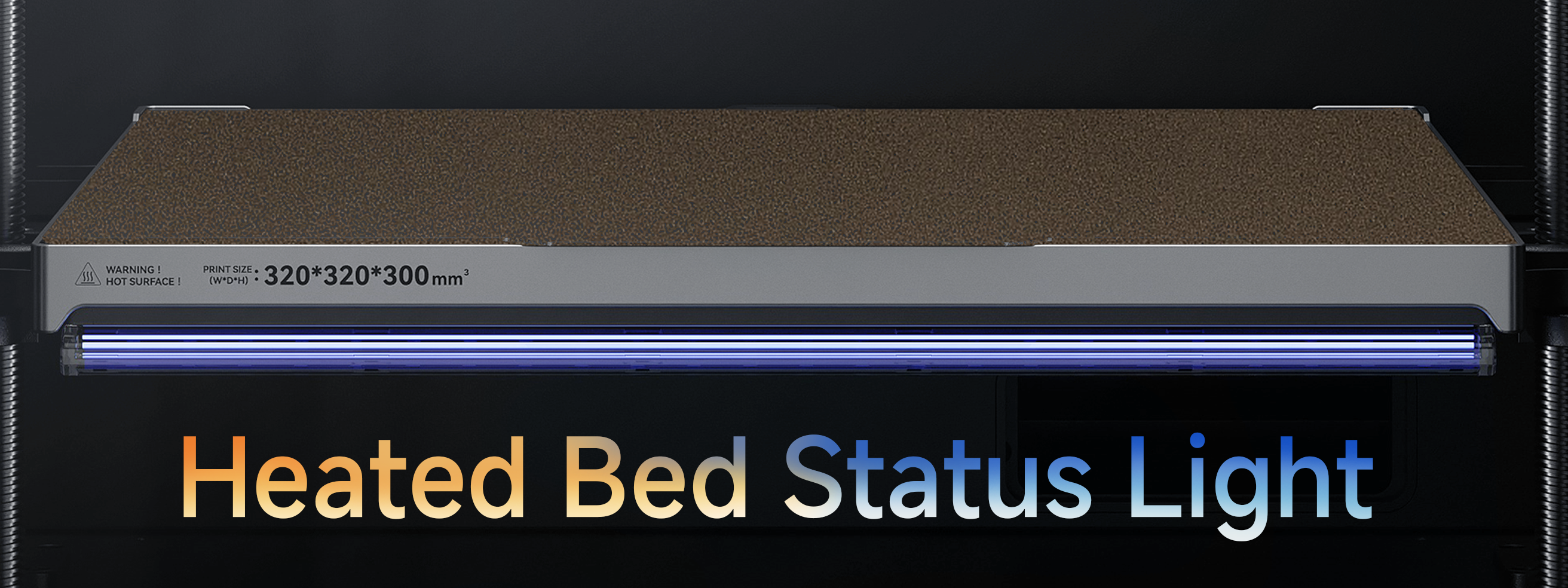

Smart Status LED Indicator
Easily identify printer status (sleep mode, preparing to print, print progress while printing, etc.).

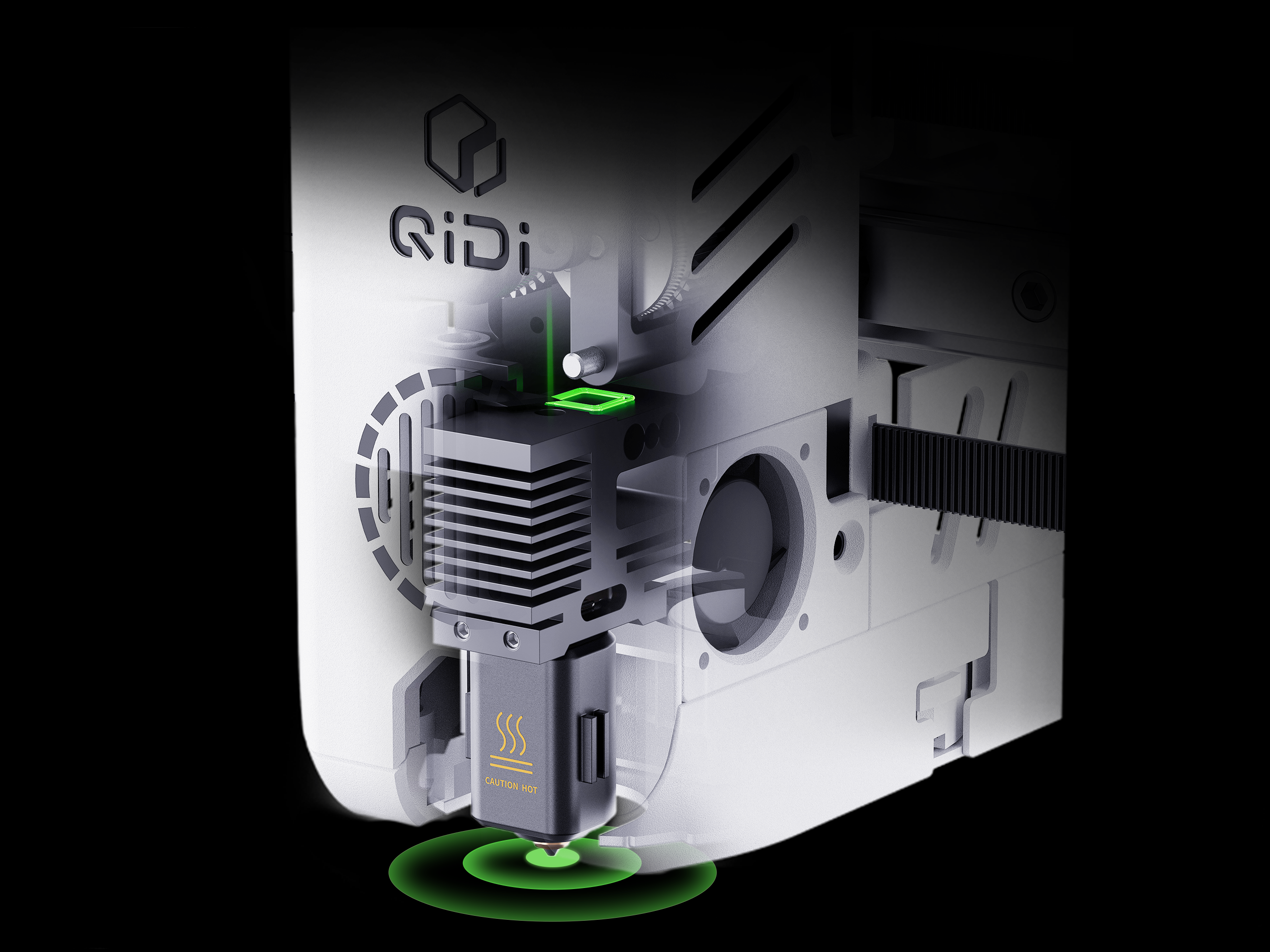

Next-Gen Auto-Leveling System
Achieve a flawless first layer effortlessly. Our enhanced calibration algorithm automatically maps the print bed, ensuring perfect adhesion and zero uncertainty.
First-Layer Perfection
Automatic calibration for flawless print foundations. Flawless from the start.

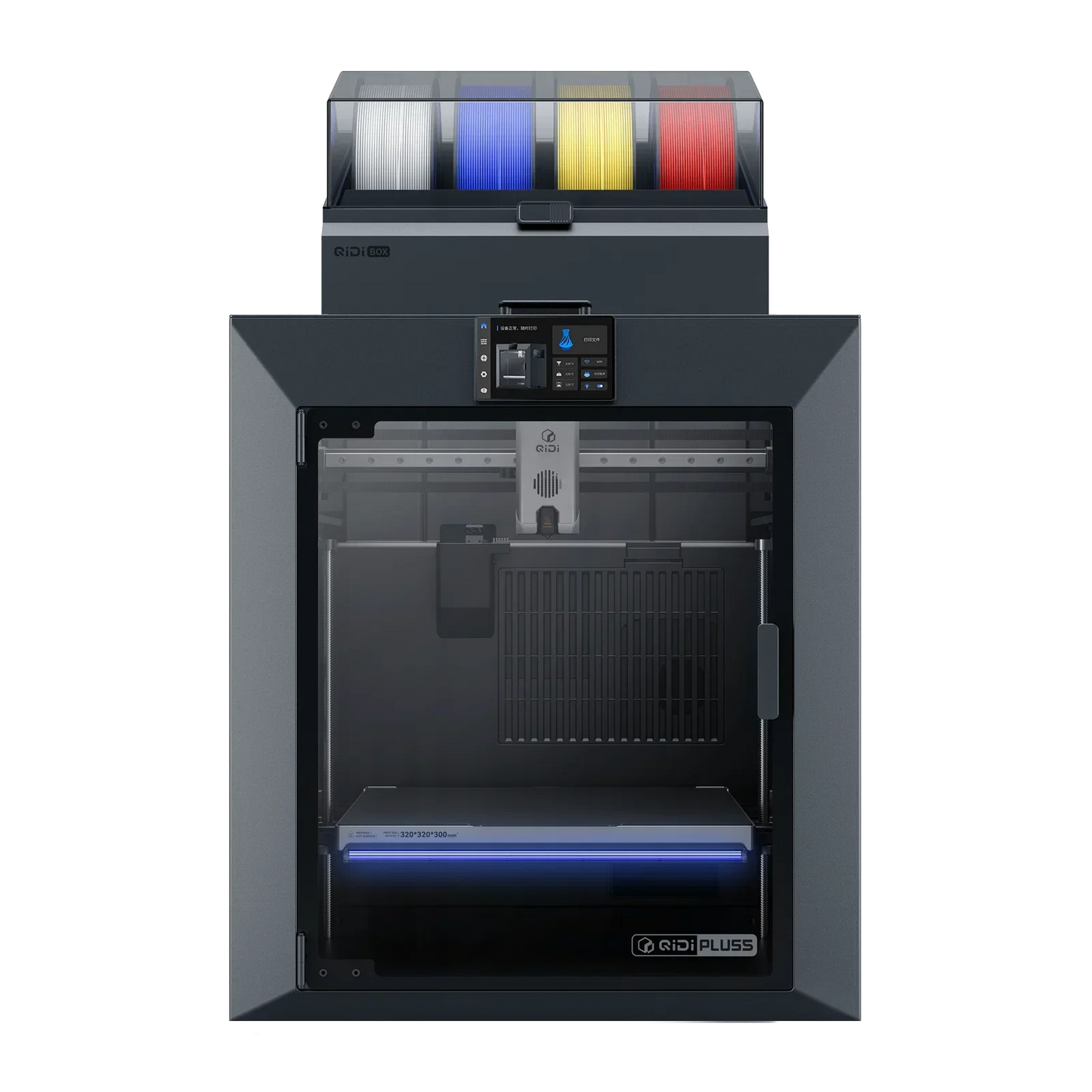

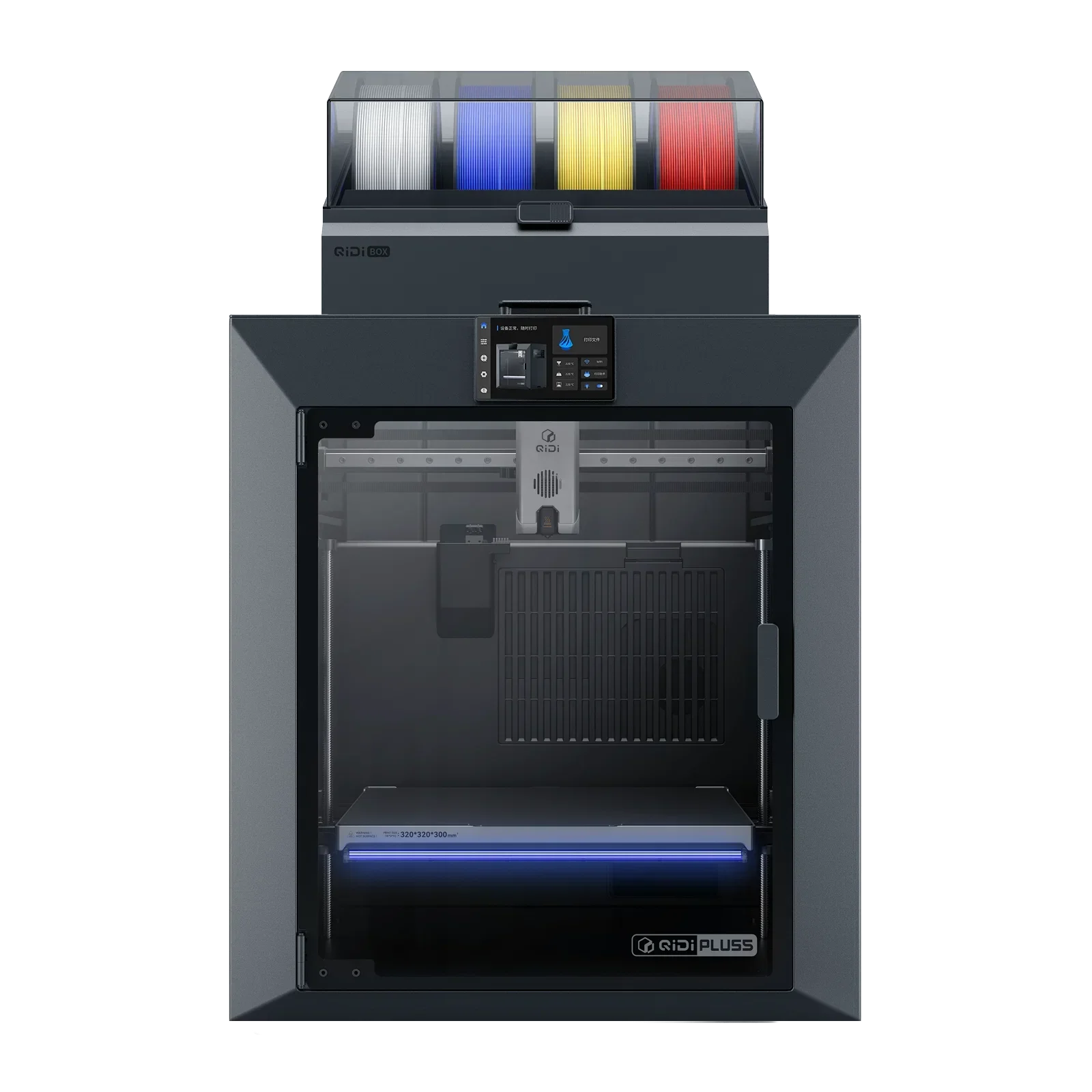

Powered by the all-new QIDI Box
Seamless Multi-Color & Multi-Material Printing

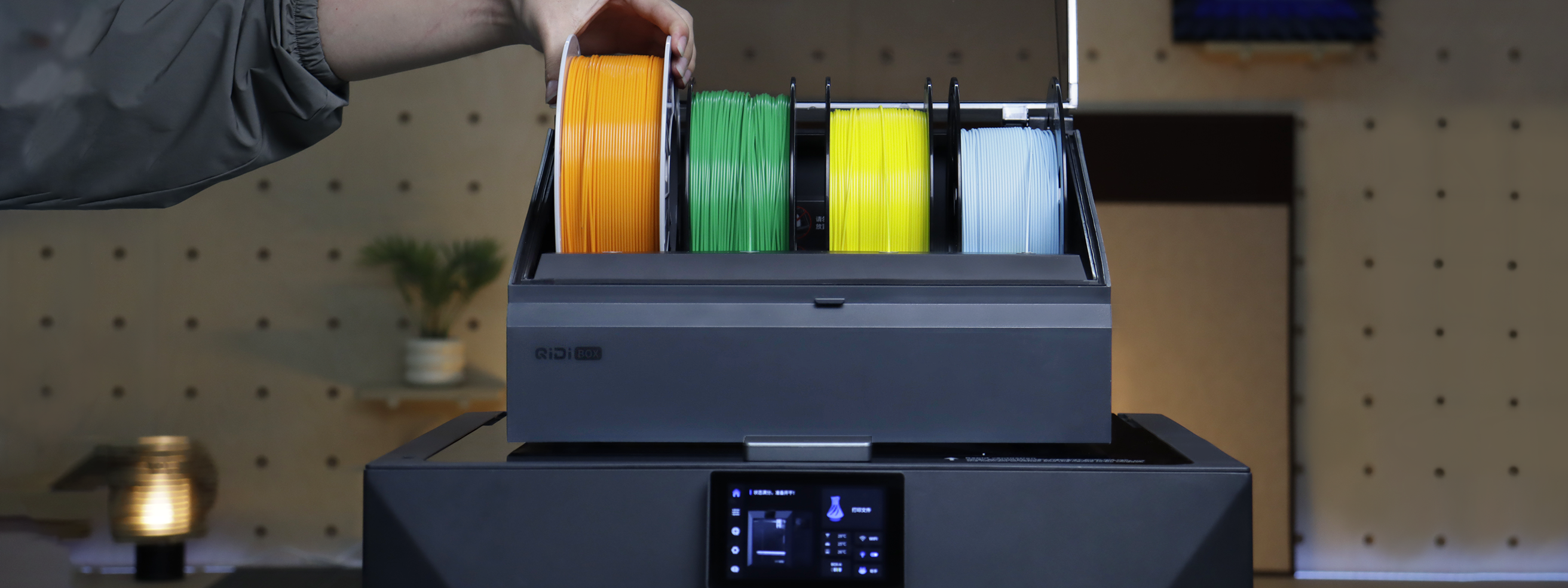

The QIDI Box features a built-in 65°C heating chamber, gently softening advanced filaments for smooth, vibrant multi-color prints every time.
QIDI BOX Highlights
Beyond enabling vivid multi-color masterpieces, this printer unlocks the ability to print complex geometries, seamlessly integrating technical filaments with soluble support materials. With a special filament conditioning system, it keeps advanced materials dry and ready for smooth, clog-free extrusion on every single layer.
Connect up to 4 QIDI Boxes and unlock endless creative possibilities with 16 different materials.
Choose between breakaway or soluble supports for clean, effortless prints every time.
Keeps filaments perfectly dry and ready for flawless, uninterrupted printing.
Spool uninterrupted, ensuring continuous printing and minimizing filament waste.
For home health and safety

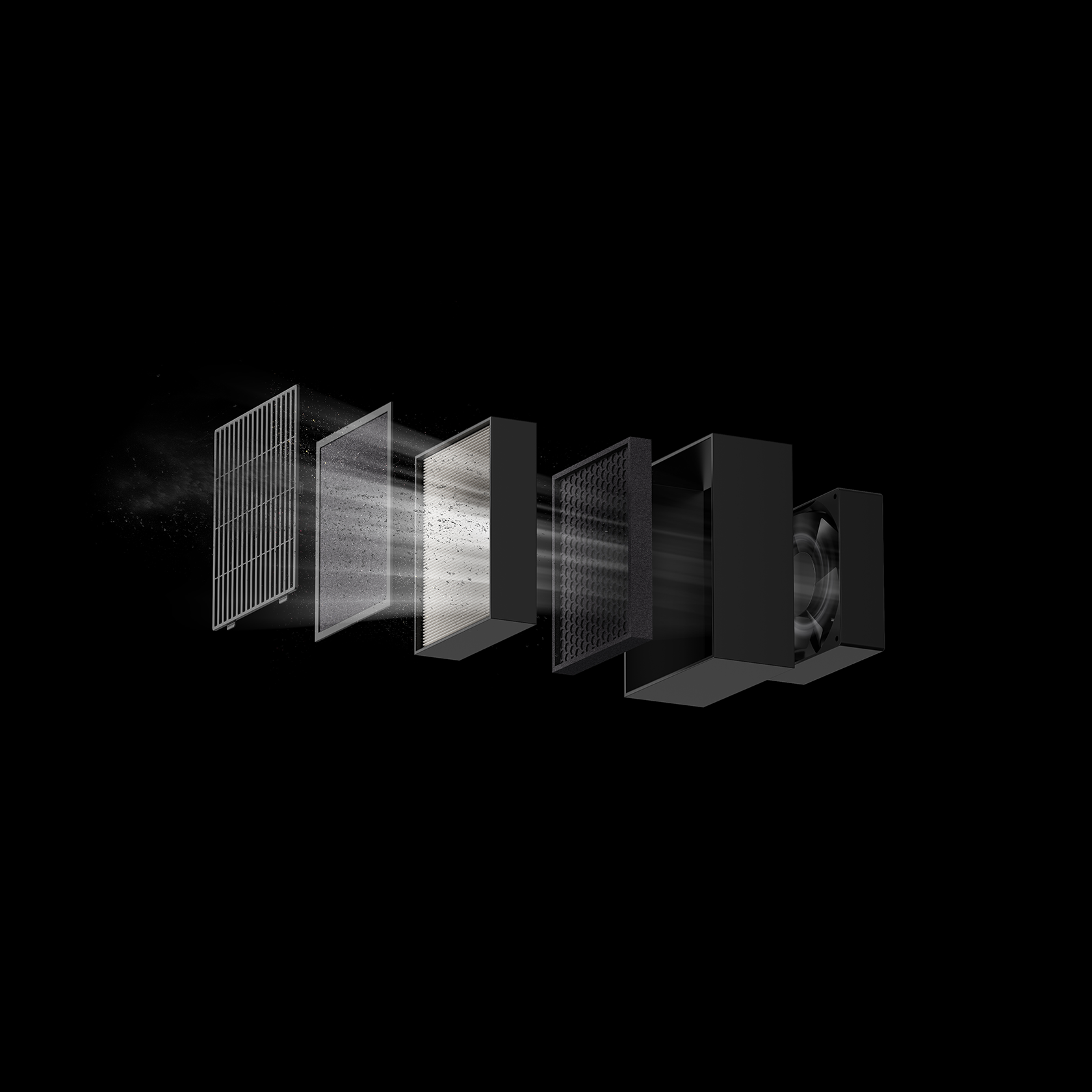

Air circulation with 3-layer filter cartridge
Efficiently captures 99.5% of dust and particles

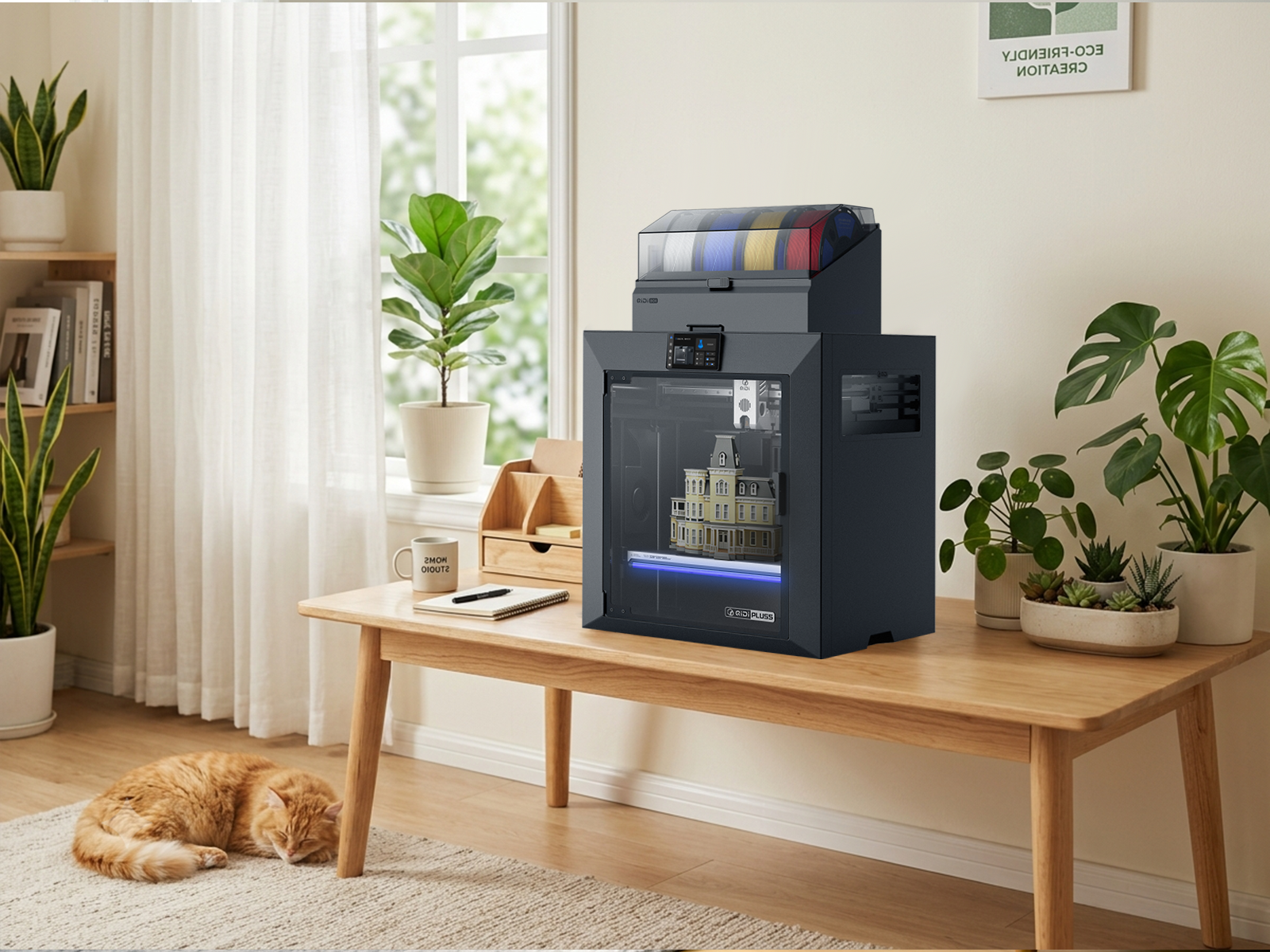

Breathe easy, create safely.
Our active air filtration system silently protects your health, reducing odors and capturing micro-particles.

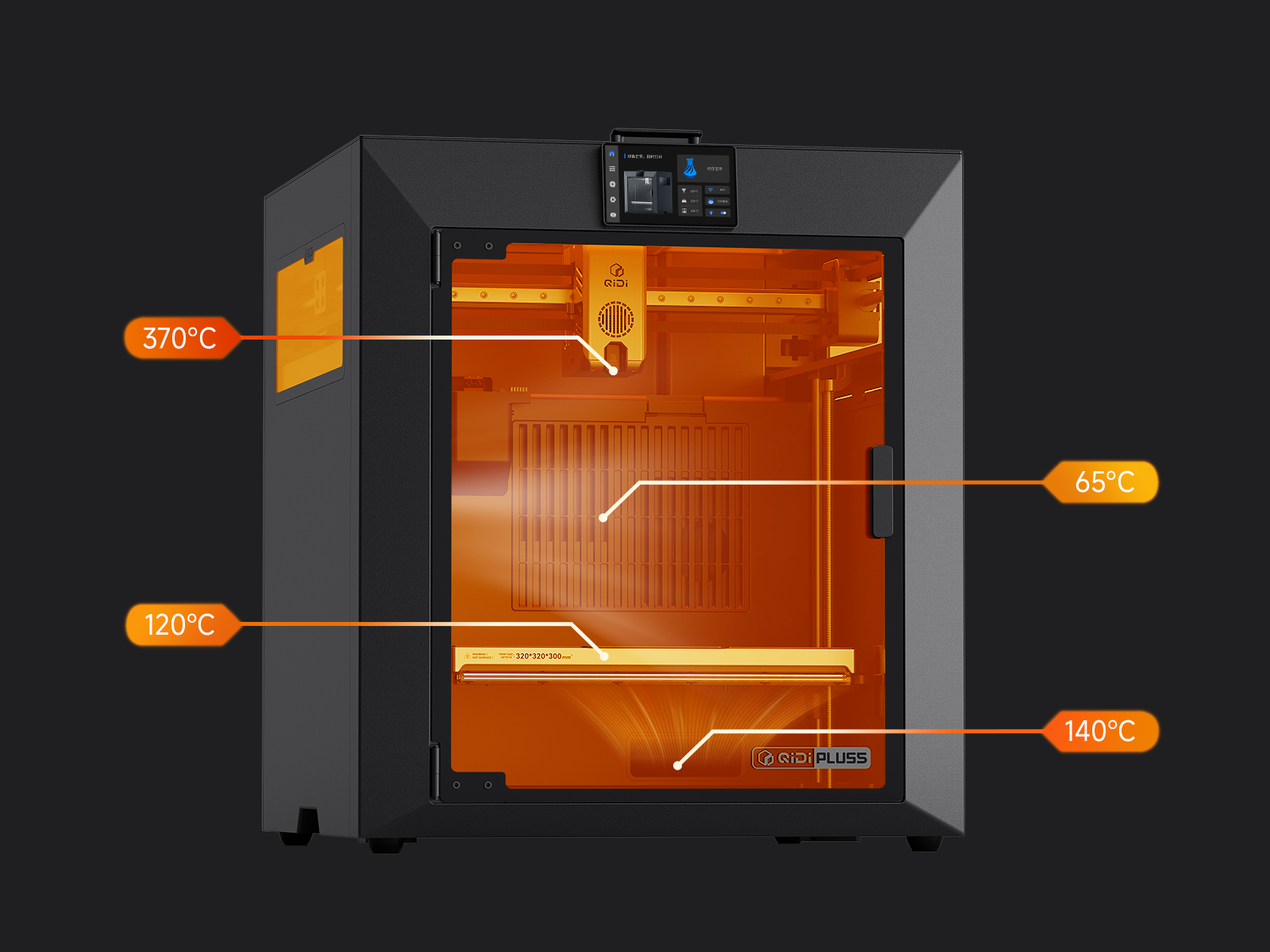

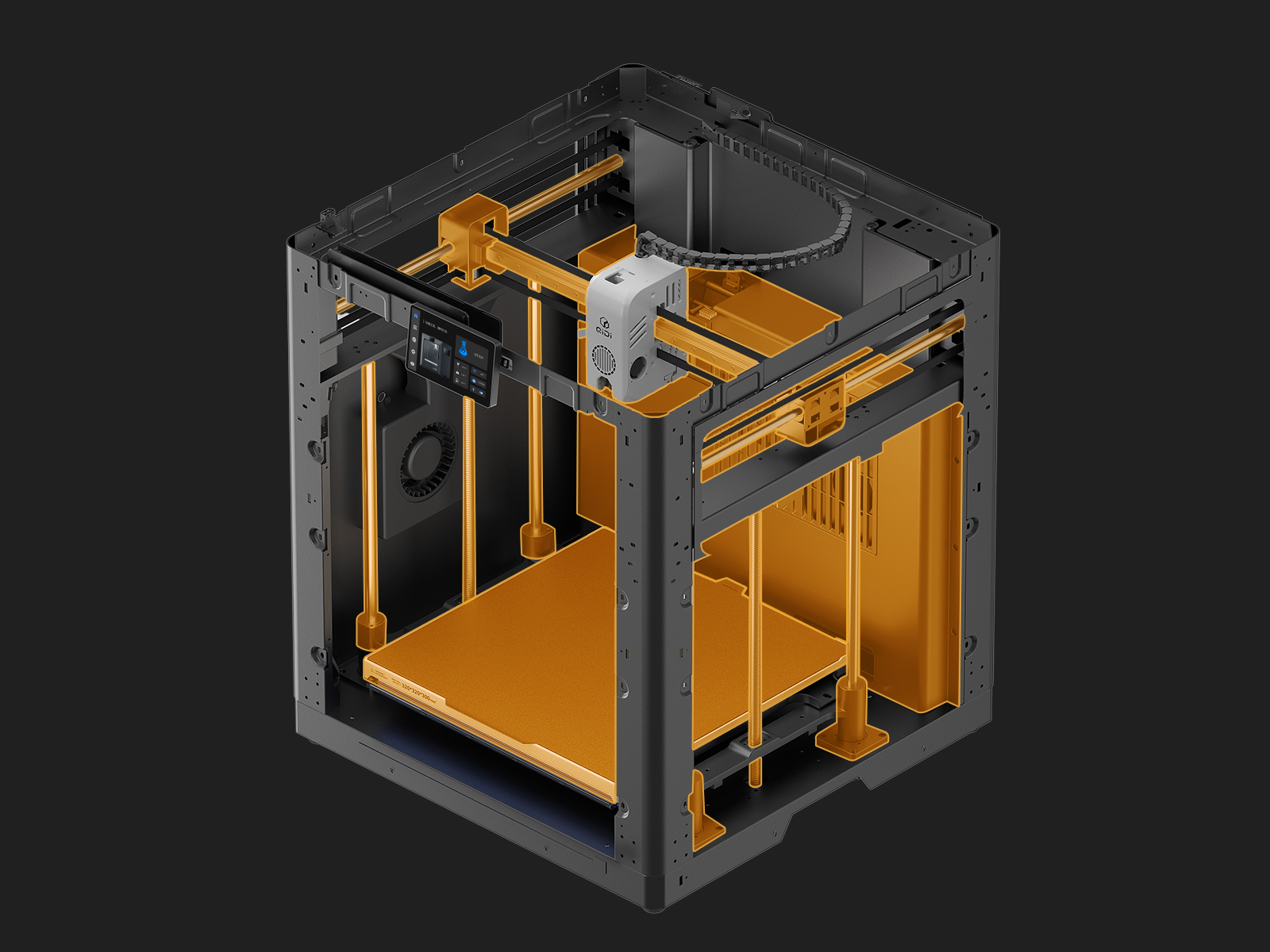

Advanced safety: intelligent thermal circuits and fireproof chamber
Advanced safety
Safety engineered for ultimate peace of mind. The Plus5 features a multi-sensor closed-loop thermal control system that constantly regulates internal temperatures to prevent overheating. Coupled with a robust fireproof print chamber, it offers industrial-grade protection for overnight and high-temperature printing.
Enhanced User Experience
QIDI Plus5 has undergone design updates based on user feedback, offering a more comfortable experience.
Why Plus5?
More than just a printer, it's a true industrial-grade powerhouse for your workspace.
An expanded build volume, a rapid active heating chamber control system, and a fully integrated AI-powered ecosystem – all designed to bring your reality to life.
Key improvements from Plus4 to Plus5:
More Space: +18% build volume with the same footprint.
Faster Preheating: +38% heating efficiency.
Healthier Air: Integrated 3-stage air filtration system.
Improved First Layer: Enhanced next-generation auto-leveling accuracy.
Smarter Workflow: One-touch printing with QIDI Maker and QIDI Studio.
QIDI Plus5
Bigger build. Bolder upgrade. Smarter creation
What's in the box?
QIDI Plus5 Technical Specifications (Official link)
|
Print Size (L*W*H) 320*320*300 mm |
Printer Dimensions 500*488*558 mm |
|
Shipping Dimensions 620*630*700 mm |
Gross Weight37.8 kg |
| Net Weight29 kg | Print Head Temperature≤ 370℃ |
|
Print PlateDouble-sided PEI Magnetic Build Plate |
Heated Bed Temperature≤ 120℃ |
|
Maximum Tool Head Speed 600 mm/s |
Acceleration ≤20000mm/s^2 |
| XY StructureCoreXY Belt, 9mm width, 1.5GT | X-axisHigh-hardness linear guide |
| Z-axisIndependent dual lead screw motors |
Printing PlatformAluminum plate, silicone heated bed, RGB status LED |
| NozzleBimetallic Nozzle | Nozzle Diameter0.4 mm (0.2/0.6/0.8 mm optional) |
|
Extruder Gear Hardened steel gears for direct drive extruder |
Supported FilamentPLA, ABS, ASA, PETG, TPU, PA, PC, carbon/glass fiber reinforced polymers, etc. |
| Filament Diameter1.75mm | Multi-color PrintingCompatible with QIDI Box (multi-color) |
| Air FiltrationYes (3-in-1 Air Filter: G3 Pre-filter + H12 HEPA Filter + Coconut Shell Activated Carbon) |
Chamber TemperatureThird generation, up to 65°C, independent chamber heating. |
| Conversion LevelingAutomatic leveling without manual intervention (built-in load cell sensor in the hotend) | Filament DetectionFilament run-out sensor (mounted above the extruder) and tangle detection (requires QIDI BOX) |
| AI Camera DetectionYES | Auxiliary Cooling Fan4-pin PWM fan with RPM feedback |
| Hot End Cooling Fan4-pin PWM fan with RPM feedback | Model Cooling Fan4-pin PWM fan with RPM feedback |
| Power Loss Recovery:YES | Input ShapingYES |
| Voltage110V / 220–240V AC, 50/60Hz (region-specific models available) |
Rated Power Steady-state power (ambient temperature 25 °C): 150 W + 550 W (chamber heating) + 500 W (heated bed): PLA: 190 W, ABS: 500 W |
|
CameraCamera (up to 1080p), supports Timelapse function |
Storage32 GB EMMC flash drive and USB 2.0 |
| Connectivity2.4 GHz/5 GHz Wi-Fi, Ethernet, USB | Display Screen4-inch touch screen with 800*480 resolution |
| SlicerQIDI Studio and other third-party software, such as Orca, PrusaSlicer, etc. | Slicing File FormatsSTL, OBJ, 3MF, STEP, STP |
