QIDI Tech Max4: The New Flagship for Large-Format 3D Printing

Take your creations to the next level with the QIDI Max4 , the ultimate CoreXY 3D printer that combines massive build volume with unprecedented speed. Designed for those who accept no compromise, the Max4 transforms your desktop into a true digital factory capable of handling technical materials and industrial-scale projects.

Why choose the QIDI Max4?

• Massive Build Volume: With a 390 x 390 x 340 mm build area, you have 55% more space than the previous generation. Print one-piece helmets, functional prototypes, or complex models without having to split them.
• Extreme Speed ​​and Precision: Thanks to the CoreXY structure and industrial-grade linear guides, reach a maximum speed of 800 mm/s with an acceleration of 30,000 mm/s² . Less waiting time, more productivity.
• Professional Thermal Control: The actively heated chamber up to 65°C ensures perfect prints with difficult materials such as ABS, ASA and Nylon, eliminating the risk of warping.
• High Temperature Hotend (370°C): The Direct Drive extruder with hardened steel gears allows you to print carbon or glass fiber filled materials, in addition to classic PLA, PETG and TPU.
• Built-in Artificial Intelligence: The 1080p AI Camera monitors your print in real time, detects errors, and lets you create stunning timelapses to share.
• Multi-Color Ecosystem: The Max4 is natively compatible with the QIDI BOX , allowing you to print up to 16 different colors or use soluble media (accessory sold separately).

Technical Specifications

Package Contents

Inside the box you'll find everything you need to start printing right away:

• 1x QIDI Max4 3D Printer
• 1x Spool of filament (250g/500g) for initial testing
• 1x Accessories and spare parts box:

  • Allen key set and maintenance tools

  • Replacement nozzle

  • USB stick with software and test models

  • Power cord and Ethernet cable

• 1x Template Removal Scraper
• 1x Glue stick to improve adhesion
• 1x Coil Holder Kit
• Instruction manual and quick start guide





  Third generation active chamber heating




  What can QIDI Max4 do?

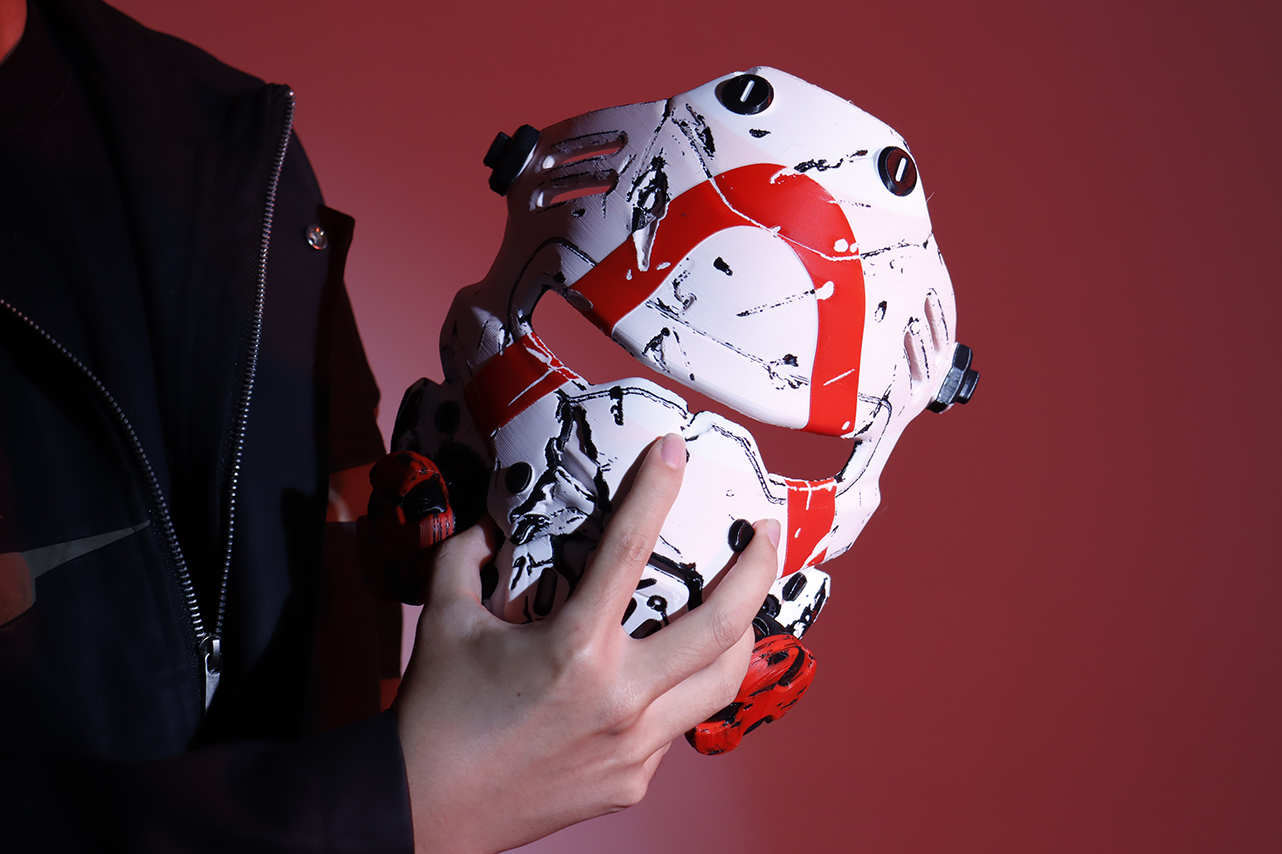

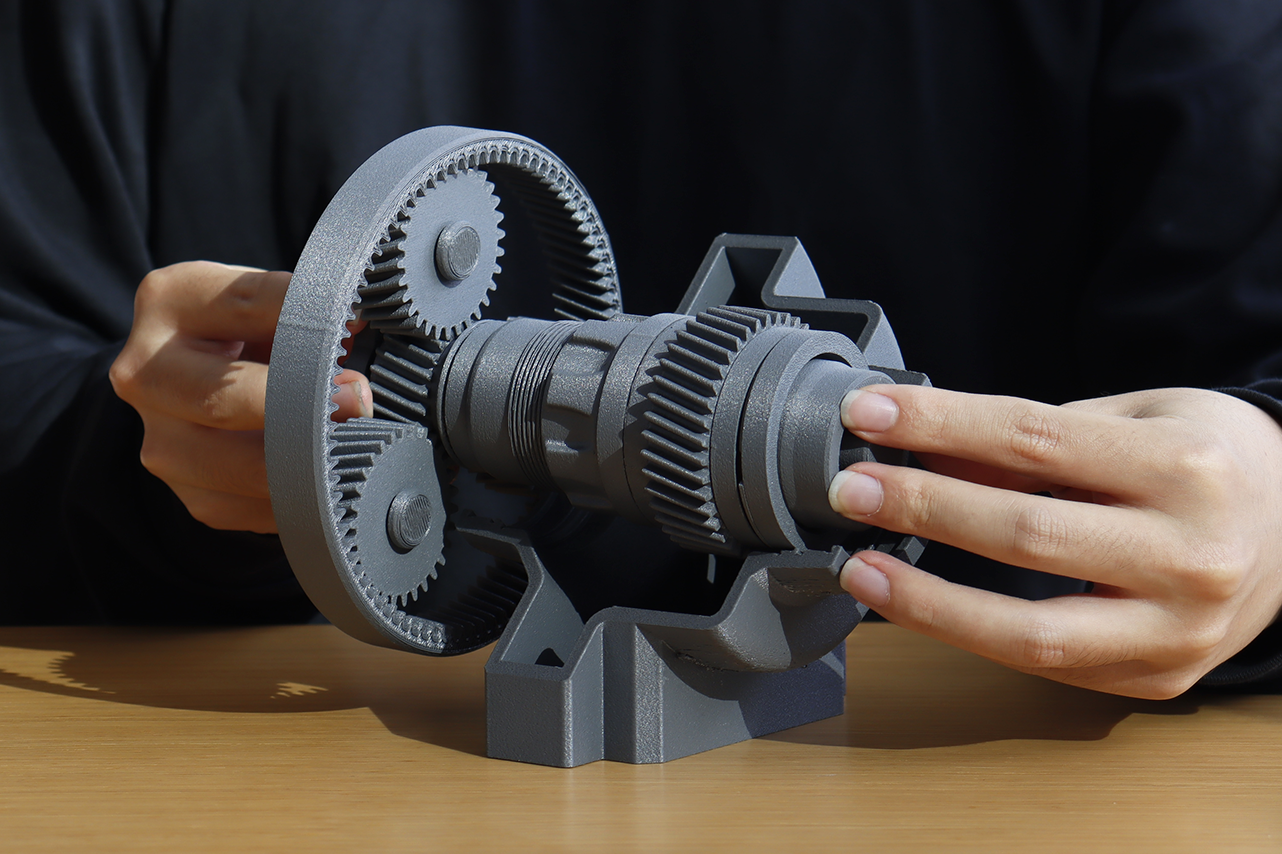

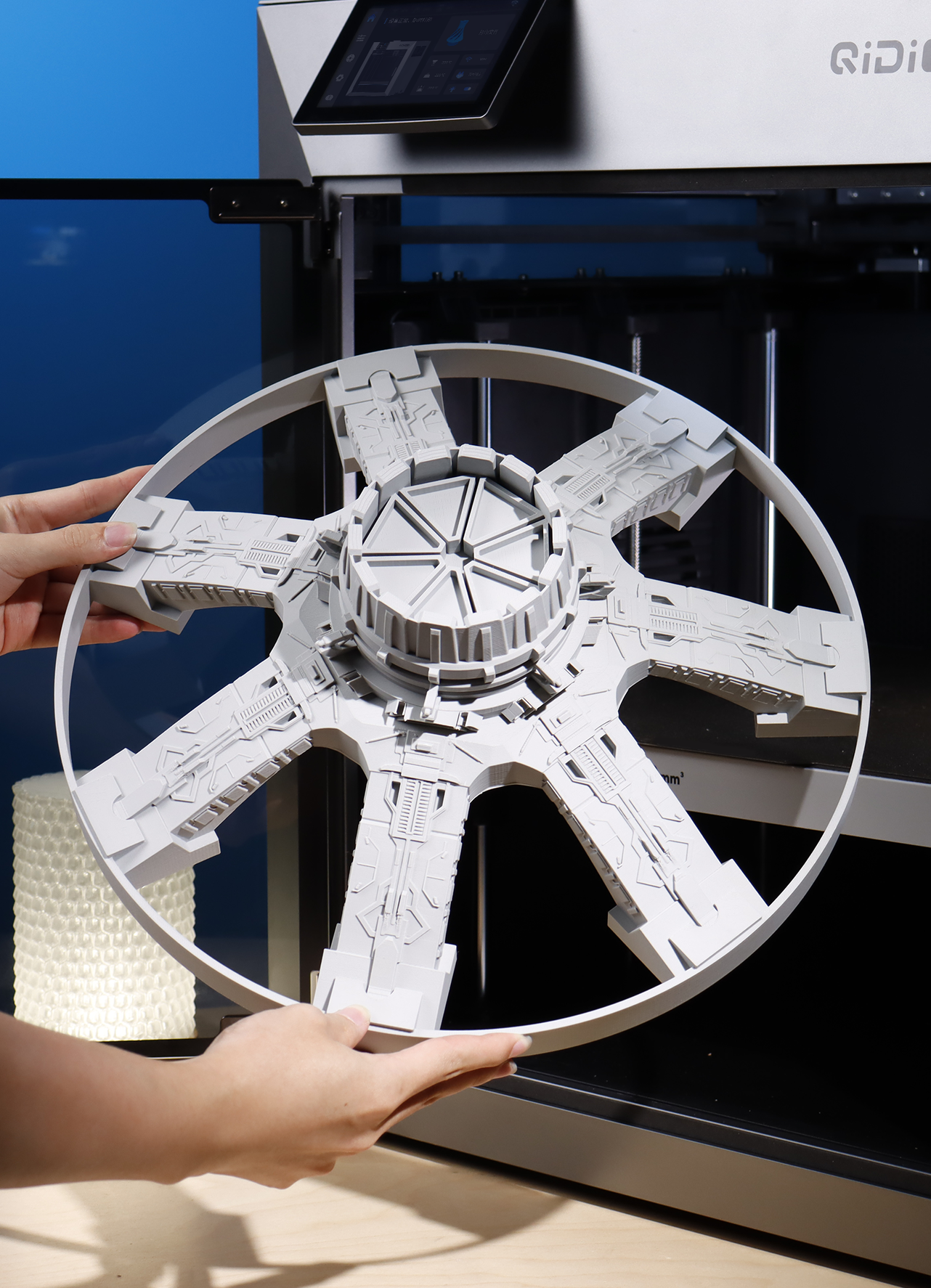

  390*390*340mm Exceeds the size limit and can be used in all scenarios



  @亖葱



  @Borderlands



  @pulsardesigns

  QIDI Max4 Industry-First Innovations






  How can we break the limits?

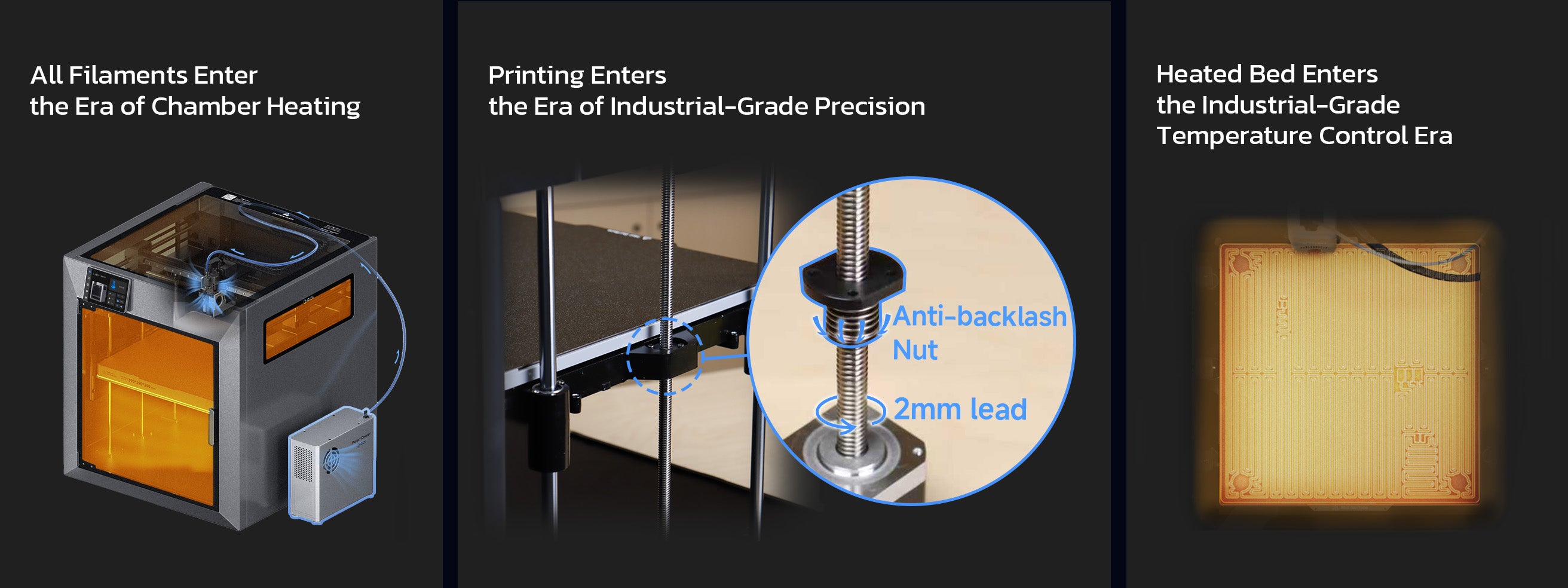

  All filaments enter the era of chamber heating

  No clogging, even in a heated room

  Greater temperature control

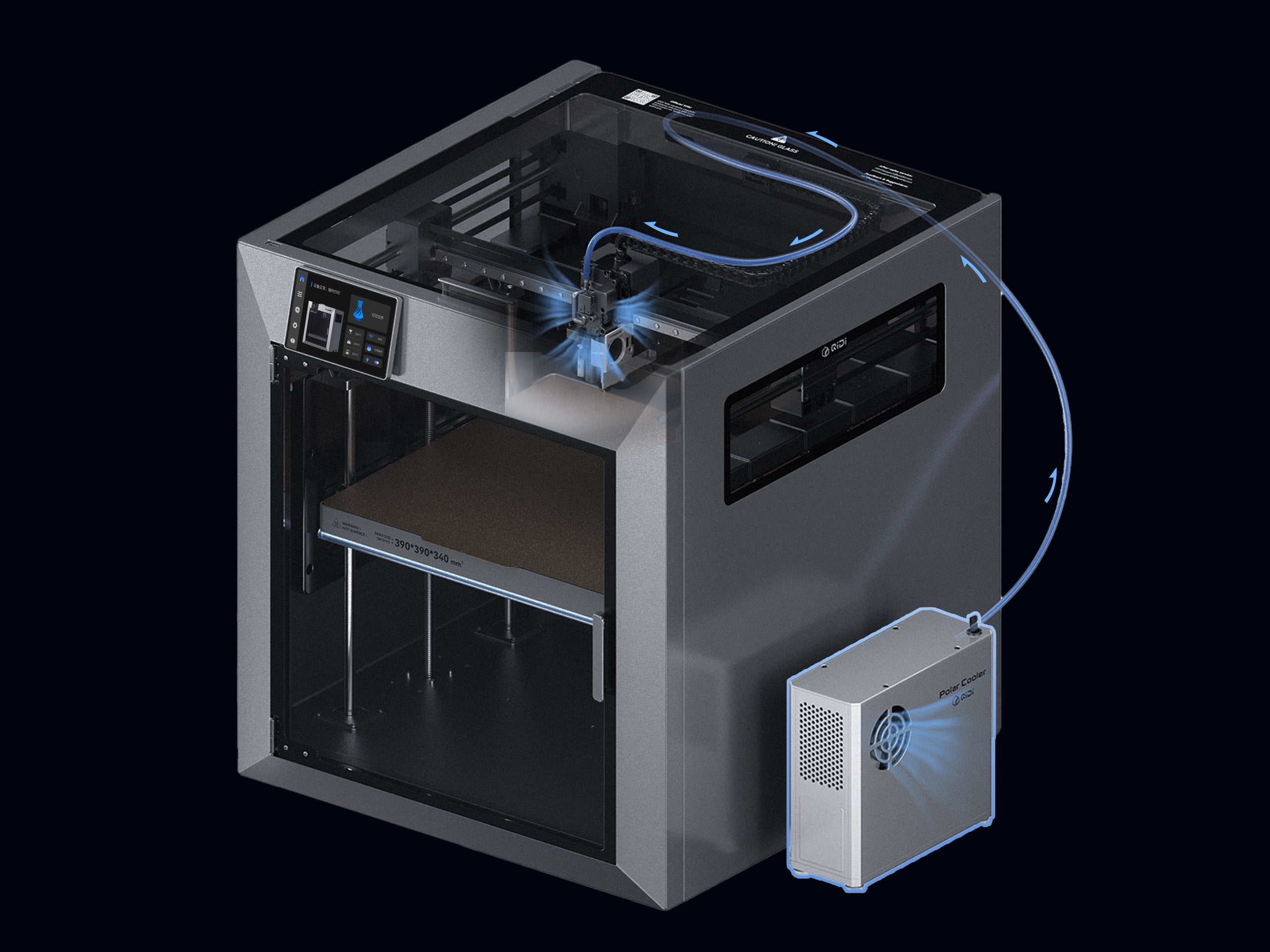

  Active cooling air control system

  in combination with active chamber heating, ensures that large-sized PLA does not warp at the edges



  Reduce clogging by 90%

  High efficiency air-cooled direct blow extruders and filament



  Cold air blows on the extruder



  Reduces clogging by 90%

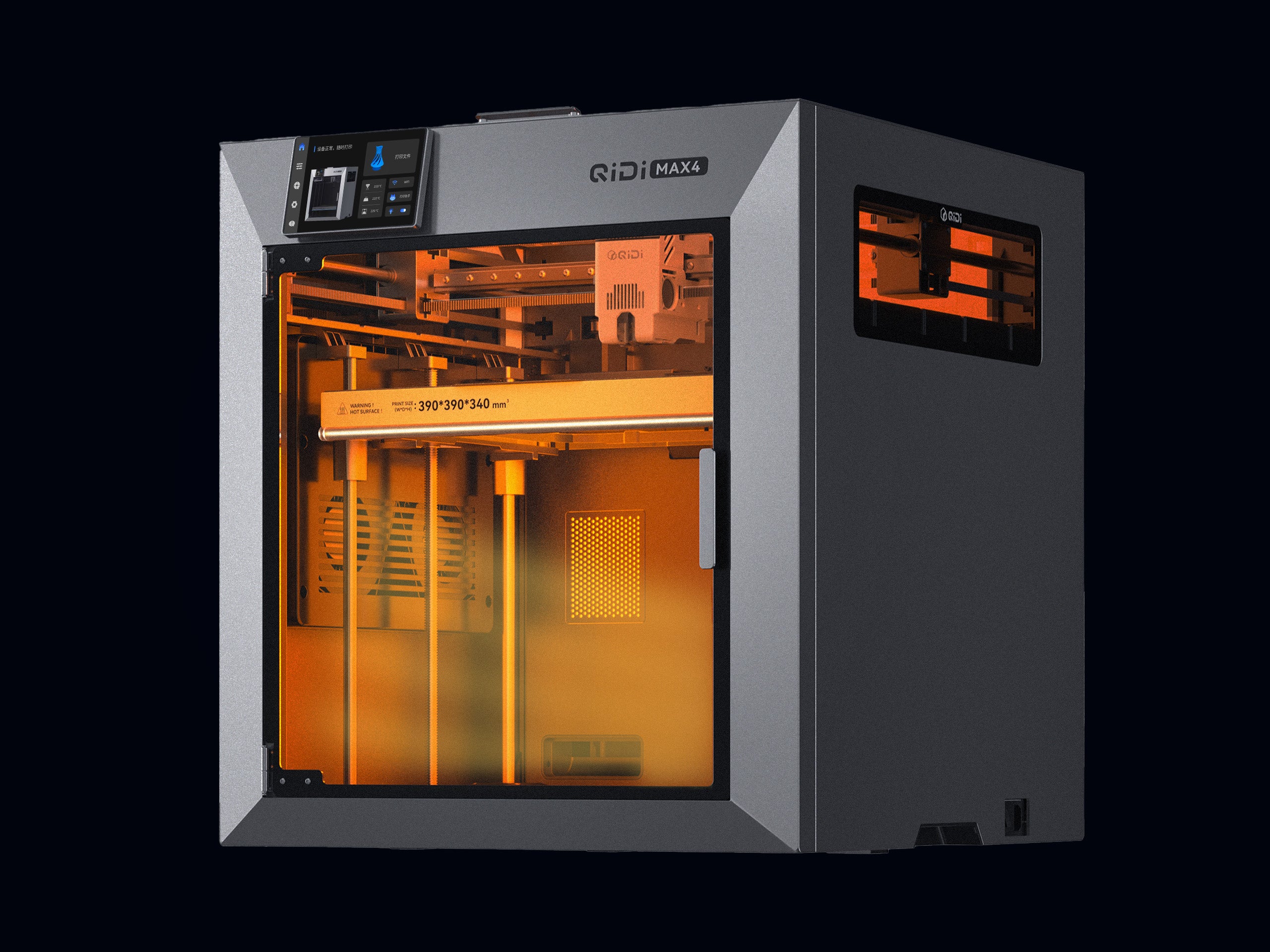

  Heating the room to 65ºC

  Third-generation active chamber heating reaching up to 65ºC

  Air circulation design ensures ideal conditions for printing various filaments



  Active polar chamber heating and cooling

  make sure the large PLA does not warp at the edges



  OFF: Deformation



  ON: Perfect model
  Impeccable surface quality

  Printing enters the era of industrial-grade precision





  The secrets to perfect layers

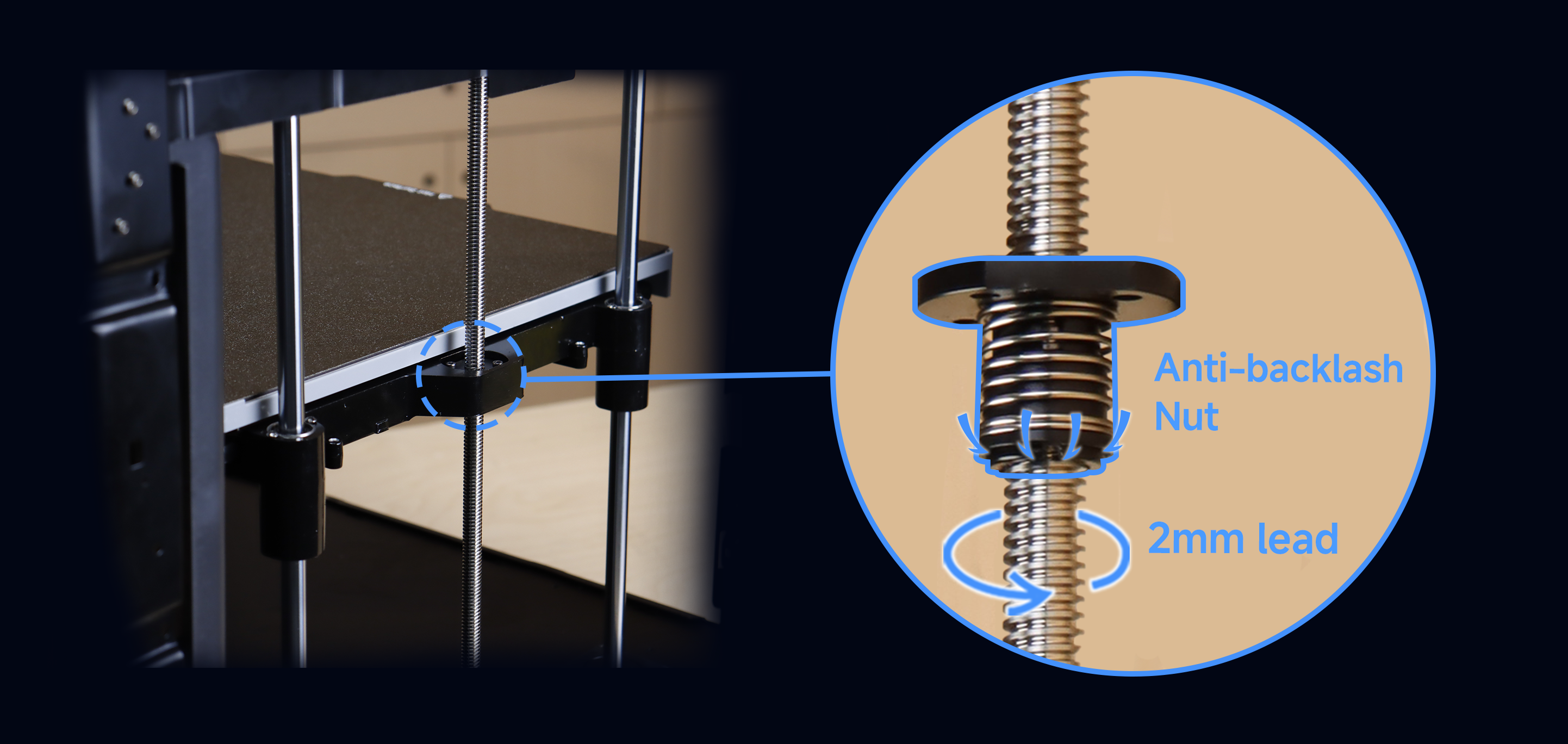

  No wobble, no ripple

  With the shortest Z-travel in its class, a 2mm leadscrew Z-axis delivers unprecedented precision. A new anti-backlash nut keeps each layer perfectly aligned.

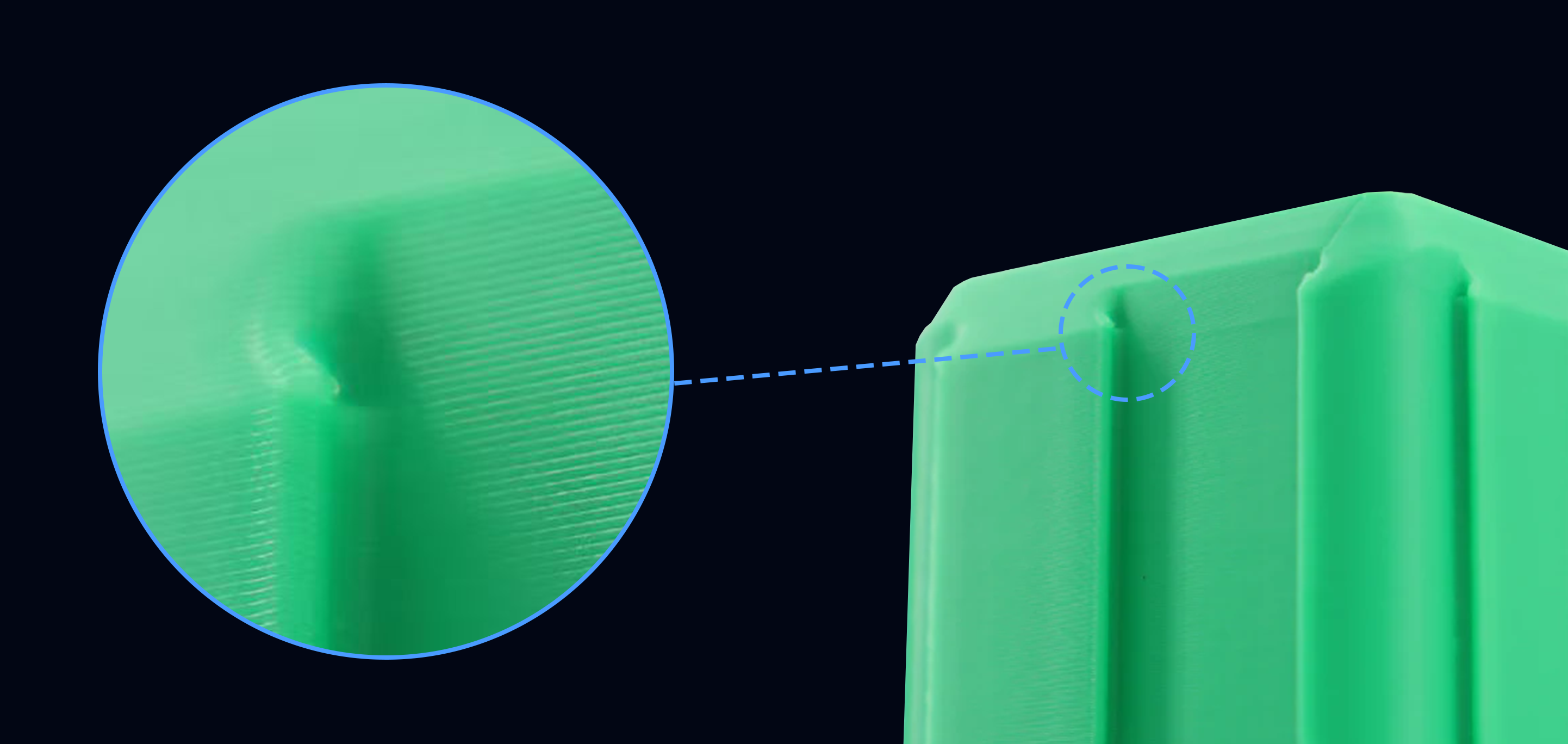

  Detail of the ultra smooth layer



  Every Inch Warmed - For the First Time

  Heated bed enters the era of industrial-grade temperature control

  The 390x390mm heated bed features a full-surface silicone layer with dense heating wires and insulation cotton, ensuring even heat, strong first layer adhesion and stable temperatures, perfect for large-scale, warp-free prints.



  QIDI Max4: Ultra-Uniform



  Efficient industrial-grade output, Unlock the dimensions


  More stable, more precise and quieter

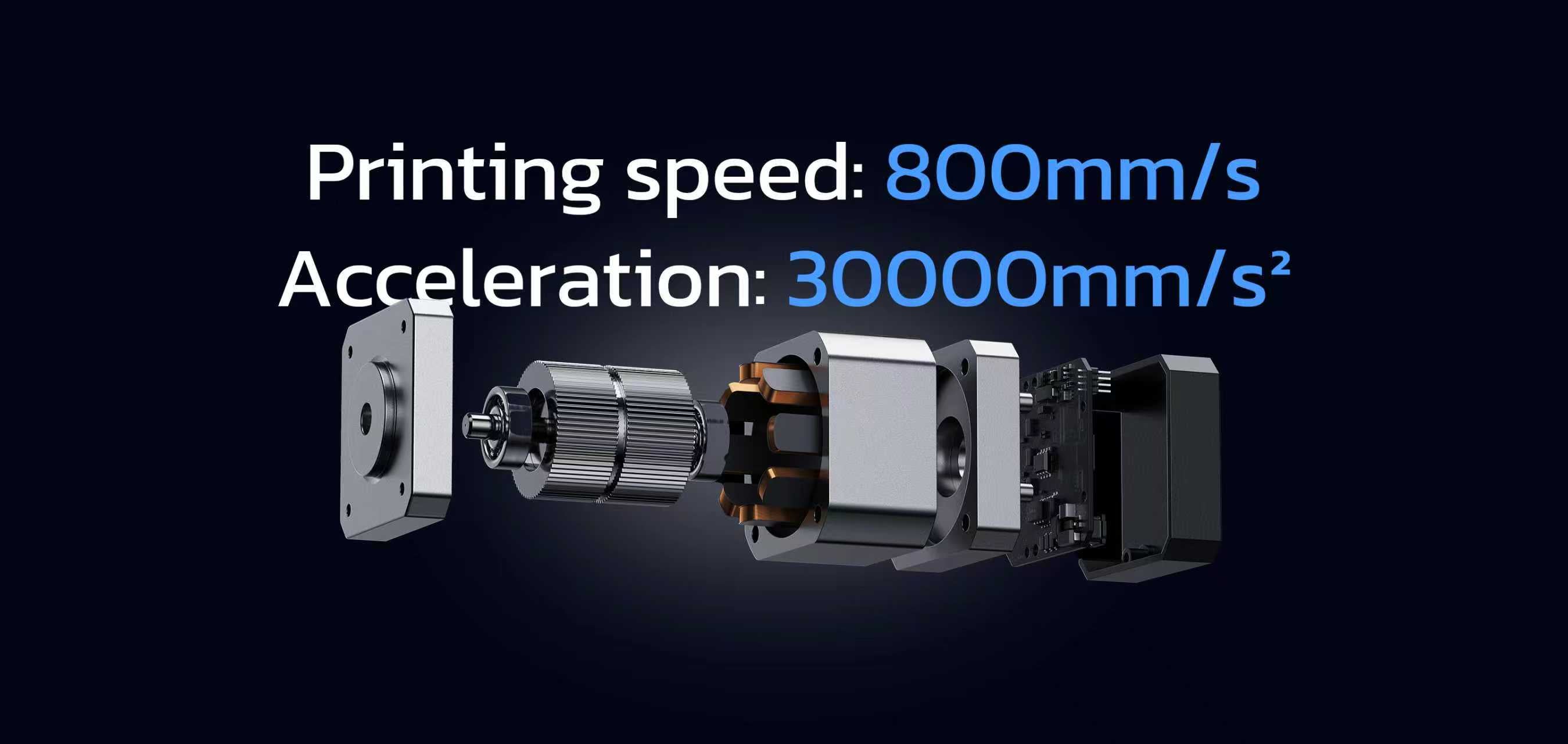

  Powerful FOC closed-loop stepper motor

  Engine performance has been improved by 65% ​​and the print speed has been increased to 800 mm/s, acceleration has been increased to 30,000 mm/s²



  Construction volume 390×390×340 mm

  Let your imagination free itself from the constraints of volume



  Flow rate: 40 mm³/s

  Heating up to 370ºC

  With ceramic throat and new heat dissipation module to reduce clogging.
  Bimetallic nozzle made of hardened steel for longer life.



  Unlock perfect printing with PPS-CF

  Designed for high performance demands



  High-speed precision

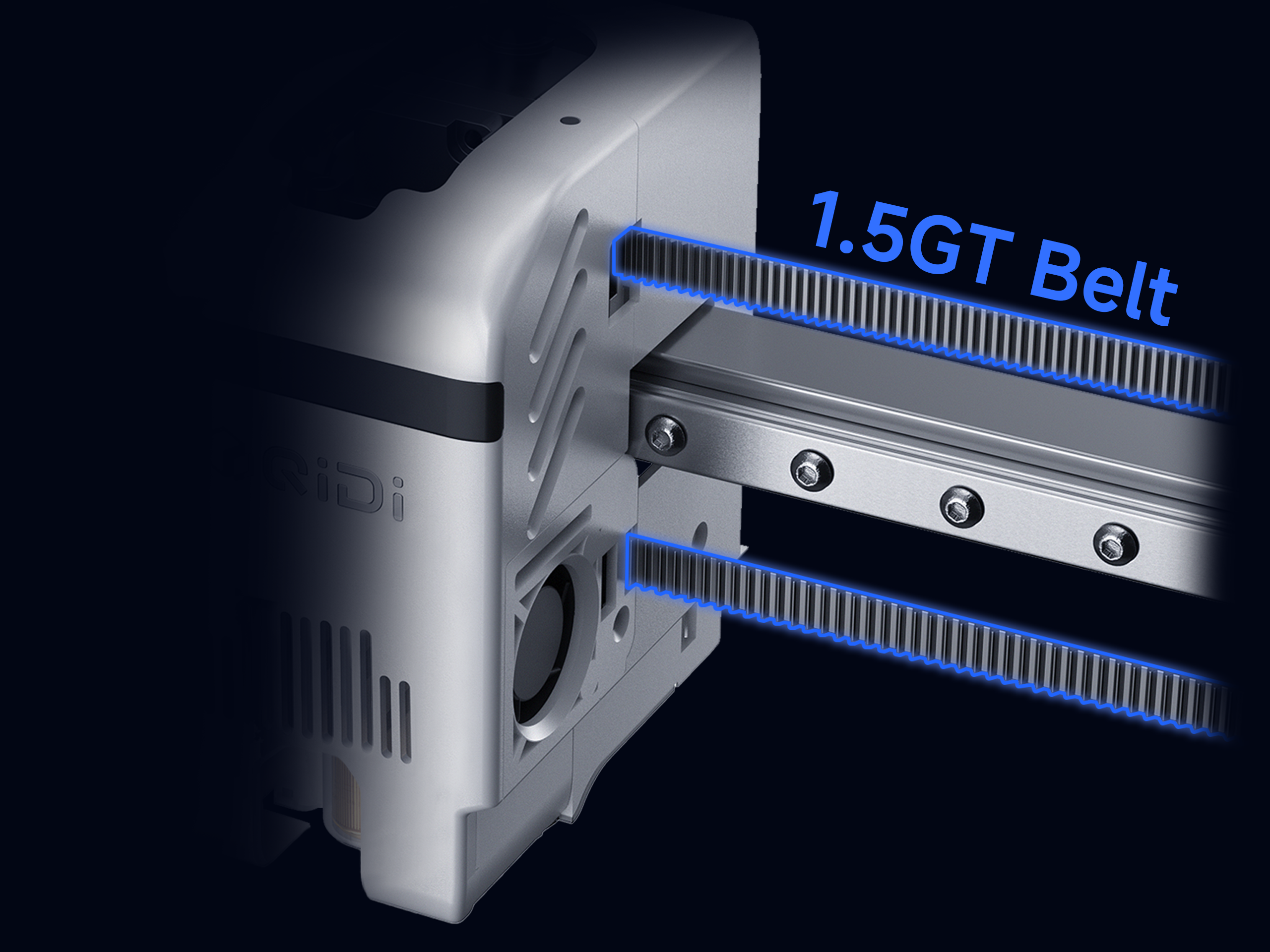

  New 1.5GT custom belt

  New custom 1.5 GT belt with higher tooth density for smoother, more precise movement.
  Minimizes vibration frequency artifacts (VFA) for better print quality.



  An epic improvement in terms of
  of stability and precision

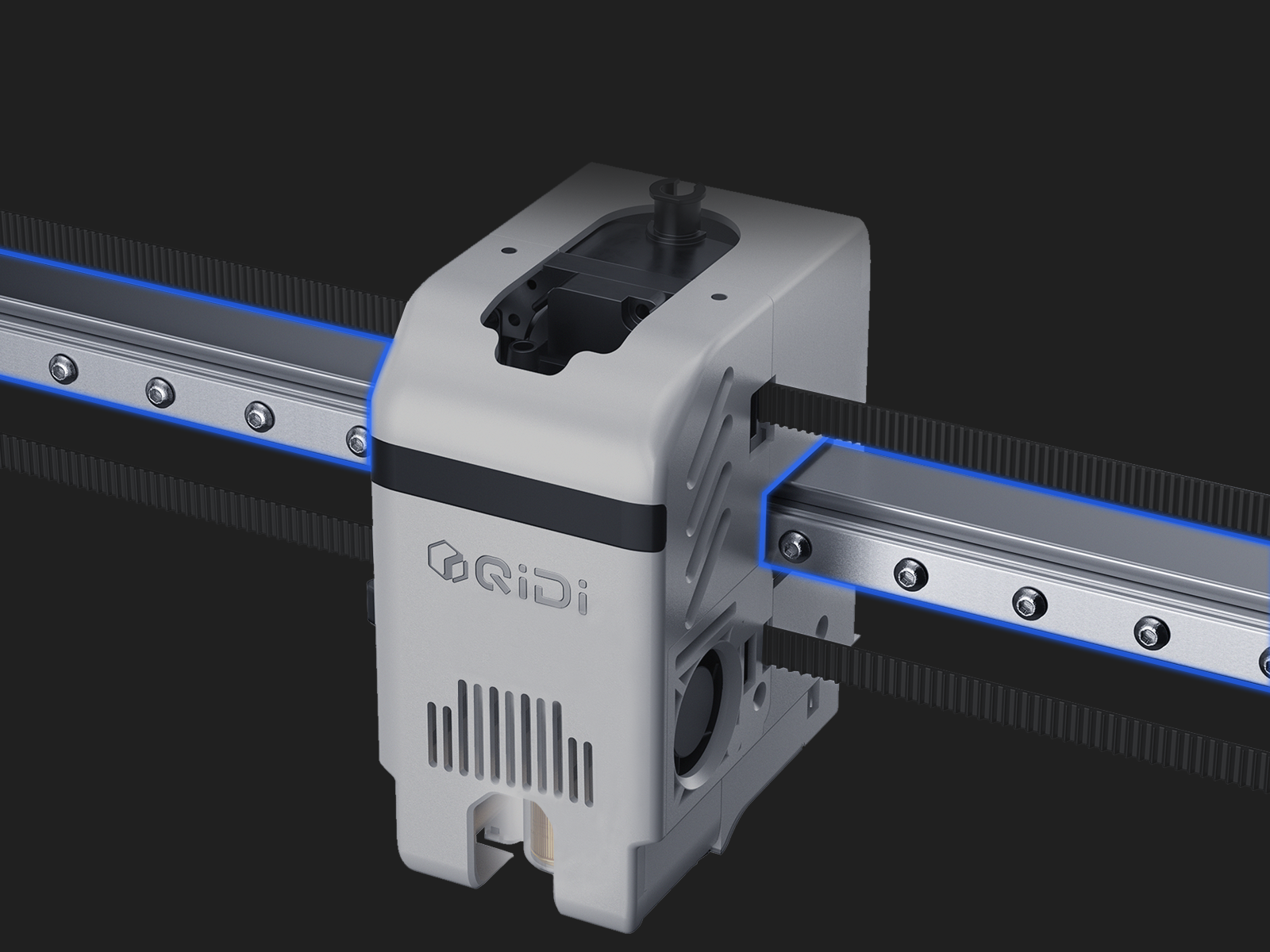

  Linear guide upgrade

  Maintains smooth performance and accuracy during long-term use

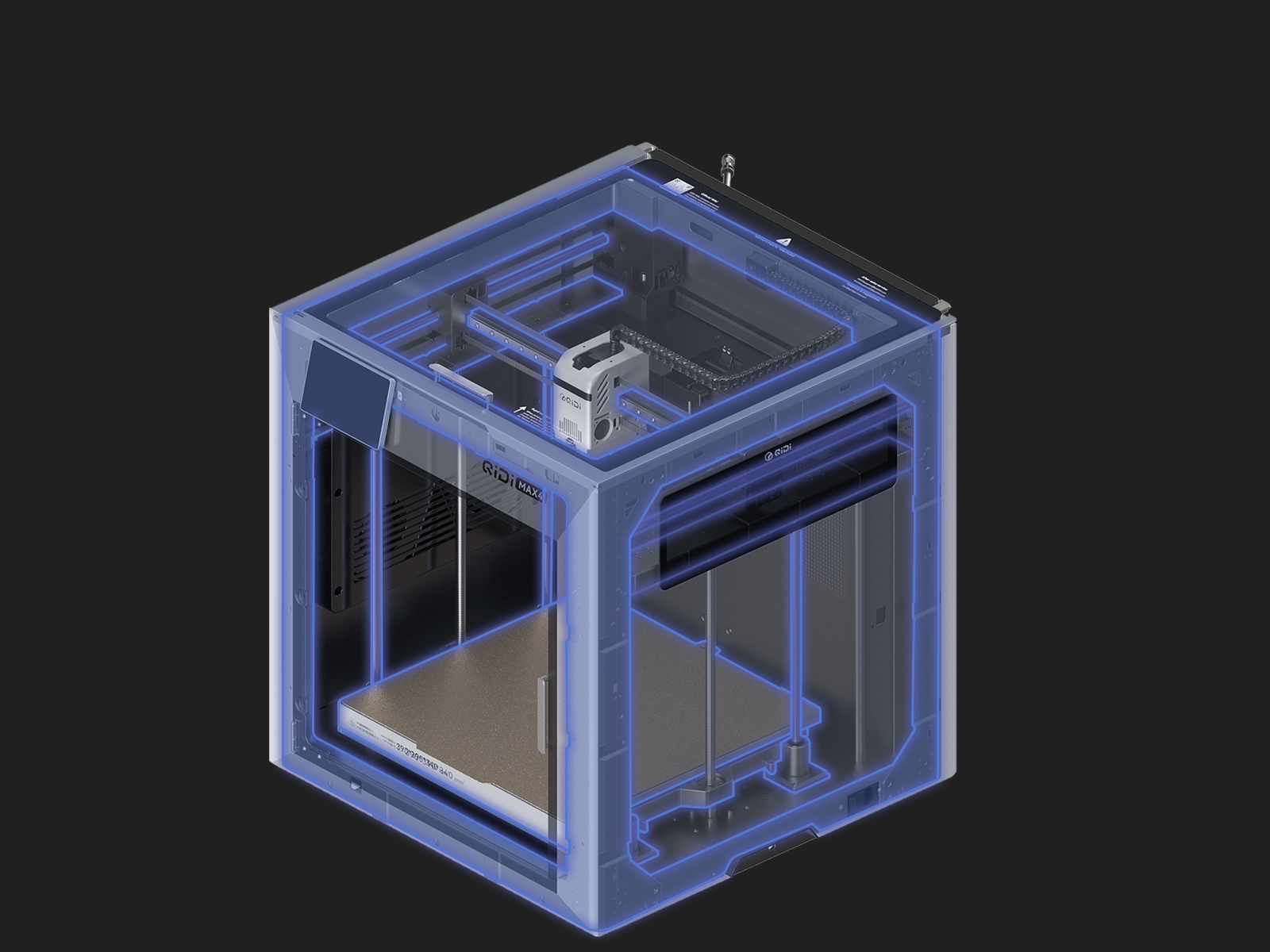

  CoreXY all-metal frame

  The overall structure of the movement uses an all-metal frame and bearings, ensuring QIDI's signature stable and reliable manufacturing quality.

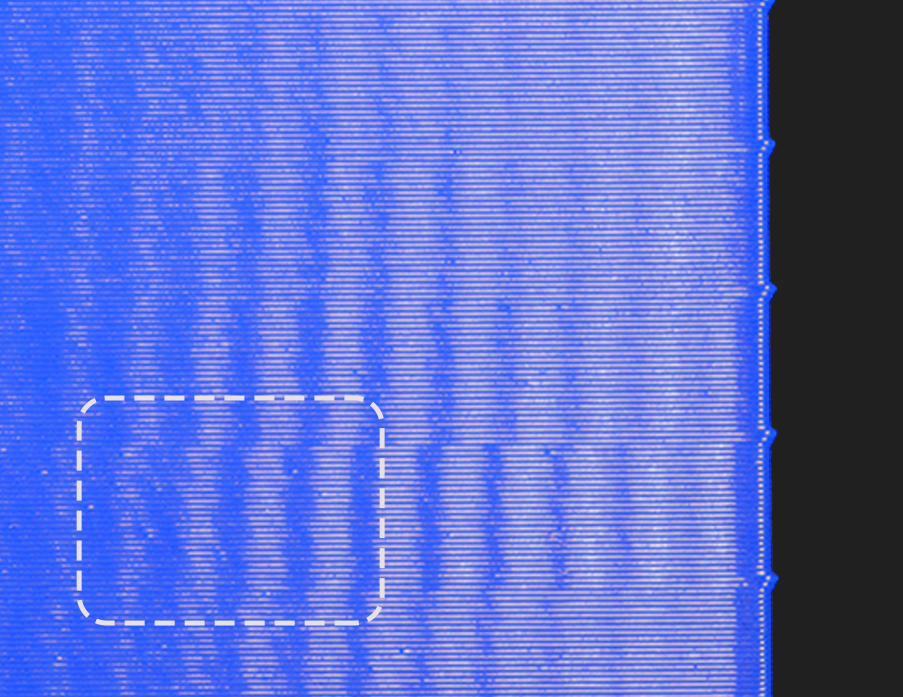

  Smooth flagship-level surface

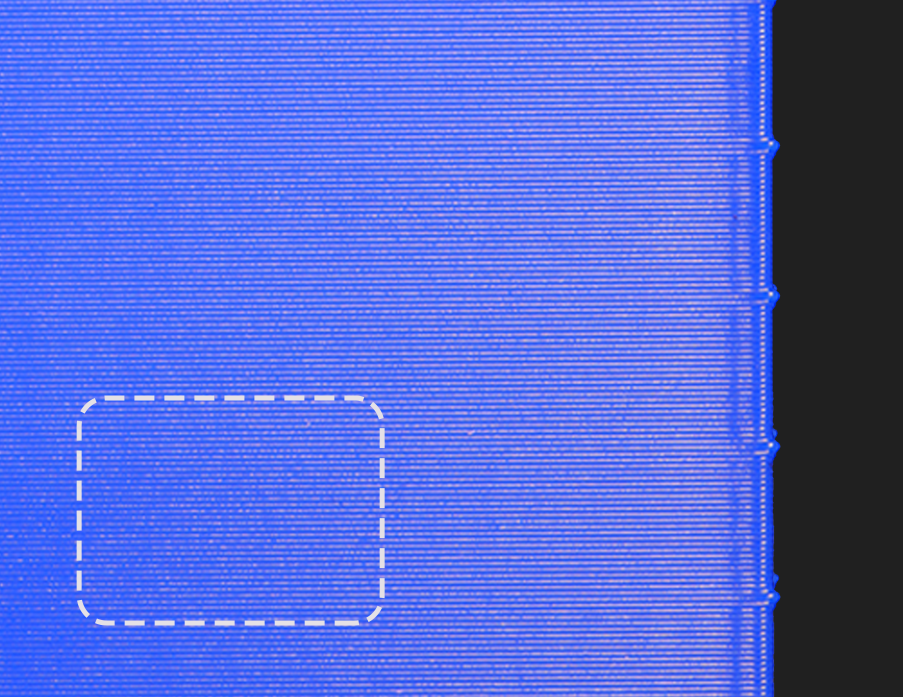

  Intelligent resonance control and 1.5GT belts work together to remove ripple lines that others can't.



  QIDI Max4

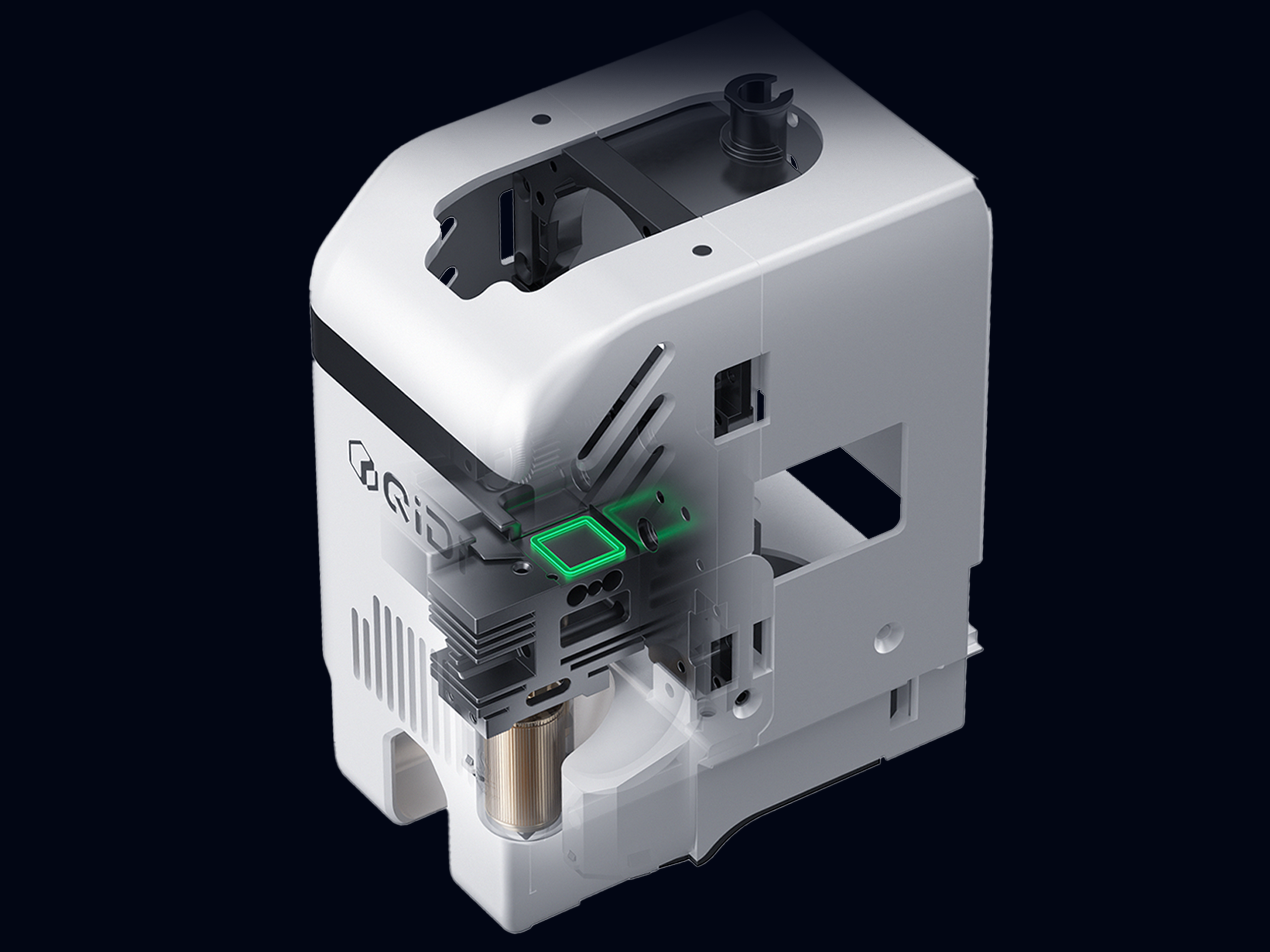

  The nozzle acts as a sensor, ensuring truly zero deviation

  No probe offset, no guesswork, just precise, real contact.
  Unaffected by bed surface or ambient vibrations, it offers unmatched first-layer accuracy, zero offset, and true plug-and-play leveling.

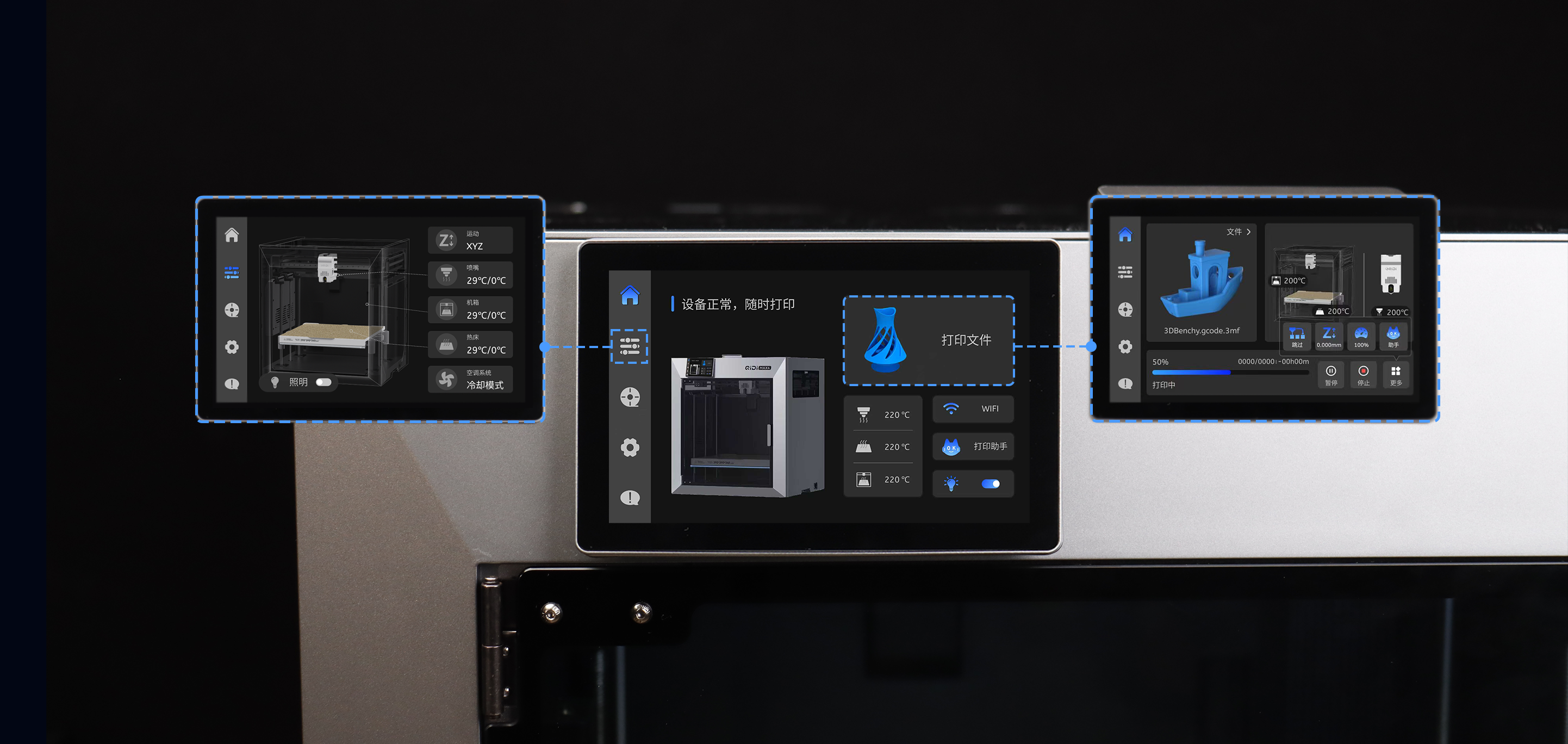

  5-inch touch screen

  The high-definition touch screen and the upgraded powerful processor, combined with the new generation of user interface design, provide a smart and understandable user operating experience.

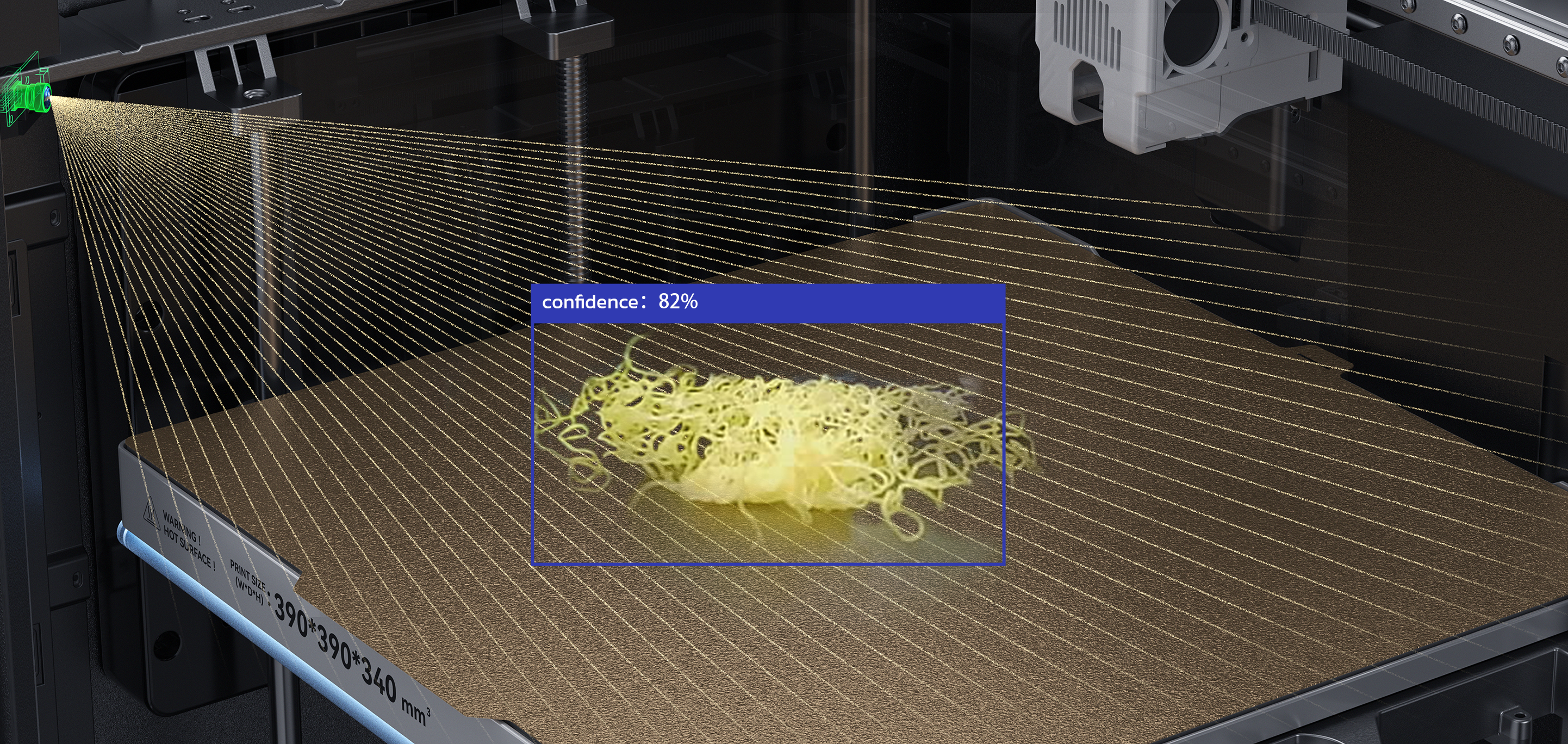

  AI camera, guarantee of every print

  Actively detects common printing problems, such as Spaghetti, to ensure printer safety

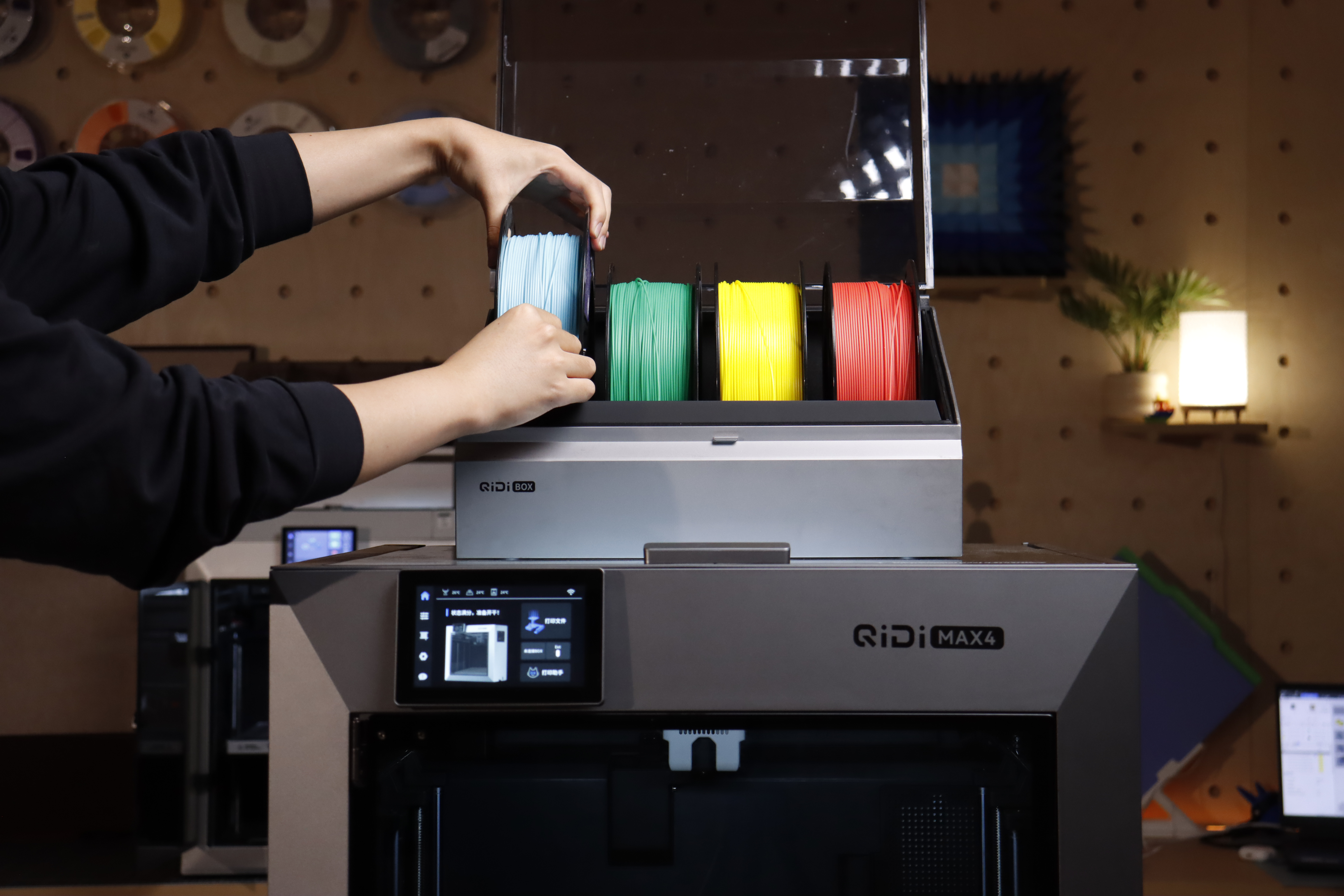

  Multi-color and multi-material printing

  The QIDI Box features a built-in heating chamber up to 65°C, which gently softens advanced filaments for consistent, vibrant multi-color prints every time.



  QIDI BOX Highlights

  Your personal partner for colors



  16-color multi-material freedom
  Connect up to 4 QIDI Boxes and unlock endless creative possibilities with 16 different materials



  Easy media removal
  Choose between snap-on or soluble media for clean, effortless prints every time.



  Drying at 65°C during printing
  Keeps filaments perfectly dry and ready for flawless, uninterrupted printing.



  Automatic filament refill
  Change spools seamlessly, ensuring uninterrupted printing and minimal filament waste

  For home health and safety

  Highly efficient in capturing 99.5% of dust and particles

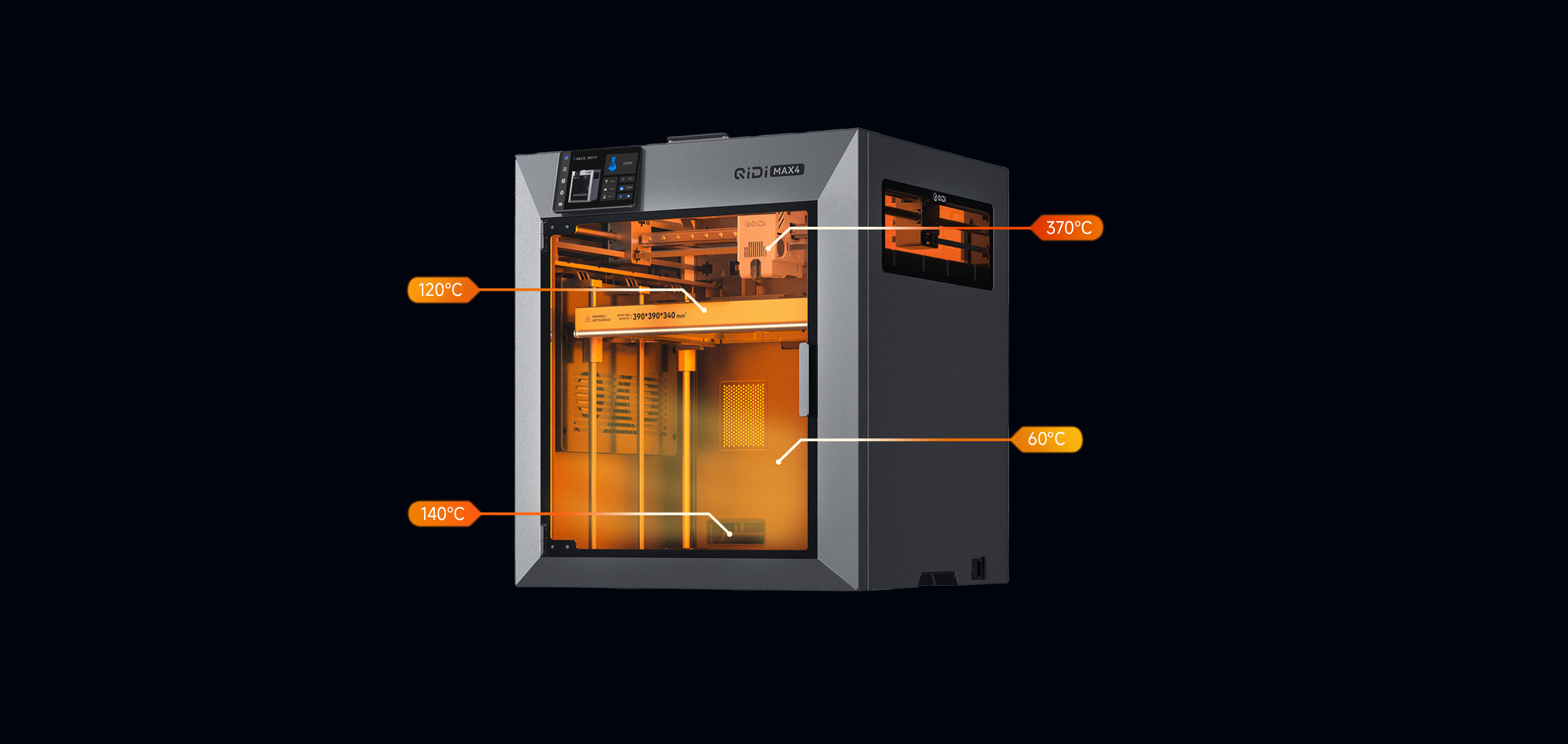

  Multi-sensor closed-loop temperature control

  Constantly monitors the printer to ensure safe operation



  Fireproof room

  uses many fireproof materials in the chamber design to provide fire protection



  User Experience Update

  QIDI Max4 has undergone design updates based on user feedback, providing a more comfortable experience.



  Visible tempered glass, easy to observe



  Smooth base, easy to clean



  Bottom handle design, easy to carry






  What's in the box



  QIDI Max4 Technical Specifications

  Print size (W*D*H) 390*390*340mm	Printer dimensions 558*578*612 mm
  Package size 700*710*750mm	Gross weight Max4: 49.5 kg Max4 Combo: 56 kg
  Net weight Max4: 40 kg Max4 Combo: 46.5 kg	Print head temperature ≤ 370℃
  Build Plate Type Included Double-sided textured PEI plate	Hot bed temperature ≤ 120℃
  Maximum tool head speed 800 mm/s	Acceleration ≤30000mm/s²
  XY CoreXY Structure , Closed-loop stepper motor with 1.5 GT FOC belt and 10 mm width	X/Y axis X: High hardness linear guide Y: 12mm Steel Linear Shafts
  Z-axis Independent motors with 2mm lead screw × 2 12mm × 4 Steel Linear Shafts	Print platform Silicone heated bed with aluminum plate
  Nozzle Bimetallic nozzle	Nozzle diameter 0.4mm (0.2/0.6/0.8mm optional)
  Extruder Gear Direct Extruder made of hardened steel with double gears	Supported filament PLA, ABS, ASA, PETG, TPU, PA, PC, Carbon/Glass Fiber Reinforced Polymer, etc.
  Filament diameter 1.75mm	Multicolor Printing Compatible with QIDI Box (Multicolor)
  Air filter Yes (3-in-1 air filter: G3 pre-filter + HEPA H12 + coconut shell activated carbon)	Chamber temperature (PTC heater) Independent chamber heating up to 65°C third generation
  Auto-leveling Hands-free auto-leveling (load cell sensor integrated into the hotend)	Filament Detection Runout Sensor (mounted above the extruder) Tangle Detection (requires QIDI BOX)
  AI Camera Detection YES	Auxiliary cooling fan 4-pin PWM fan with RPM feedback
  Hot End Cooling Fan 4-Pin PWM Fan with RPM Feedback	Cooling Fan Model 4-Pin PWM Fan with RPM Feedback
  Extruder Cooler Yes (Polar Cooler required)	RGB Status LED YES
  Power Loss Recovery: YES	Input modeling YES
  Voltage 110 V / 220–240 V AC, 50/60 Hz (region-specific models available)	Rated power 150W+500W (room heating)+700W (bed heating)
  Camera Camera (up to 1080P) Timelapse supported	Storage 32GB EMMC Flash Drive and USB 2.0
  Connectivity Wi-Fi 2.4 GHz/5 GHz, Ethernet, USB	Display Screen 5 inch 800*480 touch screen
  QIDI Studio slicer and other third-party software, such as Orca, PrusaSlicer, etc.	File formats for slicing STL, OBJ, 3MF, STEP, STP
