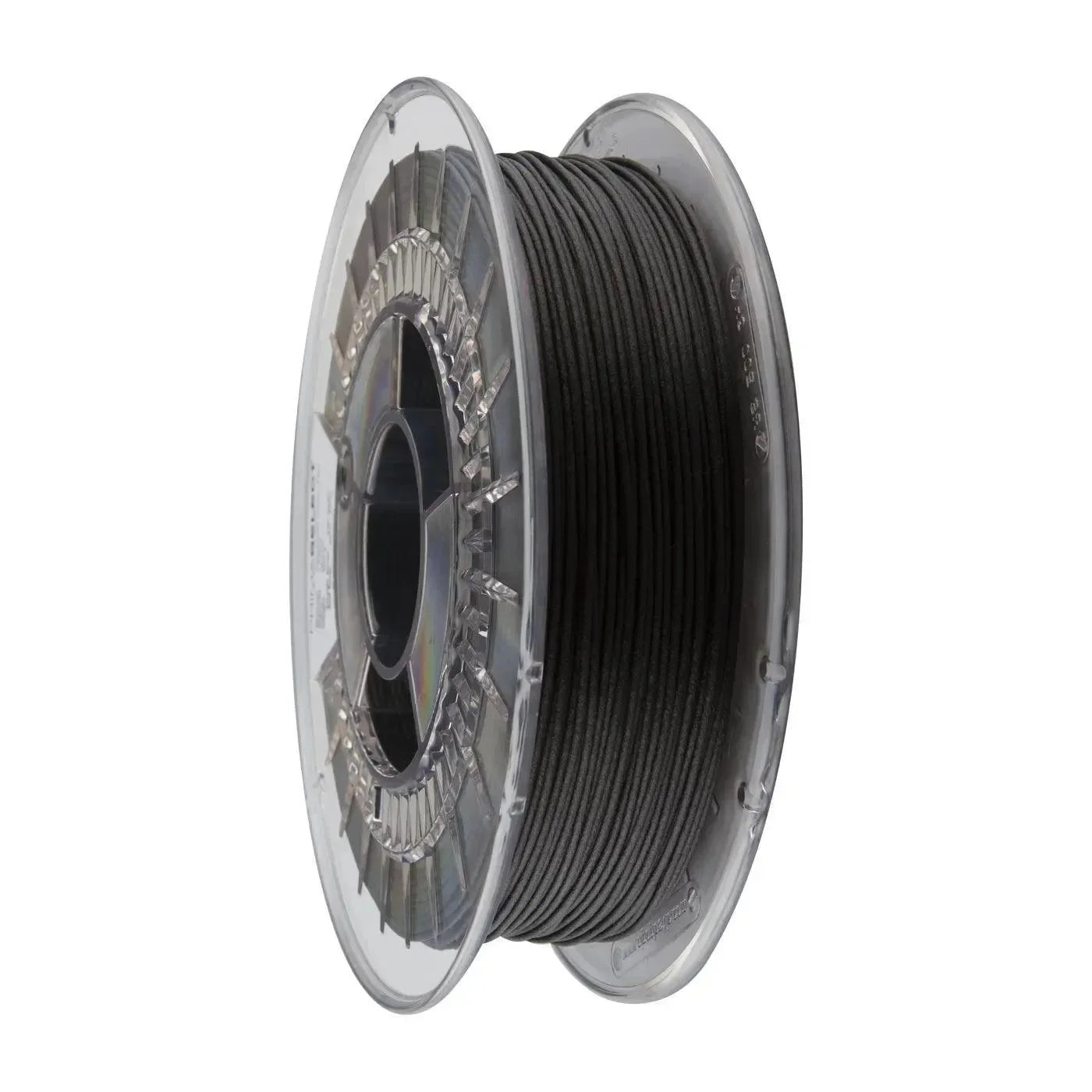

PRIMASELECT LUVOCOM 3F PEEK CF 9676 - 1.75MM - 500G - BLACK

Advantages of PrimaSELECT LUVOCOM 3F PEEK CF 9676

• Excellent mechanical, thermal and chemical performance
• Suitable for demanding industrial applications
• Built-in flame retardant
• High dimensional stability

PrimaSELECT SELECT Luvocom 3F 9676 PEEK CF

PrimaSELECT Luvocom 3F 9676 PEEK CF is a 15% carbon fiber reinforced PEEK (polyether ether ketone) with extraordinary properties in terms of mechanical, thermal and chemical resistance. PEEK with carbon is used in demanding industries such as oil and gas, automotive, mechanical engineering, aeronautics and space technology. This high-performance polymer grade is tailored for the 3D printing industry to meet the strength requirements of injection molding and focuses on mass production of final parts.

3D printing of PEEK replaces various polymer and metal components

PEEK is often used to replace various polymer and metal components in automobiles, machinery and aircraft. Due to its high heat and chemical resistance, PEEK can be used in many ways that metal components are usually used. It can maintain its properties for a long time at high operating temperatures. PEEK is also used in the medical field as it is perfect for making custom prosthetic parts such as arms, hands and cranial prosthetics.

PEEK filament easier to 3D print

For a long time, PEEK was one of the most difficult materials to 3D print, but after much research, an additive was invented and Luvocom PEEK was introduced. The new additive has changed the way PEEK can be used as it now works better with FDM 3D printers.

The perfect manufacturing process guarantees the high quality of PEEK filaments

SELECT Peek never comes into contact with water during the production process and is packaged directly in vacuum bags. This and the additive create a PEEK filament with excellent layer adhesion, which obviously greatly improves impact resistance, durability and strength, and also makes the printing process much easier than with regular PEEK.

3D Printer Tips for 3D Printing PEEK CF Filament

• Printer nozzle temperature: 400 - 450°C
• Heated bed temperature: 110°C
• Printing speed: 15 - 30 mm/s
• Bed adhesion: Magigoo HT on glass or PEI sheet
• Pre-drying recommendations: 120°C, 4 - 8 hours

For best results when printing, we recommend storing your 3D printer in a room where there are almost no drafts and/or temperature changes. When the 3D printer is not in use, it is important to place the filament in a bag and store it in a cool, dry, dark place until next use.
