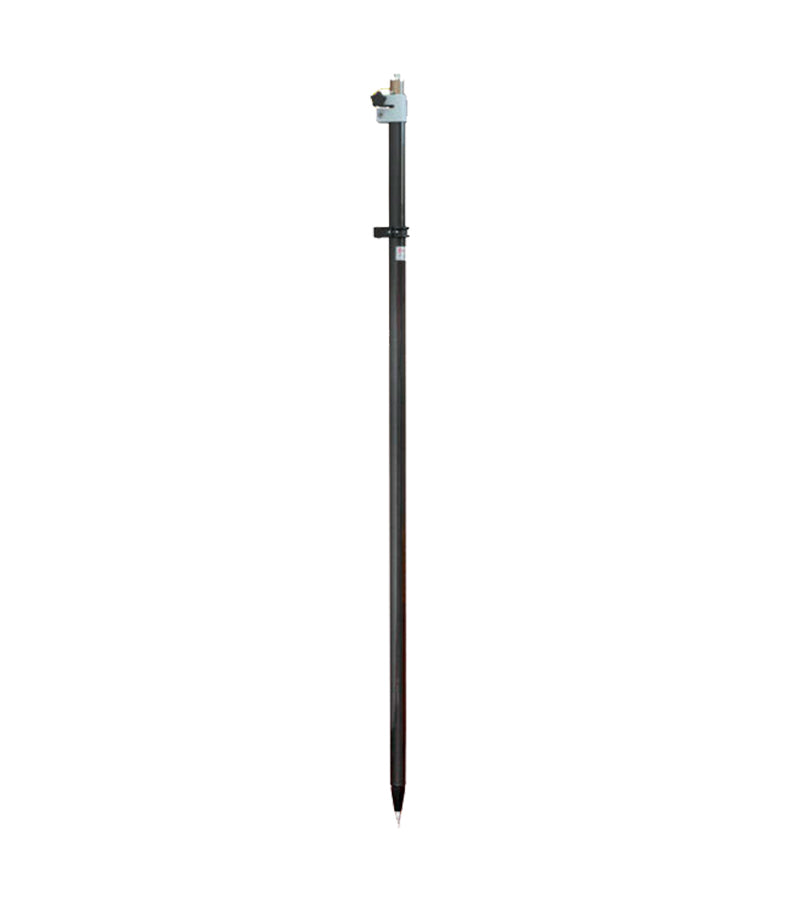

GPS Pole (POLE-TR)

Lightweight yet sturdy carbon and aluminum topographic pole, designed for everyday use with topographic GPS receivers and prisms, thanks to the 5/8" upper thread compatible with many GNSS brands. Quick height adjustment via a side lever makes it convenient for construction site surveys and height and distance measurements.

Simple description

This GPS pole is designed as a universal accessory for surveying: the carbon and aluminum body reduces weight, improving comfort during prolonged use in the field. The 5/8" connection allows direct mounting of most surveying GNSS receivers without additional adapters.

Height adjustment is via a lateral screw/lever (Screw Lock system) that quickly locks the telescopic section, allowing you to precisely set and maintain the required height. The pole can also be used with a prism, remembering to take the prism's height offset into account in the total station when entering the correct height.

Key data in brief

• Material: carbon and aluminum.
• Maximum length: 2.5 m.
• Weight: about 1.2 kg.
• Top thread connection: 5/8″ (surveying standard).
• Tip connection: M5/8″.
• Bubble: removable and rectifiable.

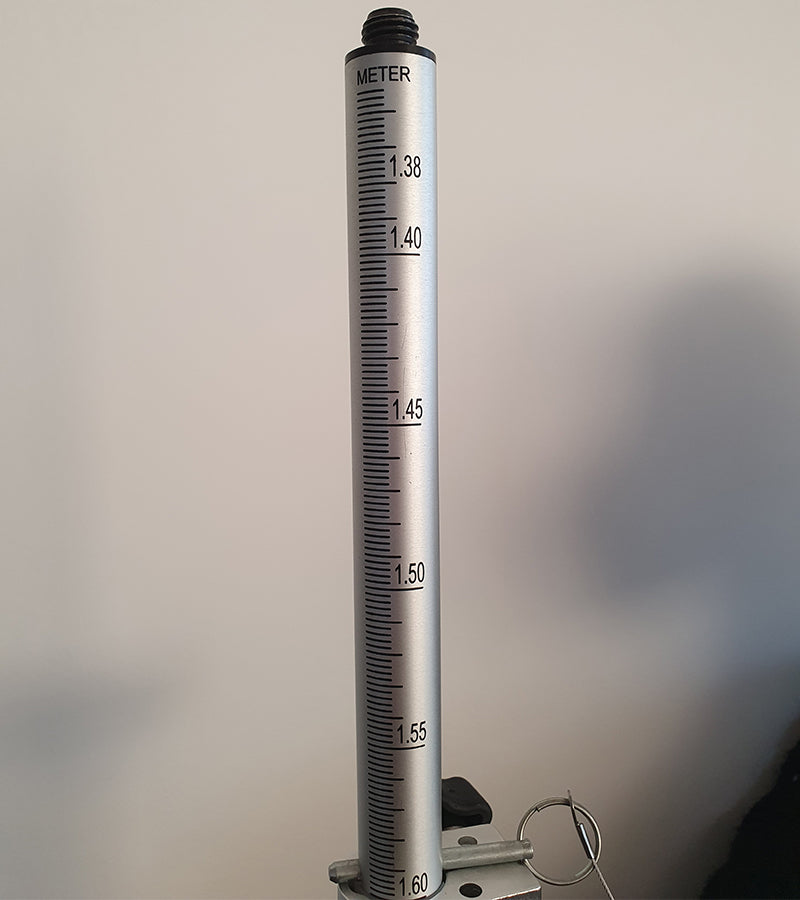

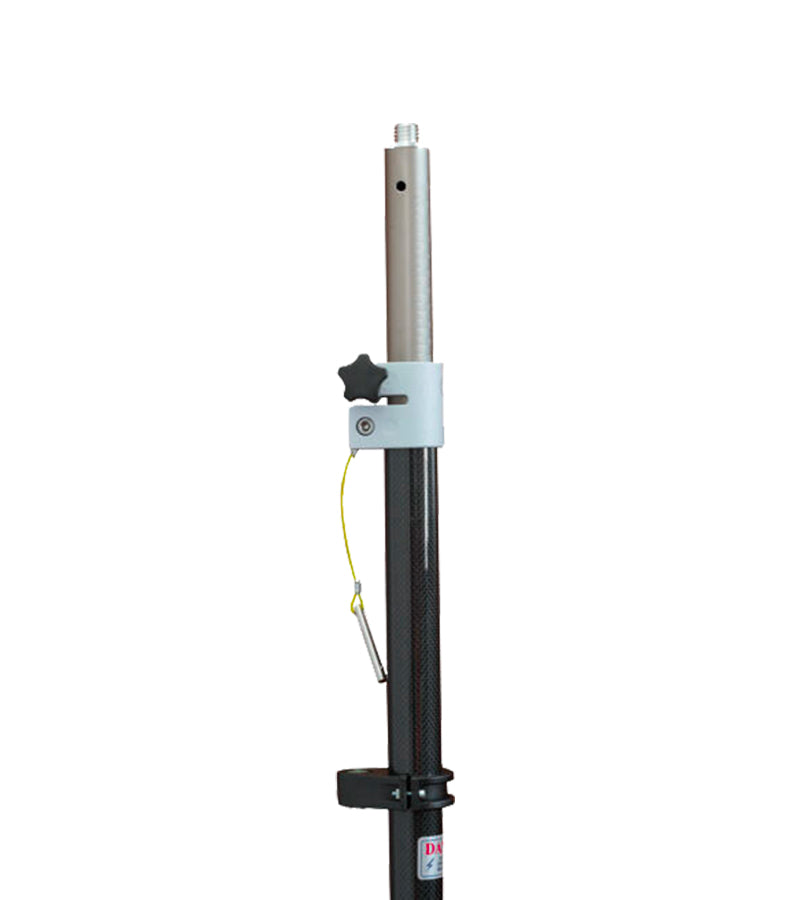

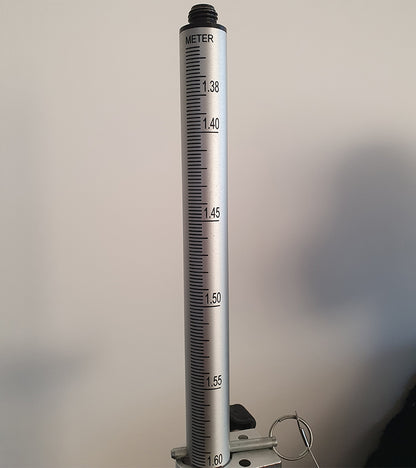

• Height adjustment: via lateral screw/lever (Screw Lock).
• Use: For topographic GPS receivers; can also be used with a prism, taking into account the height offset.
