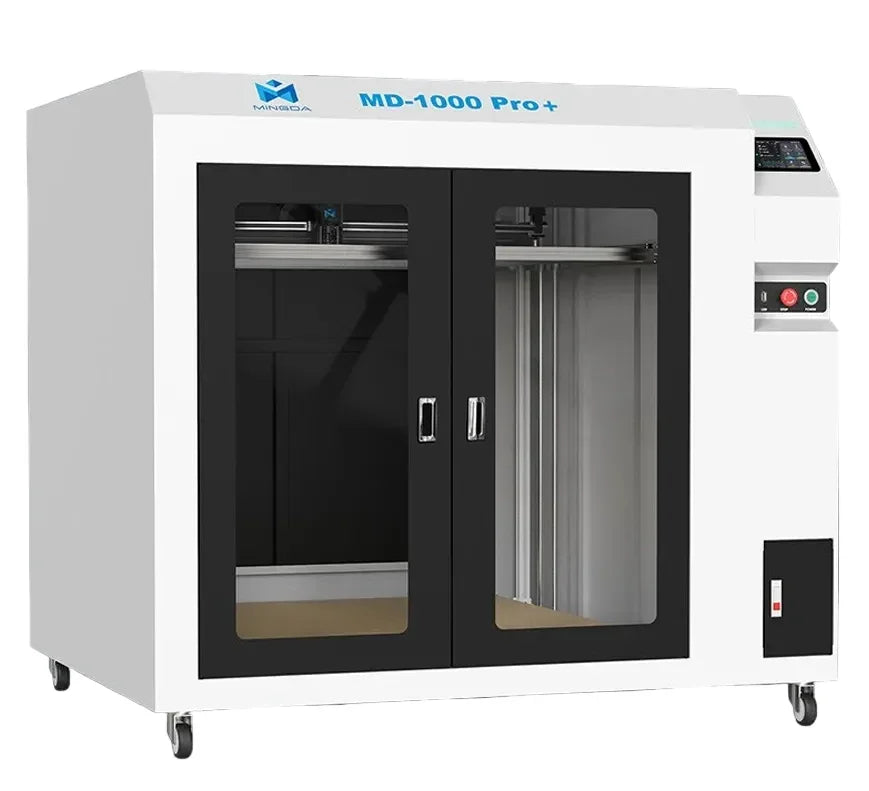

MINGDA MD-1000 Pro+
The MINGDA MD-1000 Pro+ is a professional large-format FDM 3D printer, designed for industrial applications, full-scale prototyping, and the production of large components.
With an exceptional print volume of 1,000 × 1,000 × 1,000 mm, it allows you to produce objects up to one cubic meter in a single piece. It is an ideal solution for the automotive, aerospace, industrial, modeling, and advanced prototyping sectors, reducing the need to divide, assemble, or glue parts after printing.
Key Features
1 Cubic Meter Print Volume
The usable volume of 1,000 × 1,000 × 1,000 mm allows for the creation of large monolithic components, industrial jigs, tooling, automotive parts, functional prototypes, and full-scale models.
High Speed and Productivity
The MD-1000 Pro+ uses Klipper firmware to offer high movement speeds, rapid accelerations, and more efficient management of large-format prints.
- Maximum speed up to 300 mm/s
- Travel speed up to 300 mm/s
- Acceleration up to 10,000 mm/s²
- Maximum extruder flow up to 40 mm³/s
- Recommended speed: up to 200 mm/s with PLA
- Recommended speed: up to 180 mm/s with PETG
- Recommended speed: up to 100 mm/s with PET-CF
High-Temperature Extruder
The high-temperature hotend reaches up to 350 °C, with a recommended operating temperature of up to 320 °C. The heated bed can reach 110 °C, offering compatibility with standard and reinforced technical filaments.
- Nozzle temperature up to 350 °C
- Bed temperature up to 110 °C
- 0.6 mm nozzle included as standard
- Optional 0.4 mm and 0.8 mm nozzles
- Compatible with carbon fiber and glass fiber reinforced materials
Precision even on large dimensions
The hands-free automatic leveling system facilitates machine preparation and ensures proper first-layer adhesion. The Input Shaper algorithm reduces vibrations during rapid movements, improving the surface quality of printed components.
Remote Control and Multi-Machine Management
The printer integrates a proprietary MINGDA motherboard with the MINGDA PI platform and a 7-inch IPS touchscreen with a multilingual interface. Thanks to Wi-Fi, LAN, and USB connectivity, it can be managed locally or remotely.
Support for multi-machine management also makes it suitable for professional laboratories, production departments, and print farms with multiple networked printers.
Technical Specifications
| Model | MINGDA MD-1000 Pro+ |
| Printing Technology | FDM (Fused Deposition Modeling) |
| Print Volume | 1,000 × 1,000 × 1,000 mm |
| Firmware | Klipper |
| Computing Platform | Proprietary MINGDA Motherboard and MINGDA PI Platform |
| Maximum Speed | 300 mm/s |
| Travel Speed | 300 mm/s |
| Maximum Acceleration | 10,000 mm/s² |
| Maximum Flow | 40 mm³/s |
| Recommended Speeds | PLA: 200 mm/s · PETG: 180 mm/s · PET-CF: 100 mm/s |
| Nozzle Temperature | Up to 350 °C, recommended up to 320 °C |
| Bed Temperature | Up to 110 °C |
| Nozzle Diameter | 0.6 mm standard; 0.4 mm and 0.8 mm optional |
| Spool Holder | 1 spool, up to 3 kg |
| Leveling | Automatic hands-free |
| Printing Algorithms | Input Shaper for vibration reduction |
| Display | 7-inch IPS touchscreen, multilingual interface |
| Connectivity | Wi-Fi, LAN, and USB |
| Remote Management | Remote printing and multi-machine control |
| Slicing Software | MINGDA Slicer, optimized for high-speed printing |
| Compatible Filaments | PLA, PETG, PETG-CF, PET-CF, PET-GF, HtPA-CF, HtPA-GF, PA12-CF, HtPA-GF25, and HtPA-CF25 |
| Input Voltage | 220 V |
| Rated Power | 2,200 W |
| Machine Dimensions | 1,615 × 1,332 × 1,466 mm |
