MICRO SWISS DIRECT DRIVE EXTRUDER WITH HOTEND FOR EXOSLIDE SYSTEM
Micro Swiss Direct Drive extruder configured for the ExoSlide system.
- No modification required, simple plug and play
- No printed brackets or sandwiches
Characteristics:
- Double transmission
- Hardened tool steel, CNC precision cut gears
- Adjustable filament grip
- Easy filament loading
- Short and tightly constrained filament path
- Print flexible filaments at high speed and precision
- Exceptional extrusion control
- Lightweight aluminum body
Suitable for:
- Printers with ExoSlide system
- While this upgrade is supposed to fit a specific model, printer manufacturers have been known to change their specs without notice. Make sure your motor has a removable extruder gear (with a grub screw and not pressed into the shaft), if not, you may need to purchase a new motor for this upgrade as well.

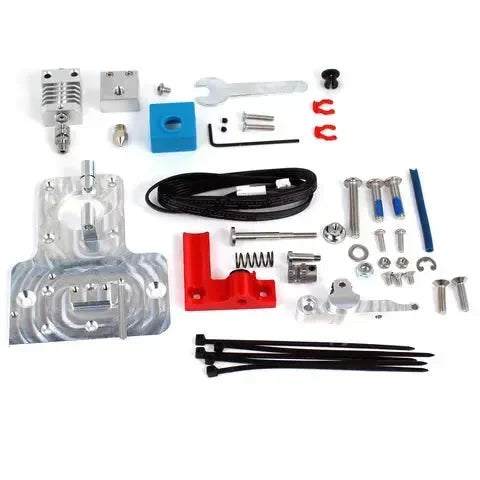

What's included:
- Stepper motor, linear guide and carriage block are NOT included
- 1x Micro Swiss All Metal Hotend (if option selected)
- 1x Main extruder body
- 1x extruder lever
- 1x Spring Pin
- 1x spring
- 2x Gears
- 1x Tension Knob
- 1x Shoulder Pin
- 1x Extension cable
- 3 x M3 x 0.5 x 6mm motor mounting screws
- 2 ExoSlide Mounting Screws M4 x .7 x 16mm
- 2 screws M3 x 0.5 x 10mm
- 2x M3 x .5 Nuts
- 5x cable ties
- 1x Printed Bracket
- 1x Capricorn Beveled Liner
