PooLin EOC06 embroidery machine
PooLin EOC06 embroidery machine
Couldn't load pickup availability
The PooLin EOC06 is a powerful embroidery machine ideal for creating personalized embroidery at home or starting a small business. With a maximum embroidery area of 200 × 280 mm, a speed of up to 860 stitches/minute, and four interchangeable embroidery hoops, it allows you to work with both small details and larger designs. The large 7-inch HD touchscreen simplifies editing and positioning designs directly on the machine.
- Maximum embroidery area: 200 × 280 mm
- Embroidery speed up to 860 stitches/minute
- 200 built-in designs, 8 fonts, and 26 decorative borders
- Four embroidery hoops for different projects and design sizes
- 7-inch HD touchscreen with intuitive editing functions.
- Wi-Fi and USB to transfer your embroidery designs.

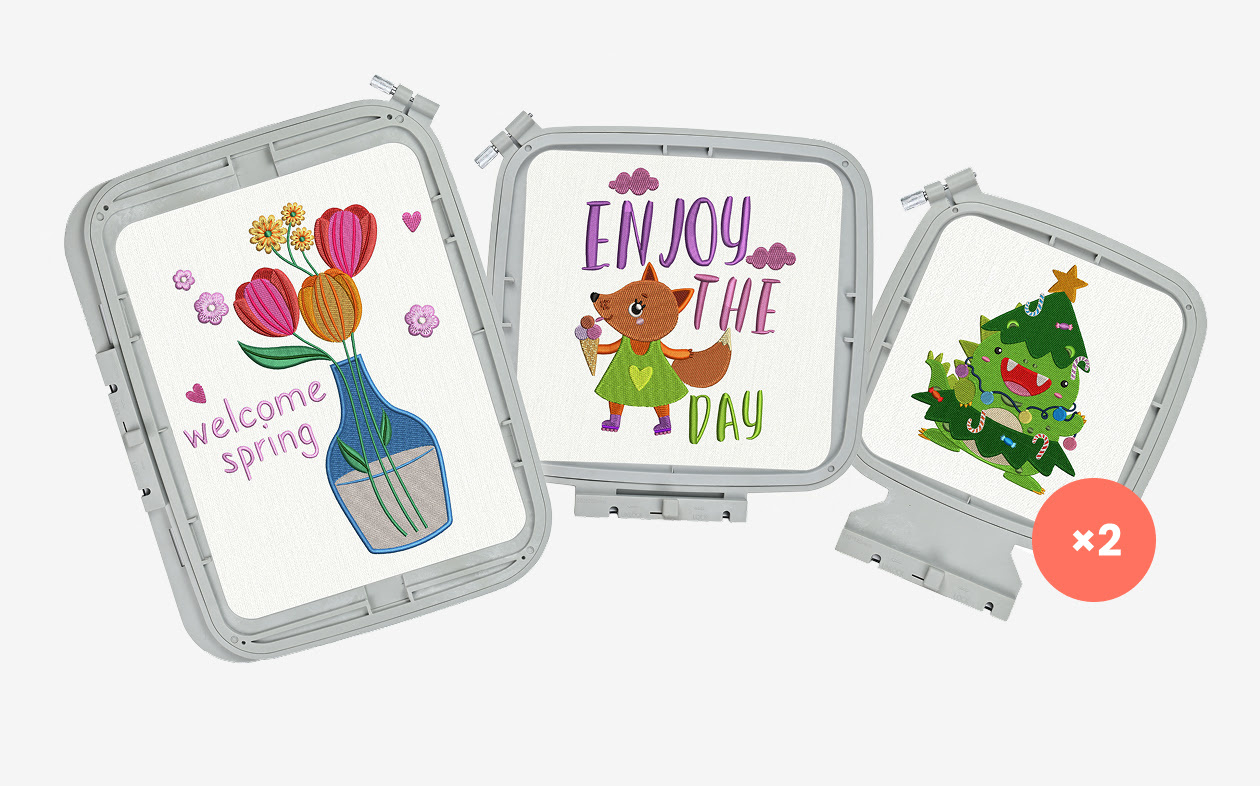

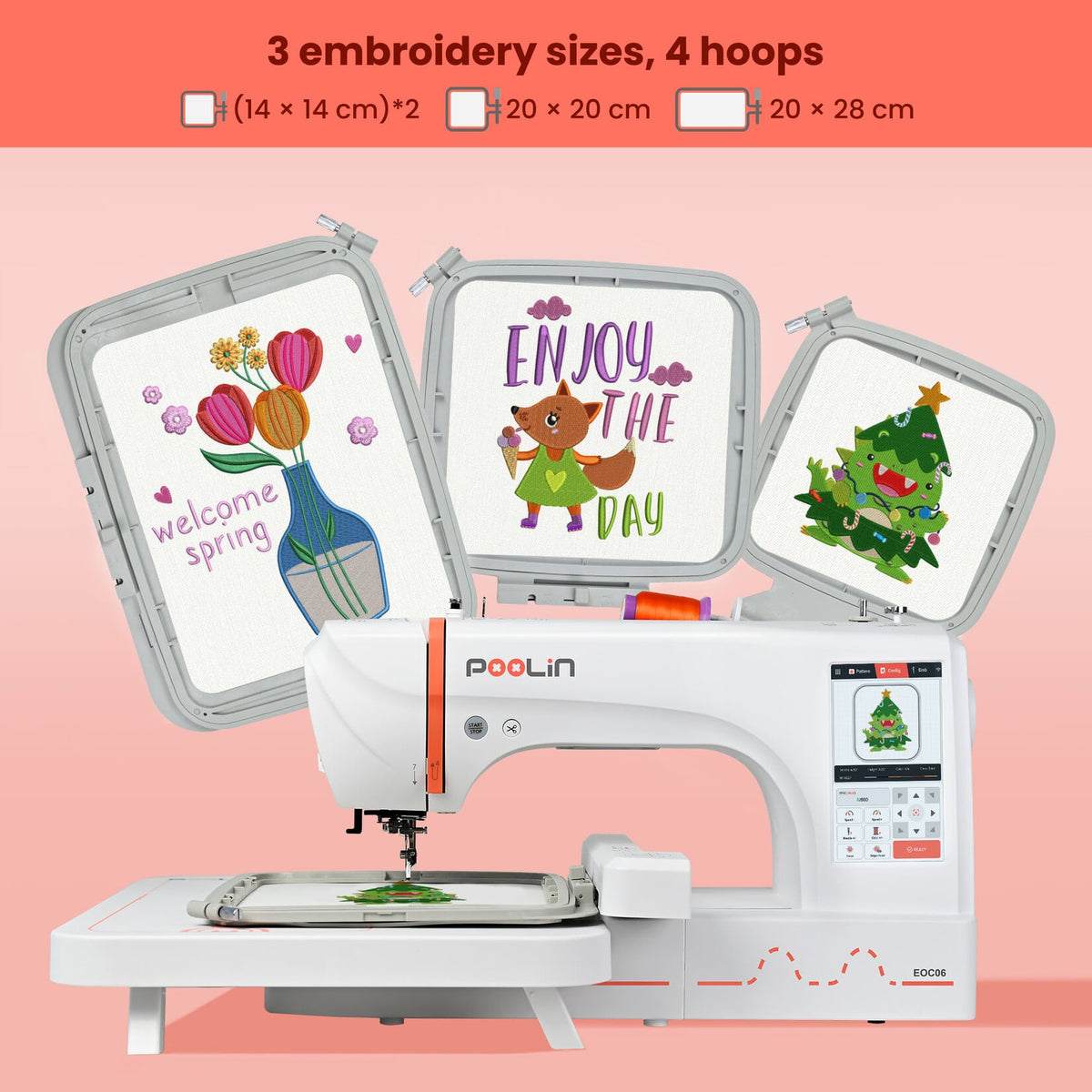

Four embroidery hoops for different projects
The PooLin EOC06 comes with four interchangeable embroidery hoops: two 140 × 140 mm, one 200 × 200 mm, and one 200 × 280 mm. The largest hoop offers a maximum embroidery area of 200 × 280 mm, giving you ample space for large-scale designs.
The smaller 140 × 140 mm hoops are ideal for names, monograms, patches, and small decorative designs, while the 200 × 200 mm and 200 × 280 mm hoops offer more space for larger designs on clothing, bags, quilts, and other fabrics. A sturdy extension table is also included to provide extra support when working with larger or bulkier materials.
7-inch HD touchscreen
The EOC06 features a large, high-resolution 7-inch LCD touchscreen, which simplifies the selection, editing, and positioning of embroidery designs directly on the machine. The intuitive interface allows you to work with designs using simple touch gestures.
Move, resize, rotate, or mirror designs directly on the screen and preview the placement before starting the embroidery. The machine also supports 12 languages, allowing you to use the interface in your preferred language.
200 pre-set designs, 8 fonts, and 26 decorative borders
Start creating right away with 200 built-in embroidery designs, 8 fonts, and 26 decorative borders. The integrated library includes a variety of motifs, including animals, flowers, geometric shapes, and decorative patterns.
The eight built-in fonts make it easy to add names, initials, monograms, and other text. Designs and text can be combined and customized directly on the touchscreen before starting the embroidery.
Create and transfer your own embroidery designs
With Institch Doodle Digitizing, you can create your own embroidery designs by drawing, tracing, or starting from images and illustrations. Once the design is complete, it can be prepared for embroidery and transferred to the EOC06.
Embroidery files can be transferred via Wi-Fi or the included USB stick. The machine supports DST and DSB formats; other file formats must be converted before they can be used.
Convenient automatic functions
The PooLin EOC06 is equipped with several automatic functions that reduce the need for manual intervention. The automatic needle threader simplifies threading, while the automatic bobbin winder facilitates thread preparation.
The automatic thread cutter cuts the thread at the end of a color, while the thread break alarm allows you to quickly detect any upper thread breakage during embroidery.
Simple and intuitive workflow
Starting an embroidery project is easy. Choose one of the pre-set designs, import your design via USB or Wi-Fi, or create a custom design with Institch Doodle Digitizing.
You can then edit the design directly on the touchscreen by resizing, rotating, mirroring, or adding text. The Trace function allows you to verify that the design is positioned correctly and fits within the embroidery hoop. Once everything is ready, press Ready and Start to begin embroidering.
Up to 860 stitches per minute
The PooLin EOC06 can embroider at a speed of up to 860 stitches per minute. The high embroidery speed allows you to work efficiently even with large designs and projects rich in stitches.
For personal projects and small businesses
The EOC06 is specifically designed for embroidery and does not include a conventional sewing function. It is therefore ideal for those who want to focus on creating personalized, decorative embroidery on clothing, bags, quilts, home textiles, and other projects.
Create personalized gifts, names, monograms, and patches, or use the machine for logos, sportswear, and small production runs. The large 200 × 280 mm hoop also allows you to work with large designs without having to split them into multiple sections.

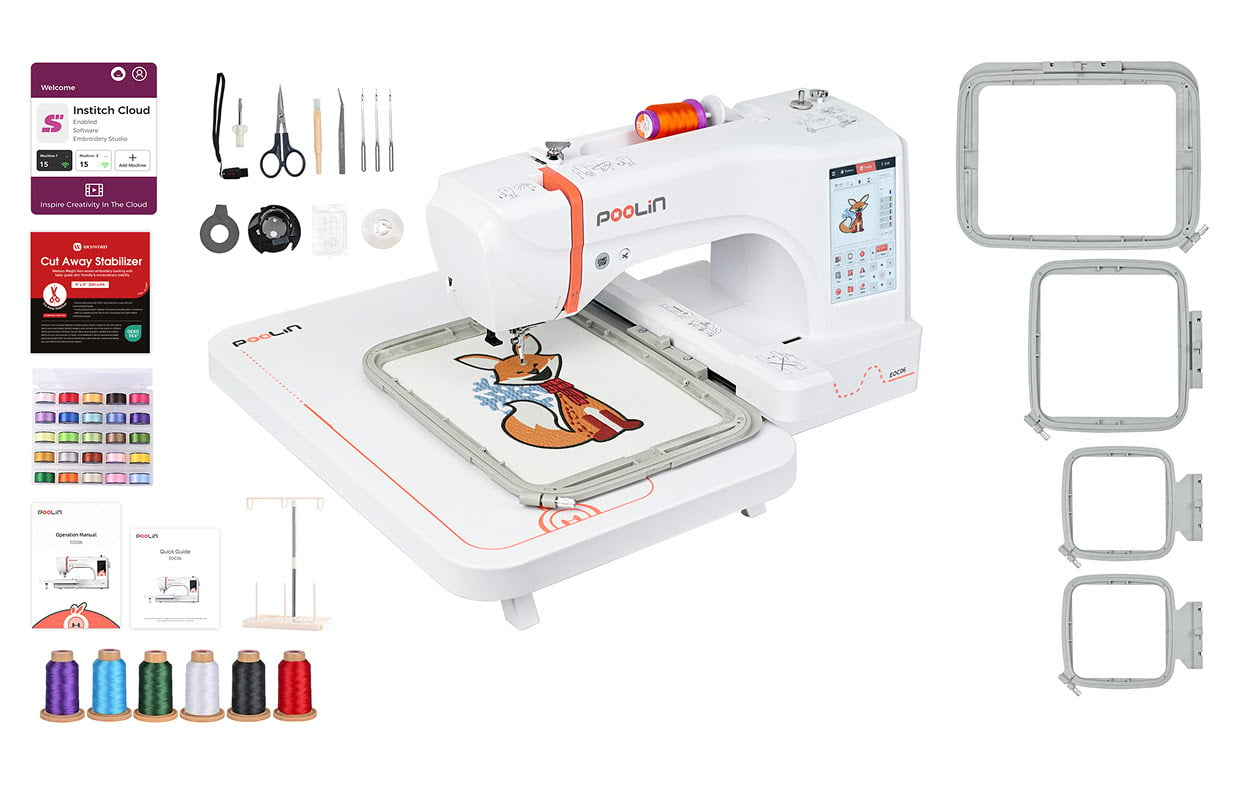

Complete starter package
The PooLin EOC06 comes with a complete selection of accessories, allowing you to start embroidering immediately. In addition to the four embroidery hoops, the package includes 6 spools of polyester embroidery thread, pre-wound bobbins, 20 sheets of stabilizer material, and 30 needles.
The included 90/14 needles are suitable for standard fabrics with a thickness of up to 4 mm. The package also includes scissors, tweezers, a screwdriver, a seam ripper with brush, tools, a USB stick, hoop clips, a thread stand, placement templates, a dust cover, and a tool kit.
Technical specifications
| Type | Computerized embroidery machine |
| Maximum embroidery area | 200 × 280 mm |
| Maximum speed | 860 stitches/min |
| Built-in designs | 200 |
| Fonts | 8 |
| Decorative borders | 26 |
| Embroidery hoops | 140 × 140 mm (2 pieces), 200 × 200 mm, 200 × 280 mm |
| Display | 7-inch HD touchscreen |
| Connectivity | WiFi, USB |
| File format | DST, DSB |
| Languages | 12 |
| Power consumption | 30–40 W |
| Dimensions | 670 × 545 × 555 mm |
| Weight | 13.5 kg |
