Longer RAY5 10W Laser Engraver(10-12W Output Power)
Longer RAY5 10W Laser Engraver(10-12W Output Power)
Couldn't load pickup availability
- Output power 10–12W, strong cutting ability

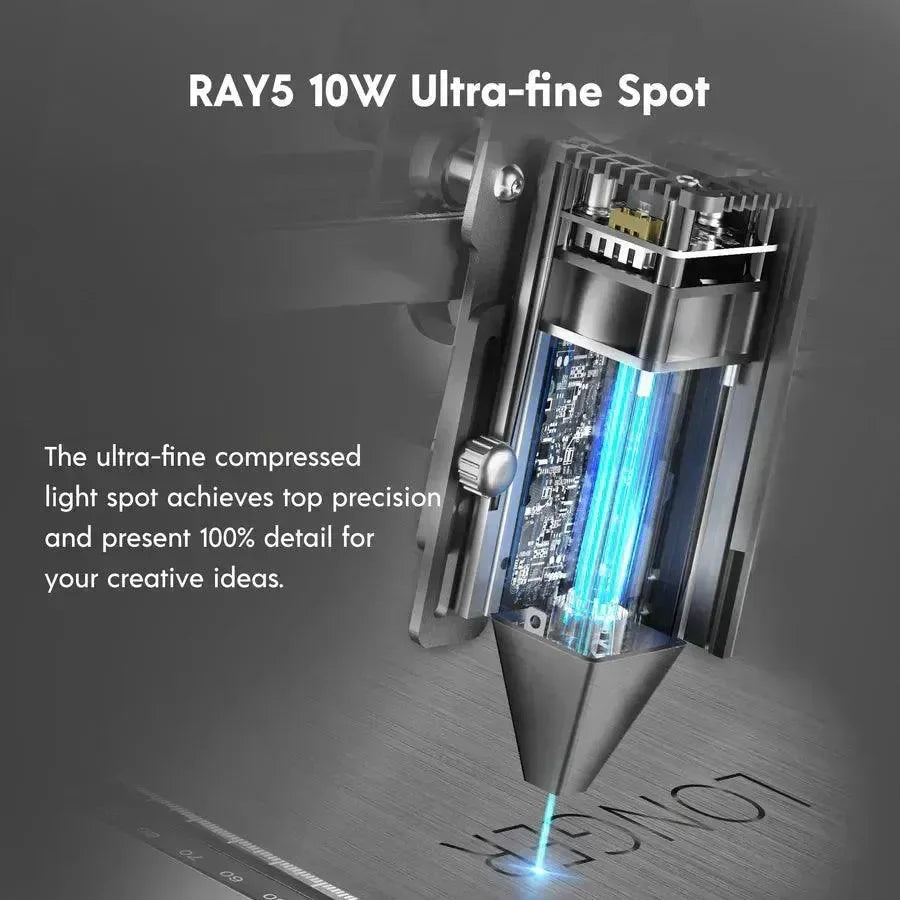

- Ultrafine laser focus point 0.06*0.06mm
- High precision laser engraving and cutting
-
Large working space: 400mm*400mm (15.75''*15.75'')
- Built-in 3.5'' touch screen and offline work
- Engraves up to 1000+ materials: wood, metal, acrylic, glass, leather, etc.
- Upgradeable to 20W laser engraver module
RAY5 10W
High laser output power
Engraving speed 10000 mm/min
Faster speed, more effective engraving accuracy reaches 0.01mm
Working area
400*400mm (15.75*15.75'')
3.5'' touch screen
For easy use
Protection in every detail
6 major safety features, including USB connection monitoring and current-voltage control system, create a completely safe engraving condition for you
Eye protection
Equipped with a protective cover and glasses, it avoids eye irritation
Thermal protection
Automatic shutdown of the machine in case of flame detection
Movement protection
If the laser engraving machine moves during use, the motion protection will automatically turn off the machine
Wide compatibility
RAY5 10W can be controlled via MKSLaser APP when connected to the same WIFI. (JPG, PNG, BMP, G-code, GIF, SVG, NC, GC)
| Model number | Ray5 10W | Ray5 20W |
|---|---|---|
| Laser technology | Dioser technology | Dioser technology |
| Working area | 400x400mm (15.75x15.75 inches) | 375x375 mm (14.76x14.76 inches) |
| Laser wavelength | 450 nm | 450 - 460 nm |
| Focal length | Fixed focus-50mm | Fixed focus-40mm |
| Laser spot size | 0.06x0.06mm | 0.08x0.10mm |
| Optical output power | 10W | 18 - 21 W |
| Maximum power consumption | 60W |
120W |
| Engraver output | DC12V 5A | DC24V 5A |
| Engraver input | AC110-240V | AC110-240V |
| Z-axis height range | Up to 47mm | Up to 47mm |
| Faster working speed | Speed 10000mm/min | Speed 10000mm/min |
| Software | LaserGRBL and LightBurn | LaserGRBL and LightBurn |
| Input image format | JPG, PNG, BMP, GIF, SVG, AI, etc. | JPG, PNG, BMP, GIF, SVG, AI, etc. |
| Connection type | USB/TF Card/WiFi | USB/TF Card/WiFi |
| stop switch | Optional | YES |
| Air assistance interface | Optional | YES |
| Laser engraver dimensions | 586 x 583 x 176.5 mm (23.07 x 22.95 x 6.95 inches) | 610 x 67 x 200 mm (24.02 x 26.38 x 7.87 inches) |
| Package dimensions | 621x299 x 127 mm (24.45 x 11.77 x 5 inches) | 621 x 347 x 127 mm (24.45 x 13.66 x 5 inches) |
