Longer Laser B1 40W Engraving Machine(44-48W Output Power)
Longer Laser B1 40W Engraving Machine(44-48W Output Power)
Regular price
€949,99 EUR
Regular price
Sale price
€949,99 EUR
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- 44-48W 8-core diode laser, the laser engraver improves cutting capabilities by 20%
- Highly concentrated laser beam increases cutting capacity by 20%+ and can cut 40mm basswood and 50mm acrylic in multiple passes
-
Engraving area 17.72 x 17.32" (450 x 440 mm), ideal especially for A3 panels
- Engraving speed up to 36,000 mm/min, 32-bit chipset
- Equipped with intelligent Air-Assist system automatically controlled by Lightburn

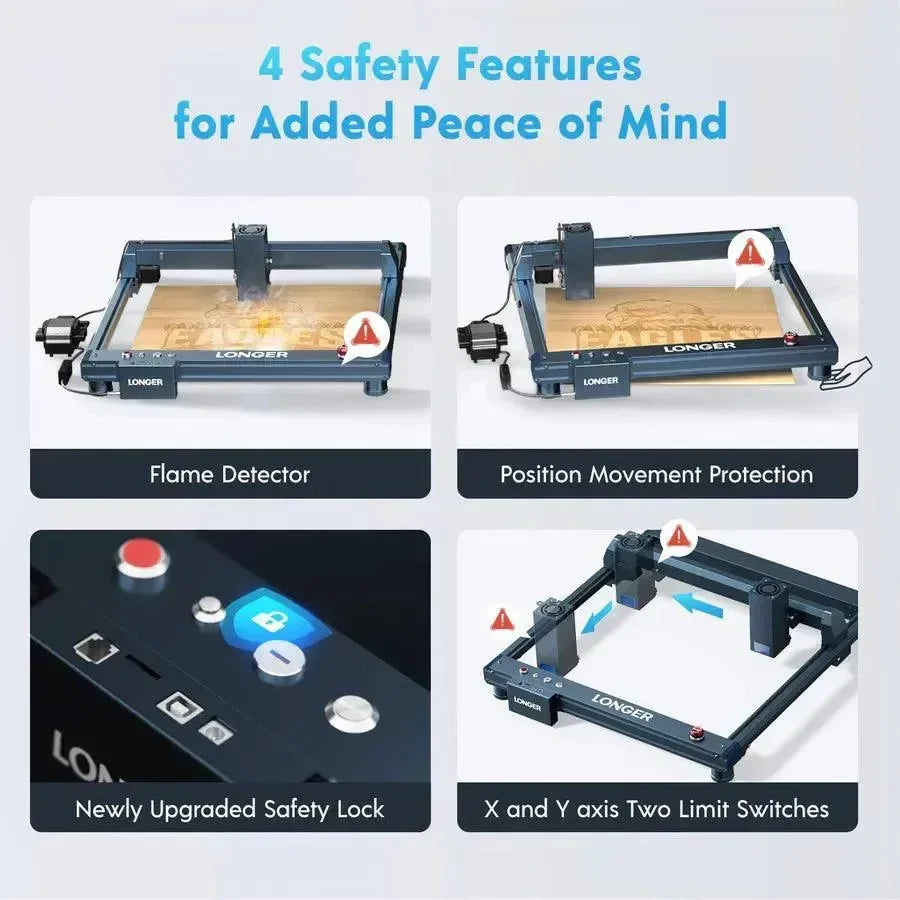

- 8 key safety protections and robust structure
Cut 0.15mm stainless steel sheet in one pass
Cut 50mm maximum black acrylic
| Model Number | B1 40W Laser | B1 30W Laser |
|---|---|---|
| Laser Technology | Diode Laser Technology | Diode Laser Technology |
| Working Area | 450x440mm (17.72x17.32 inches) | 450x440mm (17.72x17.32 inches) |
| Laser Wavelength | 450nm | 450nm |
| Focal Length | Fixed Focus-50mm | Fixed Focus-50mm |
| Laser Spot Size | 0.10x0.15mm | 0.08x0.1mm |
| Optical Output Power | 44-48W | 33~36W |
| Z-axis - Height range | Up to 50mm | Up to 50mm |
| Fastest Working Speed | 36000mm/min | 36000mm/min |
| Engraving Machine Output | DC24V 9A 216W | DC24V 7.5A 180W |
| Engraving Machine Input | AC 110-240V, 50/60Hz | AC 110-240V, 50/60Hz |
| Software | LaserGRBL on XP/7/8/10 (free), LightBurn on Windows, Mac OS and Linux | LaserGRBL on XP/7/8/10 (free), LightBurn on Windows, Mac OS and Linux |
| Connect | USB / TF Card / Wi-Fi / APP | USB / TF Card / Wi-Fi / APP |
| Engraving Technique | Eight Diode Lasers with FAC | Six Diode Lasers with FAC |
| Single Pass Cutting Parameters | 20mm Plywood and 25mm Paulownia Wood, 10mm Acrylic | 20mm Plywood and 10mm Acrylic |
| Maximum Cutting | 40mm Plywood and 50mm Acrylic 0.15mm Stainless Steel | 25mm Plywood and 50mm Acrylic, 0.1mm Stainless Steel |
| Laser Head Lifespan | 10000+ hours | 10000+ hours |
| Rated Power | 175W | 145W |
| Motherboard | 32-bit Motherboard | 32-bit Motherboard |
| Limit Switch | X Y Axis Limit Switch | X Y Axis Limit Switch |
| Compatible Device | PC, Mobile Phones | PC, Mobile Phones |
