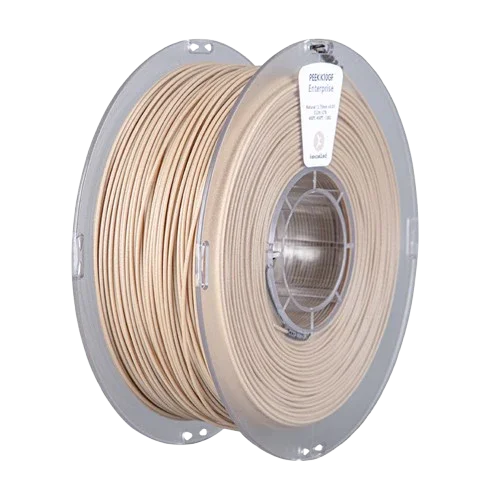

Kexcelled THE K11™ PEEK GF 1.75mm 1kg

Product Description

Kexcelled THE K11™ PEEK GF10 is a glass fiber reinforced PEEK filament developed for industrial 3D printing in applications requiring high rigidity, mechanical strength, and superior dimensional stability.
The 10% glass fiber content significantly increases stiffness compared to pure PEEK, making the material suitable for technical components subjected to high loads, heat, and chemical stress.

With a tensile strength of 80–85 MPa and an elastic modulus of 7000–7500 MPa, this material offers extremely stable performance even under demanding operating conditions.
With a density of 1.28 g/cm3, this material helps achieve very compact and solid parts, ideal for applications requiring precision, sealing, and long-term reliability.

THE K11™ PEEK GF10 is particularly suitable for industrial components, functional prototypes, tools, jigs, fixtures, and end parts exposed to high temperatures or harsh chemical environments.
To achieve optimal performance, professional high-temperature printers with an enclosed chamber and controlled printing environment are required.

Key advantages

• 10% glass fiber reinforced PEEK filament.
• Very high stiffness and excellent mechanical strength.
• Thermal stability up to 202 °C HDT under load.

Technical Specifications

Print parameters

• Nozzle temperature: 400–450 °C.
• Bed temperature: 110–220 °C.
• Chamber temperature: 80–220 °C.
• Cooling fan: OFF.
• Print speed: 30–60 mm/s.
• Bed adhesion: no modification or with high-temperature glue.
• Recommended layer height: 0.2 mm.
• Minimum wall thickness: ≥ 0.8 mm.

Recommended applications

• Aerospace and automotive industry.
• Technical and industrial components.
• Jigs, fixtures, and tooling.
• Functional prototypes and final products.
• Applications with extreme thermal requirements.
• Chemically challenging environments.
