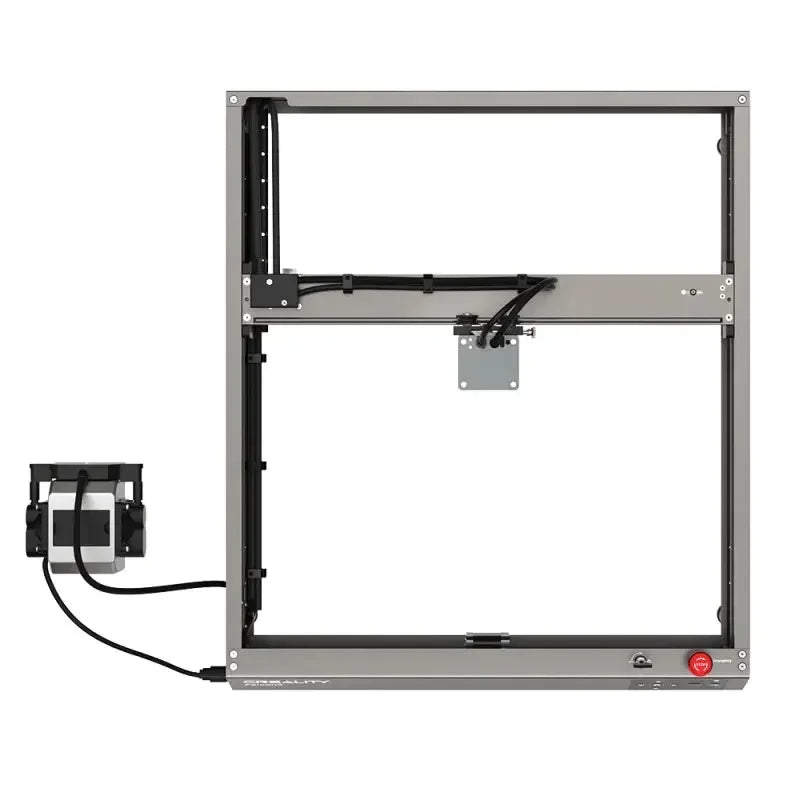

Creality Falcon2 22W Laser Engraver and Cutter
Creality Falcon2 22W Laser Engraver and Cutter
Couldn't load pickup availability
Creality's Falcon2 22W laser allows you to cut thicker materials with greater power and engrave in full color. With improved stability, security, and offline preview, it's the most powerful laser in the range. It has a precision of 0.01 mm and a speed of 2500 mm/min.
Creality Falcon2 22W Laser
Four 6-watt diodes create the powerful laser. These are grouped using FAC technology. FAC stands for Fast-Axis Collimation, which means grouping the different light sources aligned with each other into a single point using a converging lens. The compressed laser diodes increase the power to 22W, which can cut 15mm wood in a single pass.
Speed of 25000 mm/min for greater productivity. With 2x faster engraving speed, Falcon2 lets you spend less time creating more.
Innovative integrated air assistant. You can manually adjust the air assistance continuously using the dial, or automatically adjust the airflow via LightBurn to eliminate smoke and protect the laser lens, ensuring a cleaner result.
Only 3 steps are required for complete assembly .
When stainless steel is heated by the extremely powerful laser beam, the metal surface physically reacts and produces hundreds of colors.
Wide compatibility with different systems.
It supports offline creation. Simply insert a TF card and work freely anytime, anywhere.
The aluminum alloy frame design ensures greater machine stability. The integrated slide rail maintains highly synchronized operation, while the wear-resistant U-shaped wheels ensure more stable movement.
Five safety protections: bidirectional limit switch / active stop function / safety lock design / emergency stop button / laser protection cover
Triple monitoring system with: Airflow monitoring / Lens monitoring / Flame monitoring
Flame monitoring means that when a flame is detected, the indicator flashes red with an alarm and the machine stops immediately.
Falcon2 22W Laser Creality
Specifications
| Category | Specifications |
|---|---|
| Laser Power | 22W |
| Machine Power (Max) | 120W |
| Engraving Area | 400 x 415 mm |
| Engraving Speed | Max. 25,000 mm/min |
| Laser Spot | 0.1 x 0.1 mm |
| Wavelength | 455 ± 5 nm |
| Engraving Resolution | 254 dpi |
| Cutting Power | Cuts wood up to 15mm in one pass |
| Control Software | LightBurn, LaserGRBL |
| Operating Systems | Windows, macOS |
| Connection Interfaces | TF Card, Type-C |
| Input Voltage | 100-240V ~ 50-60Hz |
| Output Voltage | DC 24.0V 5.0A |
| Net Weight | 7.18 kg |
| Gross weight | 10.35 kg |
| Product Dimensions (L x W x H) | 664 x 570 x 173 mm |
| Package Dimensions (L x W x H) | 725 x 625 x 150 mm |
| Operating Temperature | 5°C - 35°C |
| Laser Source | Diode Laser (4 x 6W compressed modules) |
| Safety Class | Class IV (FDA) |
| Certifications | IEC60825, FDA, CE, RoHS, FCC, UKCA, UL Report, PSE |
| Supported File Formats | JPEG, JPG, PNG, BMP, SVG, DXF, etc. |
| Color Engraving | Yes (on stainless steel) |
| Engraving Materials | Cardboard, wood, bamboo, rubber, leather, fabric, acrylic, plastic, etc. |
| Cutting Materials | Cardboard, wood, bamboo, leather, acrylic, etc. |
| Air Assist | Yes, integrated and adjustable |
| Assembly | Pre-assembled - 3 assembly steps |
