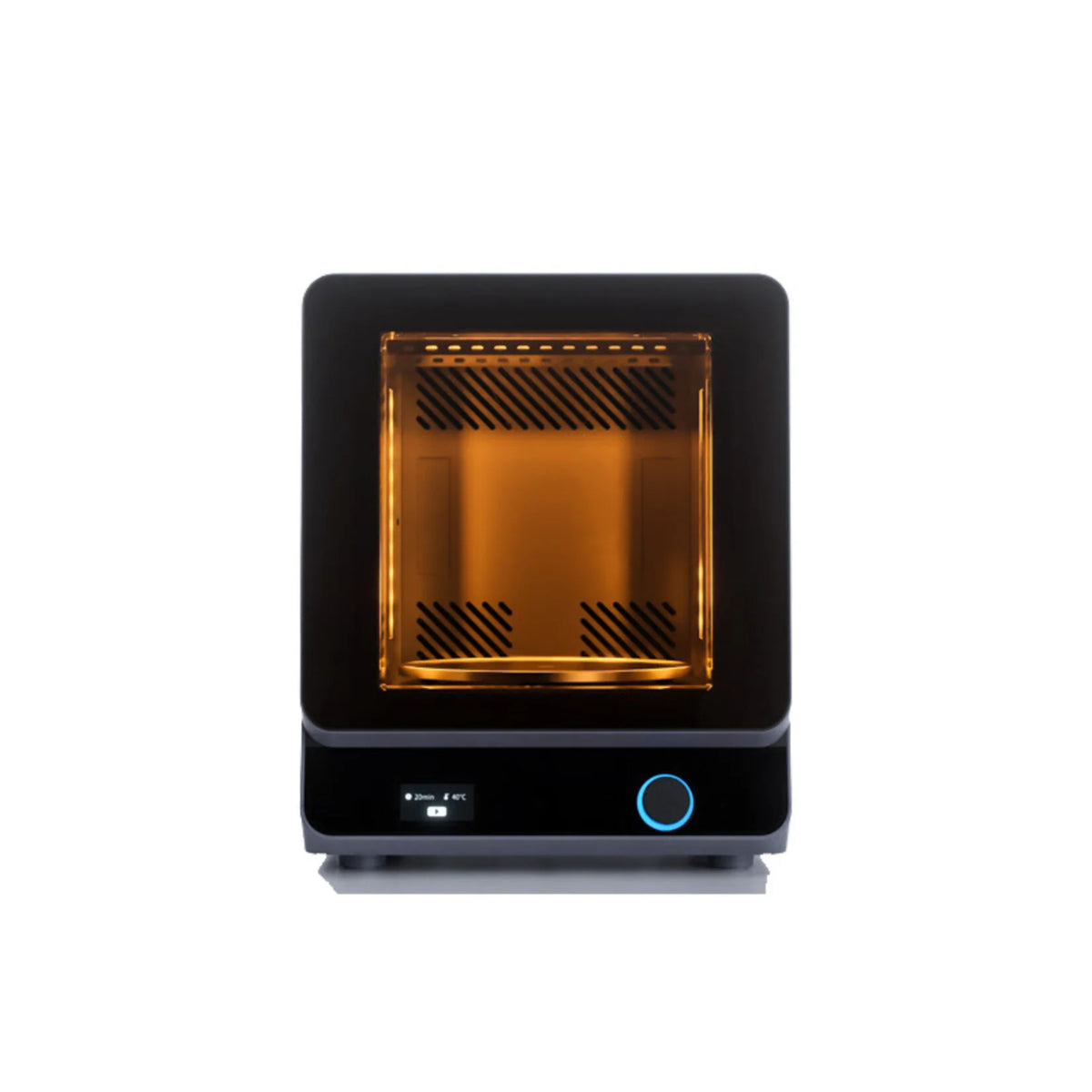

HeyGears UltraCraft Cure

Achieve maximum strength and stability for your parts with HeyGears UltraCraft Cure, an advanced post-processing UV station for the HeyGears Reflex, Reflex RS, and Reflex RS Turbo 3D printer ecosystem.

Designed to complete the 3D printing workflow, this curing station provides consistent, high-intensity UV light to ensure complete photopolymer cross-linking, superior structural stability, and optimal mechanical performance after curing.

Dual UV wavelength bands and 360° exposure

Traditional UV chambers often cure models unevenly or make them brittle. UltraCraft Cure uses dual-spectrum light technology combined with full-chamber illumination to cure parts simultaneously inside and out.

• Dual-band curing (365 nm + 405 nm): utilizes 365 nm UV light for precise surface curing and 405 nm for deep internal penetration.
• Cross-linking rate over 90%: maximizes mechanical performance and durability of printed resins.
• 95% light uniformity: ensures even energy distribution across all 360° of the curing chamber.
• Dual-mode flexibility: choose high-performance curing for maximum structural strength or rapid curing to optimize workflow speed and detail sharpness.

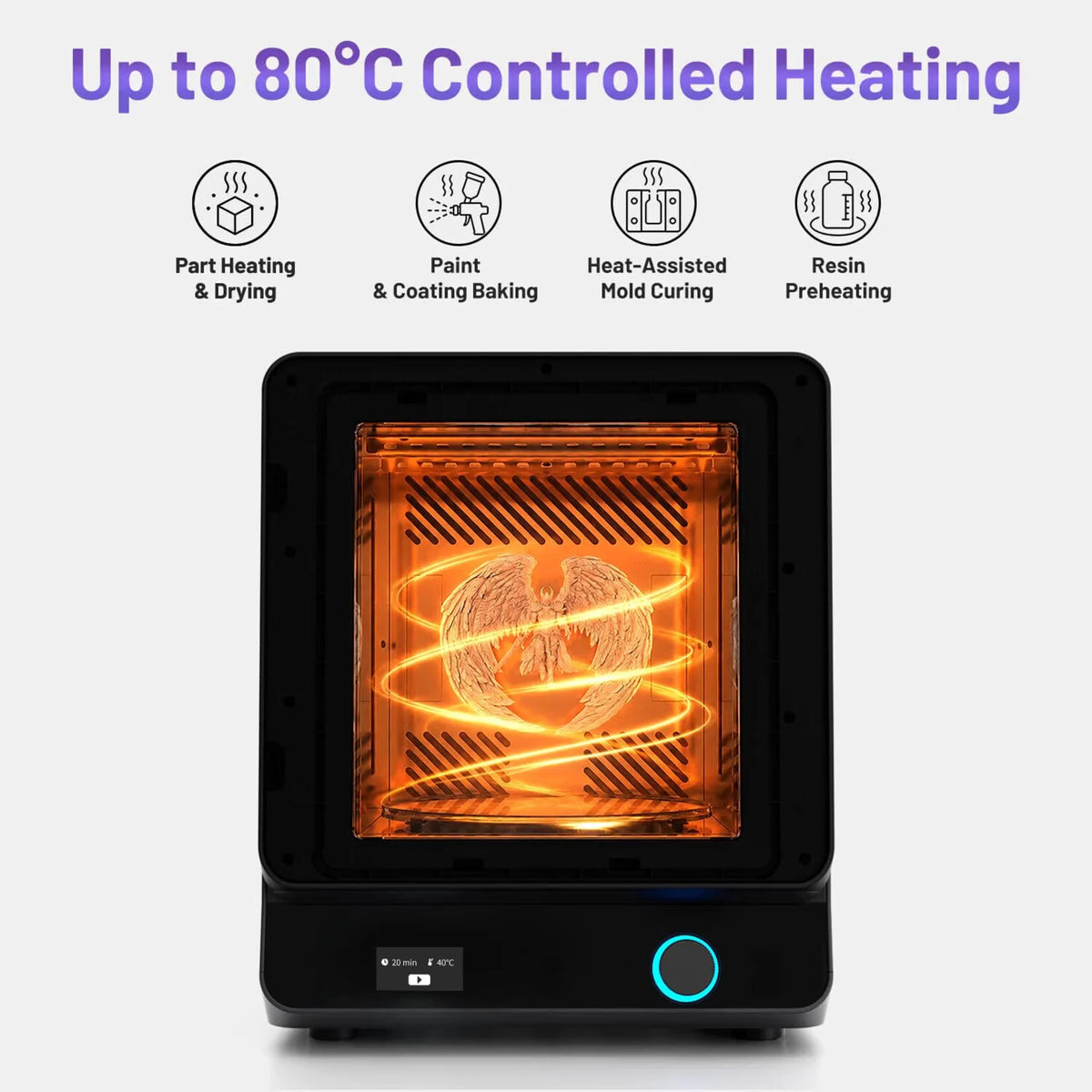

Intelligent heating and automated workflow

• Integrated thermal chamber: additional heating functionality (60 - 80 °C) accelerates curing and prepares parts for secondary surface treatments.
• Automatic parameter assignment: the intelligent system automatically calculates and adjusts curing times and temperatures based on the loaded resin type.
• Ecosystem compatibility: native support for all HeyGears Reflex series resins and build platforms.
• Smart connectivity: offers built-in Wi-Fi and USB connectivity for seamless firmware updates and batch tracking.

Technical specifications

• Maximum curing volume: 198 × 124 × 220 mm
• Device dimensions: 370 × 387 × 456 mm
• Product weight: 12 kg
• UV wavelengths: 365 nm + 405 nm
• Maximum curing temperature: 60 - 80 °C
• Rated power: 350 W
• Compatible printers: HeyGears Reflex, Reflex RS, Reflex RS Turbo
