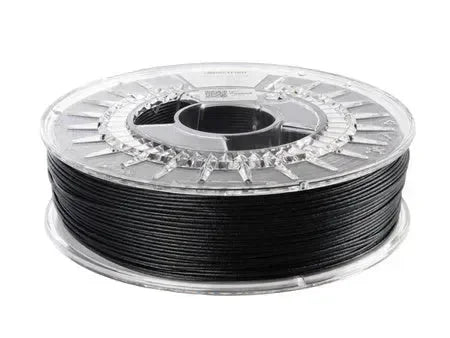

Spectrum ASA Kevlar filament 1.75mm BLACK 0.75kg

ASA Kevlar by Spectrum Filaments

High durability in production applications

Spectrum ASA Kevlar filament is a technical composite material based on a combination of ASA copolymer and aramid fibers. The goal of producing composite materials by combining different types of materials is to impart new properties, previously unattainable for separate components. As the basis for the composite, we used ASA copolymer, known for its high resistance to atmospheric conditions, and combined it with aramid, which is used to make some of the strongest synthetic fibers.

Aramid fibers, primarily known as Kevlar, are used to make highly damage-resistant items such as bulletproof vests, helmets and speaker diaphragms. Aramid fibers do not fracture easily under stress (unlike glass and carbon fibers), but they do suffer shear fractures and tears, which gives them high resistance to damage.

Aramid itself is not a particularly UV-resistant material, the coating and, to a certain extent, the protection in the ASA polymer, which is highly resistant to this factor, guarantee a long life for the fibers and the entire composite. Unlike carbon and glass fibers, Kevlar fibers have significantly less printer nozzle abrasion, which is not insignificant for print processing costs. The use of fiber structures helps reduce material shrinkage during printing, making large-scale model production possible.

With our new filament, Kevlar is now also finding its place in 3D printing technology. Components printed from Spectrum ASA Kevlar can be used in applications requiring resistance to sunlight and high impact resistance (e.g. bumpers, protection, etc.). The aramid fiber makes the external surface of the prints rougher, making them more opaque and, therefore, more aesthetically pleasing than the classic ASA.

Main features:

• Reinforced with aramid fibres
• HDT thermal resistance - 89°C
• Vicat softening point - 94°C
• good resistance to aging
• very strong impact resistance
• relatively high chemical resistance
• UV resistance
• printable on desktop devices without a heated chamber
• matte printing surface
• perfect adhesion of the layers

Applications:

• functional prototype,
• production tools
• manufacturing of assembly equipment and tools
• manufacturing of components exposed to impacts
• components that require high resistance to external exposure

Packaging:

The filament is wound on the spool neat and transparent. Each spool contains information on the type of material, diameter and recommended printing temperature. The filament is vacuum packaged with a moisture absorber. The entire product is packaged in the original Spectrum Filaments film-lined packaging.
