Multiband GNSS RTK receiver for surveying, mapping, and navigation with centimeter-level accuracy.

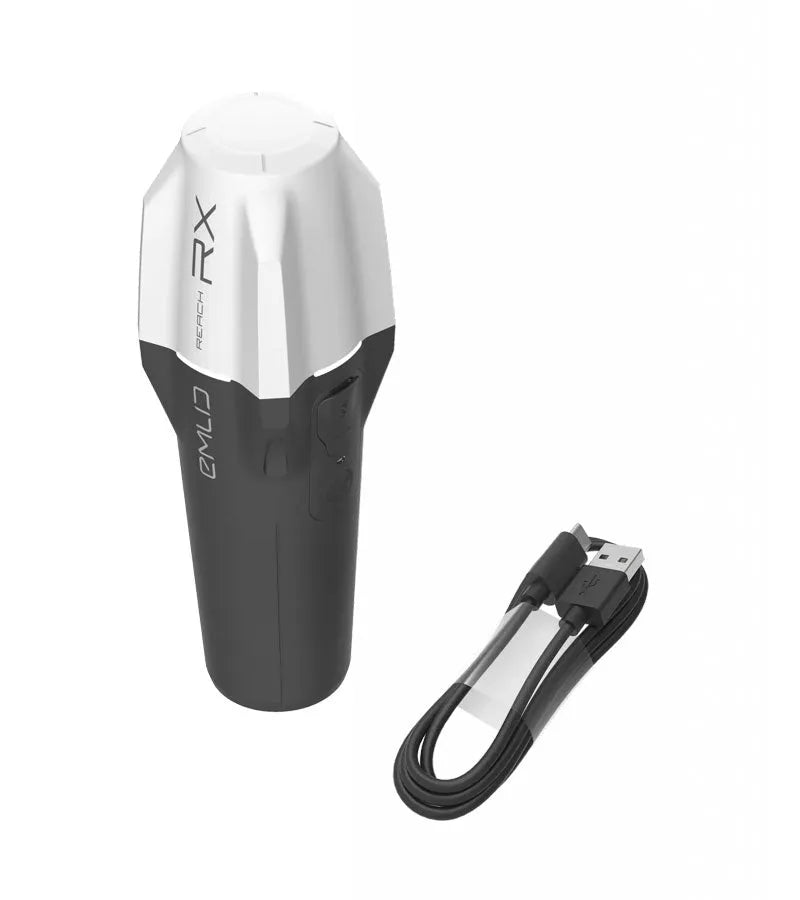

The package includes the Emlid Reach RX Survey GPS and a USB Type-C cable.

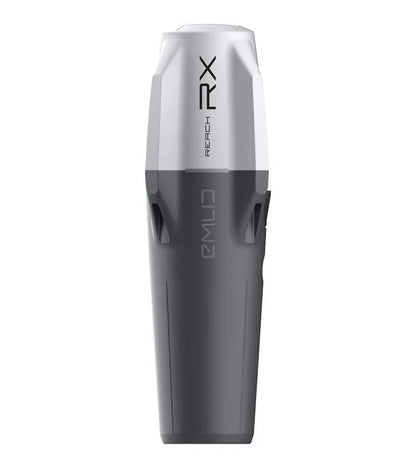

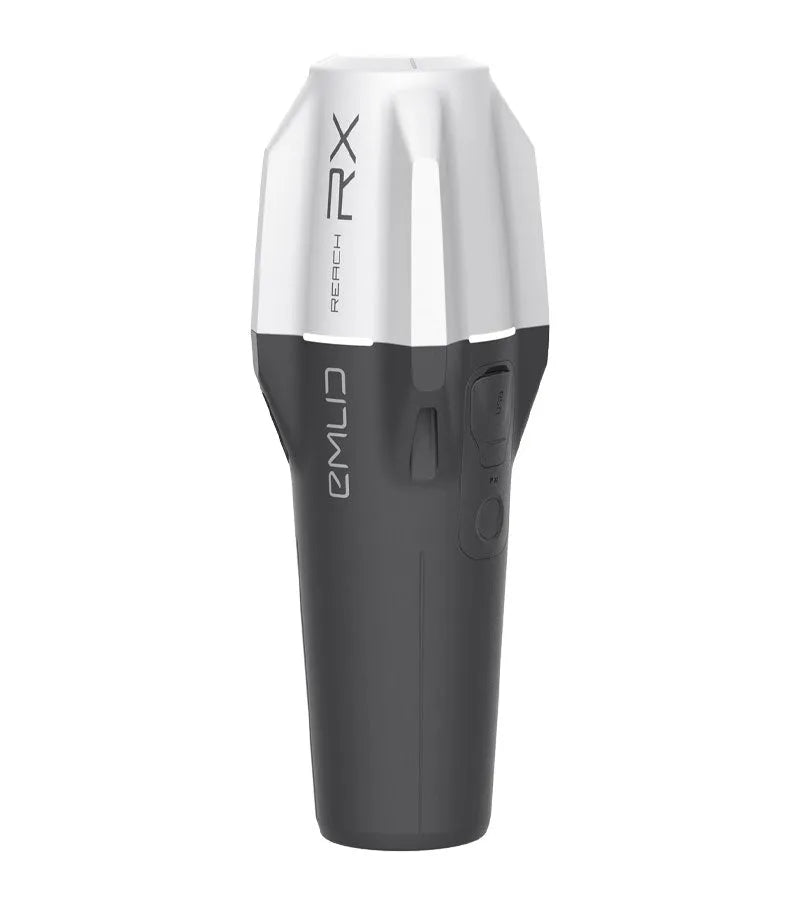

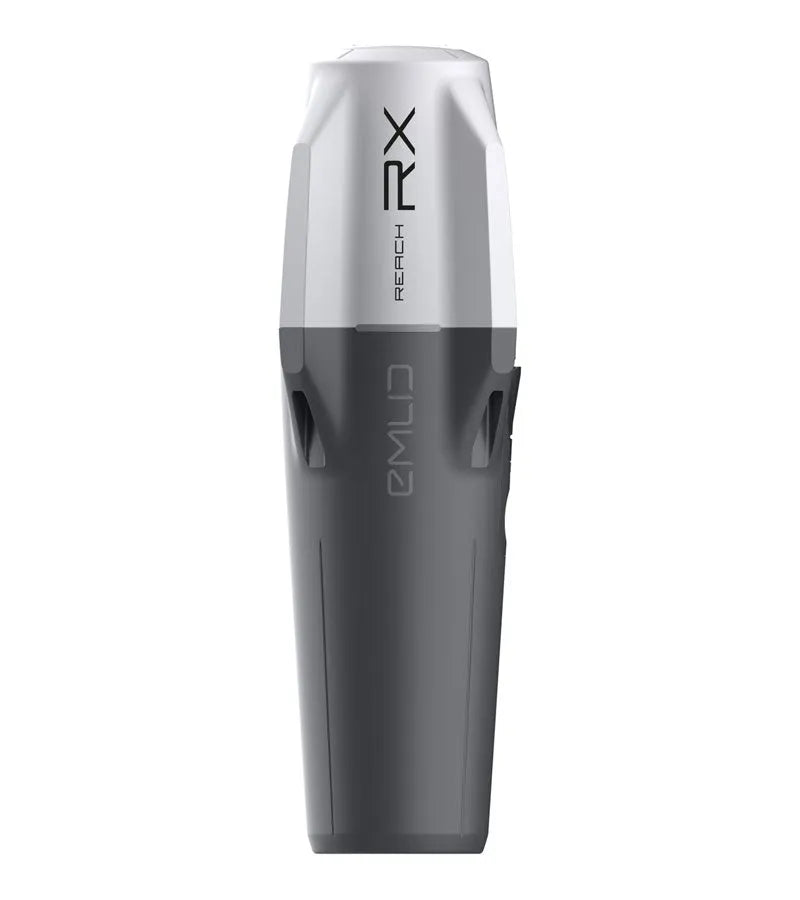

The Emlid Reach RX multiband GNSS RTK receiver is a compact and lightweight device, specifically designed to work with NTRIP corrections. In this product sheet, we will look at the main features of this device and how it can be used in high-precision positioning applications such as precision agriculture, cartography and topography, GCP (Ground Control Point) surveying, and GIS applications.
Emlid Reach RX Technical Specifications
The Emlid Reach RX multi-frequency GNSS RTK receiver supports GPS/QZSS L1C/A, L2C, GLONASS L1OF, L2OF, BeiDou B1I, B2I, and Galileo E1-B/C, E5b constellations with 184 channels and a 5 Hz update rate. The convergence time is approximately 5 seconds and the positioning data format is NMEA.
Emlid Reach RX Design and Dimensions
The device dimensions are 172 x 51 x 51 mm and it has a 5/8”-11 UNC screw mounting bracket. The weight is only 250 g (8.81 ounces) and the 5200 mAh lithium-ion battery has a battery life of up to 16 hours. The receiver has FCC, CE, and IC certifications and is water resistant to a maximum depth of 1.5 meters for up to 30 minutes.
Accuracy
The Emlid Reach RX multi-frequency GNSS RTK receiver is capable of providing RTK accuracy of H: 7 mm + 1 ppm and V: 14 mm + 1 ppm, making it ideal for high-precision positioning applications.
Connectivity
The device features a Bluetooth 4.2 interface and a USB Type-C port for connectivity and comes with a mobile app for easy use. The input data format is RTCM3 and the input data communication protocol is NTRIP.
Conclusions
The Emlid Reach RX multi-frequency GNSS RTK receiver is a lightweight and easy-to-use device that is also accurate and reliable. With its advanced technical features and mobile connectivity, it is ideal for high-precision positioning applications in various sectors.
The technical sheet
| Features | Specifications |
| Constellations | GPS/QZSS L1C/A, L2C<br>GLONASS L1OF, L2OF<br>BeiDou B1I, B2I<br>Galileo E1-B/C, E5b |
| Number of channels | 184 |
| Update rate | 5 Hz |
| RTK Accuracy | H: 7 mm + 1 ppm<br>V: 14 mm + 1 ppm |
| Convergence time | ~5 s |
| Input data format | RTCM3 |
| Communication protocol | NTRIP |
| Data string format | NMEA |
| Communication interface | Bluetooth 4.2 |
| Connection port | USB Type-C |
| Battery | Lithium-ion 5200 mAh, 3.6 V, 18.72 Wh |
| Battery life | Up to 16 hours |
| Certifications | FCC, CE, IC |
| Dimensions | 172 x 51 x 51 mm |
| Mounting bracket | 5/8”-11 UNC screw |
| Weight | 250 g (8.81 ounces) |
| Protection level | IP68 (maximum depth of 1.5 meters for up to 30 minutes) |
| Operating temperature range | -20ºC to +65 ºC |
NRTK Correction Service Included (Optional)
With the optional TruePoint CM (1 YEAR) option, you get maximum centimeter accuracy guaranteed across all constellations (Full GNSS). An unlimited NRTK correction service for 12 months, ideal for immediate and uninterrupted work with maximum reliability.
