Reach RS4 Pro and Reach RS4 for use as base and rover
Build a powerful RTK GNSS system with this versatile kit. Use the RS4 as a fixed base station and pair it with the dual-camera-equipped RS4 Pro as a rover. Together, they provide accurate positioning and easy staking, making them ideal for surveying, mapping, and advanced field work.
Two Full-HD cameras
AR guidance for staking Measurements from images
High precision
RTK: 7 mm + 1 ppm
Tilt compensation: RTK: 2 mm + 0.3 mm/°
All-band support
GPS: L1C/A, L2C, L5
GLONASS: L1OF, L2OF
Galileo: E1-B/C, E5a, E6
BeiDou: B1I, B1C, B2a, B3I
QZSS: L1C/A, L1C/B11, L2C, L5
NavIC: L1-SPS Data, L5-SPS
Base and rover
915 MHz LoRa 450 MHz UHF NTRIP
Robust and powerful
16 hours on one charge Magnesium alloy body IP68 rating Withstands temperatures from -40 to +65°C (-40 to +149ºF)

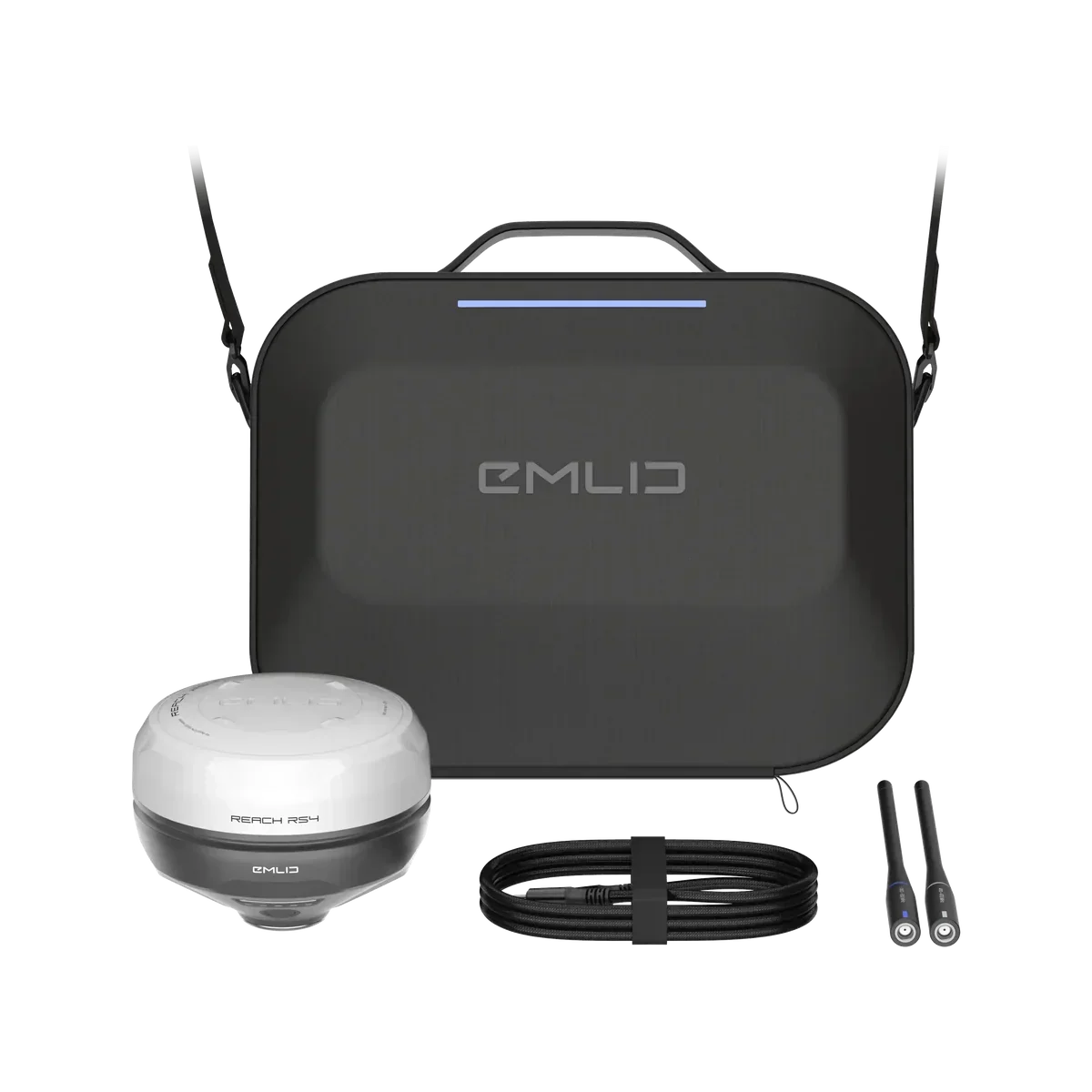

Package includes
Reach RS4 Pro
- Reach RS4
- 2x Carry case
- 2x USB Type-C cable
- 2x LoRa antenna 860-930 MHz
- 2x UHF antenna 410-470 MHz
- 2x Quick-release adapter
- Reach RS4 bumper
- Reach RS4 Pro bumper
Imaging
Image sensors: 1/2.6 inch, CMOS, global shutter, Full HD
Field of view
Front camera: H: 64.6 ° , V: 42.8 °
Bottom camera: H: 63 ° , V: 42 °
Video frame rate: 25 fps
Mechanical
Dimensions: 128.6 x 128.6 x 99.3 mm
Weight: 943 g (2.08 lbs)
Operating temperature: -40 to +65 °C (-40 to 149 °F)
Ingress protection : IP68
Electrical
Battery life: 16 hours as an RTK rover with tilt
Battery: Li-Ion 5000 mAh, 7.2 V, 36 Wh
Charging: USB Type-C (PD): 5V—3A, 9V—3A, 12V—3A, 15V—3A
Positioning
Static: H: 4 mm + 0.5 ppm | V: 8 mm + 1 ppm
PPK: H: 5 mm + 0.5 ppm | V: 10 mm + 1 ppm
RTK: H: 7 mm + 1 ppm | V: 14 mm + 1 ppm
Tilt compensation: RTK + 2 mm + 0.3 mm/°
Convergence time: ~5 s typical
Data protocols
Corrections: NTRIP, RTCM3
Position output: NMEA, LLH/XYZ
Data logging: RINEX, NMEA, LLH/XYZ, UBX
Internal memory: 16 GB
GNSS
Signal tracked: GPS: L1C/A, L2C, L5, GLONASS: L1OF, L2OF, Galileo: E1-B/C, E5a, E6, BeiDou: B1I, B1C, B2a, B3I, QZSS: L1C/A, L1C/B11, L2C, L5, NavIC: L1-SPS Data, L5-SPS
Number of channels: 672
Update rate: up to 10 Hz
Connectivity
LoRa radio: up to 1 W
Frequency range: 868/915 MHz
Power: 0.1 W
Distance: up to 8 km
UHF radio: up to 2W
Frequency range: 410 - 470 MHz
Protocols: TRIMTALK 450S**
Modulation type: GMSK
LTE modem
Regions: Global
Bands: FDD-LTE: 1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 26, 28 TD-LTE: 38, 39, 40, 41 UMTS (UHPS/FDD): 1, 2, 5, 8 Quad-band, 850/1900, 900/1800 MHz
SIM card: Nano-SIM
Wi-Fi: 802.11 b/g/n
Bluetooth: Bluetooth 5.1 (BR/EDR + LE)
Ports: RS-232, USB Type-C
*Use the correct antenna, LoRa or UHF, for your setup.
**TRIMTALK is a registered trademark of Trimble Inc.
NRTK Correction Service Included (Optional)
With the TruePoint CM (1 YEAR) option, you get maximum centimeter-level accuracy guaranteed across all constellations (Full GNSS). An unlimited NRTK correction service for 12 months, ideal for immediate, uninterrupted work with maximum reliability.
