DJI Ronin RavenEye Image Transmission System

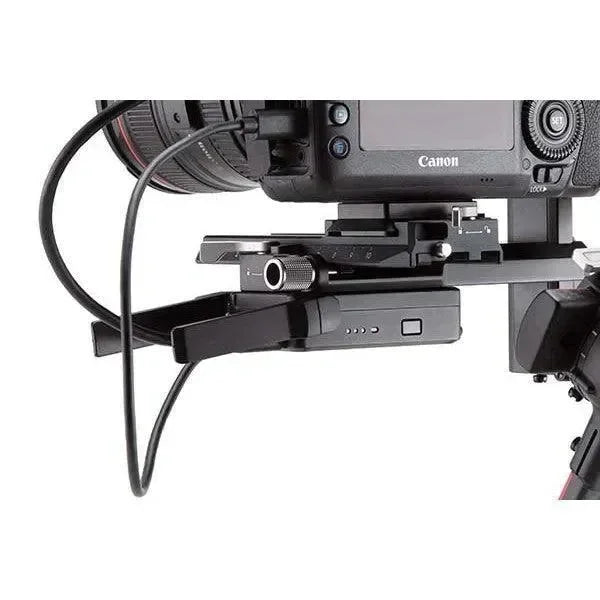

DJI Ronin's RavenEye Image Transmission System enables live image viewing, and enables ActiveTrack 3.0 on DJI RS 2, to transmit images directly to the Ronin app screen. When used on DJI RSC 2, RavenEye enables remote stabilizer control, display and use of ActiveTrack 3.0. However, the built-in screen will not be able to display streaming images. The system is positioned on the stabilizer, and is connected to the camera via HDMI cable and to the smartphone via Wi-Fi. For supported camera features and models, please visit the “Ronin Series Compatibility Search” section on dji.com.

Note: Ronin-S and Ronin-SC currently do not support remote stabilizer control or the use of ActiveTrack 3.0 via RavenEye.

Image transmitter × 1

Cold shoe adapter to 1/4 ”-20 × 1

USB-C Charging Cable (40cm) × 1

USB-C power cable (20cm) × 1

Mini HDMI to HDMI cable (20cm) × 1

Mini HDMI to Mini HDMI cable (20cm) × 1

Mini HDMI to Micro HDMI cable (20cm) × 1

Screw M4 × 2

Allen key (3mm) × 1

Operating frequency: 2.400 - 2.4835 GHz ， 5.725 - 5.850 GHz

Weight: 126 g

Dimensions: 82 × 63 × 24 mm

Transmission power (EIRP):

2.400 - 2.4835 GHz:

<25 dBm (FCC)

<20 dBm (CE / SRRC / MIC)

5.725 - 5.850 GHz:

<25 dBm (FCC / SRRC)

<14 dBm (CE)

Ronin-S

Ronin-SC

DJI RS 2

DJI RSC 2
