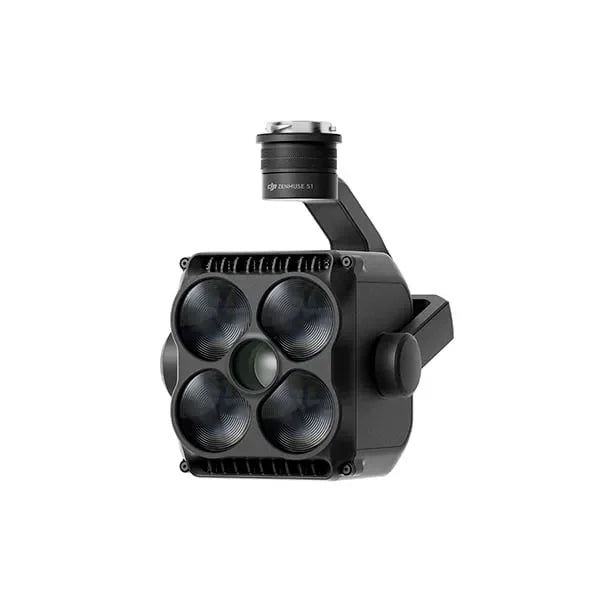

DJI Zenmuse S1

The Zenmuse S1 is DJI's first spotlight designed for multi-payload drone platforms, compatible with the Matrice 350 RTK and Matrice 300 RTK. Using Laser Excited Phosphorus (LEP) technology, it offers high brightness and long illumination distance, and supports multiple lighting modes. This makes it ideal for public safety, emergency rescue, inspection, and other nighttime operations.

1. Download and read the safety guidelines and user manual from DJI official website before first use.

2. Using the spotlight at night may cause obstacle avoidance errors. You can disable obstacle avoidance if necessary and operate the aircraft and spotlight in relatively open and clear areas.

3. When using Zenmuse S1, do not look directly at the spotlight from a close distance to avoid potential damage to your eyesight. Please ensure safety.

4. Do not directly touch the reflector lens coating with your hands or scratch it with hard objects, as this may reduce the light output efficiency and affect the luminous flux and illuminance.

Zenmuse S1 × 1

Lens protection cover × 1

Carrying case × 1

Lens cleaning cloth × 1

Weight: 760 ± 10 g

Dimensions: 125×152×171 mm (L×W×H)

Rated power: 68W

Maximum central illuminance: 35 lux at 100 m (Dual Light Mode) ^[1]

Effective lighting distance: 500m (Dual Light Mode) ^[2]

Supported Aircraft: M300 RTK (requires DJI RC Plus), M350 RTK

Ingress protection level: IP54 ^[3]

Operating temperature: Between -20°C and 40°C

Matrix 350 RTK

Matrix 300 RTK
