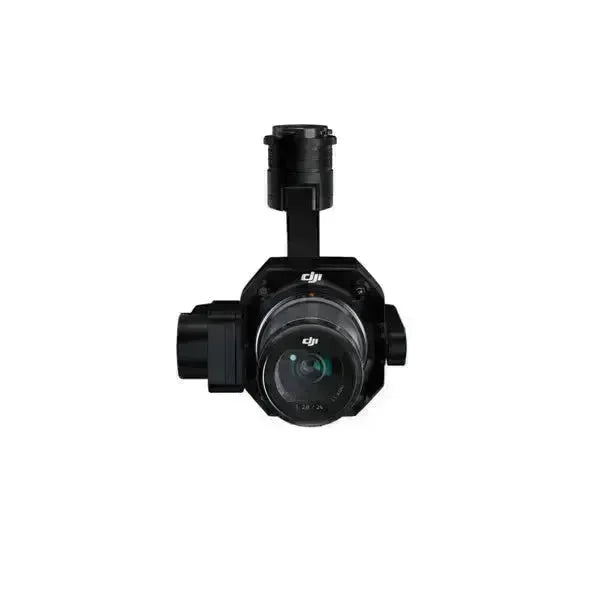

DJI Zenmuse P1

Accuracy without GCPs: 3 cm horizontal/5 cm vertical
High efficiency: 3 sq km coverage in a single flight
45 MP Full-Frame sensor
3-axis gimbal with Smart Oblique Capture
Mechanical shutter up to 1/2000 of a second
TimeSync 2.0 microsecond-level synchronization

A powerful and precise camera for drone surveying.

High-precision aerial mapping solution

The DJI Zenmuse P1 is a versatile, high-performance surveying payload designed for DJI’s flagship commercial drone, the M300 RTK.

The camera is integrated with a 45 MP full-frame CMOS sensor with 24mm, 35mm, and 50mm lens options, and a 3-axis stabilized gimbal.

When combined with the M300 RTK drone and the mapping software package, DJI Terra, the P1 camera provides an efficient, high-precision aerial photogrammetry solution.

Integrating the P1 with the M300 RTK significantly boosts productivity, being up to 10 times more efficient than the Phantom 4 RTK for orthomosaic and oblique mapping missions.

Highlights include:

• 45 MP full-frame CMOS.
• Achieve 3 cm horizontal accuracy and 5 cm vertical accuracy without ground control points (3 cm GSD, with 75% front overlap ratio and 55% side overlap ratio).
• High efficiency: 3 km² area coverage in a single flight (3 cm GSD, with 75% front overlap ratio and 55% side overlap ratio).
• 3-axis stabilized gimbal with Smart Oblique Capture.
• Mechanical global shutter (achieved with mechanical shutter): shutter speed of 1/2000s.
• TimeSync 2.0: synchronizes flight controller, RTK, gimbal, and camera in milliseconds.

KEY FEATURES OF THE P1

Collect quality data quickly and safely.

Multiple operating modes

The P1 camera features a range of operating modes to allow surveying professionals to capture the best data possible.

These include:

• 2D Ortho: collect precise data quickly and easily, meeting 1:500 and 1:1000 cadastral accuracy standards.
• 3D Oblique: multi-angle oblique image data acquired for 3D modeling is provided efficiently and concisely, which can be widely used in many industries such as urban planning, cadastral surveying, security command, etc., assisting with true 3D and smart city construction.
• Detailed Reconstruction: high-resolution data images can be obtained efficiently to help restore the fine texture, structure, and features of terrain and objects. It can be widely used in the reconstruction of precious buildings, protection of ancient buildings, water conservancy engineering, and geological surveys.
• Real-time reconstruction: Combine with DJI Terra to get real-time geographic information for a large area to assist emergency rescue sites.

Smart Oblique Capture

Smart Oblique Capture allows the P1 to reach comparable efficiency in oblique mapping missions to five-lens oblique payloads.

• Swing Pattern: when the P1 performs a five-direction oblique mission, it will swing in five directions at -60 degrees. It will only capture images within the work area, increasing post-processing efficiency by 20% - 50%.
• High oblique operational efficiency: the P1 will execute the multi-angle swing shooting pattern to greatly improve operational efficiency over a single-lens camera. The work area with the P1 can reach 7.5 square kilometers (3 cm GSD, 75% front overlap ratio, 65% side overlap ratio) in a single day.
• Higher efficiency: the P1 has higher efficiency in oblique missions compared to other single-camera payloads.

Multiple Premier lens options

A 35mm lens is suitable for most mapping missions, but if the drone needs to operate at a higher altitude while maintaining the same resolution, a 50mm lens option is available.

High precision with TimeSync 2.0
