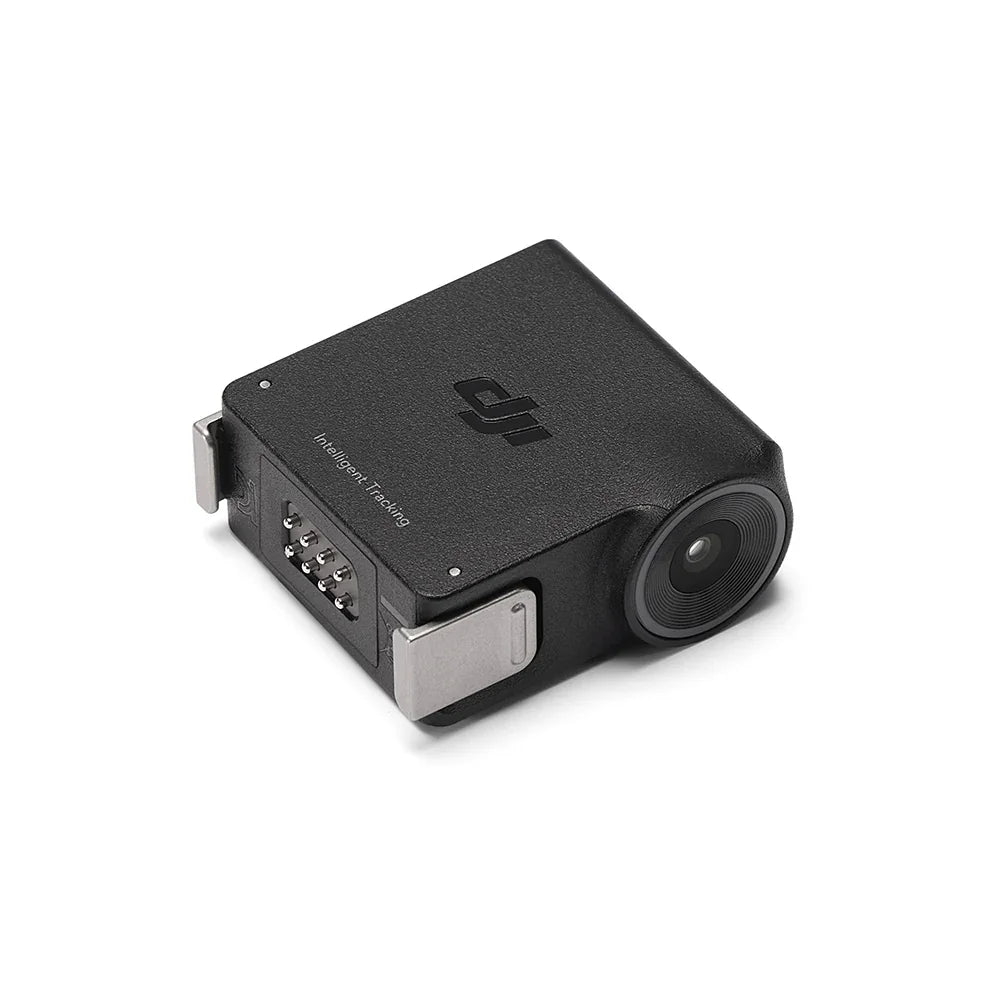

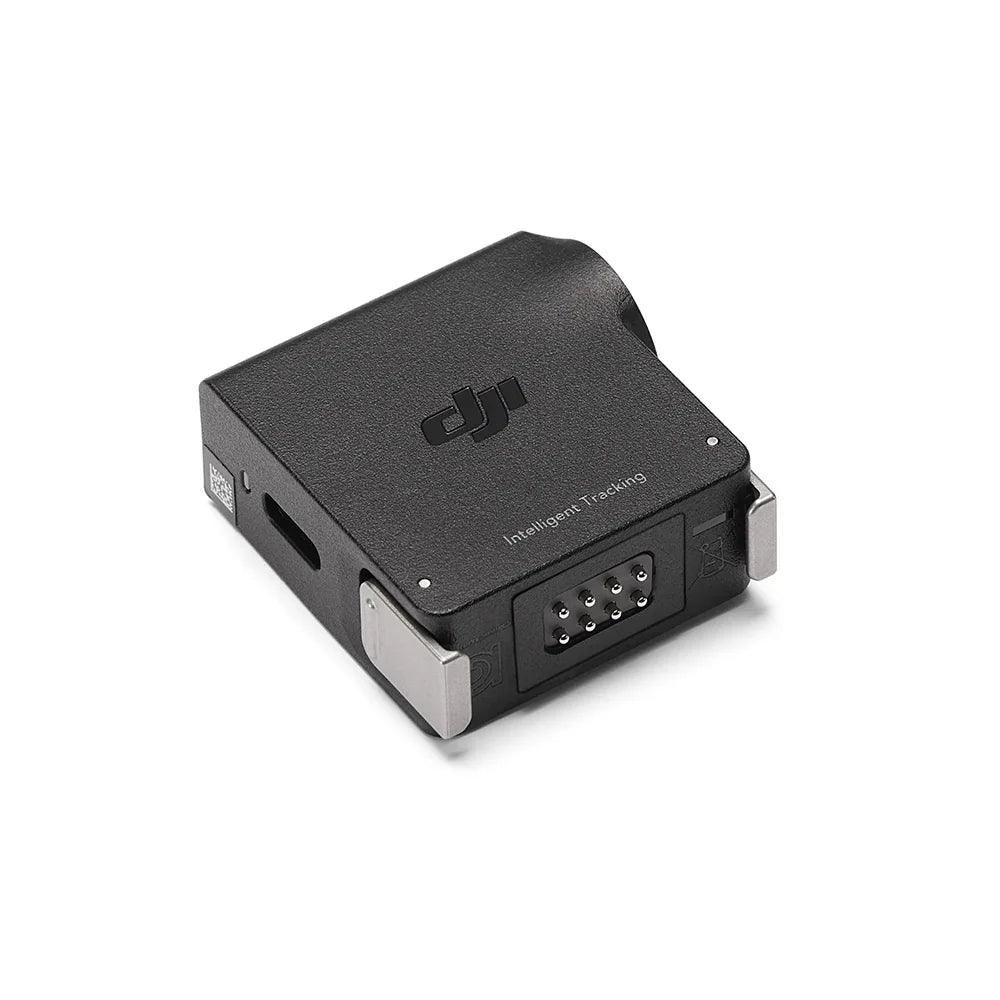

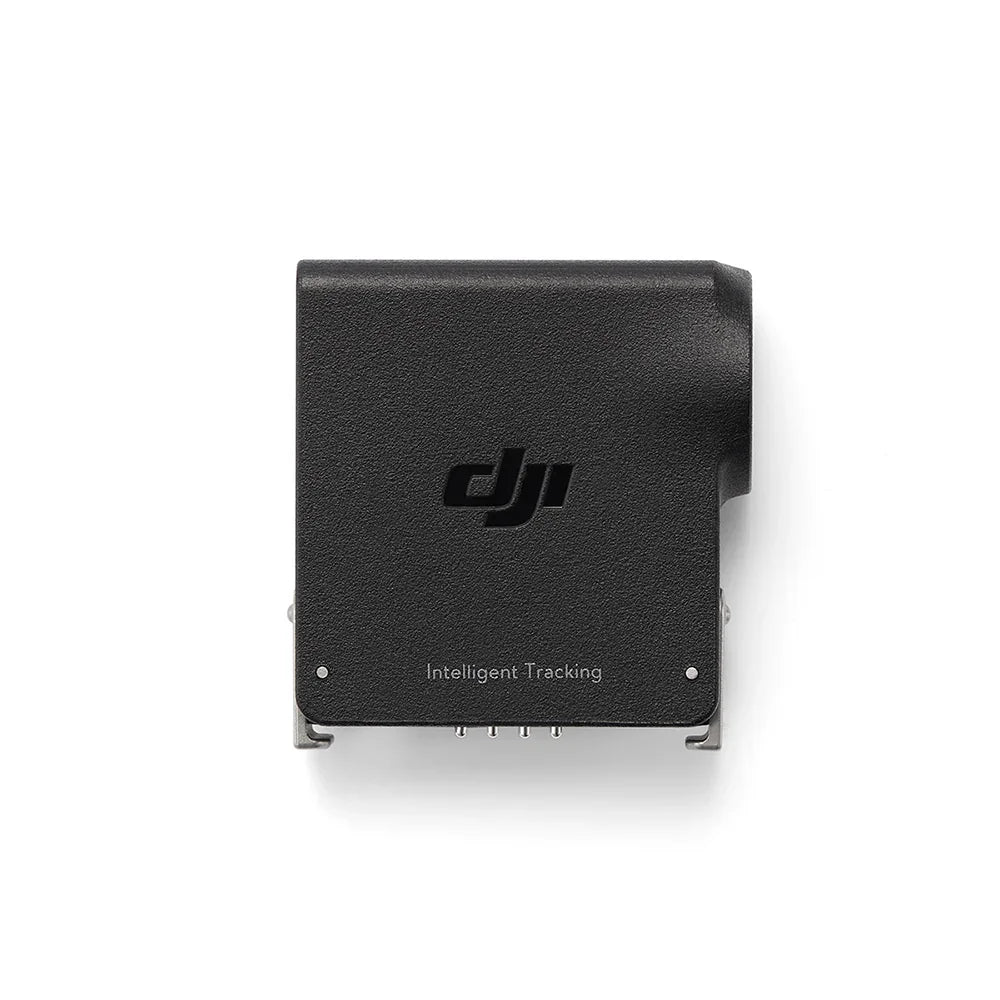

DJI RS Enhanced Intelligent Tracking Module

When used with the RS 5, simply frame a person, car, pet or any object on the RS 5's touch screen to have the gimbal track the selected subject and hold it in a fixed position via assist composition, especially useful for surround camera movement, reverse follow-up and single-person fixed-camera selfies or for live streaming.

Suggestions

The bottom of the Smart Tracking module features a magnetic quick-release design, which can be attached directly to the DJI RS 5 and DJI RS 4 Mini by pressing and holding the bottom buckle. It can also be attached to the DJI RS 4 Pro or DJI RS 4 with an adapter bracket, which occupies the gimbal's RSS interface and cannot use the camera control cable.

When using the Advanced Intelligent Tracking Module with DJI RS 4/DJI RS 4 Pro/DJI RS 4 Mini, you must update the gimbal to the latest firmware and track only one identifiable subject (person, vehicle, cat, or dog) at a time, without interference from similar subjects in the environment. Additionally, the tracking image cannot be displayed on the DJI RS 4/DJI RS 4 Pro/DJI RS 4 Mini touchscreen.

Package Contents

RS Advanced Intelligent Tracking Module × 1

RS Intelligent Tracking Module Adapter Bracket × 1

Technical parameters

Weight: approximately 19 grams

Dimensions: Length 35.9 mm, Width 17.5 mm, Height 38.5 mm

Tracking distance: 0.5m to 10m

Actual usage environment: Illumination > 20 lux

Trigger method: gimbal trigger, gesture, touchscreen gimbal

Gesture functions: start/stop tracking, start/stop recording, composition adjustment

Power consumption: about 1 watt

Operating ambient temperature: -10°C to 45°C

Installation method: magnetic

Compatible products

DJI RS 5

DJI RS 4 Pro

DJI RS 4 Mini

DJI RS 4
