Creality Sermoon S1 3D-Scanner

Creality Sermoon S1 3D-Scanner

€2.533,00 EUR
€2.799,00 EUR €2.533,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

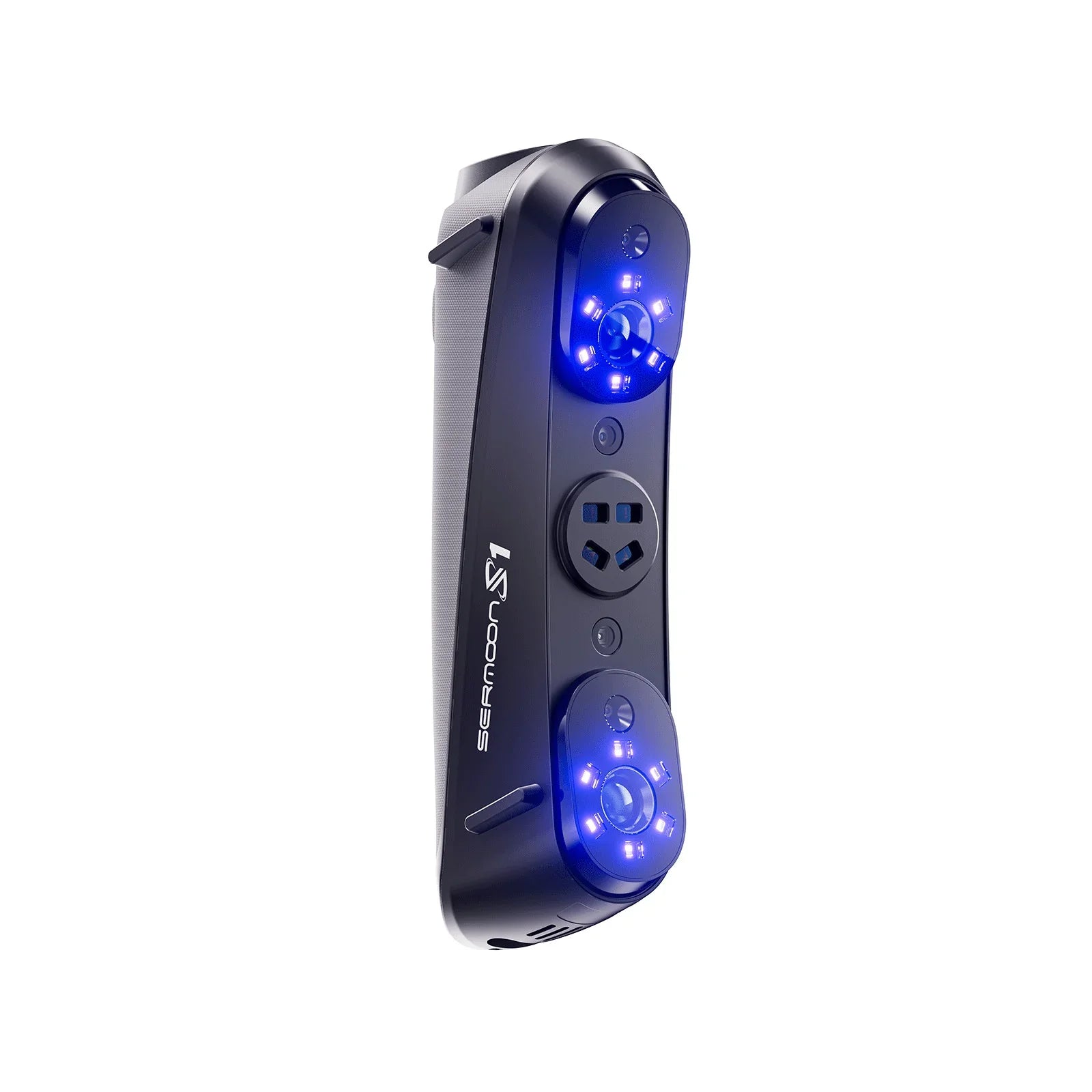

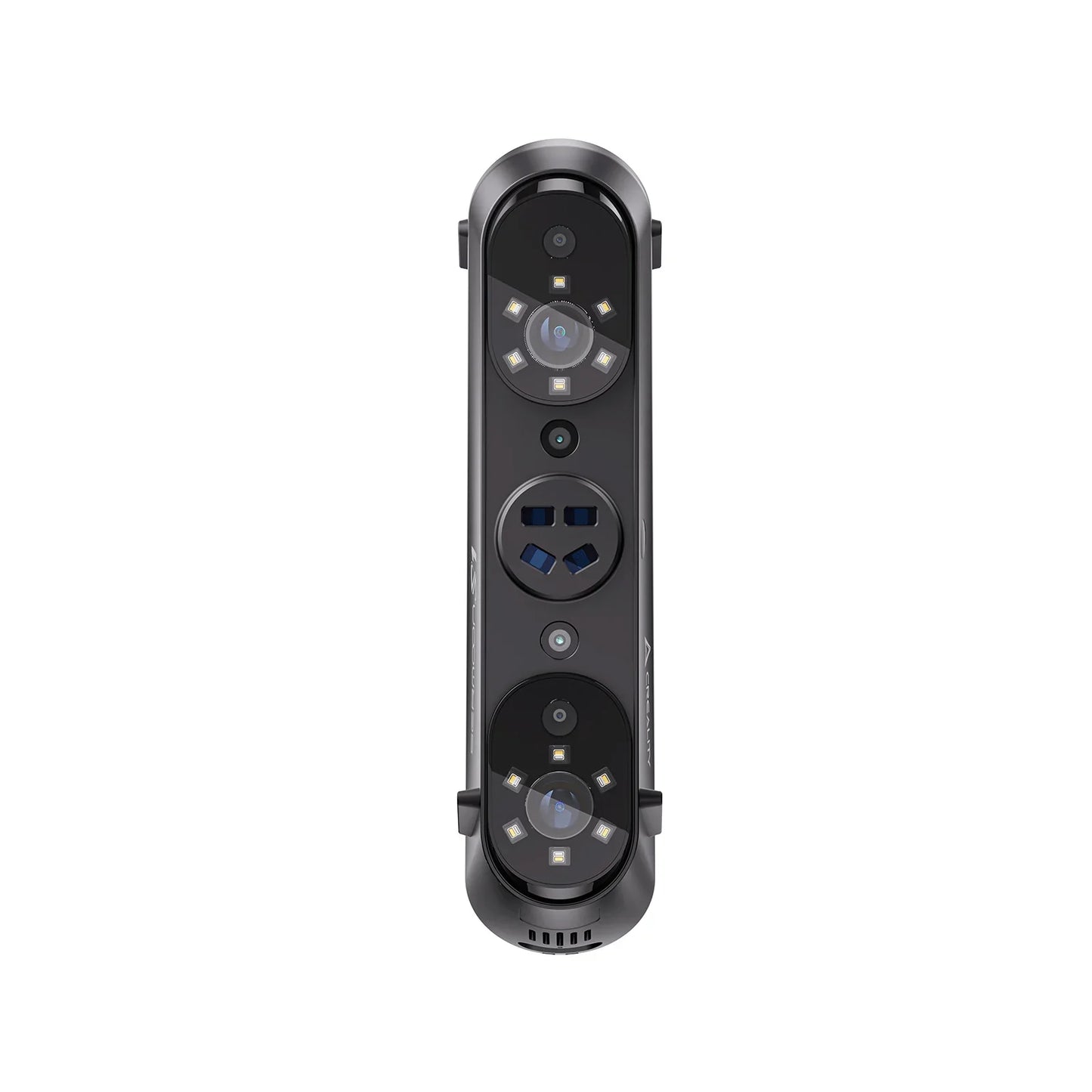

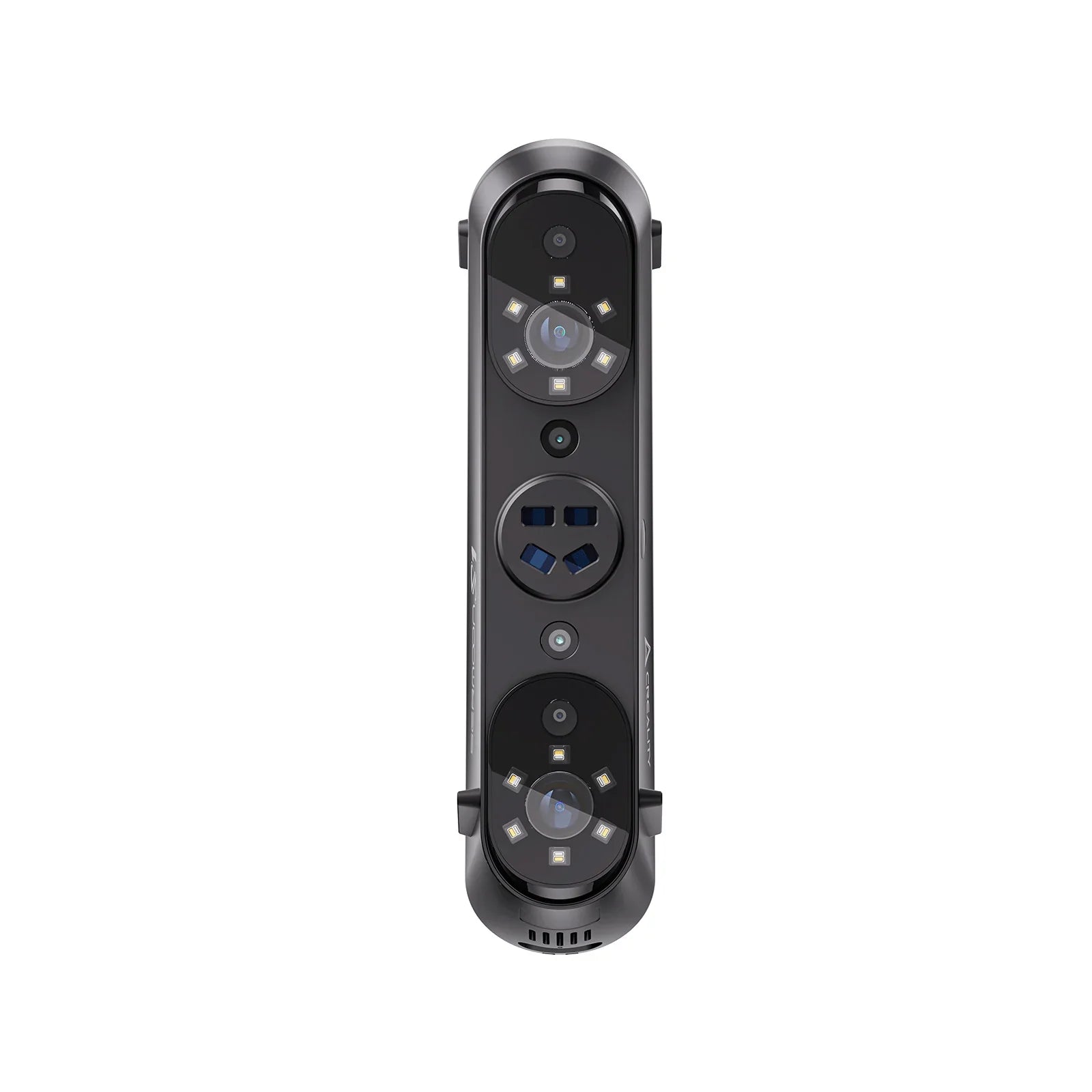

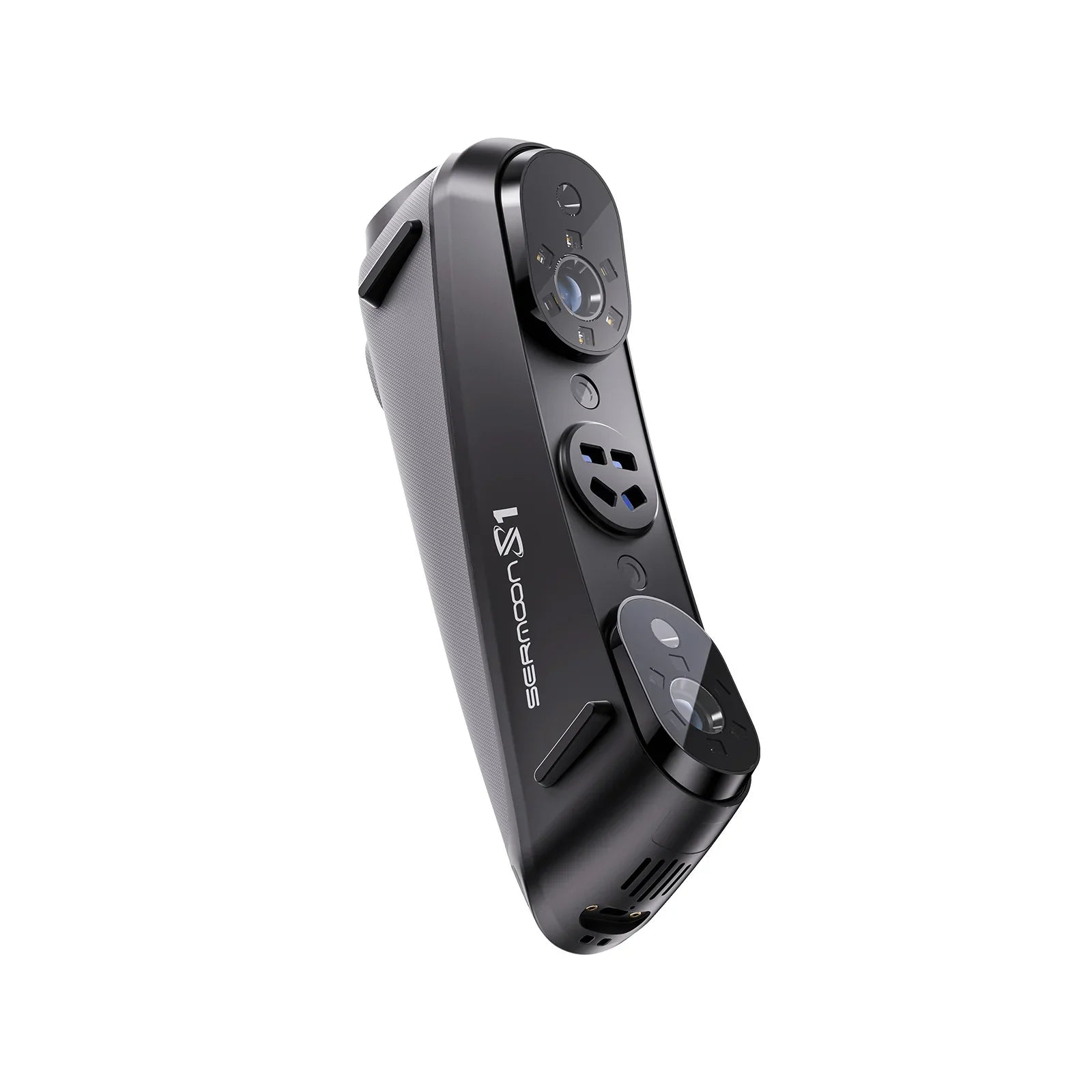

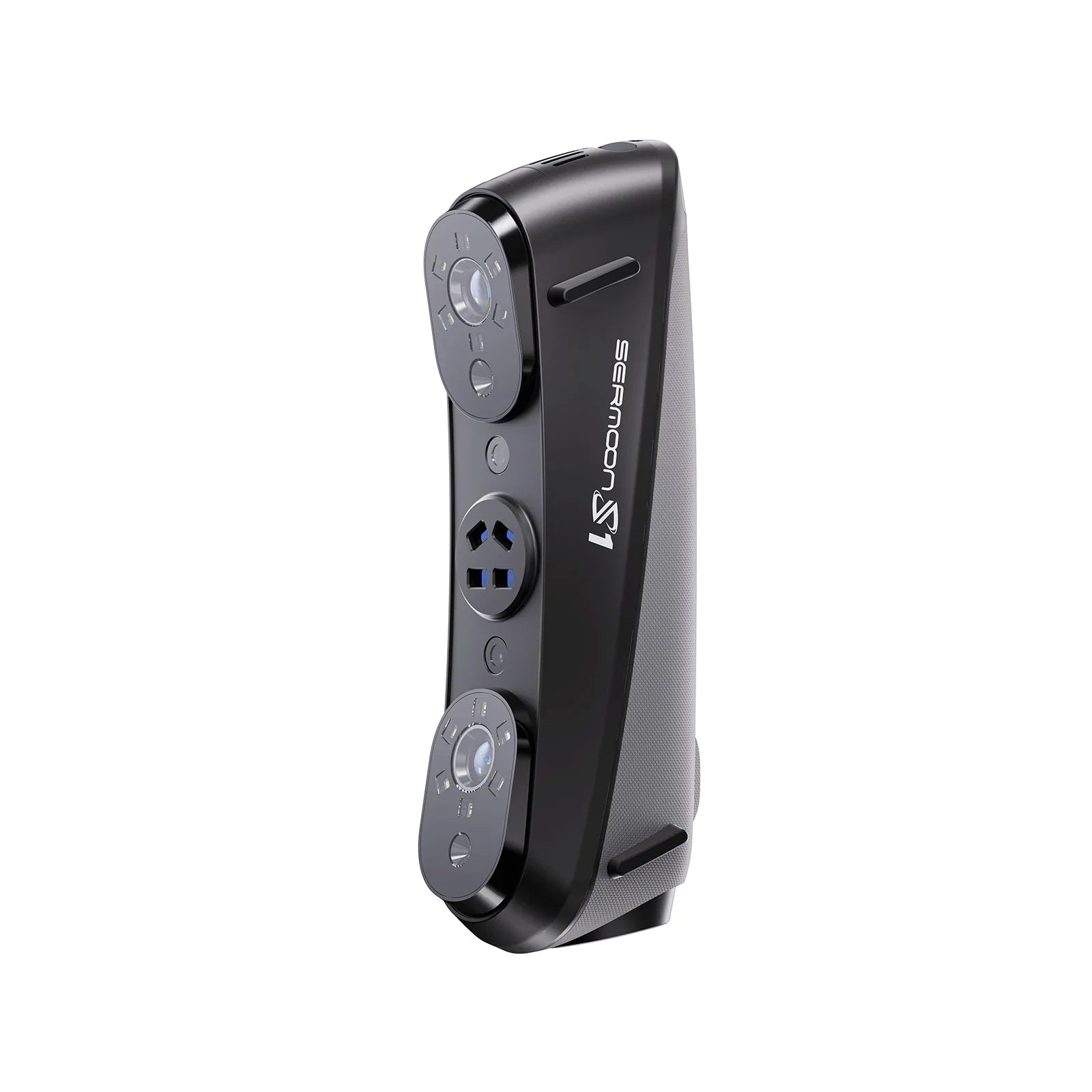

The Creality Sermoon S1 is a versatile, high-precision 3D scanner designed for both indoor and outdoor use. Equipped with multiple laser technologies and wireless capabilities, it offers fast and precise scanning of objects from 5 mm to 4000 mm, all without marking or spraying. Thanks to its AI-based software and seamless integration between CAD and 3D printing, the Sermoon S1 streamlines your digital workflow.


Main features

  • Accuracy of 0.02 mm + volumetric accuracy of 0.08 mm/m
  • Scanning speed up to 90 FPS with wide field of view
  • Multi-laser system: main + 7 + 34 blue lasers + NIR
  • Scan objects from 5 mm to 4000 mm, without markers and without splashes
  • Wireless operation compatible with CAD/CAM/3D printing
  • Built-in AI intelligence with temperature compensation

Precision meets speed

Combining ultra-sharp laser projection and advanced stereoscopic optics, the Sermoon S1 achieves surface accuracy of up to 0.02 mm and volumetric accuracy of 0.08 mm/m. A high refresh rate of 90 FPS and a wide field of view ensure fast and accurate scanning of large areas without compromising detail.

Advanced multi-light scanning

Equipped with a sophisticated array of lasers, including a primary laser, seven blue lasers, 34 additional blue lasers, and a NIR option, the scanner captures intricate colors and details even on difficult surfaces such as dark, shiny, or metallic objects.

Wide compatibility and simple configuration

From small 5mm objects to large objects up to 4000mm, the Sermoon S1 handles a wide range of scanning scenarios. Its 4-lens stereo vision system enables outdoor scanning without the need for markers or spray, simplifying installation in a variety of environments.

Intelligent and intuitive design

Thanks to AI-powered software, wireless control (via Scan Bridge, sold separately), and automatic temperature compensation, the Sermoon S1 offers a smooth and stable scanning experience. It easily interfaces with CAD, CAM, and 3D printing tools, making it ideal for both creative and industrial workflows.



Technical Specifications Table - Creality Sermoon S1 3D Scanner

Main Feature Detailed Specifications Notes / Benefits
Scan Mode Single Line Blue Laser
Blue Laser 7 Parallel Lines
Blue Laser 34 Cross Lines
Near IR (NIR) Structured Light
 Multi-light versatility (Blue and NIR) allows you to scan a wide range of surfaces (dark, shiny, metallic) and scenarios (indoor/outdoor, large/small objects) with precision and detail.
Precision Up to 0.02 mm (Blue Laser Mode)
0.02 mm + 0.08 mm/m (Volumetric) (Blue Laser Mode)
Up to 0.075 mm (NIR Mode)
0.075 mm + 0.1 mm/m (Volumetric) (NIR Mode)		 Ensures extremely fine details and accurate measurements, crucial for professional applications such as reverse engineering, quality control, design and restoration.
Scanning Speed Up to 90 FPS (Frames per Second) (7-line and single-line modes)
Up to 70 FPS (Crossline Mode)
Up to 30 FPS (NIR Mode)		 Quickly scan large areas without compromising detail capture, optimizing work times.
Points Measured/Second 108,000 points/s (Single Line)
750,000 points/s (7 Parallel Lines)
1,428,000 points/s (34 Cross Lines)
4,600,000 points/s (NIR)		 High point density for a 3D reconstruction rich in detail and faithful to the original.
3D resolution 0.05 – 2 mm (Blue Laser Mode)
0.1 – 2 mm (NIR Mode)		 Detail captured for each single point, indicating the fineness of the generated mesh.
Minimum Scan Volume 5mm x 5mm x 5mm (Blue Laser Mode) It allows the scanning of extremely small and detailed objects.
Scanning Field From 5 mm to 4000 mm (4 meters) Exceptional versatility to scan objects of very different sizes, from small parts to large environments or vehicles.
Working Distance 200 – 600 mm (Single Line/34 Lines)
150 – 400 mm (7 Parallel Lines)
170 – 500 mm (NIR)		 Flexibility in positioning the scanner relative to the object.
Alignment Mode Markers / Global Markers / Geometry / Texture Several options for robust and precise alignment, even on objects without obvious geometric features.
Markerless Scanning Yes (on objects from 5mm to 4000mm) Simplify the scanning process, reducing setup time and the need for additional accessories.
Spray-Free Scanning Yes (on dark, shiny, metallic surfaces) There is no need to apply matting sprays, saving time and ensuring the fidelity of the original material.
External Scanning Yes (up to 100,000 lux for blue laser, up to 30,000 lux for NIR) Excellent performance even in variable ambient light conditions.
Temperature Compensation Yes (Built-in AI intelligence) Maintains measurement stability and accuracy even in environments with temperature fluctuations.
Integration CAD/CAM/3D Printing Simplified digital workflow for professional applications in design, manufacturing and engineering.
Connectivity Wireless (via Scan Bridge, sold separately) It offers freedom of movement and greater flexibility when scanning.
Software Based on Artificial Intelligence (AI) Improve data processing and ease of use.
3D Imaging Camera Resolution 2MP High Resolution / 1MP Wide Angle For detailed and complete color mapping.
Supplementary Light Color 12 White LEDs Assists in capturing color information.
Light Improvement Marker Recognition 12 Blue LEDs / 12 White LEDs Improves the accuracy of marker recognition.
Laser Safety Class II (Eye Safe) Ensures operator safety during use.
Device Weight 508 g Lightweight and portable, easy to handle for long scanning sessions.
Device Dimensions 225 mm × 53 mm × 76 mm Compact and ergonomic design.
Calibration High precision glass calibration card Ensures the accuracy and consistency of scans over time.

Creality Sermoon S1 vs. Creality RaptorX

Characteristic Creality Sermoon S1 Creality RaptorX
Laser technology 1 single + 7 parallel + 34 cross (blue) + NIR 7 parallel + 34 crossed (blue) + NIR
Surface precision Up to 0.02 mm Up to 0.02 mm
Volumetric accuracy 0.02 mm + 0.08 mm/m 0.02 mm + 0.06 mm/m
Scanning speed Up to 90 FPS Undeclared FPS; up to 1,020,000 points/sec
Speed ​​points/sec Up to 1,428,000 points/sec Up to 1,020,000 points/sec
Laser field of view 506 × 433 mm @ 600 mm 452 × 348 mm @ 600 mm
Size of scannable objects 5 mm – 4000 mm 5 mm – 4000 mm
Maximum hole depth Up to 1:6 ratio (ideal for deep holes and narrow cavities) Standard scan, not optimized for deep holes
NIR technology 4-lens stereo vision, AI marker-free and spray-free processing Structured light NIR, marker-free often but not always spray-free
Outdoor (maximum luminance) <100,000 lux 34 lines: <100,000 lux
7 lines: <50,000 lux
Color mode Yes, 24 bit in all modes Yes, 24 bit in all modes
Software Creality Scan 4.0 with AI, CAD/CAM integration, temperature compensation CrealityScan (previous version), inspection/design/3D printing compatibility
Wireless connection Optional accessory (Scan Bridge) Built-in Wi-Fi 6 AX6000
Drums Wireless via accessory
Power from PC for normal scanning		 Integrated, 4 hours battery life, fast charging
OS Compatibility Windows (at launch), macOS, Android/iOS planned (mobile screen mirroring) Windows, macOS (11.7.7+ with Apple M1/M2/M3, RAM ≥16GB)
Weight Approximately 508 g 405–450 g
Calibration High precision glass plate included Standard calibration plate included
External software integration Direct export to CAD, CAM, inspection and 3D printing Direct integration with Geomagic Control X, Design X, Verisurf Inspect and other software
Other notes AI support; Ideal for complex mechanical parts and deep holes More mature on the market; large installed base
