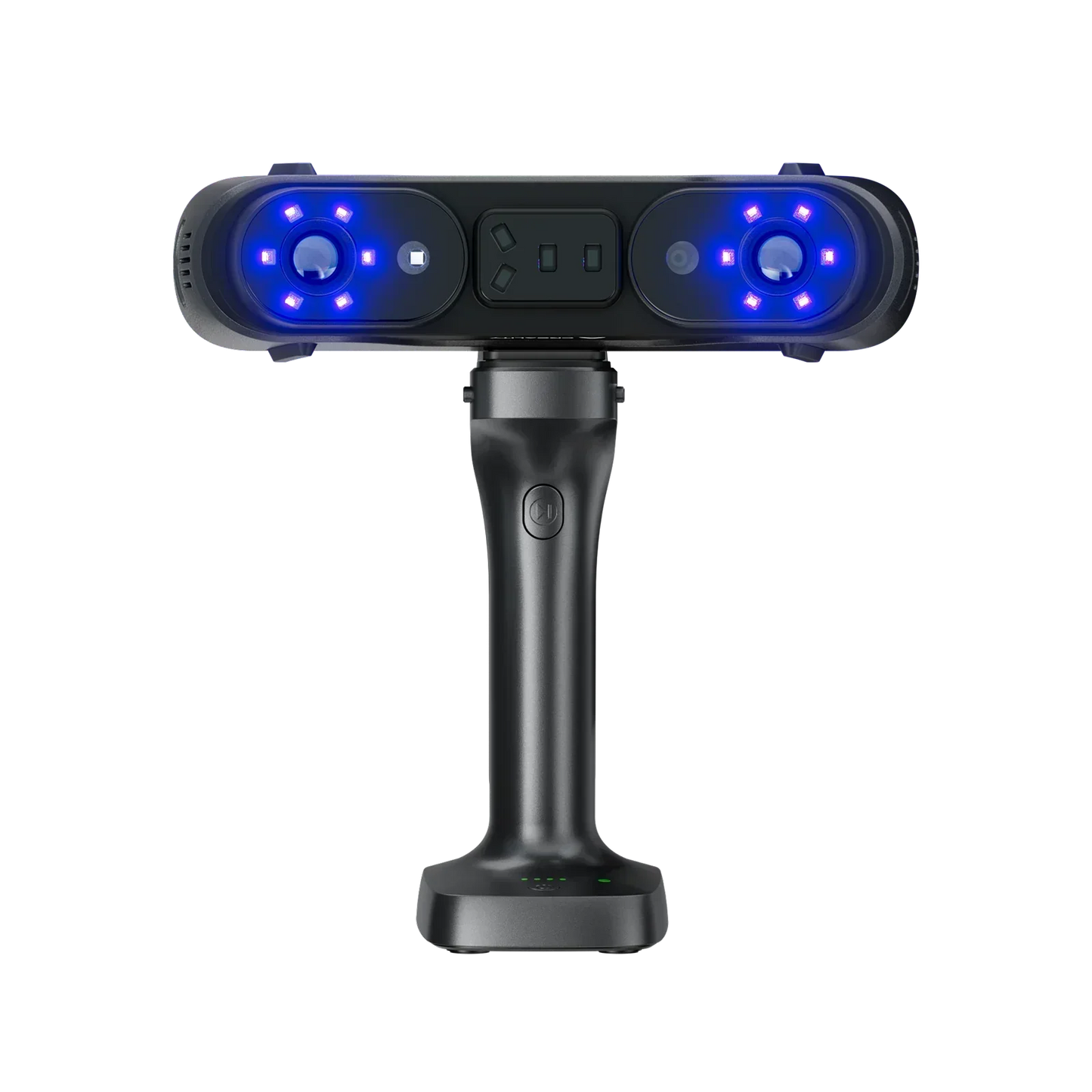

Creality Sermoon X1: The Wireless 3D Scanner That Revolutionizes Industrial Scanning

The Creality Sermoon X1 represents a significant breakthrough in the world of professional 3D scanning, combining industrial precision, versatility, and freedom of movement thanks to wireless technology. Competitively priced at approximately $5,999 USD, this wireless handheld scanner redefines industry standards, offering an affordable solution for applications that previously required much higher investments.

Distinctive Features of the Sermoon X1

The Creality Sermoon X1 stands out in the market thanks to its hybrid light engine An innovative scanning system that combines four completely different capture modes into a single platform. This technological flexibility makes it one of the few scanners on the market capable of tackling virtually any scanning challenge.

There industrial precision This is the first element that strikes you: the device achieves an accuracy of 0.02 mm + 0.04 mm/m In laser mode, with extraordinary volumetric resolution. To put this into practice, this scanner can capture details as fine as 0.02 millimeters, equivalent to about a fifth of the thickness of a human hair.

The Four Scanning Modes

The Sermoon X1 offers incredible versatility through four specialized scanning modes:

Single-Line Laser Mode : This represents one of the device's most significant innovations. While traditional multi-line scanners struggle with deep cavities, holes, and hard-to-reach areas, the single, fine 0.1 mm laser can penetrate areas that would otherwise remain "blind." The system supports depth-to-diameter ratios of up to 6:1, allowing it to scan holes and recesses that other scanners leave unfinished.

7 Parallel Laser Mode : With 0.1mm-thick parallel laser lines, this mode is ideal for detailed, high-definition scanning of complex components. It reaches speeds of up to 70 fps and 756,000 measurements per second, capturing every nuance of the object's geometry.

34 Cross Laser Mode : Optimized for speed and coverage, this configuration allows you to scan medium to large objects with extraordinary efficiency. With 1,428,000 measurements per second, it can scan an entire car in a single session.

NIR Structured Light Mode : Binocular structured infrared light technology enables markerless scanning of large surfaces. With 5,000,000 measurements per second, it is perfect for quickly scanning large objects under varying lighting conditions.

Advanced Technical Specifications

Construction Technology: CNC Monoblock for Absolute Stability

The Sermoon X1 is not "just" a scanner; it is advanced precision engineering. The structure is built using a A single-piece CNC monoblock design combines lightweight (530 g) with exceptional rigidity. This "fortress" construction ensures thermal stability during long scanning sessions, eliminating measurement drift that compromises quality.

The device implements a AI-driven temperature compensation algorithm and an efficient thermal management system, which maintains stable performance even during extended scanning sessions. This means that, regardless of environmental conditions, accuracy remains consistent.

Markerless Scanning and Integrated Photogrammetry

One of the most appreciated features of the Sermoon X1 is the Integrated photogrammetry , which completely eliminates the need for coded markers for laser scans. This represents a huge practical advantage:

• No surface preparation required : There is no need to spray marker on precious or sensitive objects
• Elimination of cumulative errors : Integrated photogrammetry automatically corrects dimensional deviations during reconstruction
• Faster scans : Less setup means less preparation time
• Surface versatility : works on reflective, black, matte and any textured surfaces

The NIR structured light mode also offers support for global marker recognition and alignment for geometry and texture, making the device incredibly flexible for different scanning scenarios.

Versatility of Range: From the Microscopic to the Monumental

One of the most compelling strengths of the Sermoon X1 is its extraordinary versatility in size . The device can switch from scanning:

• Microscopic components : 5 mm³ (perfect for jewelry, electronic components, bolts)
• Human-sized objects : 150-600 mm (mechanical parts, artifacts, busts)
• Automotive components : up to 4000 mm³ (entire cars, chassis, engines)

This versatility eliminates the need to own multiple specialized scanners. A company can use a single platform to address the entire spectrum of scanning needs, significantly reducing capital costs and simplifying inventory management.

RGB Camera and Realistic Color Textures

The Sermoon X1 doesn't just capture geometry; it captures the entire visual world. Equipped with a 2MP RGB camera Powered by a high-performance Qualcomm ISP chip and LED auxiliary lighting, the device maps rich, photorealistic color textures onto the high-precision mesh.

This is critical for applications such as:

• Digital Heritage : Preserving Cultural Artifacts with Color Accuracy
• VR/AR Assets : Create visually accurate assets for immersive environments
• Personalized consumer products : faithful visualization of how the final product will look

Spray-Free Scanning: Black, Metal, and Reflective Surfaces

One of the perennially frustrating challenges in 3D scanning is dealing with problematic surfaces: black materials that absorb light, shiny metal that creates specular reflections. The Sermoon X1 was specifically designed to excel in these conditions.

The device's intelligent exposure algorithms and advanced optical filters enable it to capture clean, noise-free data from:

• Black/dark surfaces : which absorb light naturally
• Polished or chromed metal : These generate specular reflections that are confusing to many scanners.

This "spray-free" capability (without the need for spray preparation) saves time and preserves the integrity of the object , which is critical when scanning valuable artifacts or sensitive components.

Wireless Mobility and Wi-Fi 6 Connectivity

The Creality Sermoon X1 is billed as a "wireless scanner," and this isn't just a marketing claim. The device uses Wi-Fi 6 with data transfer speeds up to 4.7 Gbps and has a 5000 mAh battery which guarantees an autonomy of over 4 hours of continuous scanning.

This has enormous practical implications:

• Freedom of movement : scan in complex environments (car interiors, workshops, industrial sites) without the constraint of cables
• Access to confined spaces : caves, crevices, overhead areas become accessible
• Field work : on-site scanning at manufacturing plants, archaeological excavations, construction sites
• Safety compliant : No cables to get tangled or become a hazard on a factory floor

Resistance to Ambient Lighting

Unlike many scanners that degrade under variable lighting conditions, the Sermoon X1 is rated to operate effectively up to:

• 100,000 lux (single/parallel laser mode and 34 lines)
• 50,000 lux (7 parallel laser mode)
• 30,000 lux (NIR structured light mode)

For context, direct sunlight is about 100,000 lux. This means the Sermoon X1 can scan outdoors in full sunlight, a situation that stymies many competitors. It is also certified to operate indoors in standard lighting and complete darkness.

CrealityScan 4.0 Software: AI and Productivity

The Sermoon X1 comes with CrealityScan 4.0 , a professional AI-powered 3D scanning software that integrates user-friendly design with powerful image and point cloud processing capabilities.

The software supports:

• STL export for dimensional analysis in third-party software (Geomagic Control X, PolyWorks, QuickSurface)
• Integration with inspection, design and 3D printing software
• Advanced point cloud processing
• AI-based marker removal
• Alignment and fusion of multiple scans

Practical Real-World Applications

Automotive Engineering and Tuning

The Sermoon X1 significantly accelerates workflows in the automotive industry. An engineering team can scan a complete vehicle chassis in preparation for a custom engine swap. The integrated depth camera enables quick, markerless capture of large, relatively uniform surfaces of the body and floor. The operator can then switch to a single-line laser to precisely capture intricate mounting points, deep recesses, and tight spaces in the engine compartment, ensuring data integrity where it matters most.

Customized Medical Devices

Creating custom medical devices, such as prosthetic sockets, requires a seamless interface between the device and the human body. The Sermoon X1 can scan a patient's residual limb with extraordinary speed and accuracy. The scanner's ability to quickly capture complex, organic shapes is essential for patient comfort. The resulting high-resolution 3D model provides the precise anatomical data a prosthetist needs to design a socket that distributes pressure evenly and provides a secure, comfortable fit. This application of 3D scanning technology directly leads to a higher quality of life for the end user.

Reverse Engineering and Rapid Prototyping

In the product design industry, the Sermoon X1 facilitates the reverse engineering of existing components. Engineers can scan a prototype race car, an engine part, or a working prototype to capture every detail, from large shapes to micro-details. The resulting data feeds directly into CAD workflows for rapid iteration and rapid prototyping.

Quality Inspection and Dimensional Control

For mass production, the Sermoon X1 provides a fast and accurate method for quality inspection. Finished parts can be scanned, and the point cloud data compared with the original CAD model to verify dimensional conformance. With an accuracy of 0.02 mm + 0.04 mm/m, even minor variations are detectable.

Digital Heritage Documentation

Museums, archives, and conservation institutions use the Sermoon X1 to create digital records of cultural artifacts. The ability to capture both geometry and photorealistic color means that historical objects and artworks can be preserved for future generations in fully digital form.

Competitive Comparison

While the market offers several competitors, the Sermoon X1 stands out. Based on feedback from the 3D scanning community, the Sermoon X1 offers a superior balance of cost, accuracy, versatility, and ease of use compared to scanners like the Revopoint MetroX (which lacks full wireless portability and has a more limited FOV).

Compared to the Creality Raptor Pro (previous model), the Sermoon X1 adds CNC structural strength, improved thermal stability, and full support for NIR structured light modes, justifying the premium price.

Computational Requirements

To operate the Sermoon X1, significant but reasonable computer specifications are required:

Windows 10/11 (64-bit) :

• Processor: i7 Gen 10 or better (recommended); i7 Gen 7 minimum
• GPU: 8GB VRAM (recommended); 6GB VRAM minimum
• RAM: 32GB (recommended); 16GB minimum

macOS 11.7.7 and above :

• Processor: M1, M2, M3 or M4 series
• RAM: 16GB minimum

Safety and Certifications

The Sermoon X1 is classified as a laser Class II (eye-safe) and holds a full suite of international certifications: CE, RoHS, REACH, WEEE, FDA, FCC, UL, IC, RCM, and PSE. This ensures compliance with global safety and quality regulations.

Packaging and Accessories Included

The device comes in a Portable protective case sized for carry-on luggage , ensuring you can safely take your 3D scanner anywhere. The package includes the scanning bridge (wireless dock), a high-precision glass calibration card, and the accessories you need to start scanning right away.

Environmental Specifications

The Sermoon X1 operates in temperatures between -10°C and +40°C with relative humidity between 10% and 90%, making it suitable for controlled indoor environments up to moderately extreme industrial conditions.

Conclusions: A New Standard for Industrial Accessibility

The Creality Sermoon X1 represents a turning point in democratizing industrial-quality 3D scanning technology. Priced at approximately $5,999 USD—roughly a third of the cost of comparable industrial scanners—it offers accuracy (0.02 mm), versatility (5 mm³ to 4000 mm³), wireless mobility (4+ hours of battery life), and exceptional ease of use.

Whether you are working in reverse engineering, digital heritage documentation, quality inspection, custom product design, or automotive scanning, the Sermoon X1 provides the tools to work faster, more accurately, and with less complexity than traditional alternatives.

With the combination of hybrid scanning modes, monoblock CNC construction, AI-driven thermal compensation, and sophisticated CrealityScan 4.0 software, the Creality Sermoon X1 is more than just a 3D scanner – it’s a complete platform for capturing the physical world in digital form with unmatched precision and uncompromising versatility.
