Creality Scanner Sermoon P1

The Creality Sermoon P1 represents the evolution of professional 3D scanning: the first standalone all-in-one scanner that integrates acquisition, processing, and post-production in a single portable device with a 6-inch HD touchscreen. Designed for professionals in reverse engineering, quality control, industrial design, and 3D printing integration, it eliminates PC dependency thanks to enterprise-grade hardware and comprehensive onboard software.

All-in-One Design and Hardware

The Sermoon P1 integrates a 6" Full HD display with 160° viewing angle for outdoor operation, a Qualcomm 8-core 3.36 GHz processor (Adreno 740 GPU + FPGA), 24GB LPDDR5X RAM and 256GB UFS 4.0 storage to handle complex meshes and multiple fusions without slowdowns. The dual-battery system with replaceable 3300 mAh cells ensures continuous operation: one battery installed, one backup included, both with Type-C fast charging (80% in 50 minutes) and intelligent sleep mode.

Multi-Mode Hybrid Laser System

Four scanning modes optimized for every scenario:

1. Single-line laser (1 line) : Deep-hole mode for deep holes and recesses with a depth/diameter ratio of up to 5:1 (tested on Ø29mm holes, 152mm depth)

2. 7 parallel lines : Fine scanning to quickly capture intricate details and complex geometries

3. 22 cross lines : Fast scanning for bulky parts, efficient acquisition of large areas with stable tracking

4. NIR structured light : Markerless scanning for large objects and human full-body scanning (1 minute for full body), maximum FOV 1245x754mm at 1000mm

Performance and Adaptability

Real-time speed with innovative 4-lens architecture: up to 100 FPS (wired PC mode), 60 FPS standalone blue laser, 18-30 FPS NIR. Extreme operating range from 5x5x5 mm³ to 4000x4000x4000 mm³, max blue laser FOV 380x365mm to 550mm. Scan black and metal surfaces without spray matting thanks to the blue laser/NIR combination, environmental resistance for reliable outdoor use.

Full-color textures with RGB global shutter camera, dedicated Qualcomm ISP, and auxiliary lighting for realistic and detailed reproductions. AI thermal compensation to maintain consistent accuracy.

Complete Onboard Workflow

All the steps on one device:

• Automatic scanner calibration
• Real-time acquisition with HD preview
• Multi-scan pointcloud fusion
• Mesh editing and smoothing
• Merging complex projects
• Direct export to QuickSurface/Geomagic/CAD

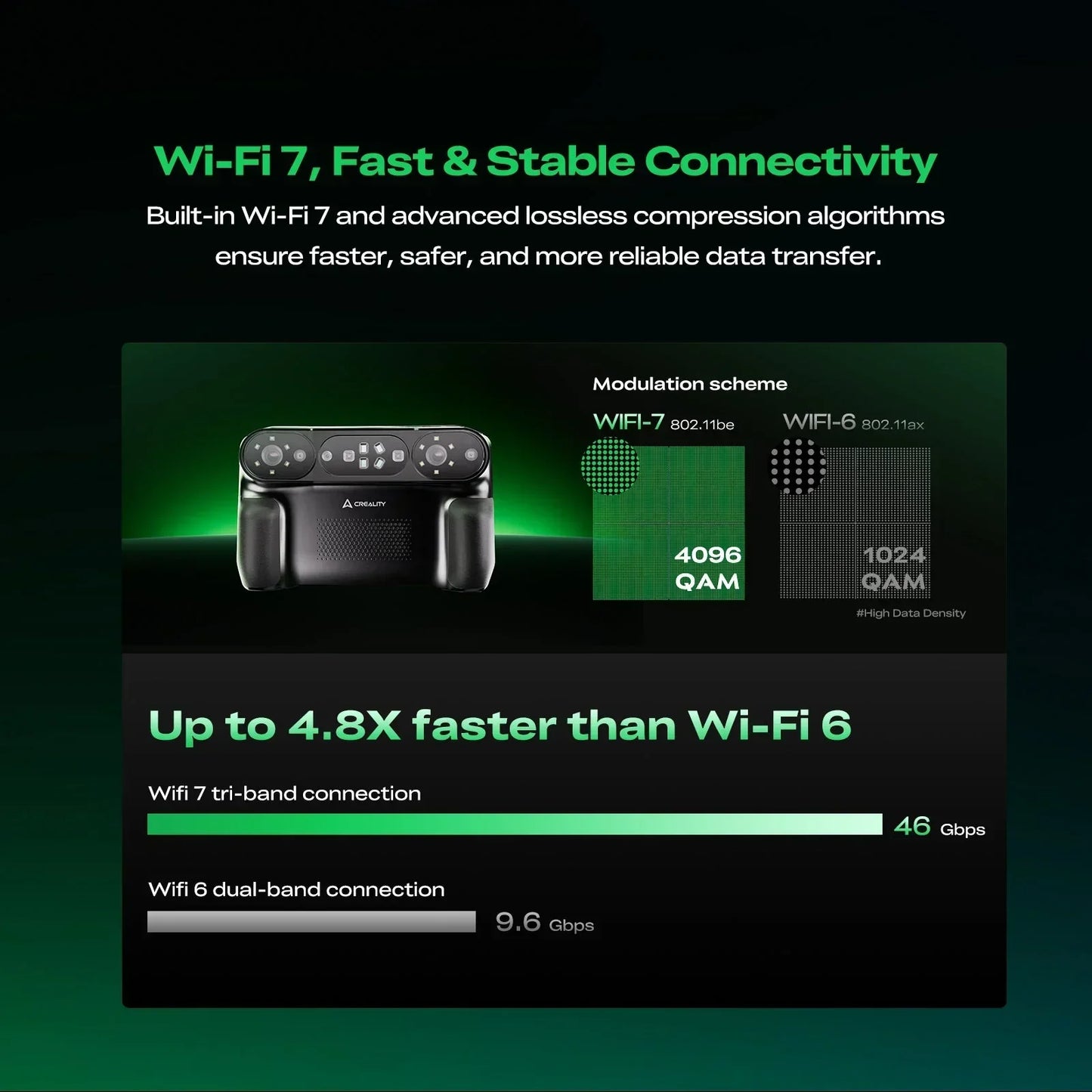

Built-in Wi-Fi 7 with lossless compression for fast, secure transfers to external workstations when needed.
