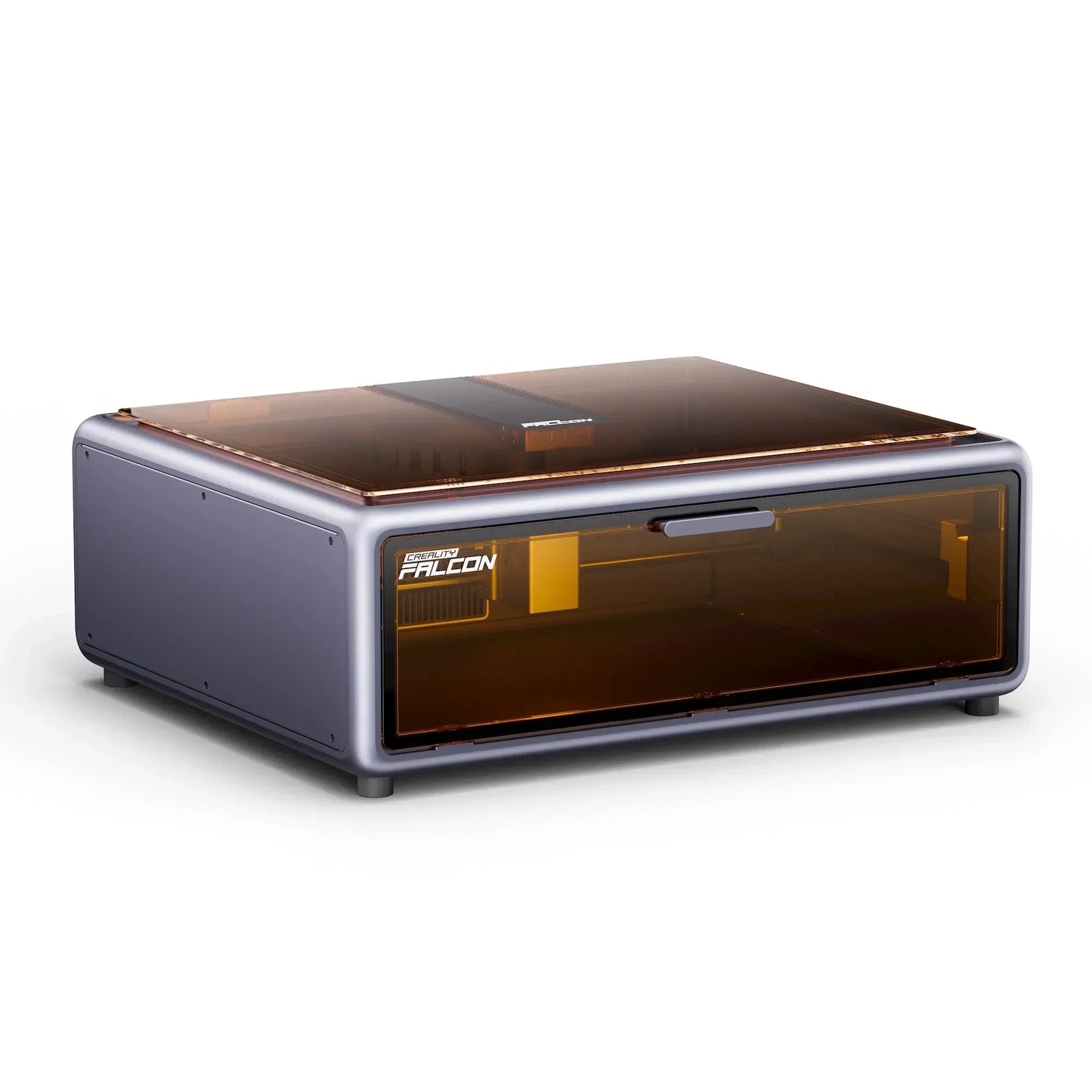

Creality Falcon A1
Creality Falcon A1
Couldn't load pickup availability
The Creality Falcon A1 10W is a high-speed laser engraver designed for precision and ease of use. Featuring an intelligent camera, automatic material detection, and a powerful dual-beam laser, it simplifies the engraving and cutting process. The CoreXY motion system ensures smooth and fast operation, making it a reliable choice for a wide range of materials.
Highlights
- Smart camera for easy setup and use
- Automatically detects materials and automatically adjusts settings
- 10W dual-beam laser for efficient engraving and cutting
- High-speed CoreXY motion system, up to 600 mm/s
- Pre-assembled for quick installation right out of the box
- Works with wood, acrylic, glass, metal, leather and more
Smarter engraving with automatic detection
The Falcon A1 features a built-in QR code system that automatically detects materials and adjusts settings for the best results. There's no need for testing or manual adjustments: simply load the material and the machine will do the rest.
High precision and cutting power
With an ultra-fine 0.06 x 0.08 mm laser point, the Falcon A1 delivers detailed engraving with crisp, clear results. The 10W dual-beam laser combines two laser sources into a single, powerful cutting point, allowing you to cut 9.6 mm black acrylic or 5 mm basswood in a single pass.
Fast and smooth performance
The CoreXY motion system, powered by two motors, enables engraving speeds of up to 600 mm/s. This system improves stability and precision, ensuring smooth movement even at high speeds.
Easy to use, ready to use straight away
The Falcon A1 comes pre-assembled, reducing setup time by 95% compared to other engravers. Simply unpack, plug in, and start engraving. The full-frame HD camera provides a clear view of the work area, making positioning and adjustments easy.
Wide material compatibility
This machine works with a variety of materials, including wood, acrylic, glass, metal, leather, and plastic. It is compatible with popular engraving software such as LightBurn, LaserGRBL, and Falcon Design Space, supporting file formats such as JPEG, PNG, SVG, DXF, and more.
With its intelligent features, high-speed performance, and precise engraving capabilities, the Falcon A1 is a versatile tool for both beginners and experienced users.
Specifications
| Category | Specifications |
|---|---|
| Product Name | Falcon A1 |
| Optical Power (Laser) | 10W |
| Machine Power (Max) | 120W |
| Engraving Area | 305 x 381 mm |
| Laser Spot | 0.06 x 0.08 mm |
| Laser wavelength | 455 ± 15 nm |
| Laser Source | Diode Laser |
| Laser Class | Class 1 (FDA) |
| Control Software | LightBurn, LaserGRBL, Falcon Design Space |
| Operating Systems | Windows / macOS |
| Supported File Formats | JPEG, JPG, PNG, BMP, SVG, DXF usw. |
| Net Weight | 15.55 kg |
| Gross weight | 25.74 kg |
| Product Dimensions (L x W x H) | 567 x 468 x 196 mm |
| Package Dimensions (L x W x H) | 770 x 645 x 285 mm |
| Input Voltage | 100-240V ~ 50-60 Hz |
| Output Voltage | DC 24.0V 5.0A |
| Operating Temperature | 5°C - 35°C |
| Supported Materials for Engraving | Cardboard, wood, bamboo, rubber, leather, fabric, acrylic, synthetic material, etc. |
| Certifications | IEC60825, FDA, CE, RoHS, FCC, UL Report, PSE, SA RCM |
