Clauss RODEON piXposer
Clauss RODEON piXposer
Couldn't load pickup availability

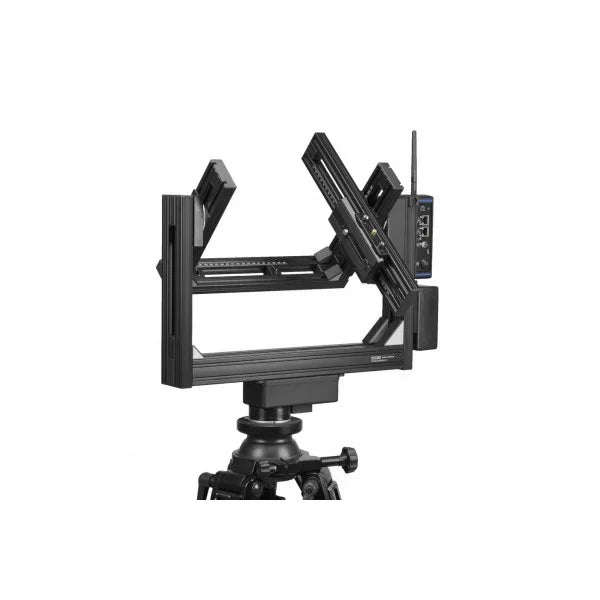

The RODEON piXposer It is the world's leading motorized panoramic head for capturing ultra-high resolution photographic reproductions, ideal for gigapixel panoramas, multi-line shooting and advanced techniques such as HDR, Twister, Quickshot and timelapse.
Designed for maximum precision and stability, the "Double-U" structure provides robust support for long focal length lenses and heavy equipment, minimizing vibration and stabilization time. The system features a magnetic brake and a sturdy aluminum frame with scales for precise nodal point adjustment and tilt arm supports for heavy objects.
Control is via a LAN/WLAN web interface from any device with a browser, regardless of operating system and without the need for an active internet connection. Shooting settings can be saved to an SD card and easily recalled. Compatibility with stitching software such as PTGui and Autopano facilitates a fast and efficient workflow.
The system also allows for the mounting of additional light sources with precision optics for shadow-free illumination, suitable for delicate and reflective surfaces. A master-slave package is also available for synchronizing multiple panoramic heads.
RODEON piXposer Technical Specifications
| Characteristic | Value |
|---|---|
| Height | 345 mm |
| Length | 480 mm |
| Depth | 66 mm |
| Weight | 5.7 kg |
| Horizontal rotation field | 360° |
| Vertical rotation field | 180° |
| Angular resolution | 0.005° (horizontal/vertical) |
| Step resolution | 72,000 horizontal and vertical |
| Couple (torque) | 11,000 mNm (horizontal/vertical) |
| Battery life | 7 hours |
| Control unit | Devices with browser (LAN/WLAN) |
| Data interface | WLAN (802.11 b/g/n), LAN, SD/SDHC |
| Special modes | Timelapse, HDR, Quickshot, Twister |
| Chassis | Sturdy aluminum |
