Carvera 4th Axis Module - Harmonic Drive Version

Expand your CNC capabilities with the Carvera 4th Axis module, designed to bring true 4-axis simultaneous machining to your Carvera Desktop CNC Machine. This harmonic drive-based rotary axis allows you to create complex, multi-sided parts with precision, paving the way for cylindrical, double-sided, and fully 3D contoured designs.

Main features

• Enables true 4-axis simultaneous CNC machining
• The harmonic drive system ensures extremely low backlash and high precision
• Supports wood, plastic and non-ferrous metals
• The rotary axis offers 0.01 degree accuracy and supports rotation speeds of up to 2400 degrees per minute.
• 92mm x 240mm working area for a wide range of workpiece sizes

Advanced precision with Harmonic Drive

At the heart of this module is a harmonic drive, which offers near-zero backlash and superior positioning accuracy compared to traditional gear systems. This makes it ideal for complex jobs where detail and repeatability are crucial.

Perfect integration

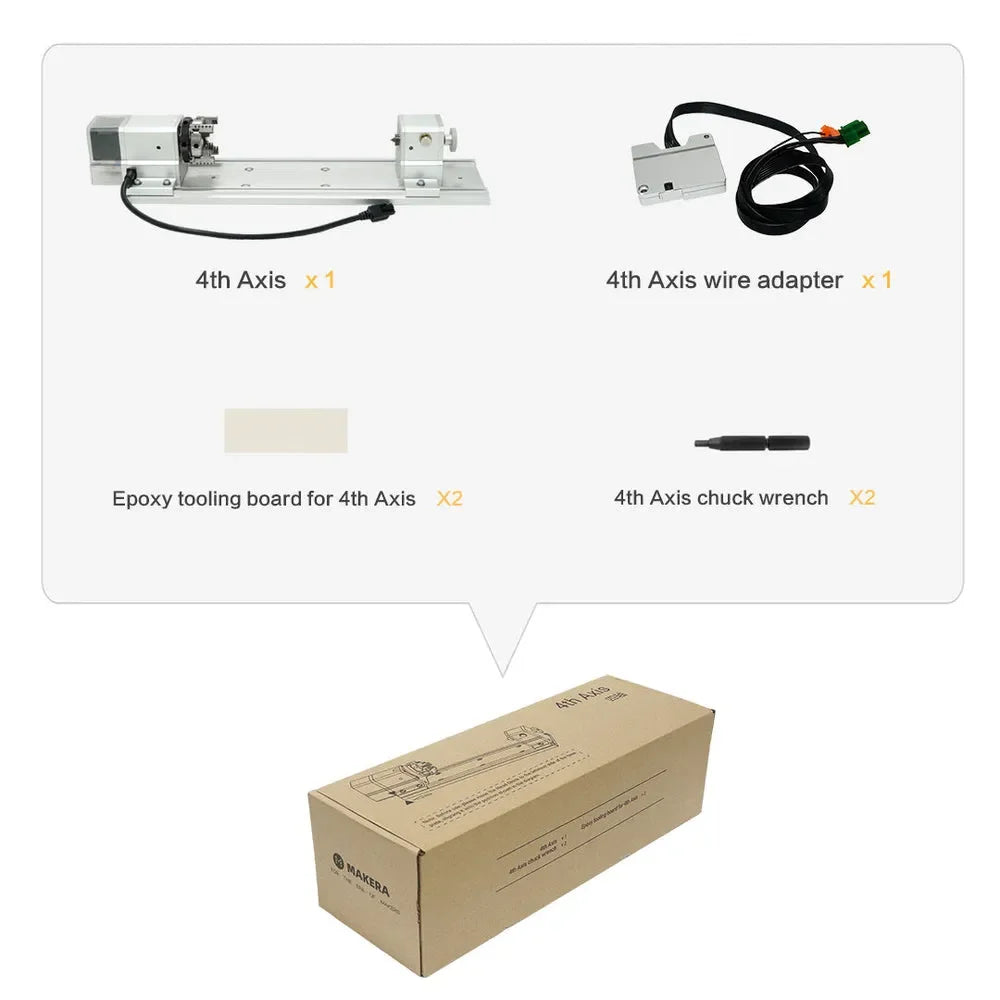

Designed exclusively for Carvera CNC machines, the 4th-axis module easily integrates into your existing setup. Installation is simple thanks to the included mounting hardware and detailed instructions.

Powerful and versatile

Equipped with a high-performance NEMA 17 stepper motor, the rotary axis reaches speeds of up to 2400 degrees per minute while maintaining a resolution of 0.01 degrees. The module handles a variety of materials, including wood, plastic, and non-ferrous metals, allowing for maximum creative flexibility.

CAM software compatibility

The module is fully supported by MakeraCAM for simplified 4-axis programming. It also integrates with advanced software like Fusion 360 and VCarve, giving experienced users the freedom to create custom toolpaths for the most challenging projects.
