The BLACK PANTHER X is an advanced quadruped robot for Embodied AI, designed for developers, STEM/K12 education, and research projects.
Main Features:

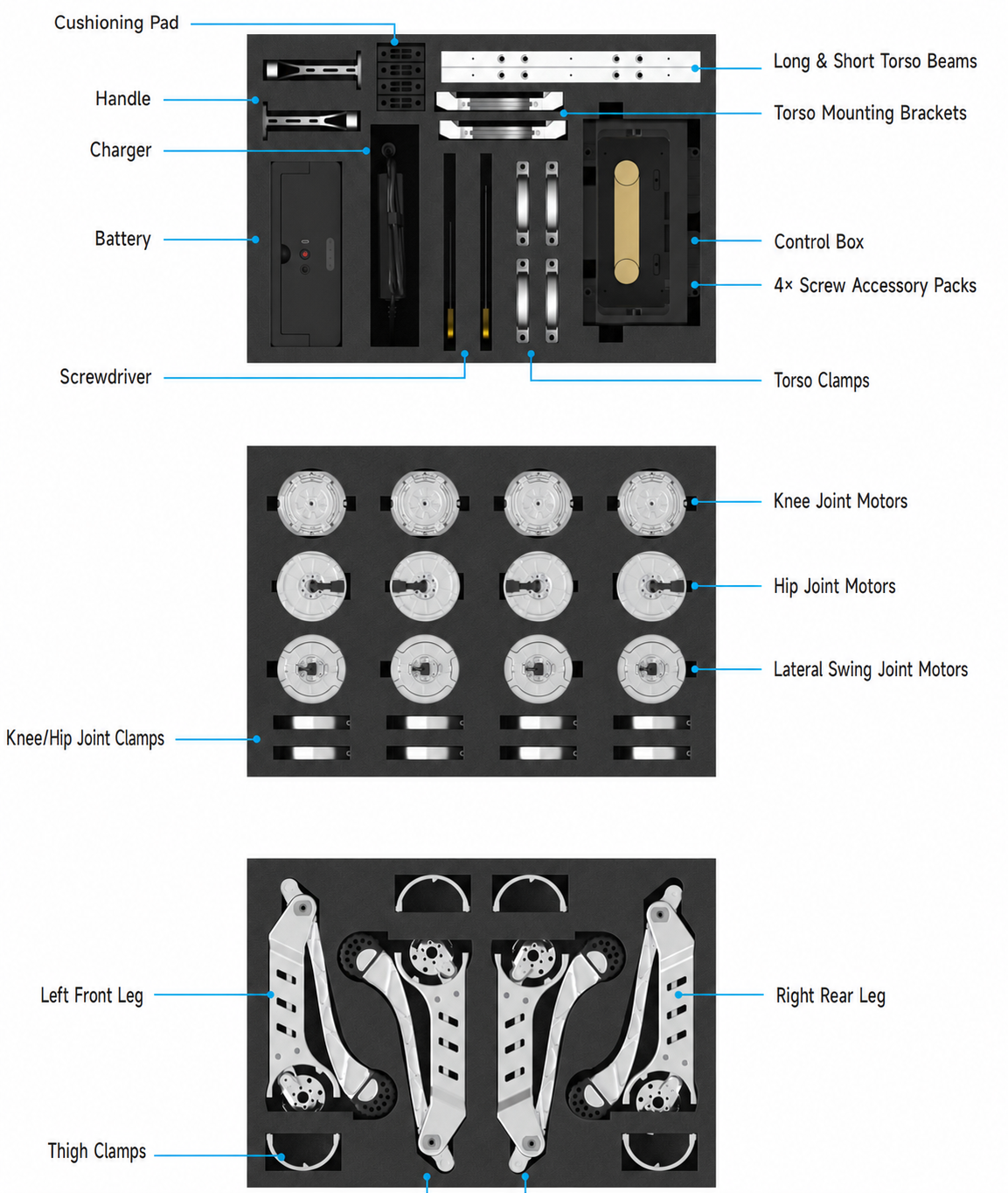

- Modular Ecosystem and Real Construction: Composed of over 500 industrial-grade components made of high-strength aluminum alloy and engineering plastics, it offers a true mechanical engineering experience with 1:1 modular structural assembly.
- Performance and Agility: Inherits technology from Guinness World Record-holding robots. It reaches a maximum speed of up to 4.0 m/s, tackles slopes up to 30° and overcomes obstacles up to 20 cm in height.
- Secondary Development and Hardware Compatibility: Offers full access to the native SDK, CAD/URDF models, and support for simulation and development environments like ROS 2, Gazebo, and NVIDIA Isaac Sim. Supports the integration of external hardware such as NVIDIA Jetson, Raspberry Pi, LiDAR sensors, and depth cameras.
- Versatile Control and Interfaces: Can be controlled via the dedicated BAOBOT app (iOS and Android), an optional USB gamepad, or radio controllers via a calibratable SBUS port. It also features Gigabit Ethernet connectivity and 24-33 V power outputs.
- Smart Movements and Functions: Supports advanced gaits (Walk, Bound, Pace, Pronk) and stunts (Left/Right Flip), as well as automatic recovery after a fall (Recovery) and soft emergency stop.
Technical Specifications Table
| Category | Parameter | Specifications (BPX Pro) |
| General Information | Model |
BPX Pro
|
| Manufacturer / App |
MirrorMe Technology / BAOBOT APP |
|
| Materials |
High-strength aluminum alloy
|
|
| Dimensions (Standing) | 724 mm × 390 mm × 369 mm | |
| Total Weight | 17.5 kg (battery included) | |
| Modular Components |
Over 500 mechanical components |
|
| Performance and Dynamics | Degrees of Freedom / Joints |
12
|
| Max Joint Torque | ≈ 53 N·m | |
| Maximum Speed |
0 - 4.0 m/s |
|
| Max Load Capacity | Up to 10 kg | |
| Obstacle Clearance | 20 cm | |
| Max Climbing Angle |
30° |
|
| Battery and Runtime | Nominal Voltage |
28.8 V (29.6V max)
|
| Energy Capacity |
417.6 Wh / 418 Wh
|
|
| Runtime | Up to 4 hours | |
| Connectivity and Interfaces | Hardware Ports | USB, Gigabit Ethernet, SBUS (3-pin), Power |
| Wireless Module | Integrated Wi-Fi hotspot | |
| Supported External Hardware | NVIDIA Jetson, Raspberry Pi, LiDAR, Depth cameras | |
| Software and Development | Development Environment |
Open SDK, URDF / CAD models |
| Compatible Frameworks | ROS 2, Gazebo, NVIDIA Isaac Sim | |
| Control and Functions | BAOBOT App, USB Gamepad, SBUS, OTA Firmware Update |
