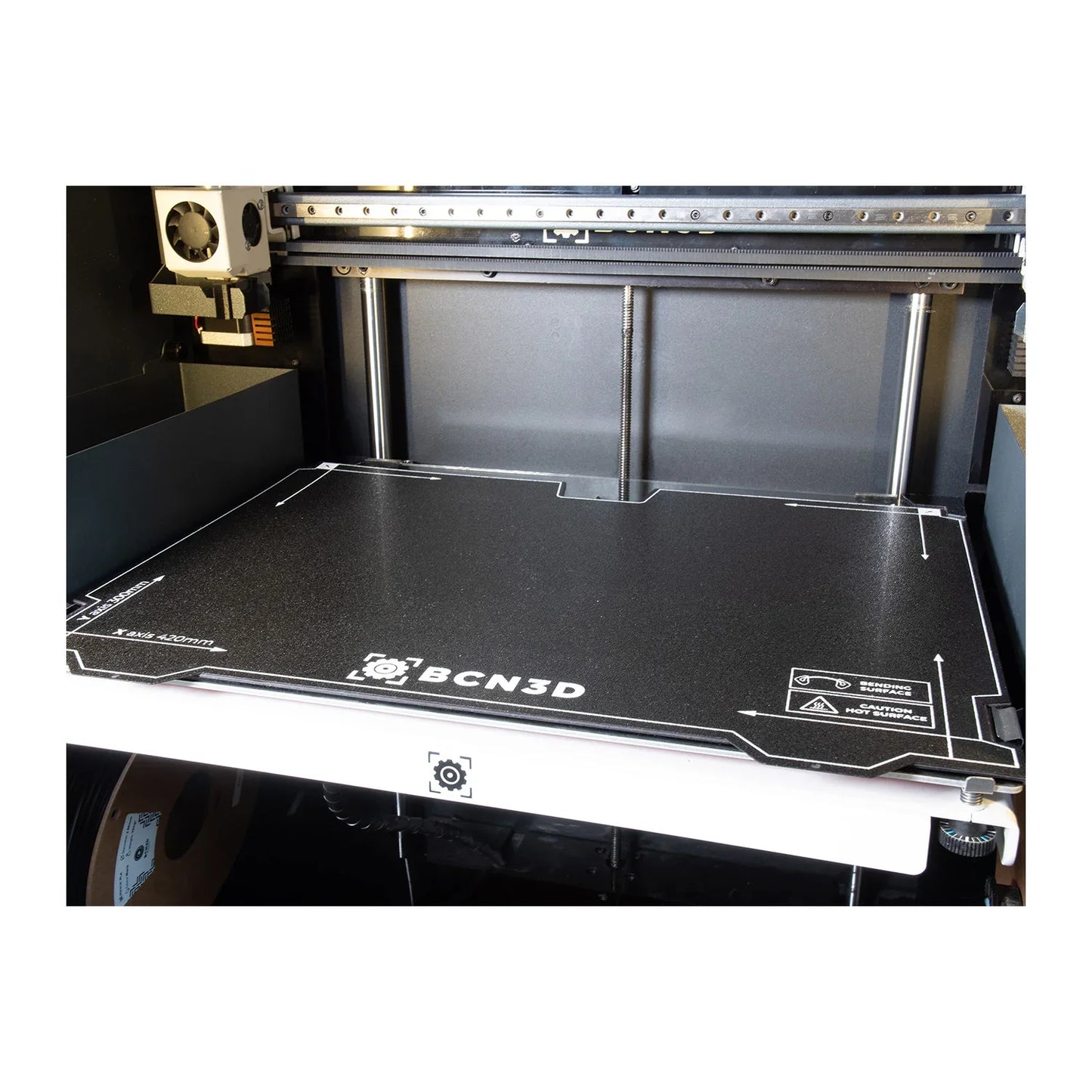

BCN3D Flexible Print Surface - Upgrade Kit for Epsilon

Revolutionize your 3D printing workflow with the BCN3D flexible print surface, designed to dramatically reduce part removal time and increase productivity. Thanks to flexible magnetic technology, you can remove your prints with minimal effort by simply bending the surface.

Main Features

• Quick and effortless removal : simply bend the flexible surface slightly to detach the printed pieces
• Streamlined workflow : save precious time between prints
• Magnetic system : quick installation and replacement of the flexible surface
• Quality PEI material : excellent adhesion during printing and easy cold release
• Replaceable component : When worn, replace only the flexible surface without having to change the entire system

Upgrade Kit Contents

The complete kit includes:

• Float glass with pre-installed magnetic sheet
• Flexible magnetic PEI printing surface

Note : Also available as a consumable (flexible surface only) for later replacement.

Compatibility

This upgrade is compatible with:

• BCN3D Epsilon (with self-calibration)
• BCN3D Sigma D25 (with autocalibration)

Important : Printers must be equipped with a Autocalibration . If your printer doesn't have this feature, you'll need to remove the flexible surface each time you calibrate the bed.

Installation and Configuration

Installation requires replacing the original borosilicate glass with new magnetic float glass. Once the kit is installed, the flexible surface can be replaced as many times as needed without having to repeat the entire procedure.

With Stratos 2.0 or later, you will need to select the "flexible print surface" option when slicing your model. See this article the BCN3D knowledge base for detailed installation and configuration instructions.

Important Technical Considerations

XY Calibration : For accurate and reliable XY calibration, remove the flexible surface and use the original borosilicate glass.

Material limitations : The flexible surface is not compatible with metal filaments due to their significant thermal contraction. For these materials, you must use original borosilicate glass.

Maintenance : The flexible print surface is a wear component. Its lifespan depends on the materials used, your cleaning routine, and printing temperatures. Replace the surface when you notice a decrease in adhesion or visible damage.

Technical Specifications

• Surface material: PEI (Polyether Imide)
• Fixing system: magnetic
• Glass type: float with magnetic layer
• Replacement: Removable and replaceable component


Invest in productivity : reduce downtime, protect your models from damage during removal, and simplify your professional 3D printing process.
