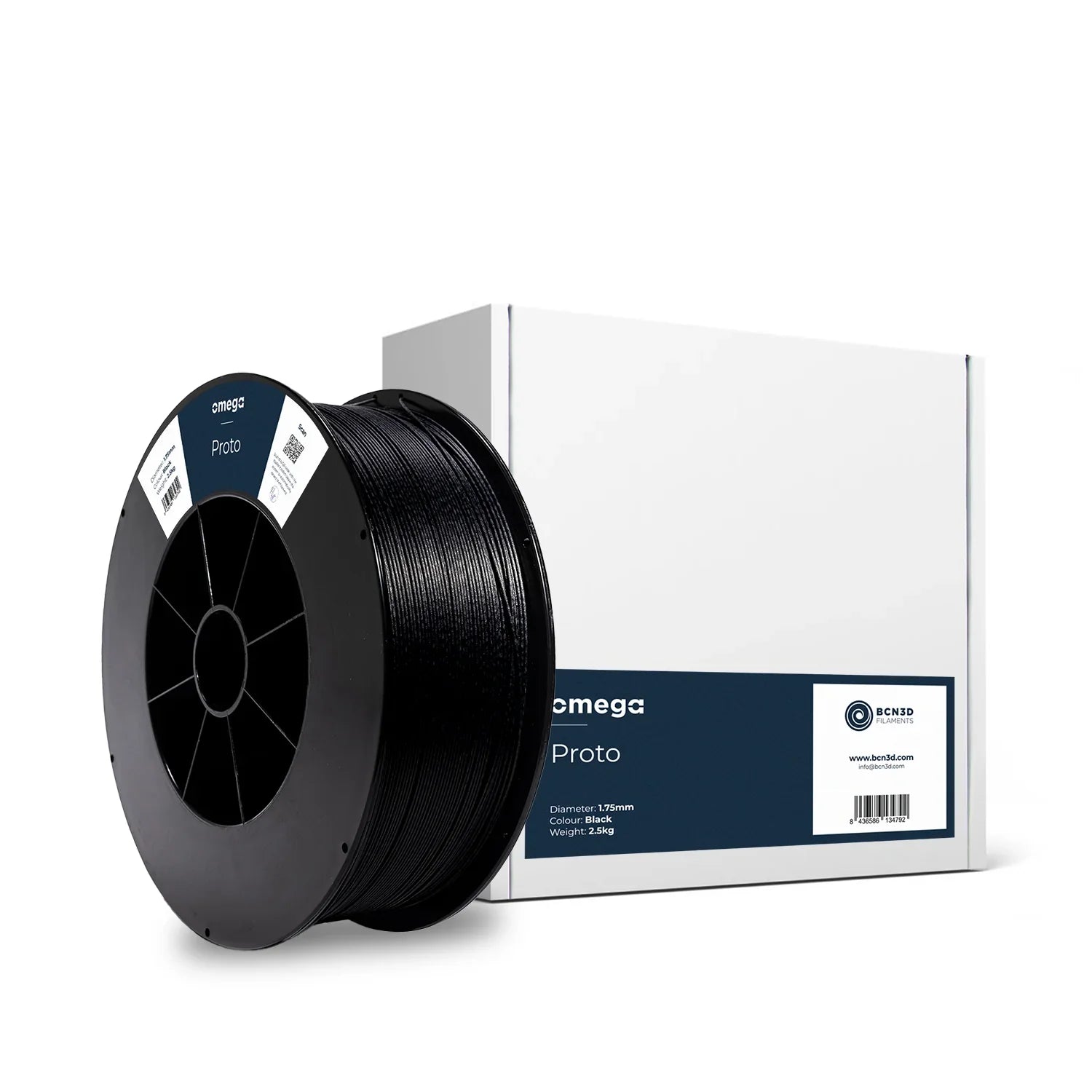

BCN3D Omega Proto

Technical filament for functional prototyping

Omega Proto is a technical filament developed for creating functional prototypes, components for industrial applications, and parts intended for dimensional, mechanical, and assembly verifications. The material combines good robustness, durability, chemical resistance, and high surface quality, offering an effective balance between performance, ease of printing, and post-processing possibilities.

Compared to more common prototyping materials, Omega Proto is designed to offer superior performance to PLA in terms of strength, greater ease of use compared to ABS, and a more refined surface finish than PETG. The adhesion between layers also contributes to achieving more uniform and structurally reliable components.

The formulation is primarily based on a copolyester and polyethylene terephthalate, with functional additives. The product is intended exclusively for use with the BCN3D Omega I60 printer and the dedicated Omega Hotend Tip 0.4 HR nozzle.

Final performance depends on geometry, print orientation, process parameters, environmental conditions, and post-processing. For critical or product liability applications, user testing and validation are recommended.

Key advantages

• Material suitable for functional prototyping and small-series production.
• Good robustness and durability for components intended for ordinary use conditions.
• Chemical resistance suitable for numerous technical applications.
• High surface quality and uniformity, with a matte appearance.
• Good adhesion between layers and reliable interlayer bonds.
• Easier to manage than ABS in compatible applications.
• Suitable for machining and finishing after printing.
• Professional 2.5 kg format, designed to reduce spool changes during work cycles.
• Optimized compatibility with the BCN3D Omega I60 ecosystem.

Technical specifications

Note on specifications

The safety data sheet provided by BCN3D does not include values for print temperature, bed temperature, speed, drying, or other process settings. To avoid presenting unverified data as official values, these parameters should be consulted in the product's technical data sheet or the most up-to-date BCN3D print profile.

Recommended applications

Omega Proto is suitable for:

• Functional prototypes.
• Components for low-load equipment.
• Alignment jigs.
• Basic fasteners.
• Gauges and inspection fixtures.
• Parts for positioning and assembly.
• General assembly structures and components.
• Technical models for dimensional or ergonomic verification.
• Components to be machined or finished after printing.
• Small series and preliminary product validations.

Do not use the material for medical devices, safety components, critical structural parts, or applications subject to specific regulations without prior technical and regulatory validation.

Safety information

The BCN3D safety data sheet indicates the product as low risk during normal industrial or commercial handling, but signals specific risks during printing, processing, and handling of molten material. The document shows September 20, 2023 as the revision date.

The safety information is taken from the product's SDS sheet. The sheet also specifies that the assessment of use conditions and compliance with applicable regulations remain the user's responsibility.

Storage and Handling

To preserve the quality of the material:

• Store the spool in its closed container.
• Protect the filament from moisture, contaminants, and impurities.
• Avoid dust formation during cutting, sanding, or other processing.
• Keep the work area clear and clean to prevent tripping hazards and material accumulation.
• Use local exhaust ventilation during processes that generate particles.
• Do not touch the nozzle, build plate, or extruded polymer during or immediately after printing.
• During maintenance, wait for hot parts to reach a safe temperature and use appropriate protective equipment.

Package Contents

• 1 BCN3D Omega Proto 2.1 kg filament spool.
• Filament diameter: 1.75 mm.
• Compatibility: exclusively BCN3D Omega I60.

Documentation

To consult official documentation, including technical and safety data sheets, please visit the dedicated BCN3D page:

Download safety and technical data sheets

Technical Disclaimer

Mechanical, thermal, chemical, and process data may vary depending on printing parameters, part orientation, geometry, environment, and use conditions. The information provided herein is intended for commercial and technical product description and does not replace the official safety data sheet, the manufacturer's technical data sheet, or a suitability assessment for regulated or critical applications.
