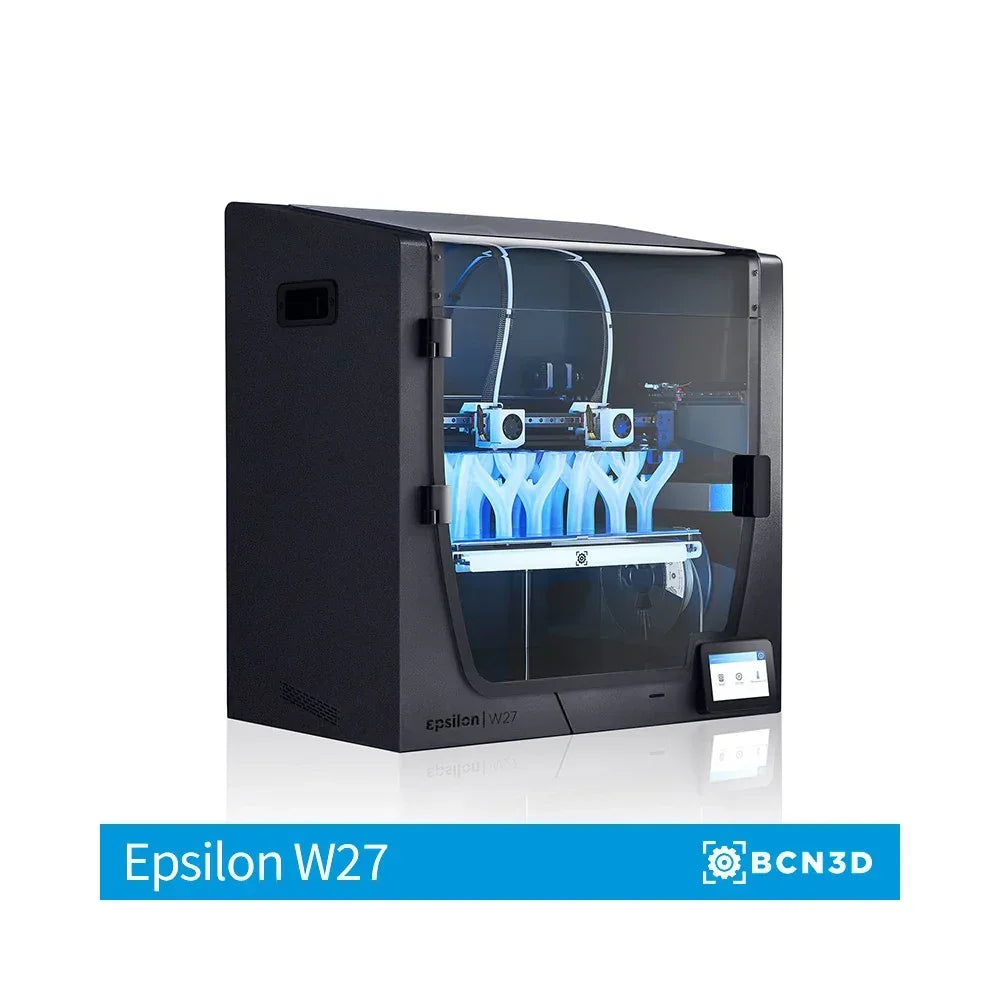

BCN3D Epsilon W27
BCN3D Epsilon W27
Couldn't load pickup availability
The BCN3D Epsilon W27 is a professional 3D printer designed to produce large components with industrial-grade materials, ensuring maximum reliability and precision. Thanks to its passively heated chamber and fully enclosed structure, it is the ideal solution for those who need to produce functional parts, prototypes, and industrial equipment.
Main Features:
- IDEX (Independent Dual Extruder) Technology: Double your productivity with Duplication and Mirror print modes, which allow you to print two pieces at the same time.
- Controlled Printing Environment: The passive chamber can reach 60°C, ideal for preventing warping with engineering materials such as ABS, PP and PA.
- Advanced Safety: Integrated air filtration system with HEPA H13 filter and Activated Carbon filter, for a healthy working environment.
- High Performance Extrusion: Featuring Bondtech™ dual drive gears and e3D™ optimized hotend.
Technical Specifications
| Printer Properties | Detail |
| Printing Technology | Fused Filament Fabrication (FFF) |
| Architecture | Independent Dual Extruder (IDEX) |
| Print Volume | 420mm x 300mm x 220mm |
| Press Chamber | Fully enclosed, Passively heated (up to 60°C) |
| Air Filtration | HEPA H13 filter, Activated Carbon filter |
| Extruders | 2x Bondtech™ dual drive gears; e3D™ Hotends |
| Nozzle Diameter | Brass: 0.4mm (default), 0.6mm, 0.8mm, 1.0mm; Hotend X: 0.6mm |
| Print Mode | Single, Duplication, Mirror, Multi-material, Soluble Supports |
| Electronics | Toradex ARM Compute Module; BCN3D Electronics with independent drivers |
| Screen | 5" capacitive color touchscreen |
| Connectivity | SD Card (offline); WiFi or Ethernet (via BCN3D Cloud) |
| Physical and Material Properties | Detail |
| External Dimensions | 690mm (W) x 530mm (D) x 750mm (H) |
| Weight | 33 kg |
| Filament Diameter | 2.85 ± 0.05 mm |
| Compatible Materials | Standard: PLA, PET-G, TPU 98A, PVA, BVOH |
| Technical/Composite Materials | ABS, PP, PA, PP GF30, PAHT CF15 (with Hotend X) |
| Open Filament System | Yes |
| Printing and Electrical Performance | Detail |
| Layer height | 0.05mm - 0.5mm (custom profiles) |
| Resolution Positioning | X: 1.25µm / Y: 1.25µm / Z: 1µm |
| Max Extruder Temperature | 300°C |
| Max Floor Temperature | 120°C |
| Noise Level | 49 dB |
| Maximum Consumption | 840 W |
| Slicing Software | BCN3D Stratos |
Huge print volume
420x300x220mm
SMART CABINET
The Smart Cabinet completes the Epsilon ecosystem, offering seamless integration with your BCN3D Epsilon printers and boosting their performance. Filament humidity control keeps your materials in optimal condition, and its UPS protects your work at all times, avoiding the risk of losing prints due to power outages.
*The Smart Cabinet is included in the SC packages. It can also be purchased separately.
Designed for reliability.
Fully enclosed and passively heated room.
The Epsilon W50 and Epsilon W27 feature a fully enclosed chamber that maintains a controlled internal temperature, which can reach 60°C, and a print bed that can reach 120°C.
Safety first
HEPA filter
BCN3D Epsilon printers are equipped with a HEPA filter, which protects the working environment from potentially harmful particles when printing with industrial materials.
Main features
Bondtech™ Extruders
Filament end sensor
e3D™ Hotends
Print bed temperature up to 120ºC
5'' multilingual touchscreen
Aluminum frame
A unique ecosystem
BCN3D Cloud
BCN3D Cura
BCN3D Filaments
BCN3D Hotend family
