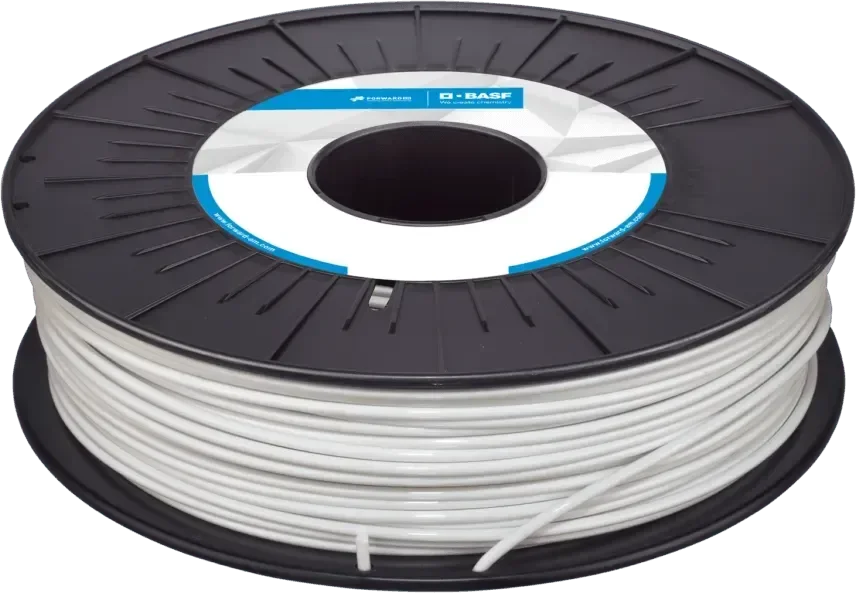

BASF ULTRAFUSE TPS 90A - NATURAL WHITE - 750g

Ultrafuse TPS 90A is an elastomer based on SEBS raw material. Compared to other flexible 3D printing materials, it has a soft, rubber-like feel and better anti-slip properties. In addition, the material has low moisture absorption, which allows printing without pre-drying.

Characteristics:

• Light touch
• Anti-slip properties
• Reduced moisture absorption
• Excellent layer adhesion
• Excellent flexibility at low temperatures

TPS 90A Ultrafuse

Ultrafuse TPS 90A has been specially developed for fused filament manufacturing and offers an exceptionally soft surface feel. Ultrafuse TPS 90A offers a soft, non-slip touch, giving it a unique tactile sensation in fused filament manufacturing. The material’s characteristics include low moisture absorption and convincing layer adhesion, which creates the special smooth surface that makes it the perfect choice for appliance handles as well as gaskets and seals in small series.

Tips and Tricks

• Nozzle temperature: 260-280°C
• Bed temperature: 70-90 °C
• Build chamber temperature: Passively heated
• Nozzle diameter: ≥ 0.4mm
• Bed modification: PEI, PI or glue
• Printing speed: 10-30mm/s

Material properties

• Shore A hardness: 89
• Abrasion resistance: 111 mm3
• Compression set at 23°C, 72h: 75%
• Breaking stress: 7 MPa (XY), 2 MPa (ZX)
• Elongation at break: 280% (XY), 9% (ZX)
• Tear resistance: 10 kN/m (XY), 5 kN/m (XZ), 4 kN/m (ZX)

BASF Quality Control

The best available raw materials are selected from renowned suppliers. Production on state-of-the-art computer-controlled machinery ensures a truly consistent filament, even between colors and batches. It will perform as expected every time.

All BASF products are 100% traceable back to the source.
