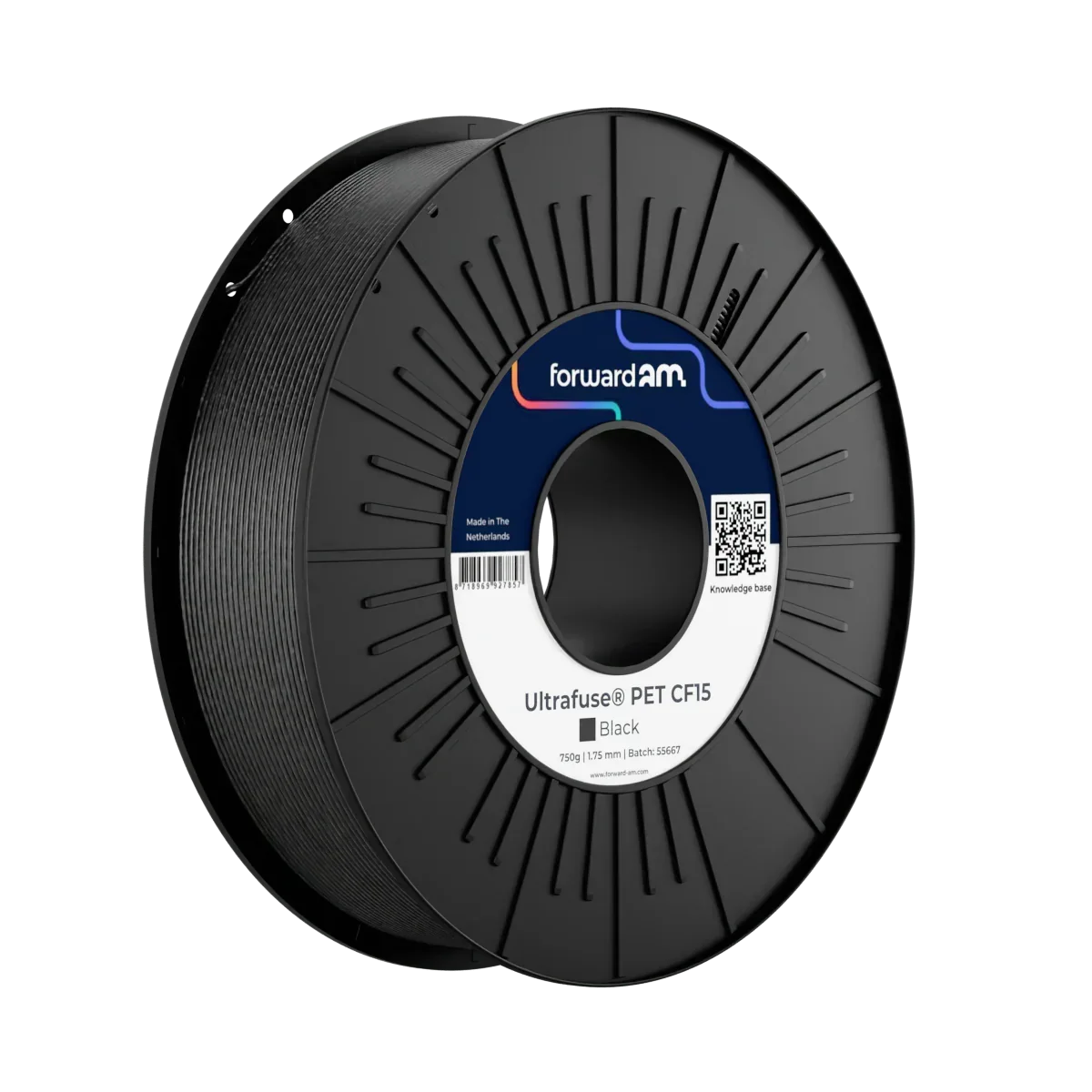

BASF ULTRAFUSE PET CF15 BLACK - 750g

Ultrafuse PET CF15 contains 15% carbon fiber and is a functional 3D printing material optimized to meet your needs. Its high dimensional stability and very low moisture absorption make it a perfect material in a humid environment. Ultrafuse PET CF15 combines easy processability, very low moisture absorption with a high level of strength and stiffness at an affordable cost.

Characteristics :

• Robust and rigid components
• Easy to process
• Very low moisture absorption
• Heat resistant up to 108°C
• High dimensional stability
• Compatible with BVOH and HIPS for support
• Excellent surface finish

Ultra-Fuse PET CF15

Ultrafuse PET CF15 is an optimized technical filament to enable users to develop new 3D printing applications with higher requirements. With its superior heat resistance, high strength and stiffness, this is a filament for a wide range of demanding industrial applications. Its high dimensional stability and very low moisture absorption make it a perfect solution for applications in humid operating environments.

Tips and Tricks

• Printing temperature: 245-265°C
• Printing speed: 40-80mm/s
• Glass bed temperature: 70-80°C
• Layer height: 0.2mm
• Extrusion width: 0.6mm
• Filling density: 20%
• Fan speed: 0%
• Upper/lower thickness: 1.0-1.2mm

Material properties

• Tensile strength (MPa): 12.5 (ZX), 63.2 (XY)
• Flexural modulus (MPa): 2253 (ZX), 6293 (XZ), 5452 (XY)
• Elongation at break: 0.5% (ZX), 3.7% (XY)
• Izod impact strength with notch (kJ/m2): 2.0 (XZ), 5.0 (XZ) 5.7 (XY)
• Unnotched Izod impact strength (kJ/m2): 2.4 (ZX), 22.6 (XZ), 25.1 (XY)
• HDT at 0.45 MPa: 108 oC

BASF Quality Control

The best available raw materials are selected from renowned suppliers. Production on state-of-the-art computer-controlled machinery ensures a truly consistent filament, even between colors and batches. It will perform as expected every time.

All BASF products are 100% traceable back to the source.
