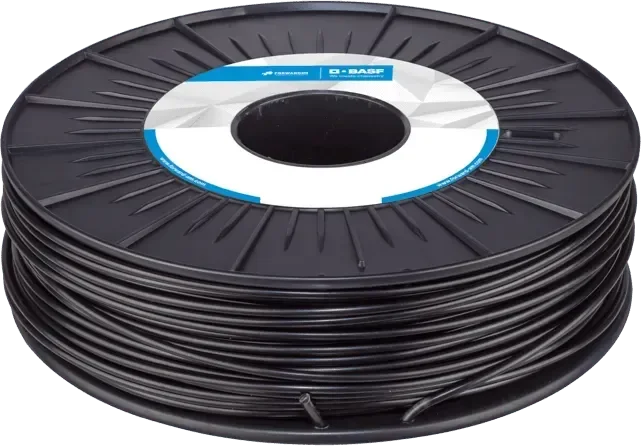

BASF ULTRAFUSE PC/ABS FR - BLACK - 750g

Ultrafuse PC/ABS FR is a V-0 flame retardant blend of polycarbonate and acrylonitrile butadiene styrene, two of the most widely used thermoplastics for engineering and electrical applications.

Characteristics :

• Meets flame retardant properties according to UL 94 V-0 (for thicknesses 1.5 and 3.0 mm)
• Exceptional aesthetics
• Strong layer adhesion
• High printing speeds possible

Ultrafuse PC/ABS FR

Ultrafuse PC/ABS FR is a V-0 flame-retardant blend of polycarbonate and acrylonitrile butadiene styrene, two of the most widely used thermoplastics for engineering and electrical applications. The combination of these two materials results in a premium material that combines the excellent mechanical properties of PC with the relatively low printing temperature of ABS. Combined with a halogen-free flame retardant, parts printed with Ultrafuse PC/ABS FR exhibit high tensile and impact strength, higher thermal resistance than ABS, and can meet the requirements of the UL94 V-0 standard.

Tips and Tricks

• Nozzle temperature 230-280 °C
• Nozzle diameter ≥ 0.4 mm
• Print speed; 25 mm/sec
• Bed temperature 80-100 °C
• Bed modification Glass plate + adhesive
• Printing speed 30-90 mm/s
• Build chamber temperature: closed, passively heated chamber

Drying recommendations

The filament is delivered in printable condition. For best printing results, dry the filament at 60°C for at least 4 hours (a vacuum oven is preferable to a hot air dryer) and store the filament dry, for example, in a dry box.

Material properties

• Tensile strength (MPa): 17.3 (ZX), 50.1 (XY)
• Flexural modulus (MPa): 1810 (ZX), 2200 (XZ), 2550 (XY)
• Elongation at break: 0.8% (ZX), 10.7% (XY)
• Izod impact strength with notch (kJ/m2): 1.8 (ZX), 30.3 (XZ), 16.8 (XY)
• Unnotched Izod impact strength (kJ/m2): 3.0 (ZX), 87.9 (XZ), 57.0 (XY)
• HDT at 0.45 MPa: 86 oC

BASF Quality Control

The best raw materials available are selected from renowned suppliers. Production on state-of-the-art, computer-controlled machinery ensures truly consistent filament, even across colors and batches. It will perform as expected every time.

All BASF products are 100% traceable back to their source.
