BambuLab TPU Feed Assist Module
BambuLab TPU Feed Assist Module
Couldn't load pickup availability

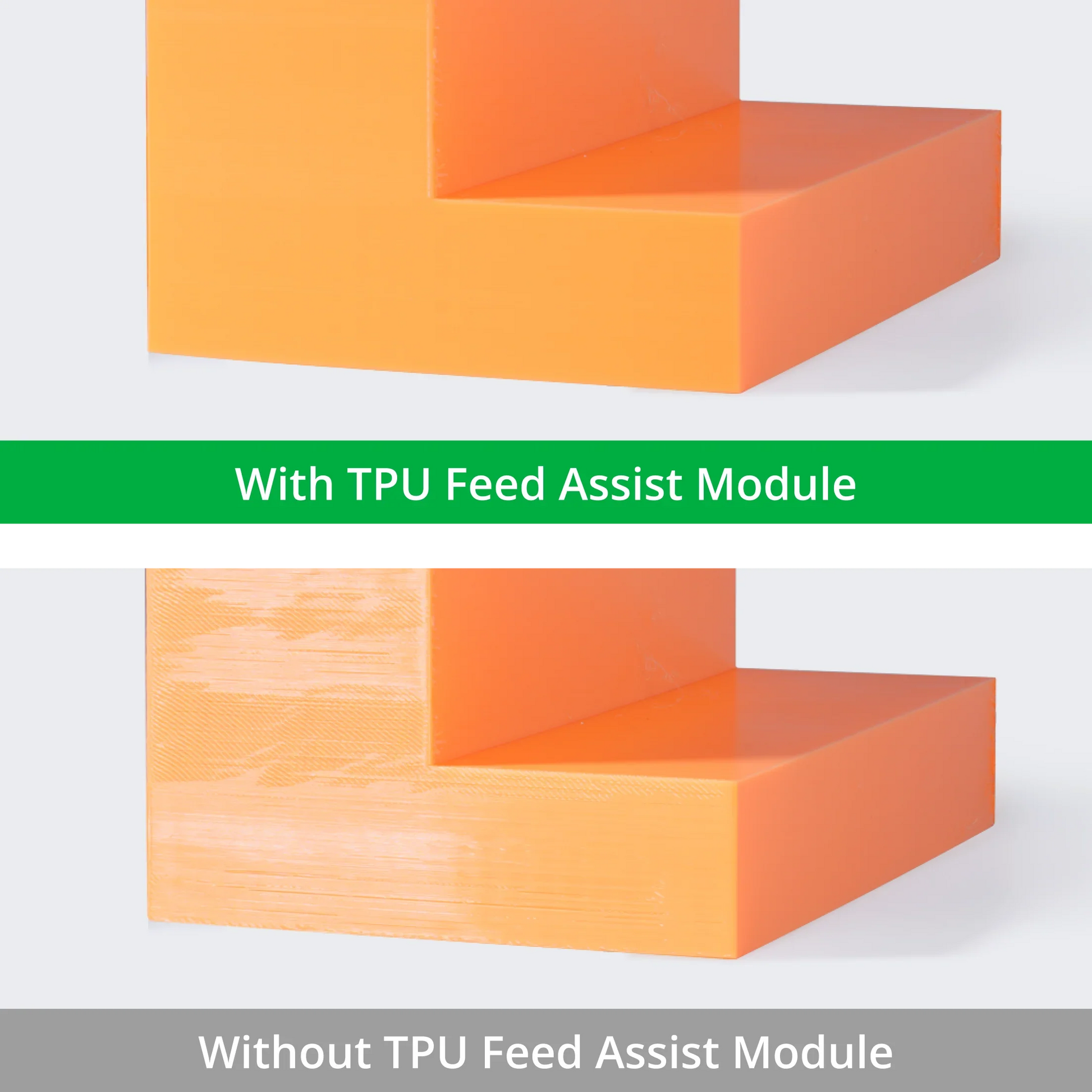

TPU printing, no longer a problem
TPU printing is traditionally complex due to the filament's intrinsic elasticity and high friction. To ensure smooth extrusion, the feed path must be as short and direct as possible.
The TPU Feed Assist Module eliminates these difficulties by providing active and constant filament thrust. By stabilizing the feed and reducing friction, it offers the reliability and precision needed for professional-grade TPU results.

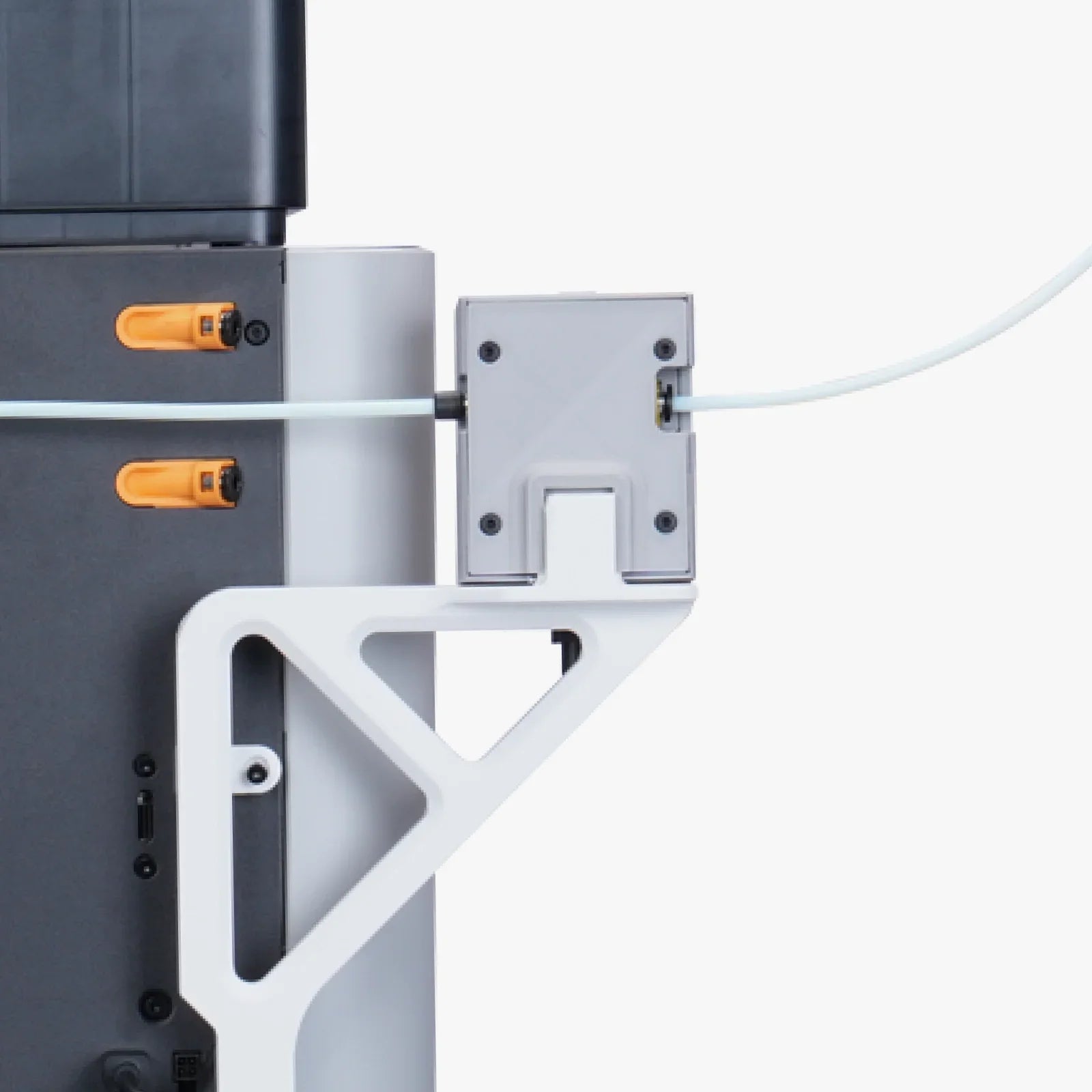

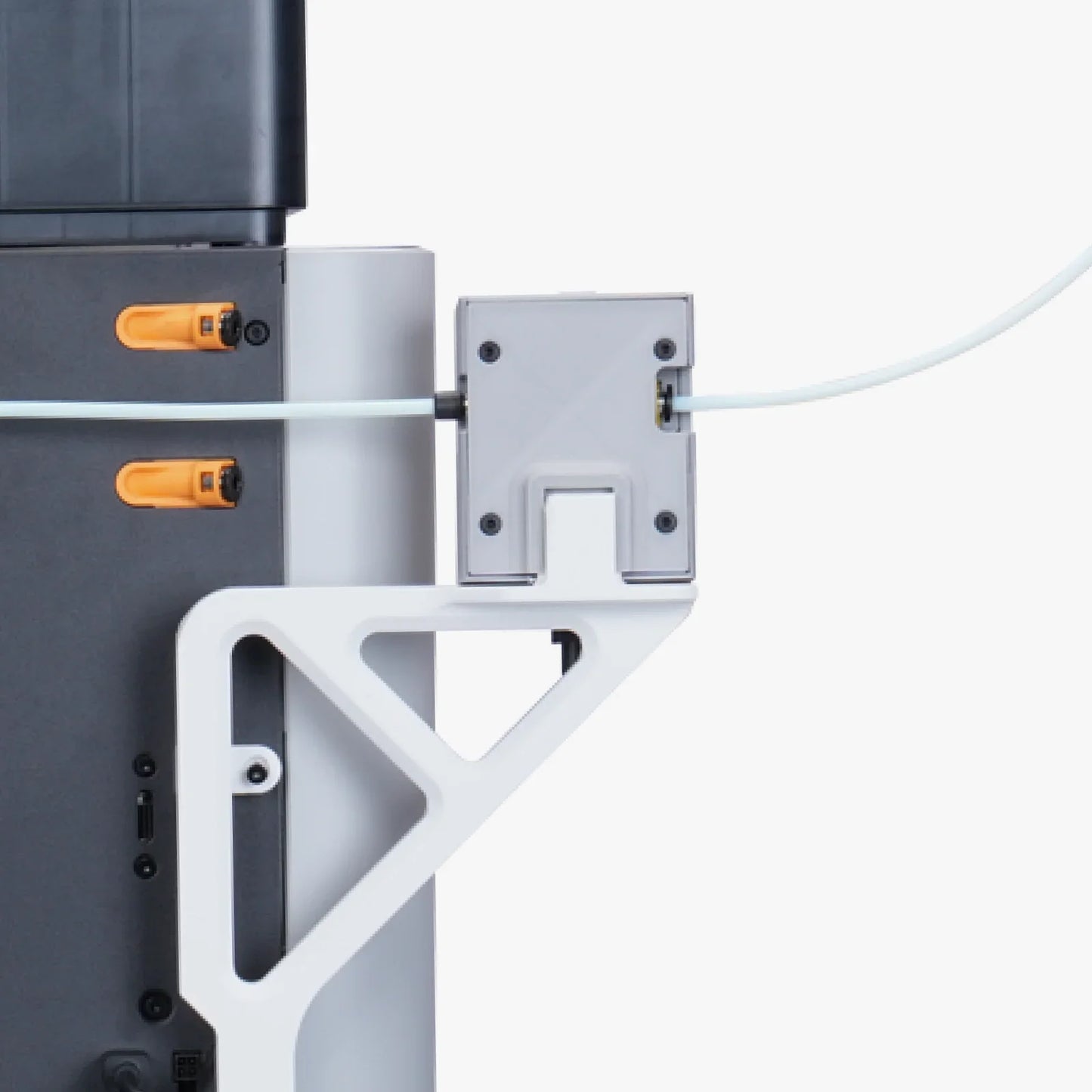

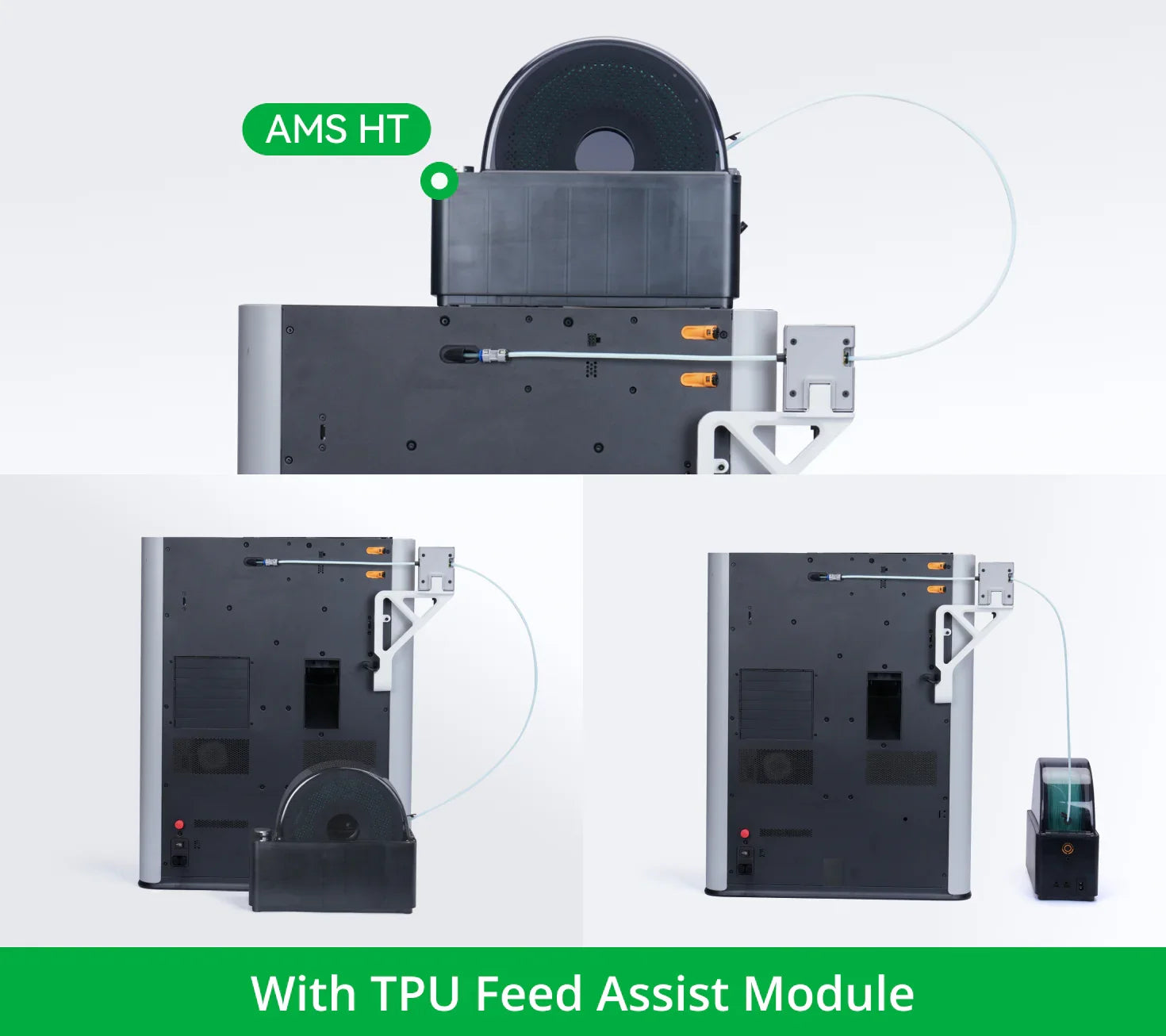

Simplify the TPU path
Forget the constraints of top-mounted spools or perfectly aligned filament holders. The TPU Feed Assist Module gives you back workspace.
Now you can place the TPU in a side dry box or any convenient location, without worrying about friction in the path.
Maximum positioning freedom, zero compromises on practicality.
Compatibility
H2 Series / X1 Series / P1 Series / P2S
Installation Guide
Refer to the TPU Feed Assist Module installation guide available on Bambu Lab Wiki:
https://wiki.bambulab.com/en/general/manual/tpu-feed-assist-module

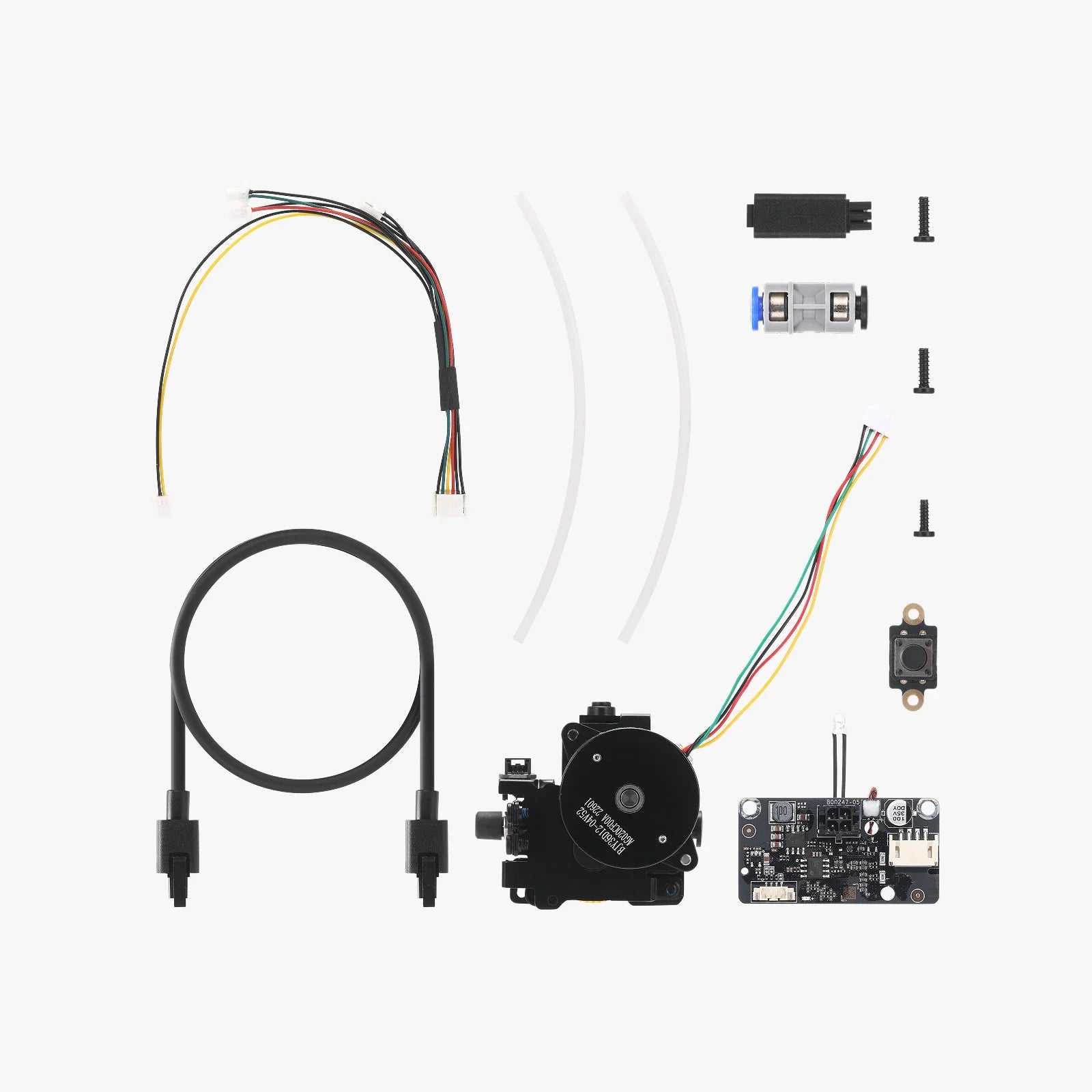

In the Box
| Item | Quantity |
|
Button Switch Plate
|
3 |
|
Extruder Components
|
1 |
|
PTFE Tube (160 mm)
|
1 |
|
PTFE Tube (275 mm)
|
1 |
|
Single PTFE Tube Pass Connector
|
1 |
|
4 PIN to 6 PIN Connector
|
1 |
|
Main Control Board
|
1 |
|
4 PIN Cable
|
1 |
|
1-to-4 Cable
|
1 |
|
BT2.6x8 Screws
|
14 |
|
BT3x10 & ST3x12 Screws
|
6 |
Product Specifications
| Materials | Plastic, Metal | Packaging Size | 105*150*133 mm |
| Color | Black | Packaging Weight | 46.9 g |
