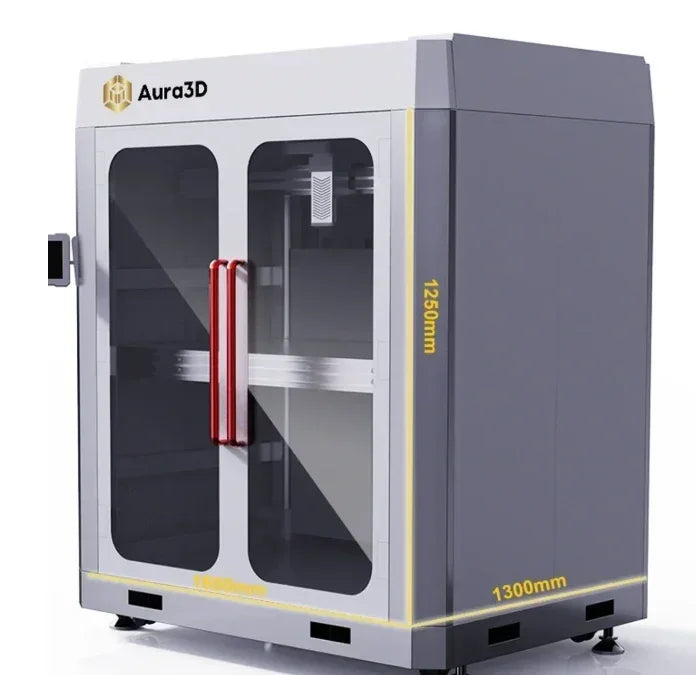

Aura3D A16 – High-Speed, Extra-Large Pellet 3D Printer
The Aura3D A16 is positioned as the top solution for large-volume industrial 3D printing, with a massive build volume of up to 1600x1300x1250mm and print speeds of up to 600mm/s. Built with a CoreXY structure and servo motors on each axis, it guarantees high performance and precision even in the most demanding applications. The self-developed extruder reaches 450°C and supports nozzles from 0.6 to 8mm, allowing the use of a wide range of technical materials such as PP, PA-CF, PC-CF, and PEEK.
The pellet slot can hold up to 50kg, ideal for long production runs, with an automatic, ventilated feeding system to ensure a continuous and uniform flow of material. The machine features an aluminum heated plate up to 120°C, Klipper firmware, a touchscreen, and SD card/USB connections for smart and intuitive control. The design is tailored for efficient industrial production, with a focus on waste reduction and the use of recycled materials.
Technical Specifications
| Characteristic | Detail |
|---|---|
| Print volume | 1600×1300×1250mm |
| Machine dimensions | 2250×1700×12250mm |
| Max nozzle temp. | 450°C |
| Nozzle supported | 0.6–8mm |
| Max. plate temp. | 120°C |
| Engines | Servo Motors on Axes |
| Extruder system | New generation, uniform flow |
| Supported materials | PP, PA-CF, PC-CF, PEEK, technical and recycled materials |
| Pellet hopper capacity | 50kg |
| Supported pellet size | 1–5mm |
| Maximum print speed | 600mm/s |
| Flat material | Aluminum |
| Material supply | Automatic, ventilated |
| Net weight | 875kg |
| Power | 8000W |
| Connections | SD card, USB |
| Firmware | Klipper |
| Touch screen | Yes |
| Material compatibility | Open material |
- CoreXY structure for ultra-high precision and speed
- Extruder with temperature control up to 450°C for difficult materials
- Huge print volume for prototypes and large-scale industrial production
- Long-lasting pellet feeding system with 50kg hopper
