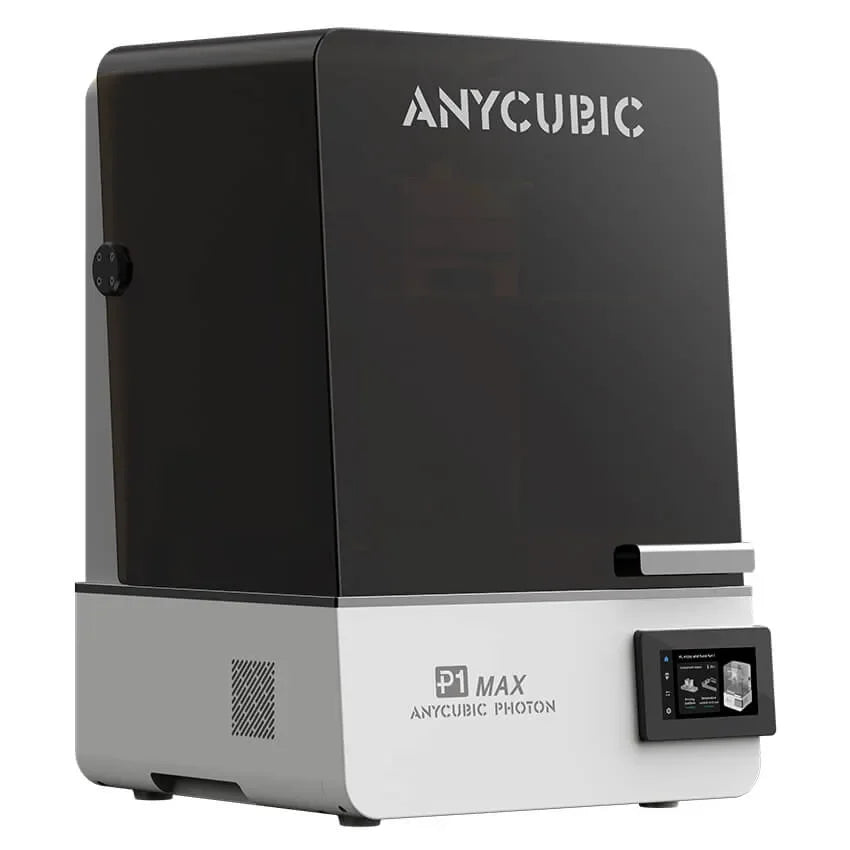

Anycubic Photon P1 Max

The Anycubic Photon P1 Max brings industrial-scale resin 3D printing, combining a massive build volume with extreme 14,000-pixel precision. Equipped with a large 14.7-inch monochrome LCD display and the advanced LightTurbo 4.0 optical system, it enables the printing of large models or entire batches of detailed objects with exceptional surface finish. It is the ideal solution for projects where both size and microscopic details are essential requirements.

Highlights

• Large 14.7-inch monochrome LCD screen with 14K resolution for large-format prints with exceptional sharpness.
• The LightTurbo 4.0 light source ensures light uniformity of over 92% across the entire large surface.
• Innovative Wave Release technology reduces release force by up to 60%.
• Reinforced stability thanks to dual linear guides and an industrial-grade ball screw (±0.01 mm).
• Smart heated resin vat that maintains the material at an optimal temperature of 40 °C.
• Supports dual-material printing for advanced material combinations in a single process.
• Intelligent Leveling 3.0 system for fully automatic calibration of the large build plate.

Large-scale precision without compromise.

The Photon P1 Max is designed to offer industrial precision in a format that allows for the creation of significantly larger objects compared to standard models. The large 14.7-inch screen offers a remarkable increase in print volume, making the machine ideal for any project, from complex full-scale prototypes to highly detailed architectural models. To handle the larger dimensions, the P1 Max has been upgraded with dual linear guides and a precision ball screw, ensuring stability and repeatability of ±0.01 mm even during the most demanding prints.

Advanced technology for reliable results

Thanks to the integrated Wave Release technology, the P1 Max effectively handles the strong suction forces associated with large surfaces, separating layers more gently. To further stabilize the printing process, the machine is equipped with an intelligently heated resin vat. By keeping the resin at a constant temperature of 40 °C, viscosity is reduced and material flow is improved, minimizing the risk of printing errors and ensuring uniform results regardless of ambient temperature.

Intelligent management and material support

The machine is equipped with Intelligent Leveling 3.0, which eliminates the need for manual calibration: a fundamental feature to ensure that the large print bed always maintains perfect contact with the resin vat. For advanced applications, the Photon P1 Max also supports Dual-Material printing. This technology allows for the combination of different types or colors of resin in a single print, opening new possibilities in functional prototyping and creative design.
