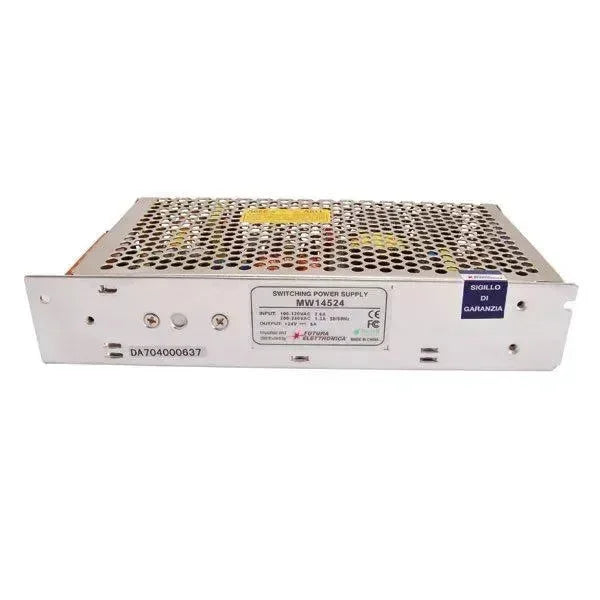

24V – 145W switching power supply

Laboratory power supply in switching technology with high efficiency, long life and high reliability. Metal case, natural convection cooling system, input voltage: 88 to 264 VAC, output voltage 24 volts, current 6 A, power 145 W. It has a power indicator LED, short circuit and overload protection. The switching technology allows to obtain a significant reduction in weight and a very high energy efficiency of the device.

• Input voltage: 88- 132 VAC / 176- 264 VAC (selectable)
• Starting current: 35 A / 230 VAC (cold start)
• Current leakage: <3.5 mA / 240 VAC
• Output voltage: 24 VDC (± 2%)
• Output voltage range: 21V to 28V (adjustable)
• Output current: 6A
• Current range: 0-6A (7A max.)
• Ripple and noise (max): 150 mVpp
• Output power: 145W
• Efficiency: 83.5%
• Connection: 7-pin terminal block
• Overload protection: 125-150% of rated output power
• Dimensions (mm): 199 (length) x 98 (width) x 38 (height)
• Weight: 710 g
• Operating temperature: -10°C to +60°C
• Humidity: 20-90% RH non-condensing
• Storage: -20°C to +85°C, 10-95% RH
• Safety Standard: UL1012
• Insulation resistance: 100 Mohm / 500 VDC
