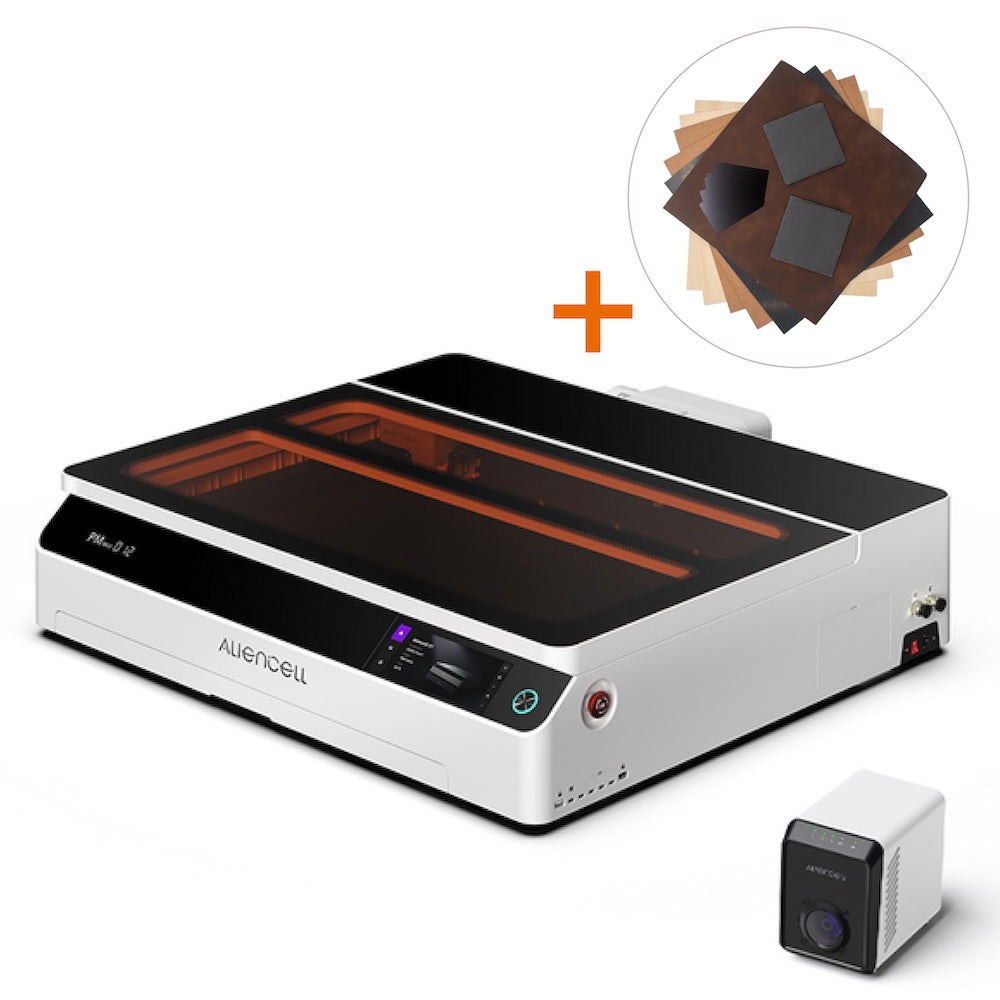

Aliencell X1

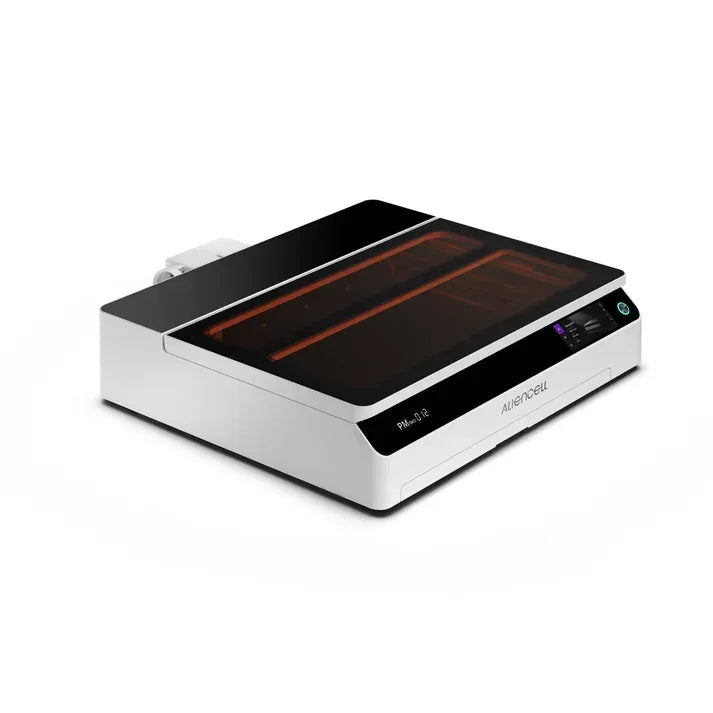

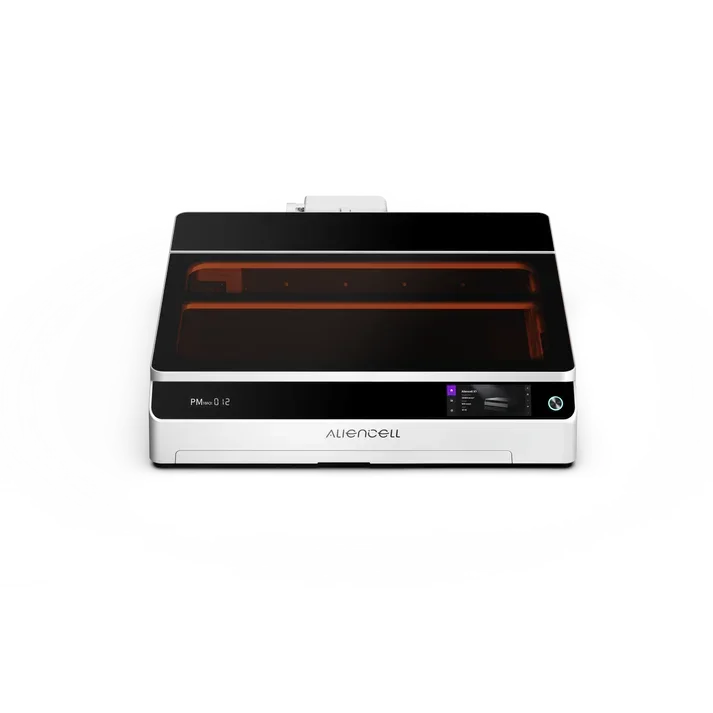

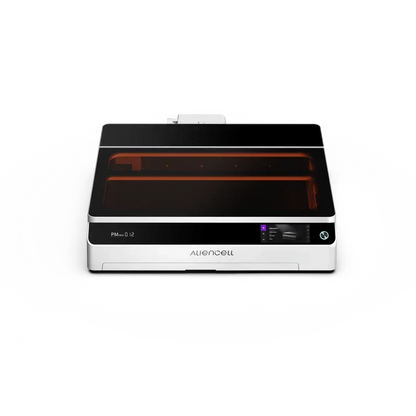

Aliencell X1 is a laser engraver professional new generation, completely closed, designed for makers, laboratories and small productions looking for speed, quality and maximum operational safety.

Product Description

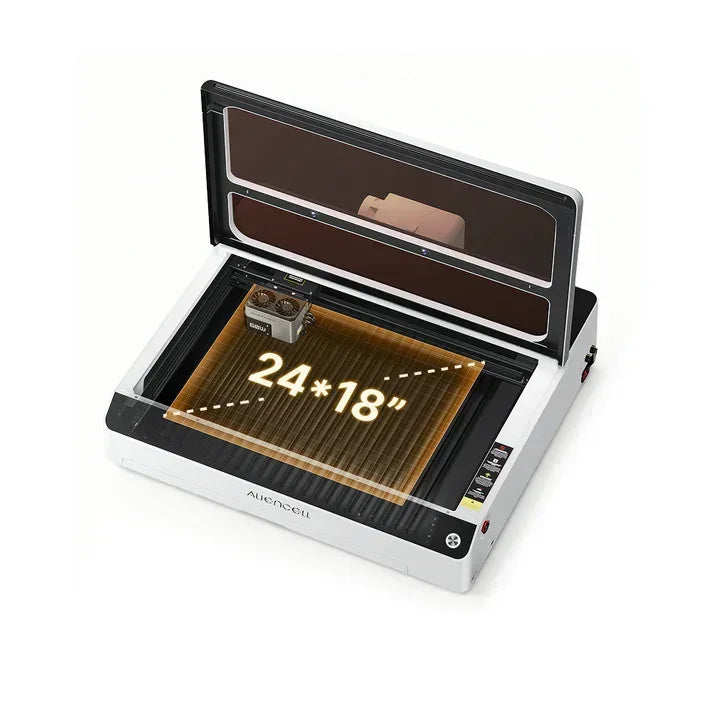

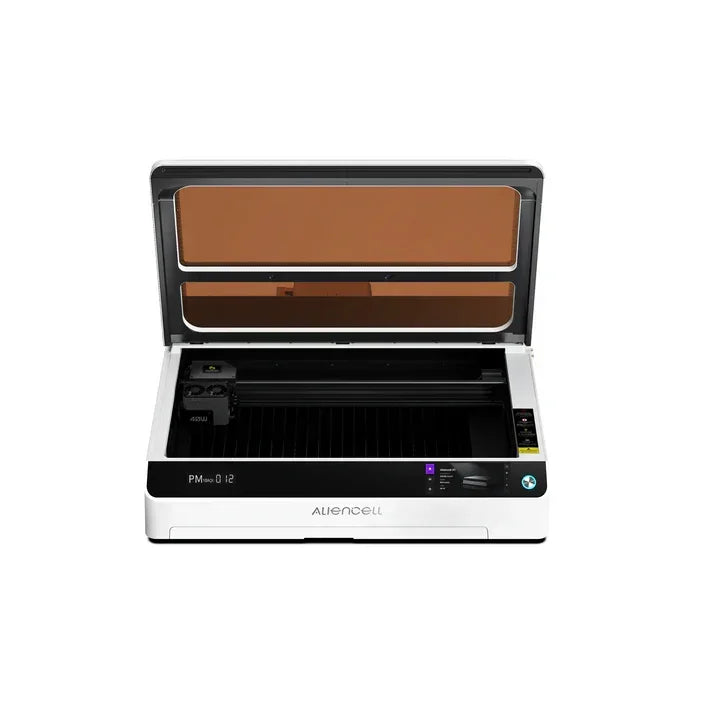

The Aliencell X1 is a diode laser with a large work area of ​​approximately 610 × 475 mm, designed to handle both one-off prototypes and production runs with short cycle times. It supports 20 W, 40 W, and 60 W optical modules, so you can choose between maximum fine detail, overall balance, or aggressive cutting on thick materials like wood and acrylic. The mechanics with acceleration up to 20,000 mm/s² and speeds up to 600 mm/s, combined with advanced motion stabilization, maintain sharp lines and uniform fills even at very high speeds.

The 8MP AI dual camera system covers the entire bed, offers real-time preview and distortion correction, making job positioning simple and precise even on multiple parts. The automatic autofocus module manages Z-focus quickly and repeatably, reducing manual errors and setup times. The 6.86" ​​touchscreen with integrated operating system and internal memory allows you to start and monitor jobs directly from the machine, even without a PC, while Wi-Fi, LAN, Bluetooth, and USB connectivity easily integrates into your workflow with LightBurn and Aliencell Space.

Compatible with over 300 materials, the Aliencell X1 engraves and cuts wood, plywood, MDF, acrylic, leather, cardboard, and fabrics, and can mark materials such as stone, anodized aluminum, treated steel, and slate. The high modulation frequency (up to 20 kHz) allows for very smooth shading and small, legible text, ideal for photo-engraving, detailed logos, and the production of personalized gadgets.

Safety and certifications

The fully enclosed chassis with filtered windows and interlocking openings converts the internal laser system (potentially Class 4) into a Class 1 device when all guards are intact and closed, reducing the risk of direct and diffuse exposure to the beam. Integrated flame sensors, real-time air quality monitoring (with a dedicated display of particulate values), and automatic shutdowns in the event of anomalies help prevent fires and uncontrolled processing. The X1 complies with major international regulations (FDA, UKCA, CE, RCM, FCC, RoHS), providing a robust compliance framework for professional use in corporate environments. The ability to integrate optional accessories such as fire suppression systems and advanced air assist completes a platform designed for continuous operator and laboratory safety.

Technical specifications table
