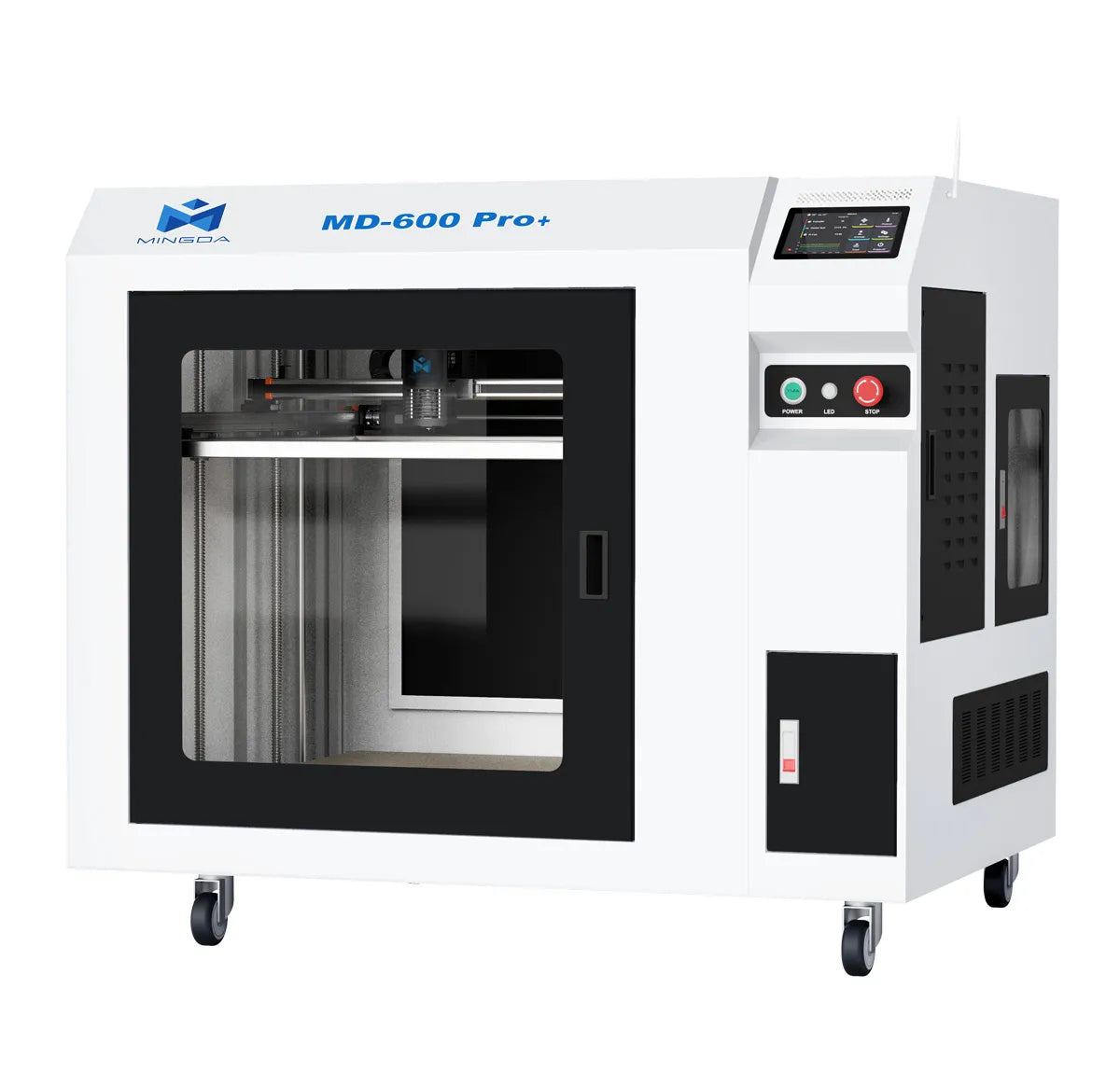

MINGDA MD-600 Pro+
MINGDA MD-600 Pro+
Couldn't load pickup availability
MINGDA MD-600 Pro+
The MINGDA MD-600 Pro+ is a professional FDM 3D printer designed for large-format rapid prototyping, industrial production, and small-batch manufacturing.
With a print volume of 600 × 600 × 600 mm, it is ideal for producing large components in a single piece: jigs, fixtures, automotive prototypes, aerospace components, functional parts, and technical models.
Key Features
Large Print Volume
The generous usable volume of 600 × 600 × 600 mm allows for the creation of large monolithic parts, reducing the need to subdivide, assemble, and glue models.
High Speed and Productivity
Thanks to Klipper firmware, the MD-600 Pro+ offers rapid movements, high accelerations, and more efficient production compared to traditional large-format 3D printers.
- Max speed up to 300 mm/s
- Acceleration up to 10,000 mm/s²
- Max extruder flow up to 40 mm³/s
- Recommended speed: up to 200 mm/s with PLA
- Recommended speed: up to 180 mm/s with PETG
- Recommended speed: up to 100 mm/s with PET-CF
High-Temperature Extrusion
The nozzle reaches a maximum temperature of 350 °C, with a recommended temperature of up to 320 °C. The heated bed reaches up to 110 °C, allowing not only PLA and PETG to be used but also numerous technical filaments reinforced with carbon fiber or glass fiber.
- Nozzle up to 350 °C
- Heated bed up to 110 °C
- Compatible with PETG-CF, PET-CF, PET-GF, HtPA-CF, HtPA-GF, PA12-CF, and equivalent technical materials
Print Precision and Quality
Automatic hands-free leveling simplifies machine preparation and improves first-layer adhesion. The Input Shaper algorithm reduces vibrations during printing, contributing to cleaner surfaces even at high speeds.
Easy Control and Full Connectivity
The printer integrates the MINGDA PI computing platform and a 7-inch IPS touchscreen. The multilingual interface, step-by-step guide, and Wi-Fi, LAN, and USB connection options make machine management practical even in production environments.
It is also possible to manage multiple printers simultaneously, a useful feature for laboratories, businesses, and print farms.
Technical Specifications
| Model | MINGDA MD-600 Pro+ |
| Printing Technology | FDM (Fused Deposition Modeling) |
| Print Volume | 600 × 600 × 600 mm |
| Firmware | Klipper |
| Computing Platform | MINGDA PI |
| Max Speed | 300 mm/s |
| Travel Speed | 300 mm/s |
| Max Acceleration | 10,000 mm/s² |
| Max Flow | 40 mm³/s |
| Recommended Speeds | PLA: 200 mm/s · PETG: 180 mm/s · PET-CF: 100 mm/s |
| Nozzle Temperature | Up to 350 °C, recommended up to 320 °C |
| Bed Temperature | Up to 110 °C |
| Nozzle Diameter | 0.6 mm standard; 0.4 mm and 0.8 mm optional |
| Spool Holder | 1 spool, up to 3 kg |
| Leveling | Automatic hands-free |
| Printing Algorithms | Input Shaper for vibration reduction |
| Display | 7-inch IPS touchscreen, multilingual interface |
| Connectivity | Wi-Fi, LAN, and USB |
| Remote Management | Remote printing and multi-machine control |
| Slicing Software | MINGDA Slicer, optimized for high-speed printing |
| Compatible Filaments | PLA, PETG, PETG-CF, PET-CF, PET-GF, HtPA-CF, HtPA-GF, PA12-CF, HtPA-GF25, and HtPA-CF25 |
| Input Voltage | 220 V |
| Rated Power | 1,400 W |
| Machine Dimensions | 1,212.5 × 943.5 × 1,075 mm |
