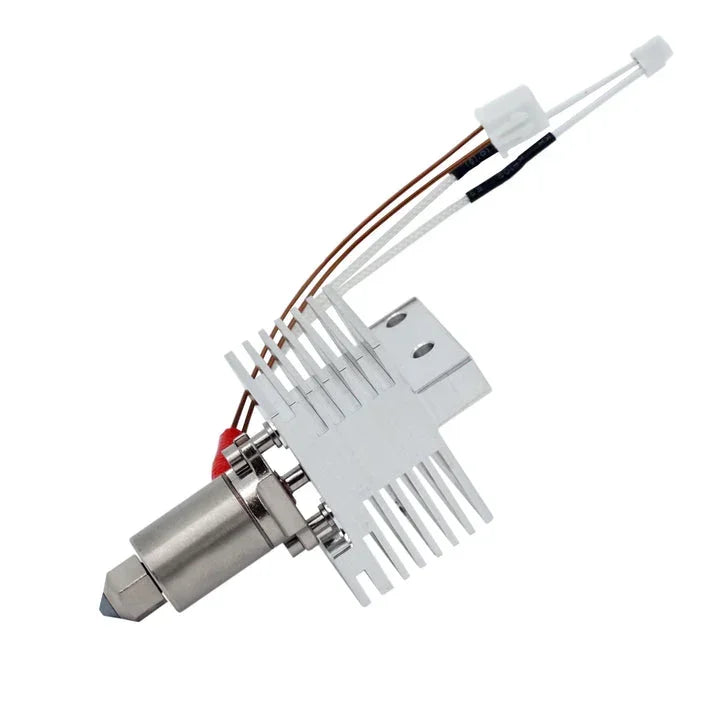

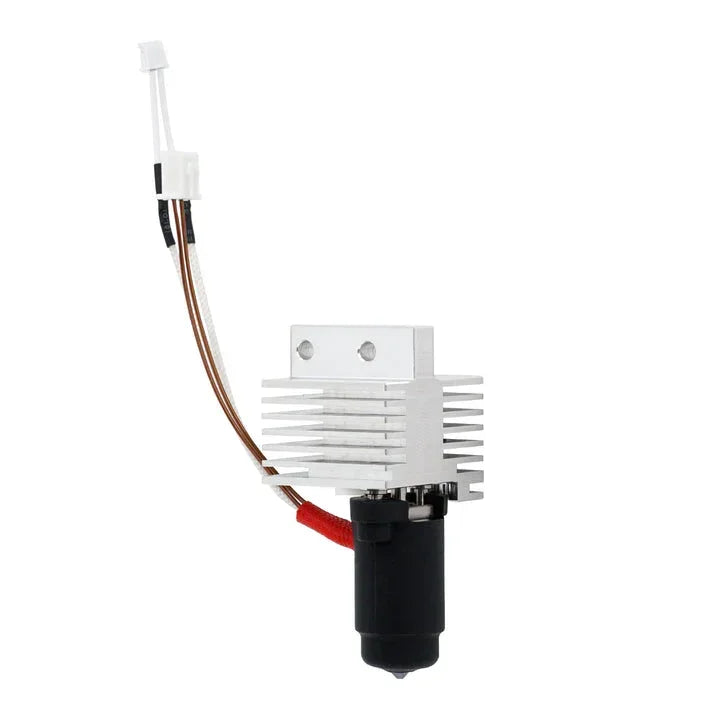

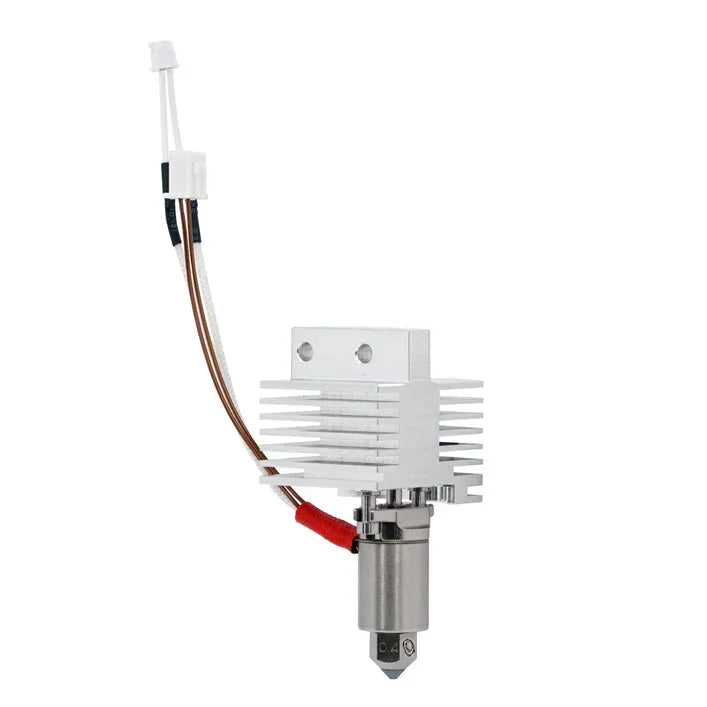

Microswiss FlowTech™ Hotend for Elegoo Centauri Carbon

The FlowTech™ Hotend is a high-performance, all-metal upgrade designed specifically for the Elegoo Centauri Carbon. Engineered for speed, reliability, and plug-and-play installation, it delivers filament flow up to 50mm³/s while maintaining print quality. Designed and manufactured in the USA by Micro-Swiss, it's ready to install on your machine with minimal effort.

Main highlights

• Designed for compatibility with Elegoo Centauri Carbon
• Volumetric flow rate up to 50 mm³/s
• Leak-proof sealed nozzle and thermal cut-off assembly
• Cold nozzle replacement - no hot tightening required
• All-metal construction, resistant to 300°C
• Includes heating core, 0.4mm high flow CHT nozzle, heat sink, titanium screws and silicone sock


Precision engineering for faster, cleaner prints

The FlowTech Hotend utilizes a sealed heating core and nozzle/thermal switch assembly to eliminate filament leakage and thermal runaway. By integrating the titanium nozzle and thermal switch into a single, precision-machined assembly, it ensures a robust and leak-proof hotend that can withstand even the harshest conditions.

Exceptional flow performance

Thanks to its specially matched Bondtech CHT 0.4 mm high-flow nozzle, the FlowTech Hotend can reach flow rates of up to 50 mm³/s, enabling rapid printing without compromising layer quality or adhesion. The CHT design divides the melting zone into multiple chambers for more uniform material deposition and fewer weak spots.

Simplified installation and maintenance

Designed for maximum simplicity, this hotend is designed for the Elegoo Centauri Carbon build and installs as a plug-and-play upgrade, with no firmware changes required. It supports cold-start nozzle replacement without preheating or hot-tightening, making maintenance quicker and safer.

Built to last

Each unit is all-metal and manufactured and quality-controlled in the USA by Micro-Swiss. Thermal cycling and rigorous quality control ensure durability across a wide range of modern filaments and printing conditions. With a temperature resistance of up to 300°C, the FlowTech hotend is ready for advanced print configurations.

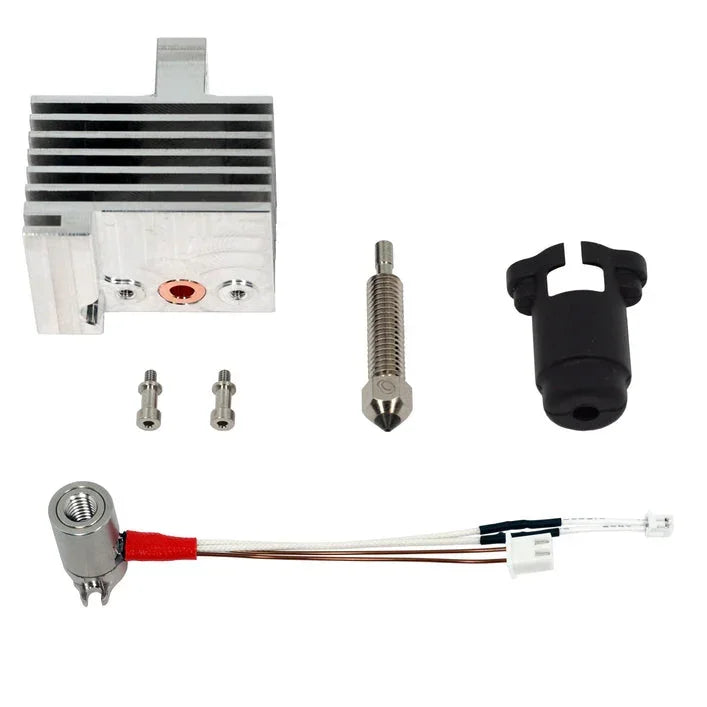

What's in the box

Package includes:
1 × FlowTech heating core (24 V, 60 W)
1 × FlowTech CM2 CHT 0.4mm nozzle
1 × Heatsink
2 × titanium screws
1 × silicone sock
