FLUX Chuck Rotary Add-on

FLUX Chuck Rotary Accessory

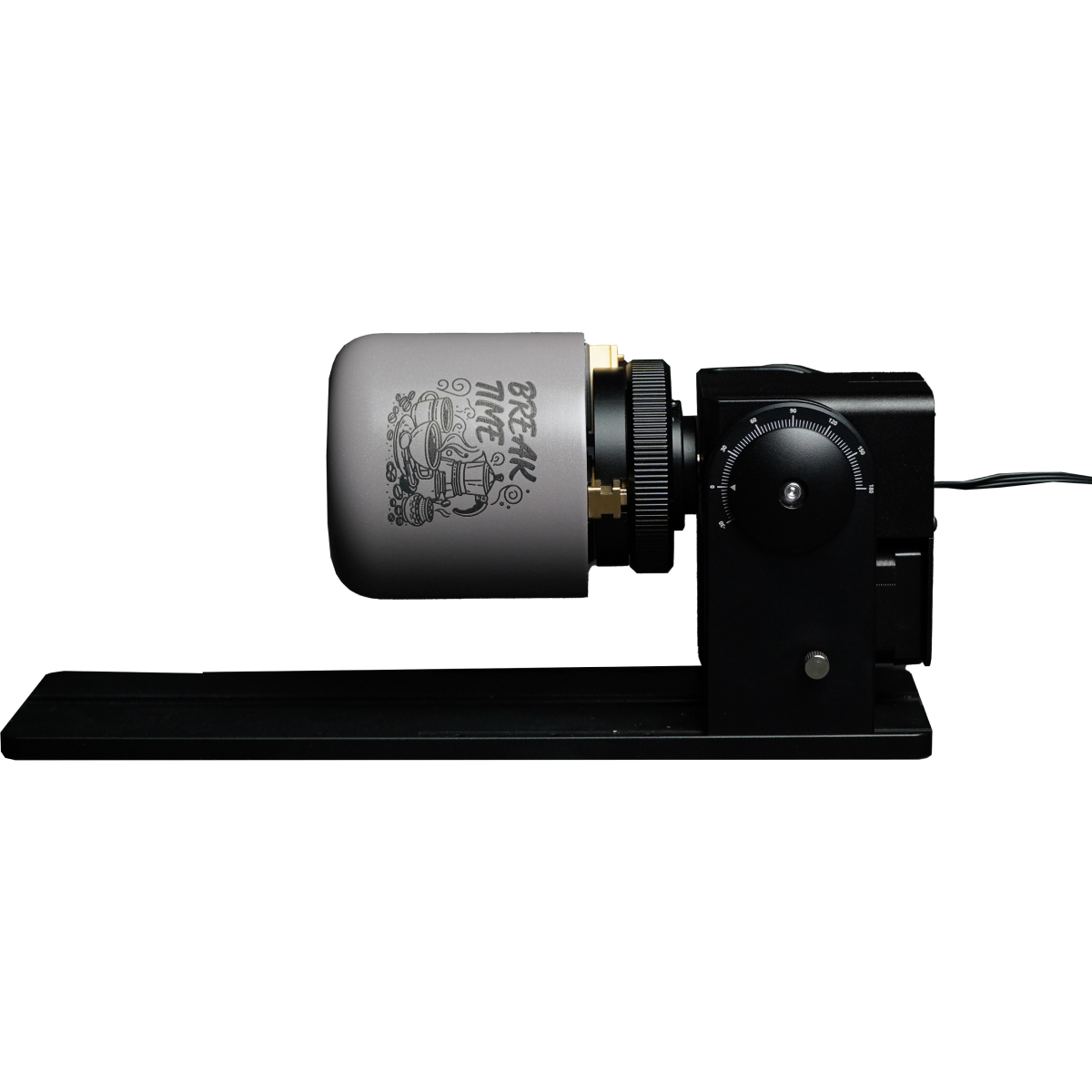

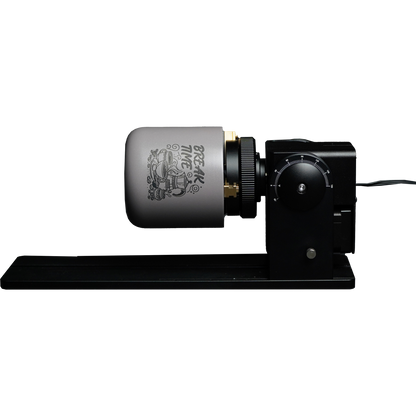

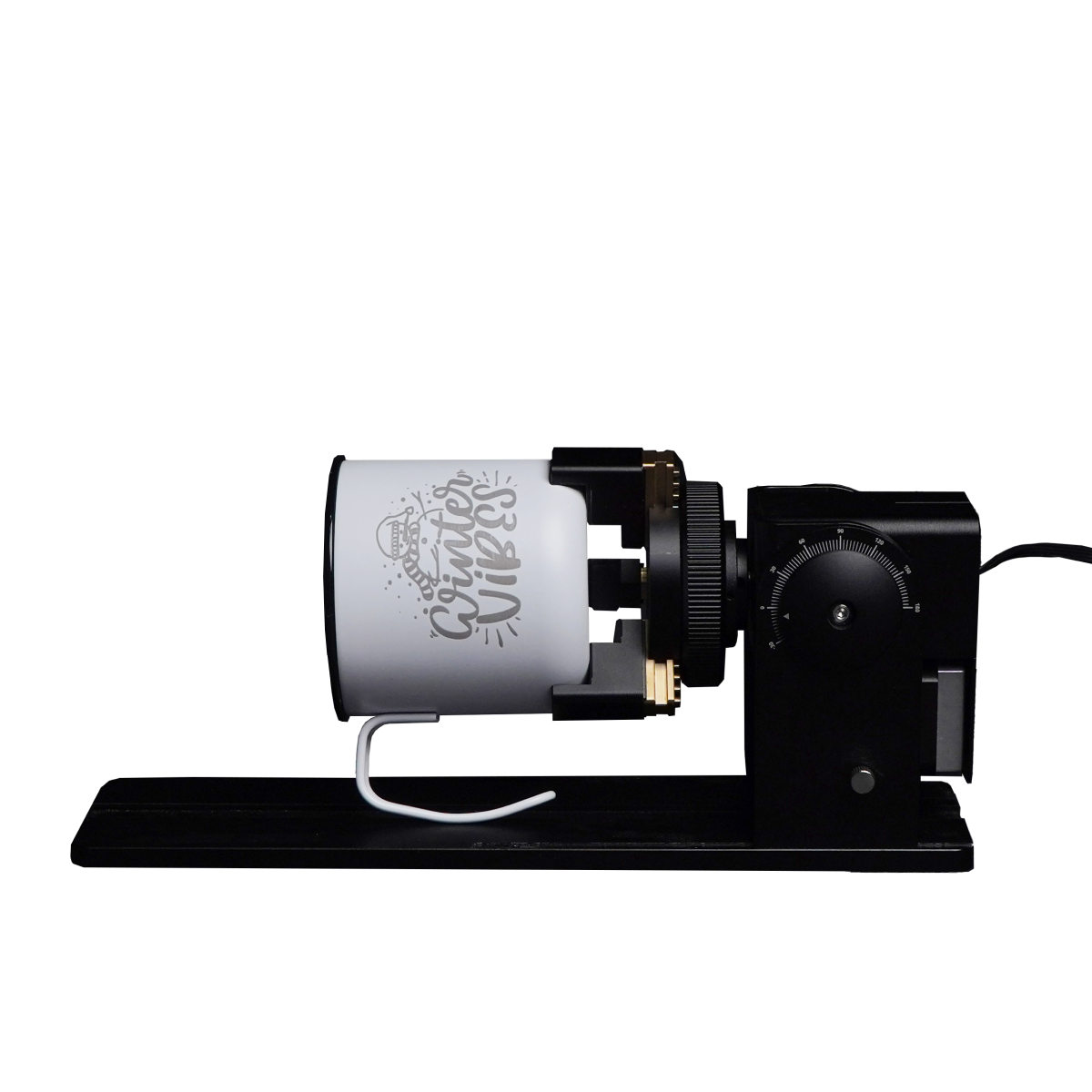

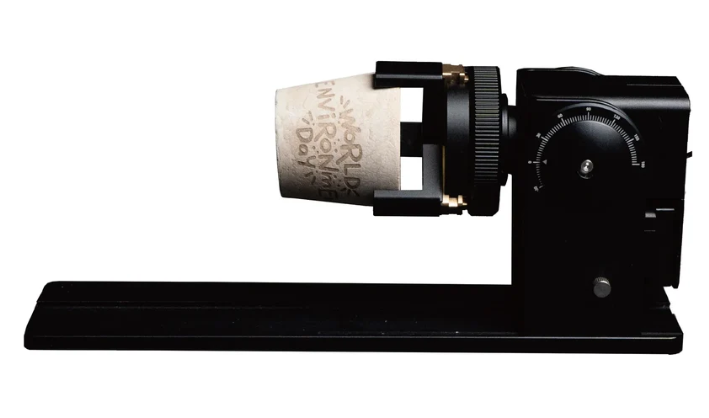

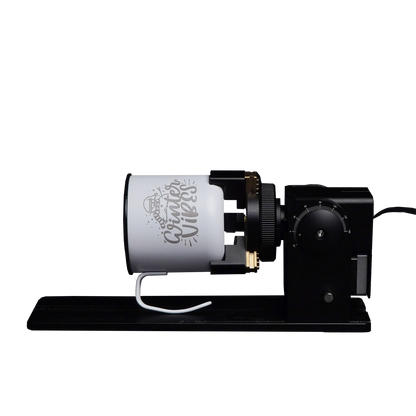

The FLUX Chuck Rotary accessory is an add-on module designed to significantly expand the capabilities of your laser cutting and engraving machine. Developed specifically to integrate into the FLUX engraver ecosystem, this accessory stands out by offering an efficient and precise solution for continuous 360° engraving on cylindrical, spherical, and ring-shaped objects — a fundamental feature for artisans, designers, and small businesses looking to customize gift items, drinkware, and jewelry.

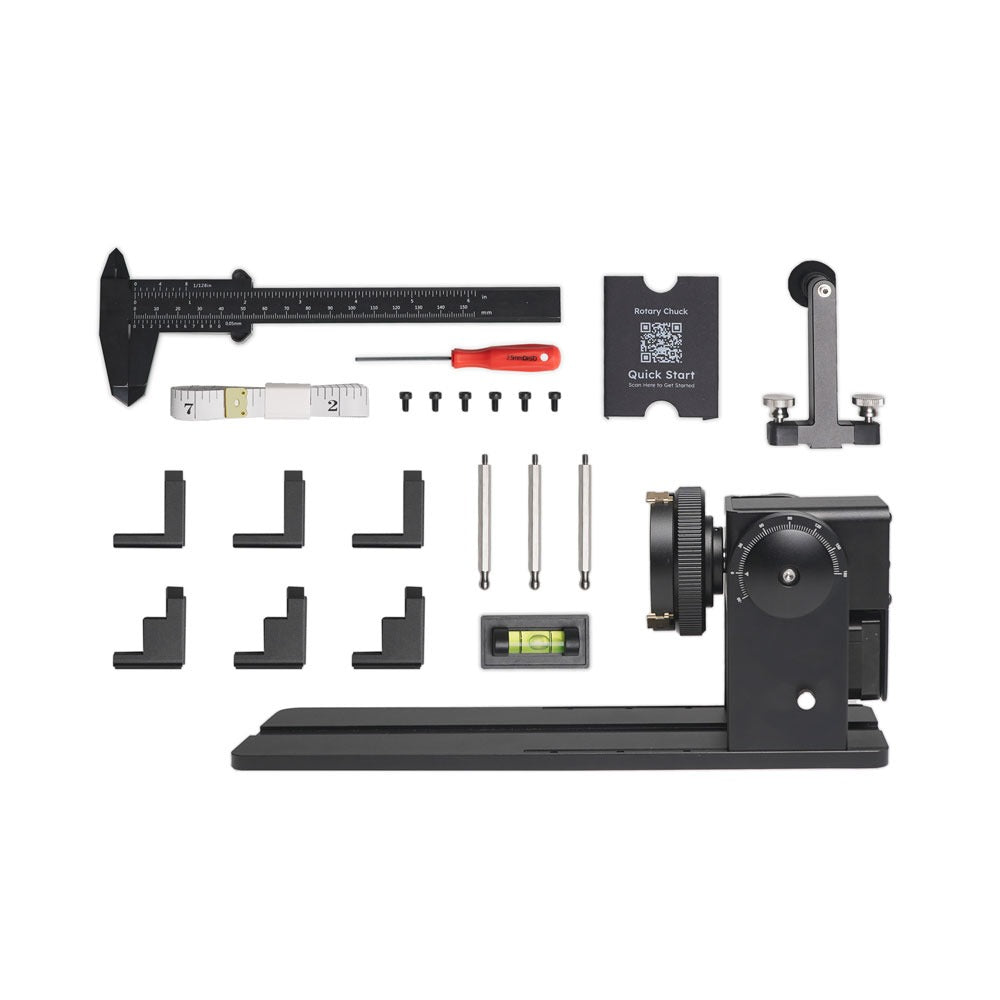

Equipped with a system of adjustable stepped, L-shaped, and hexagonal jaws, the chuck adapts quickly to different diameters and geometries, ensuring a firm and stable grip. Seamless integration with the Beam Studio software allows users to take their projects to the next level, eliminating positioning uncertainties and opening up new business opportunities, all while maintaining the ease of use and reliability that define the brand.

Technical Specifications per Variant

Depending on the FLUX machine model you own, select the dedicated variant to achieve maximum work performance:

• beamo II Variant (Code: RTCBN)

1. Cylindrical engraving diameter: 1 mm – 140 mm
2. Ring engraving diameter: 11 mm – 140 mm
3. Sphere engraving diameter: 25 mm – 130 mm
4. Maximum engraving length: 275 mm
5. Note: An Extension Base is required for use on beamo II.

• Beambox II Variant

1. Cylindrical engraving diameter: 1 mm – 145 mm
2. Ring engraving diameter: 11 mm – 145 mm
3. Sphere engraving diameter: 25 mm – 130 mm
4. Maximum engraving length: 500 mm

• Ador Variant

1. Cylindrical engraving diameter: 1 mm – 130 mm
2. Ring engraving diameter: 11 mm – 130 mm
3. Sphere engraving diameter: 25 mm – 130 mm
4. Maximum engraving length: 325 mm
5. Note: An Extension Base is required for use on Ador.

• HEXA Variant

1. Cylindrical engraving diameter: 1 mm – 70 mm
2. Ring engraving diameter: 11 mm – 70 mm
3. Sphere engraving diameter: 25 mm – 70 mm
4. Maximum engraving length: 610 mm

Key Benefits and Features

• Versatile and Secure Clamping: Thanks to the included set of interchangeable jaws, it is possible to grip objects from both the outside and inside, ensuring maximum stability even on delicate surfaces.
• Perfect Integration with Beam Studio: The control software recognizes the module and provides optimized parameters to facilitate the configuration of engraving on different materials, reducing the learning curve.
• Precision in Details: Ideal for marking tiny text, elaborate logos, barcodes, serial numbers, and complex decorative patterns on metal, wood, acrylic, or glass.
• Seamless Engraving: Allows for the creation of continuous graphics along the entire circumference of the object without alignment defects.

Recommended Optional Accessories

To optimize processing on objects with particular shapes, you can integrate the chuck with dedicated accessories:

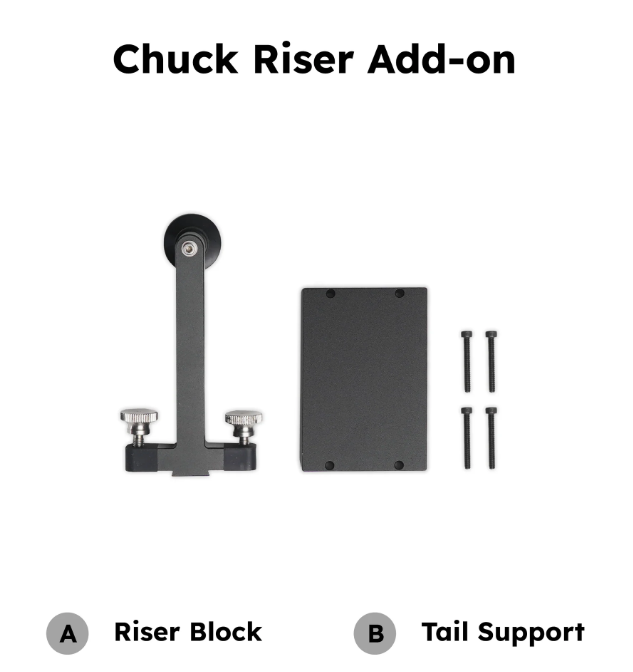

• Chuck Riser: Raises the chuck and increases rotation space; highly recommended for bulky objects or those with handles (such as 1.2-liter / 40 oz thermal tumblers).

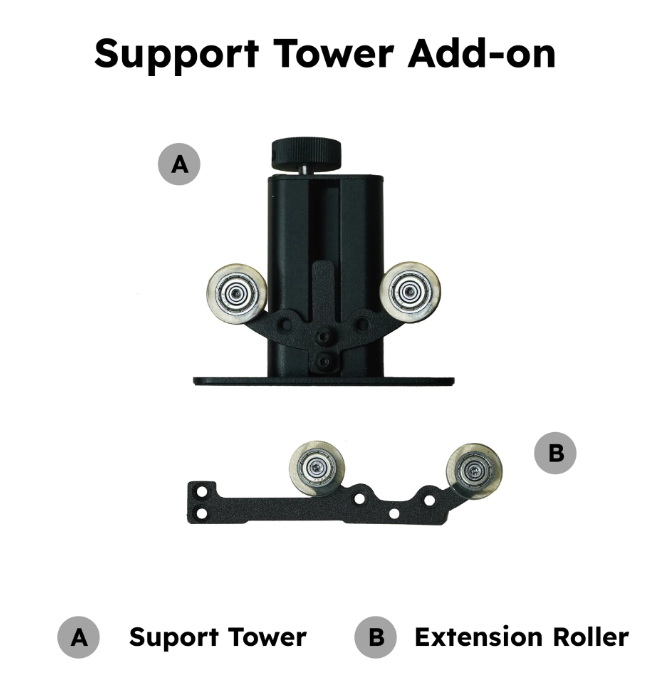

• Rotary Support Tower: Offers an additional support point at the opposite end, ideal for stabilizing elongated or unbalanced objects such as wine glasses, bottles, or baseball bats.
