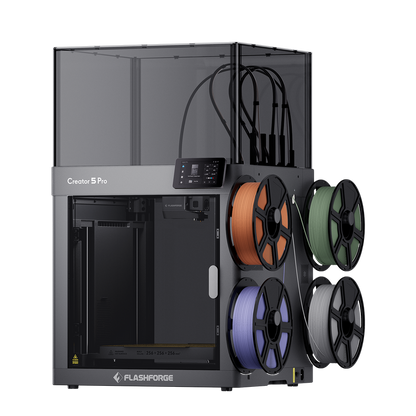

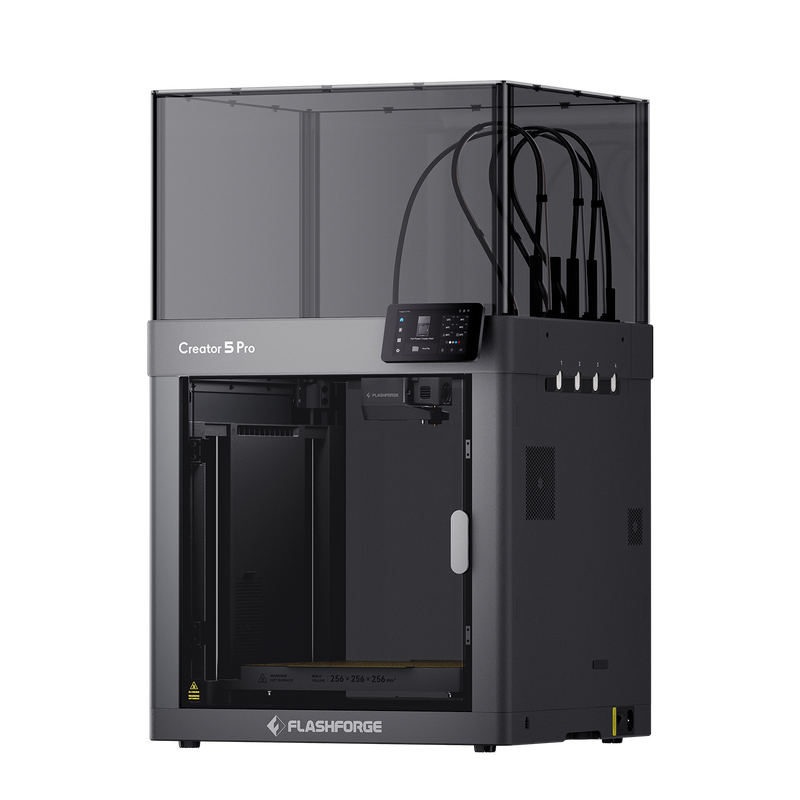

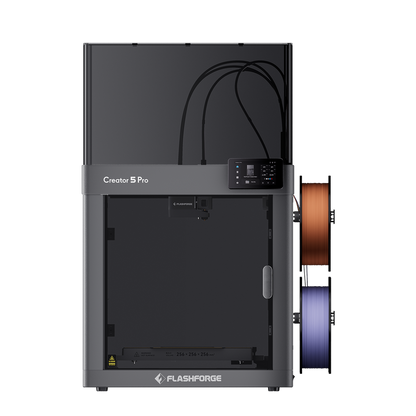

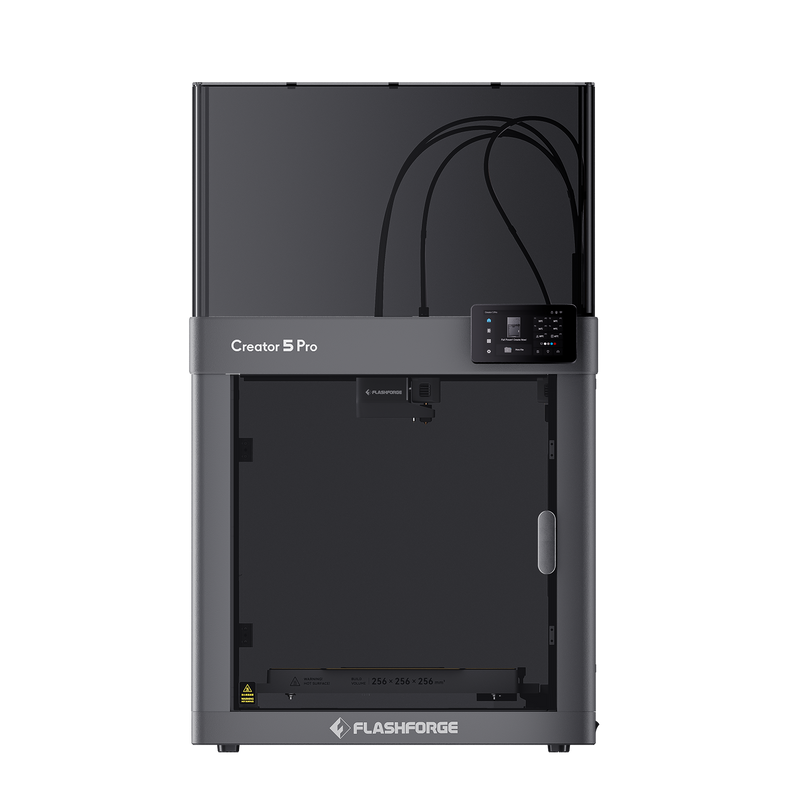

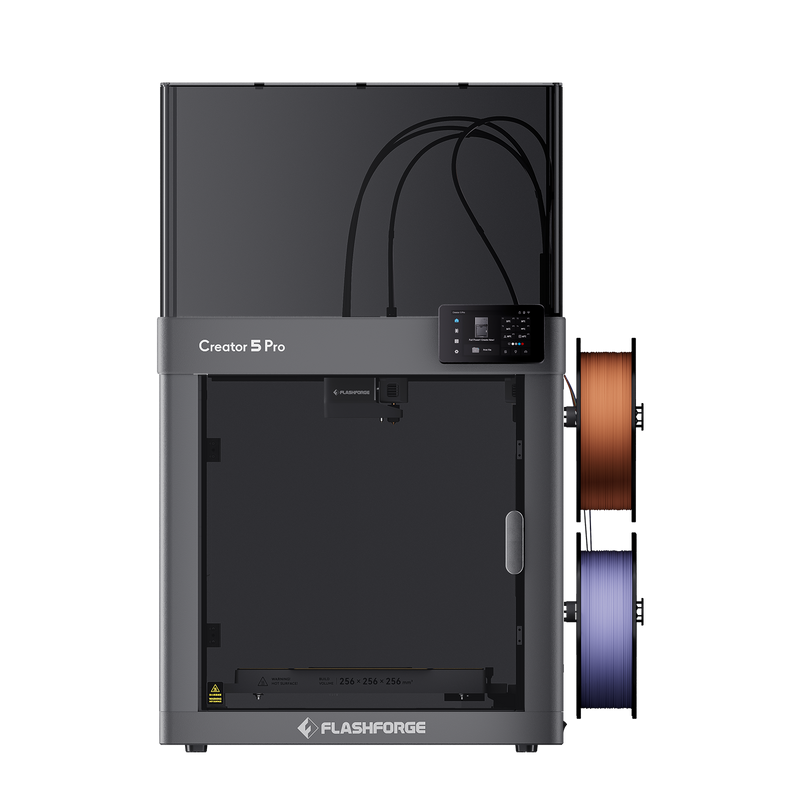

Flashforge Creator 5 Pro

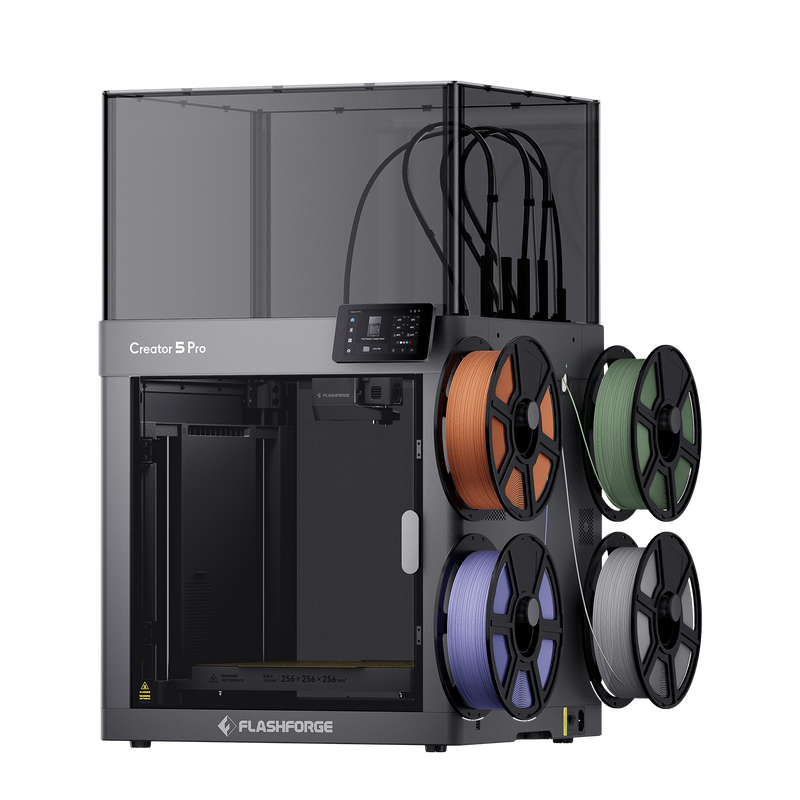

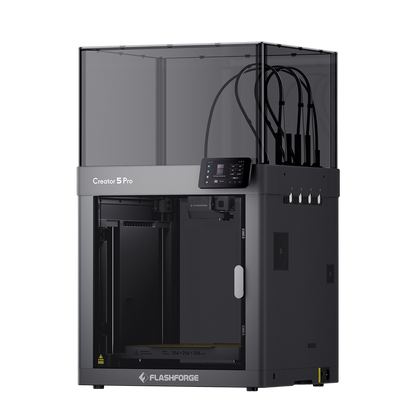

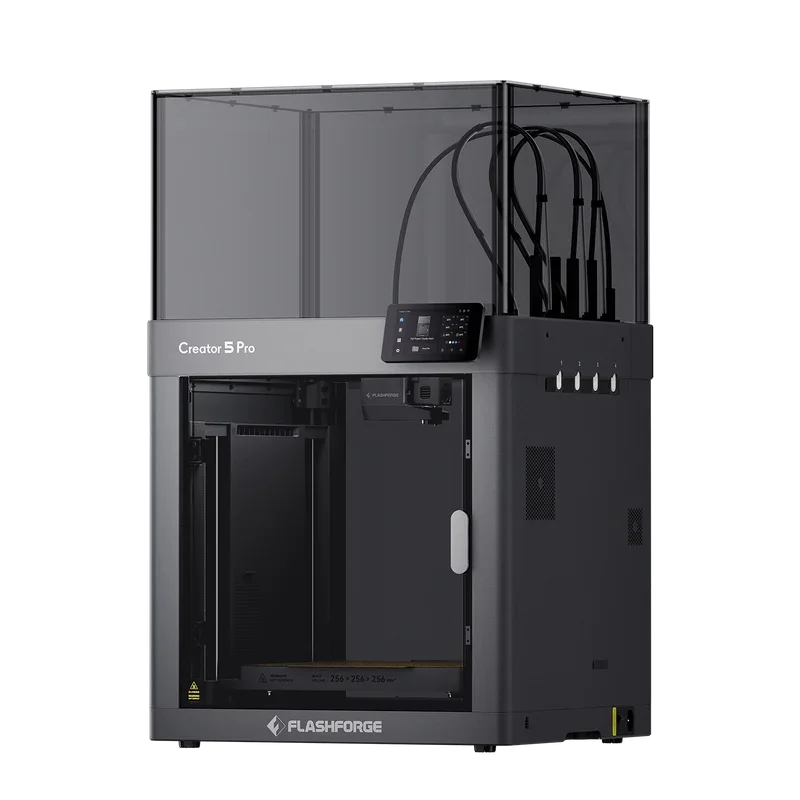

Flashforge Creator 5 Pro – Professional multi-material 3D printing with four independent print heads

The Flashforge Creator 5 Pro is a professional FDM 3D printer with a closed chamber, designed for efficient production with different materials and colors. Equipped with four independent print heads, a build volume of 256 × 256 × 256 mm and an intelligent automation system, it is ideal for creating functional components, prototypes and engineering parts. Its high operating temperatures, actively heated chamber and extensive material compatibility make it suitable for demanding professional workflows.

Highlights

• Four independent print heads for multi-material and multi-color printing.
• Enclosed build volume: 256 × 256 × 256 mm
• Print speed up to 300 mm/s and travel speed up to 600 mm/s
• 320 °C all-metal hotend and actively heated chamber up to 65 °C
• Automatic leveling, tool head calibration, and dynamic flow compensation.
• Integrated Full HD camera, HEPA 13 filter, and dual-band Wi-Fi.

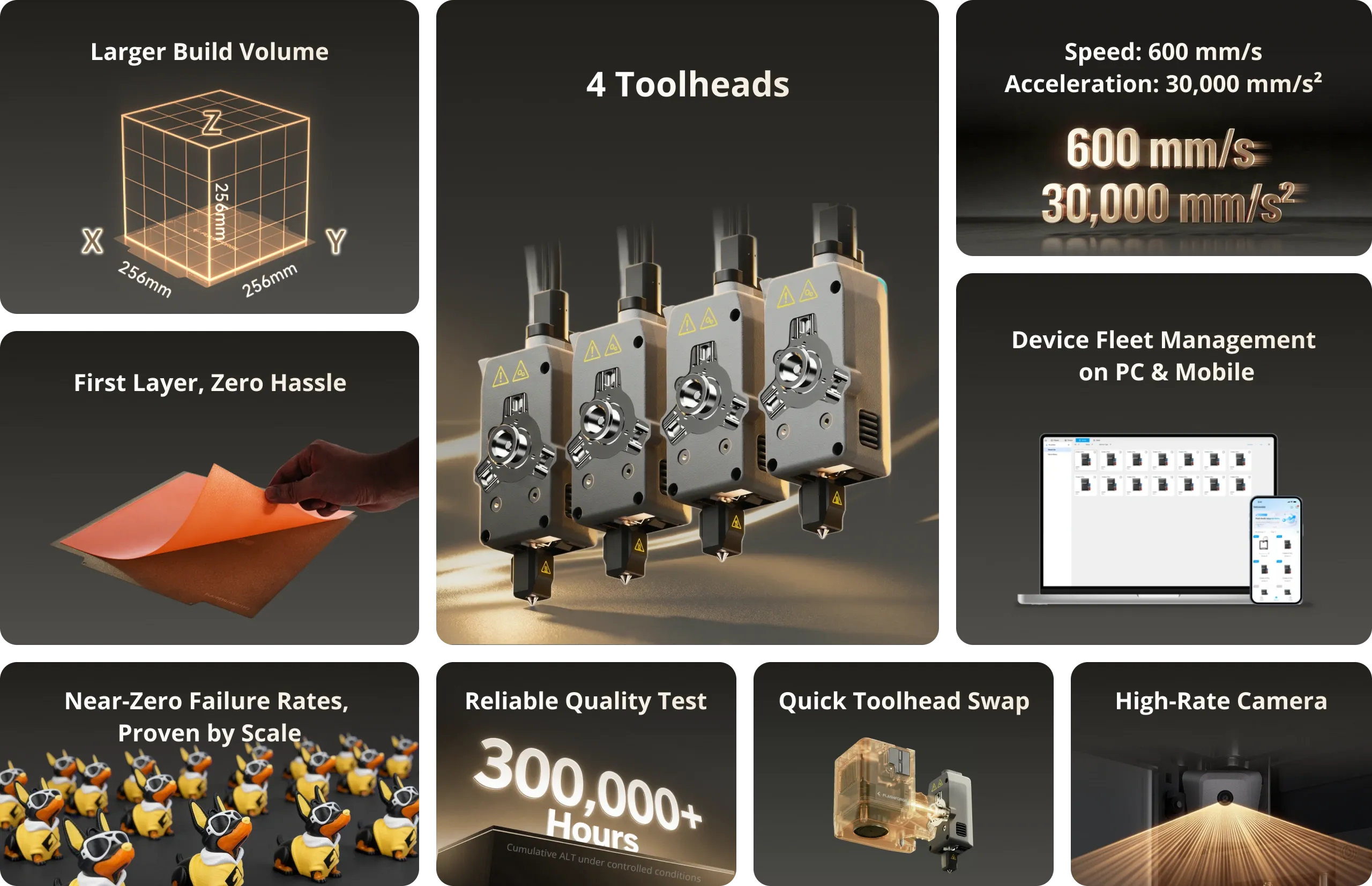

Four Independent Tool Heads

The Creator 5 Pro uses four independently controlled print heads, allowing you to combine different materials or colors in a single print. The interchangeable print head system also helps reduce material waste when switching prints, compared to systems that rely on a single nozzle.

Build Volume: 256 × 256 × 256 mm

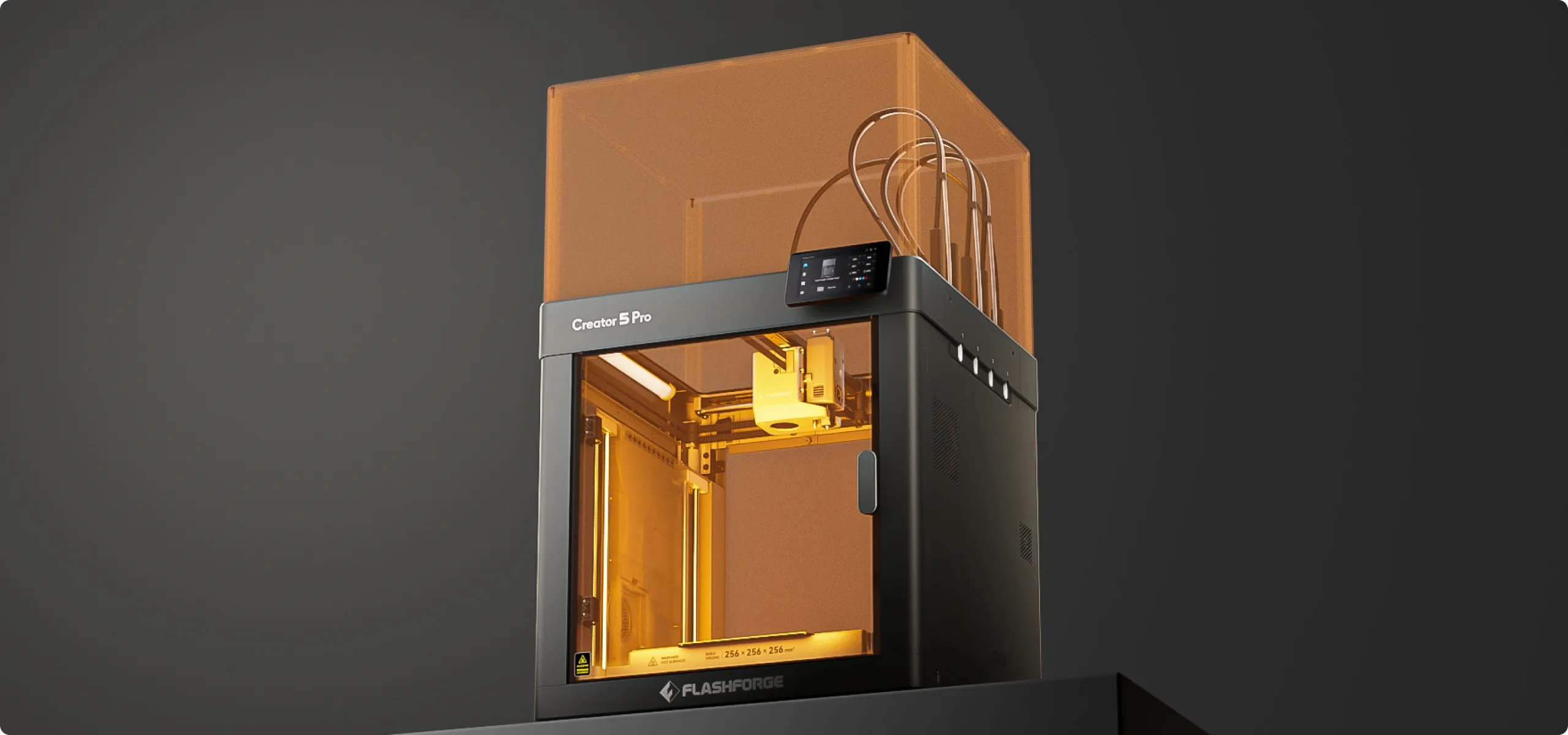

With a build volume of 256 × 256 × 256 mm, the Flashforge Creator 5 Pro offers space for functional prototypes, manufacturing tools, engineering components, and end-use parts. Its enclosed structure helps maintain a stable printing environment when working with heat-sensitive materials.

High-Speed Printing

The Creator 5 Pro supports print speeds up to 300 mm/s, travel speeds up to 600 mm/s, and accelerations up to 30,000 mm/s². Dynamic flow calibration automatically compensates for material flow to ensure consistent print quality and dimensional accuracy even during high-speed printing.

Engineering Material Support

The printer features a 320 °C all-metal hotend, a heated build plate capable of reaching 120 °C, and an actively heated chamber up to 65 °C. It supports materials such as PLA, PETG, TPU, ABS, ASA, HIPS, PVA, BVOH, PLA-CF, PETG-CF, PA-CF, PET-CF, PAHT-CF, ASA-CF, ASA-GF, ABS-GF, PPA-CF, PPS-CF, SILK, S-Multi, and S-PAHT.

Automatic Calibration and Reliable Operation

Automatic bed leveling, automatic tool head offset calibration, dynamic flow calibration, filament runout detection, power loss recovery, door detection, and chamber temperature monitoring help reduce manual setup and improve reliability. A removable nozzle and a flexible steel build plate with textured PEI coating also simplify maintenance and part removal.

Connected Workflow and Remote Monitoring

The integrated Full HD camera enables remote monitoring of print jobs. USB and dual-band 2.4 GHz and 5 GHz Wi-Fi connectivity offer flexible printer management, while support for Orca-Flashforge, OrcaSlicer, and multi-printer management make the Creator 5 Pro suitable for professional teams, educational environments, and manufacturing facilities.

Technical Specifications – Flashforge Creator 5 Pro

• Number of extruders: 4 independent print heads
• Build volume: 256 × 256 × 256 mm
• Maximum bed temperature: 120 °C
• Maximum nozzle temperature: 320 °C
• Build plate: Flexible steel with textured PEI coating
• Layer thickness: 0.1 – 0.4 mm
• Nozzle diameter: 0.4 mm (standard), optional 0.25 / 0.6 / 0.8 mm
• Removable nozzle: Yes

Performance

• Print speed: up to 300 mm/s
• Travel speed: up to 600 mm/s
• Acceleration: up to 30,000 mm/s²
• Maximum flow rate: 32 mm³/s
• Dynamic flow calibration: Yes (Auto PA)
• Automatic leveling: Yes

Supported Materials

• Standard materials: PLA, PETG, TPU, ABS, ASA, HIPS
• Technical materials: PA-CF, PET-CF, PAHT-CF, PPA-CF, PPS-CF, ASA-CF, ASA-GF, ABS-GF
• Special materials: PLA-CF, PETG-CF, SILK, PVA, BVOH, S-Multi, S-PAHT
• Closed chamber materials: ABS, ASA, HIPS, ABS-GF, PA-CF, ASA-CF, ASA-GF, S-Multi, S-PAHT, PET-CF, PAHT-CF, PPA-CF, PPS-CF

Features

• Filament detection: Yes
• Print resume after interruption: Yes
• Integrated camera: Full HD (1280 × 720 @ 30 fps)
• Remote monitoring: Yes
• Chamber lighting: Yes
• Multi-printer management: Yes
• Door detection: Yes (front + top)
• Auxiliary cooling: Yes
• One-touch on/off: Yes

Connectivity and Software

• Connectivity: USB, Wi-Fi
• Wi-Fi: Dual-band 2.4 GHz / 5 GHz
• Compatible software: Orca-Flashforge, OrcaSlicer

Structure and Environment

• Structure: Closed chamber
• Actively heated chamber: up to 65 °C
• Air filtration: HEPA 13 + activated carbon

Display

• Screen: 4" color touchscreen, 800 × 480

Dimensions and Weight

• Dimensions (with accessories): 520 × 443 × 710 mm
• Dimensions (without accessories): 441 × 411 × 460 mm
• Net weight: 18 kg
• Gross weight: 22 kg

Power

• Voltage: 100–120V / 200–240V AC, 50/60 Hz
• Power: 1200 W
