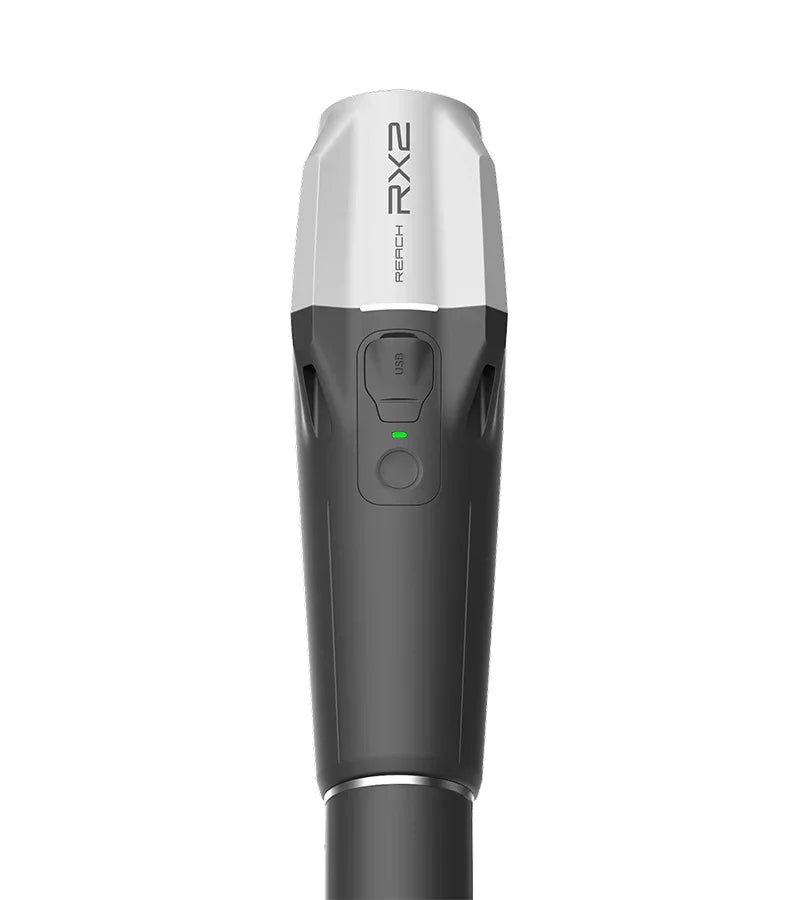

EMLID REACH RX2

Emlid Reach RX2 is the pocket-sized, all-band GNSS RTK rover: 280 g, IP68, up to 18 hours of battery life, calibration-free tilt compensation, and centimeter accuracy even near buildings or under tree canopy. Perfect for rapid surveys, utilities, landscaping, construction, ground control point (GCP) surveys, and GIS.

Available only in Rover (NTRIP) configuration.

RX2 tracks all bands of GPS, GLONASS, Galileo, BeiDou, QZSS, and NavIC with 672 channels, achieving centimeter accuracy in RTK even under canopies and in urban environments. TILT activates after a few steps, with no setup or recalibrations needed: you can measure near walls or slopes without leveling the pole.

Accuracy specifications:

• RTK 7 mm + 1 ppm (H), 14 mm + 1 ppm (V)
• for tilt, RTK + 2 mm + 0.3 mm/° with typical fix time ~5 s.

Ready for your GIS and construction workflow

With Emlid Flow (iOS/Android), you can collect data, perform point/line surveys, and synchronize in real-time with office operators via Emlid Flow 360. Emlid Reach RX2 is MFi (native integration with iPhone/iPad) and is compatible with popular GIS apps such as ArcGIS Field Maps, QField, Survey123, Mergin Maps. For terrestrial scanning, it can be mounted on a handle and used with PIX4Dcatch for centimeter-accurate 3D models of facades and difficult areas.

Compact, lightweight, and durable

Reach RX2 weighs only 280 g: you can carry it in your pocket or car compartment. It has IP68 protection (immersion up to 1.5 m / 30 min). It works continuously for approximately 18 hours and can be recharged via the included USB Type-C cable.

Connectivity and data

Emlid Reach RX2 receives NTRIP/RTCM3 corrections from CORS/VRS networks and sends NMEA position to your apps via Bluetooth.

Technical specifications

• GNSS & bands: GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC all-band; 672 channels; 5 Hz update.
• Accuracy: RTK H 7 mm + 1 ppm / V 14 mm + 1 ppm; TILT = RTK + 2 mm + 0.3 mm/°; convergence ~5 s.
• Connectivity: Bluetooth 4.2 (BR/EDR + LE); RTCM3 input via NTRIP; NMEA output; USB-C for data/charging.
• Mechanical/Resistance: 172×51×51 mm, 280 g; IP68, –20/+65 °C.
• Power: Li-Ion battery 7000 mAh / 25.2 Wh; up to 16 h autonomy in datasheet; USB-C 5V/2A charging.

In the box

Emlid Reach RX2 comes with a USB Type-C charging cable

Technical Data Sheet
