Shining 3D EinScan SE V2
Shining 3D EinScan SE V2
Regular price
€786,88 EUR
Regular price
€999,18 EUR
Sale price
€786,88 EUR
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

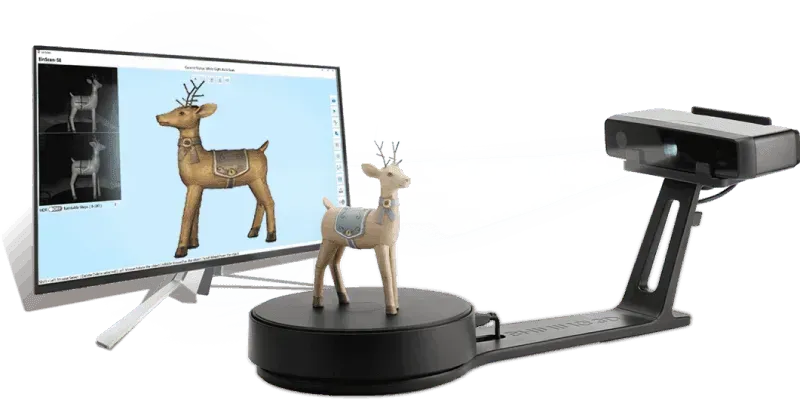

EINSCAN-SE V2 - A powerful companion for desktop 3D printing applications
Shining 3D has designed and developed EinScan SE (Elite) and EinScan-SP (Platinum), with unique specifications to meet the needs of most applications. It includes two scanning modes: automatic scanning and fixed scanning. It handles a wide range of scanning from small to large. Color scanning, easy to reconstruct the real physical characteristics of an object.
EINSCAN-SE - THE SUCCESSOR OF EINSCAN-S
EinScan-SE is the new generation of EinScan-S with its new design and enhanced capacity. It is the easiest 3D scanning experience for non-technical users, perfect for education, desktop 3D printing, etc.
Characteristics:
- Time required for a single scan: 1 second
- Time required for a 360º scan in Auto Scan mode: 45 seconds
- Plug-and-play. Easy setup and smarter design
- New integrated and smarter design, with a smaller footprint Modern "Black Pearl" color
| Model | EinScan-SE | EinScan-SP |
| Scan Mode | Fixed Scan with Turntable Fixed Scan without Turntable | Fixed Scan with Turntable Fixed Scan without Turntable |
| Scan Accuracy | ≤0.1 mm(single shot accuracy) | ≤0.05 mm(single shot accuracy) |
| Scan Speed | Single scan<8s | Single scan<4s |
| Point Distance | 0.17mm~0.2 | 0.17mm~0.2 |
| Align Mode | Fixed Scan without Turntable Feature, Manual,Fixed Scan with Turntable Turntable, ManualFixed Scan without Turntable
Features, Markers, Manual |
Fixed Scan with Turntable Turntable, Turntable Coded Targets, Markers, Manual |
| Texture Scan | Yes | Yes |
| Outdoor Operation | Set up the shelter or cover to avoid direct sunlight | Set up the shelter or cover to avoid direct sunlight |
| Special Objects for Scanning | For the transparent, highly reflective or some dark objects, please spray powder before scanning. | For the transparent, highly reflective or some dark objects, please spray powder before scanning. |
| Single Scan Range | 200×150 mm | 200×150 mm |
| Working Distance | 290 ~ 480mm | 290 ~ 480mm |
| Light Source | LED | LED |
| Printable Data Output | Able to export watertight 3D model directly to 3D printingOutpu | Able to export watertight 3D model directly to 3D printingOutpu |
| Formats | OBJ, STL, ASC, PLY, 3MF | OBJ, STL, ASC, PLY, 3MF, P3 |
| Turntable | Standard | Turntable with coded targets |
| Turntable Loading Capacity | 5 kg | 5 kg |
| Net Weight | 2.5 kg | 4.2 kg |
| Supported OS | Windows 7, 8 or 10, 64bit / Mac (OS 10.10.9 to 10.12.3) | Windows 7, 8 or 10, 64bit / Mac (OS 10.10.9 to 10.12.3) |
| PC Requirements | Nvidia series; Graphic memory > 1G;1 ×USB 2.0 or 3.0; i5 or higner; >8G | Nvidia series; Graphic memory > 1G;1 ×USB 2.0 or 3.0; i5 or higner; >8G |
